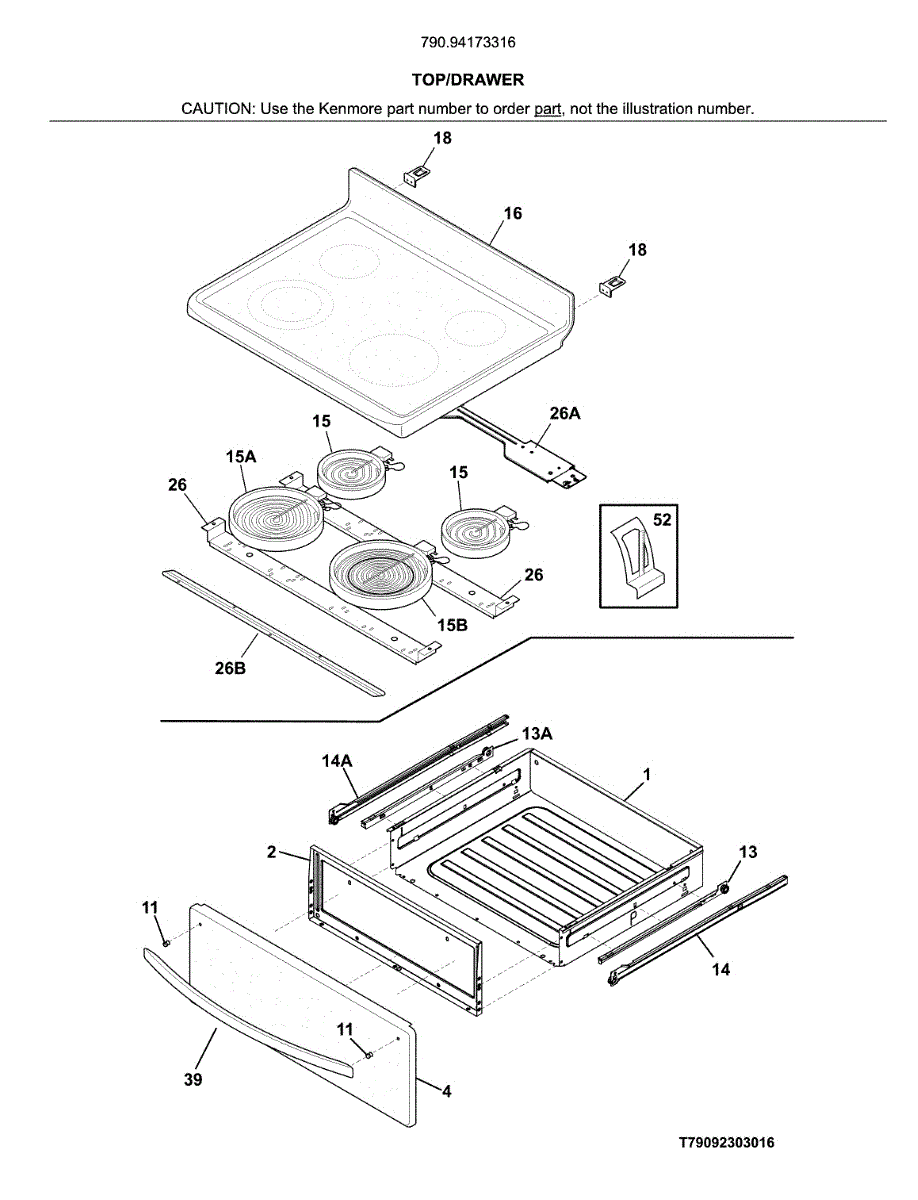

Parts for Kenmore 790.94173316 (79094173316, 790 94173316): Top / Drawer Parts

This liner attaches to the inside of the range's storage or warming drawer front panel, providing a finished interior surface and insulation. It helps protect the outer drawer panel from heat generated by the oven cavity above. Replace this liner if it is warped, cracked, discolored, or missing, which can allow excess heat to reach the drawer's exterior.

Replacement door panel for electric ranges. Covers the outer door surface. Order a new panel if yours is rusted, dented, scratched, or discolored.

The Glide is an OEM part for Frigidaire ranges. It ensures smooth movement of the storage drawer, allowing you to easily access and organize your stored items.

A bad glide can be caused by wear and tear, damage, or lack of lubrication. Signs of a faulty glide include a sticky or jammed drawer, uneven sliding, or a drawer that doesn't close properly.

Symptoms of a bad glide can include:

• Difficulty in opening or closing the storage drawer.
• Uneven or jerky sliding motion of the drawer.
• Drawer getting stuck or not fully closing.

Replace your worn-out or damaged glide with this genuine OEM part to restore movement to your range's storage drawer. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


Range drawer glide ensures smooth opening and closing while keeping drawers aligned. Replace when drawers stick, scrape, or misalign. Confirm fit with model.

Drawer slide glide for electric and gas ranges. Replace if cracked, broken, or worn to restore smooth, aligned drawer movement and eliminate sticking.

This is a 12-inch radiant surface heating element designed for use on a glass-top electric range or cooktop. It sits beneath the glass surface and radiates heat upward to cook food evenly on the corresponding burner zone. Replace this element if the burner fails to heat, heats unevenly, or does not reach the correct temperature when turned on.

Burner not heating? This 6-inch surface heating element restores cooktop function. DIY repair in 10-30 minutes with basic tools and simple instructions.

The Dual Element is an OEM part for Frigidaire ranges. This element features two heating zones, allowing for versatile cooking options by providing both high and low heat settings on the same burner. It ensures efficient and consistent heating, making it ideal for various cooking tasks. It contains a 9-inch, 1200-watt element and a 6-inch, 1300-watt element, combining for 2500 watts at 240 volts

Causes of a bad dual element can include electrical issues, wear and tear from regular use, or physical damage such as cracks or breaks in the heating element. These issues can lead to inconsistent heating or complete failure of the element.

Symptoms of a bad dual element include:

• Burner not heating up
• Inconsistent or uneven heating
• Element not switching between high and low heat
• Visible damage to the element

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This is a metal hinge bracket that secures the main cooktop to the range frame and allows it to be lifted for access to components underneath. It connects the cooktop panel to the body of the range at the hinge point. Replace this bracket if it is bent, broken, or missing, which can cause the main top to sit unevenly or not stay properly secured.

Secures internal components and panels in your range. Replace this mounting bracket if cracked, broken, or missing to restore proper support and alignment.

Mounting bracket for electric and gas ranges. Secures components in place. Replace if bent, cracked, or broken to restore proper fitment and stability.

This is a stainless steel oven door handle that mounts to the front of the range door. It provides a grip for opening and closing the oven door during use. Replace this handle if it is cracked, broken, loose, or if the mounting points have become stripped or damaged.

This replacement part is a black element mounting clip used in ranges or wall ovens. This clip is used for surface elements on electric ranges and ovens. The clip itself connects the surface of the element to the support bracket which allows the stove to heat up. The user might need a new clip or clips if the heating element on the stove is loose, if the heating element is completely detached, or if the clip itself is bent or broken. This clip is black and made of sturdy metal that can withstand heat as well as strain on the clip itself. Installation of this clip is very simple as it just requires replacing the old one with a new one and making sure it is secure. Pliers might be required if the old clip is bent or stuck near or on the heating element. There are no special tools needed for this repair. This is an OEM part sourced directly from the manufacturer. It is sold individually. This part is compatible with machines from Frigidaire and other brands like Electrolux, Gibson, Kelvinator, Crosley, Westinghouse, and more.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Size: 6-20 x 0.312 inch.

Replacement mounting screw that secures panels, trim, and components in ranges and ovens. Needed when original screws are lost, stripped, or damaged.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
