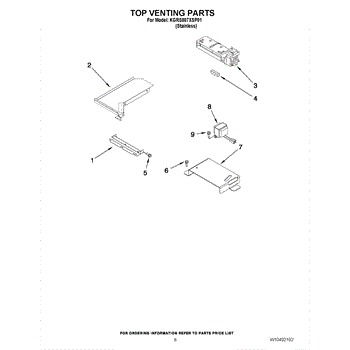

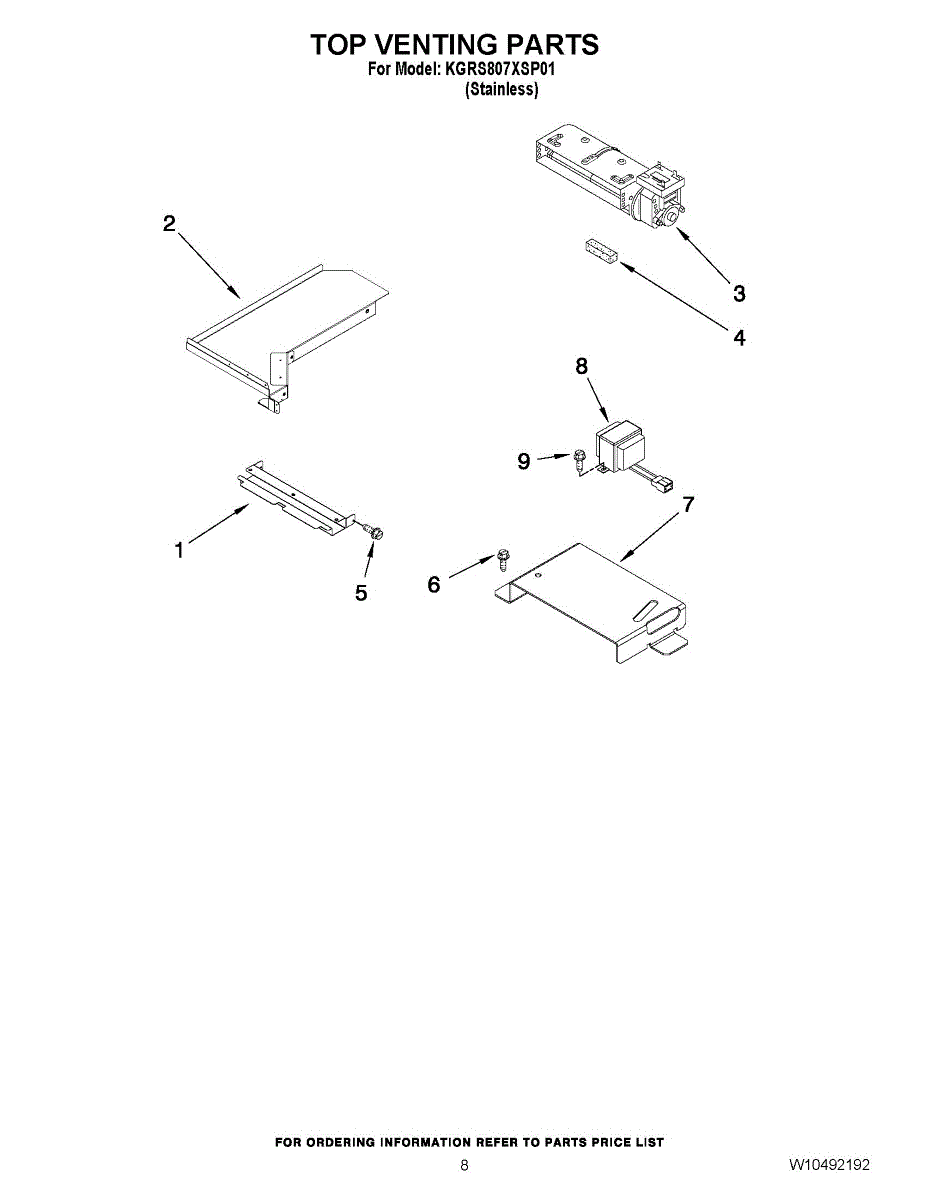

Parts for Kitchenaid KGRS807XSP01: 05 - Top Venting Parts

This blower moves air through your appliance to maintain proper cooling and ventilation. Replacing a worn or noisy blower restores airflow and helps protect internal components so the unit operates as designed. What it does

• Drives airflow through ducts or cooling channels to manage heat inside the appliance
• Helps expel heat and moisture or circulate cooling air, depending on the design
• Common symptoms of failure: fan won't run, weak/no airflow, loud rattling or squealing, burning smell, overheating or shutdown, or cooling/vent-related error messages

• Includes 1 blower

• Disconnect power before servicing; allow hot surfaces to cool
• Metal edges can be sharp—wear cut-resistant gloves and eye protection
• Note wire connections and mounting orientation; transfer any brackets or seals from the original unit if required
• After installation, confirm unobstructed airflow and correct blower orientation before fully reassembly and testing

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

Size: 8-18 x 3/8 inch.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This control transformer reduces incoming line voltage to the low voltage required by the appliance's control circuit or lighting. Replacing a failed transformer restores proper power to the controls so the unit operates as designed. What it does:

• Steps down household line power to low voltage for control boards, relays, or lighting circuits
• Provides electrical isolation to help protect sensitive control components
• A failed transformer may leave the control/display dead or make low-voltage features (like lights) inoperative; may also blow a fuse

• Disconnect power at the breaker or unplug the appliance before servicing
• Use your model's wiring diagram; transfer wires one at a time to the matching terminals
• Mount securely in the original location; keep wires clear of sharp edges and heat sources
• If a fuse opened, inspect wiring and downstream loads for shorts before restoring power

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit
