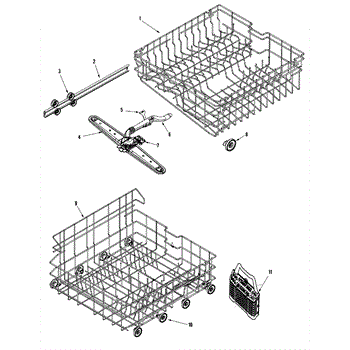

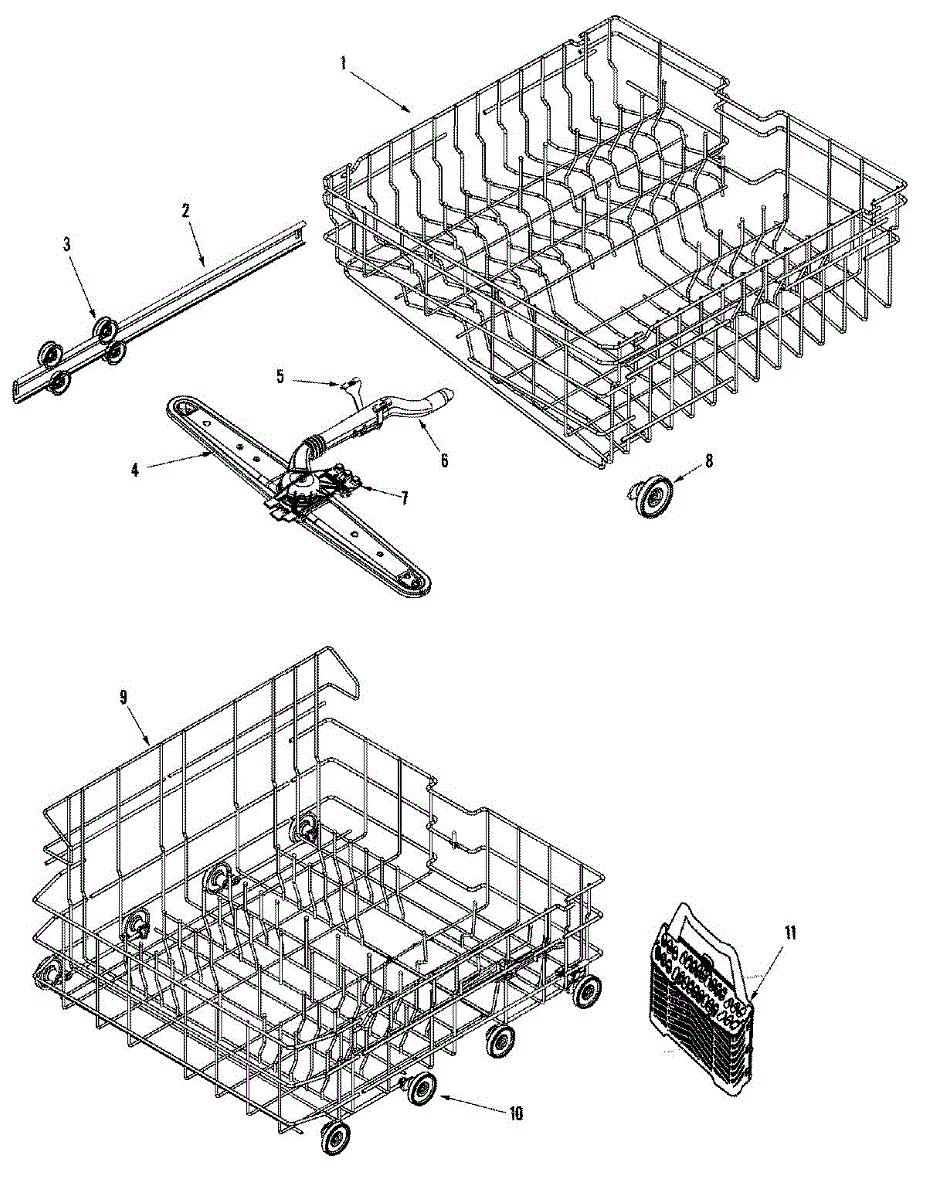

Parts for Magic Chef CDB1500AWS: 05 - Track & Rack Assembly Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Color: light gray. Measures about 20 inches wide by 8 inches high by 20 inches deep.

Secures the upper rack rail to prevent it from sliding out. Replace if missing, broken, or popped off. Installs on the end of the rack track.

The Tub Wheel supports and guides the washer's tub assembly on its base during wash and spin cycles. Replacing a worn wheel restores smoother, quieter operation and helps reduce vibration and rubbing as the machine operates.

• Provides rolling support so the tub can move and self-balance during cycles
• Reduces friction between the tub and the base/frame
• Helps keep the tub centered to minimize noise and vibration
• Failure symptoms include squeaking or grinding, scraping noises, dragging movement, or visible flat spots/cracks on the wheel

• Disconnect power and water supply before servicing; wear appropriate gloves and eye protection
• Access the base/suspension per the service information and support the tub to remove load from the wheel
• Remove the retainer/axle, install the new wheel, and free rotation and correct orientation
• Reassemble, level the appliance, and run a spin test to check for noise and balance

Replacement tub wheel assembly for dishwasher upper rack track. Installs on inner tub to support rack gliding. Needed when wheel is cracked or broken.

Replacement tub wheel assembly for dishwasher upper rack track. Installs on inner tub to support rack gliding. Needed when wheel is cracked or broken.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Secures the upper wash manifold in your dishwasher. Replace this clip if it's cracked, broken, or missing to properly mount the spray arm assembly.

Upper

Front

Replace cracked, broken, or missing upper rack wheels that cause the top rack to slide poorly or fall off the rail. Includes roller and axle assembly.

Note: New rack no longer includes removable tines or cup shelf. This part is a lower dishrack. The lower dishrack is the lower shelf of a dishwasher that holds plates, bowls, and utensils. To remove the old dishrack, simply pull it out and lift the wheels up from its track. Set it off the side, and lift the new dishrack. Slide it into its track and make sure it is locked in. If it is gliding in and out in a smooth way, it has been installed properly.This genuine replacement OEM part is sold individually and is compatible with Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand appliances.

Dishrack wheel assembly for dishwashers. Replaces broken, cracked, or worn wheels that prevent smooth rack sliding. Includes wheel and axle bracket.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
