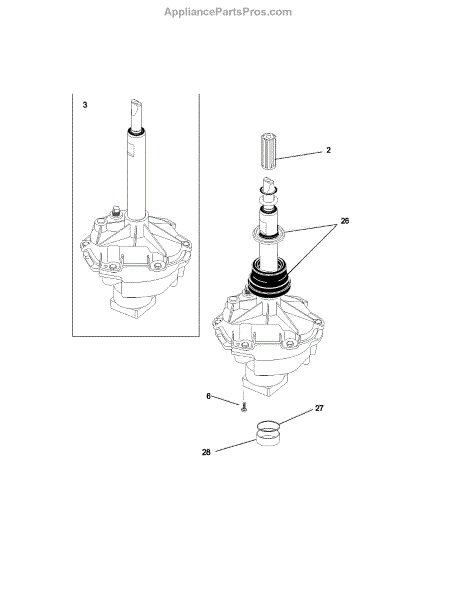

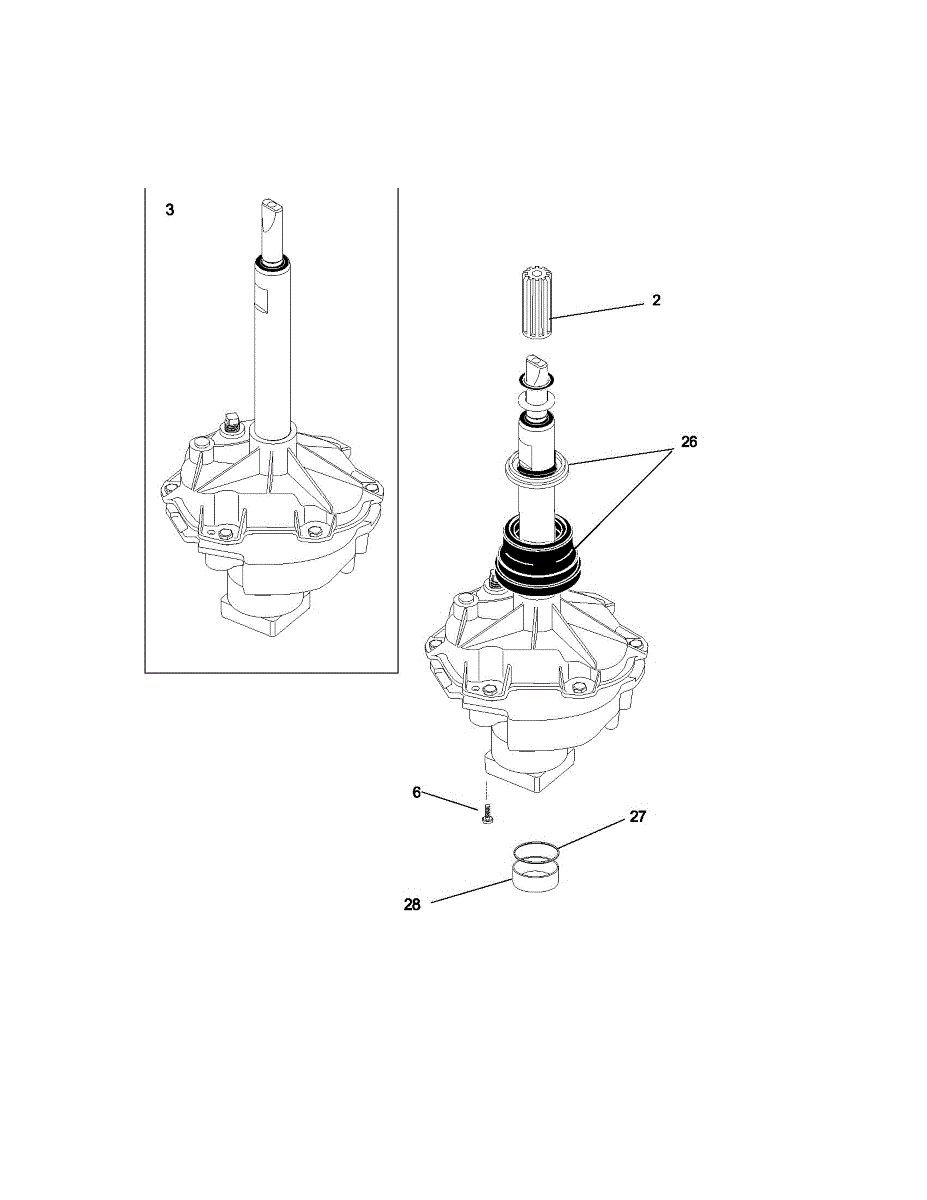

Parts for Kenmore 417.94802301 (41794802301, 417 94802301): Transmission Parts

The Agitator Hub is an OEM part for Frigidaire washing machines. It connects the agitator to the drive shaft, enabling the agitator to rotate and move clothes effectively during the wash cycle.

Causes of a bad agitator hub can include wear and tear from frequent use, exposure to harsh detergents or hard water, or damage from overloading the washer.

Symptoms of a bad agitator hub include:

• Agitator not moving or rotating properly
• Loud noises or grinding sounds during the wash cycle
• Clothes not being cleaned effectively
• The washer shaking or vibrating excessively

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This is a transmission assembly for washing machines. The transmission assembly is the gearbox in the washing machine's motor that allows the washing machine to work at different speeds and different intensities. If the washing machine is no longer spinning properly and has lost its normal level of washing power, it could mean that the transmission assembly needs to be replaced. Luckily, replacing this part is not as difficult as it might seem at first glance.To replace the transmission assembly, begin by unplugging the washing machine. The first step is to remove the upper control panel. Pull forward on the bottom of the console and remove the two retaining clips as well as the harness connector to the lid switch. Using a flathead screwdriver remove the clips. After this, remove the entire cabinet from the back panel to gain access to the interior of the washer. Remove the 7/16 bolt from the agitator and pull it straight up to remove it from the shaft. Once completed, gain access to the motor and pump and remove by releasing the screws and tabs that attach it. Remove the wire harness attached to the transmission. Remove the bolts that secure the motor mount to the transmission and proceed to pull the old transmission out of its place. Install the new transmission and reassemble the other parts.This genuine OEM replacement part is compatible with Frigidaire, Electrolux, Gibson, Kelvinator, and Westinghouse washers. It is sold individually.

A replacement hex washer head screw that secures appliance panels and components. Durable hardware designed to match OEM fit so you can restore proper fastening and reduce rattling or loose parts. What it does:

• Fastens panels, brackets, and assemblies where a 1/4-20 thread is specified
• Provides a built-in washer head to distribute load and resist pull-through
• Commonly used where vibration or movement can loosen standard screws
• Helps stop rattling, misalignment, or loose trim caused by missing or stripped fasteners

• Use the correct screwdriver or socket to avoid stripping the head; tighten until snug, do not over-torque
• Replace any damaged mating hardware or worn threads for a secure fit

The Tub Seal is an OEM part for Frigidaire washing machines. It is designed to create a water-tight seal between the washing machine tub and the transmission or drive system. This seal prevents water from leaking out during the operation of the washer and protects the mechanical components from water damage.

Symptoms of a failing tub seal include:

• Water leaking from the underside of the washing machine.
• Increased moisture or puddles forming under the machine during use.
• A musty or moldy smell, indicating that water has been seeping and not properly drying.

Causes of a bad tub seal can include aging and wear over time, exposure to harsh detergents that degrade the material of the seal, or mechanical stress from unbalanced loads that can cause the seal to fail. It's important to address these issues promptly to prevent further damage to the washing machine.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement spacer positions the transmission bearing block to help maintain proper alignment and drivetrain spacing for reliable washer operation. It restores correct fit where worn or damaged spacers cause misalignment. What it does

• Centers and supports the transmission bearing block to preserve correct bearing alignment.
• Maintains the designed clearance between transmission components and the tub/drivetrain.
• Helps reduce excess vibration, grinding, or wobble caused by a shifted or worn spacer.
• Can address intermittent agitation or spinning issues when misalignment is the root cause.

• Disconnect power and turn off water supply before beginning service.
• Access requires removing the washer cabinet/tub and supporting the transmission; keep track of fasteners and orientation.
• Inspect nearby bearings, seals, and mounting hardware and replace if worn.

This printed owner's guide provides the original user manual information for basic operation, care, and typical troubleshooting tips to help you use your appliance safely and confidently. Ideal for replacement when the original booklet is lost. What it does:

• Explains control functions, normal operating modes, and recommended settings
• Lists routine maintenance and care tips to help maintain performance
• Describes common symptoms and simple checks (e.g., power, filter, basic error indicators)

• No installation required; store the manual with the appliance or in a safe place
• For safety or complex repairs, follow manufacturer procedures
• Dispose of or recycle old manuals and packaging per local regulations
