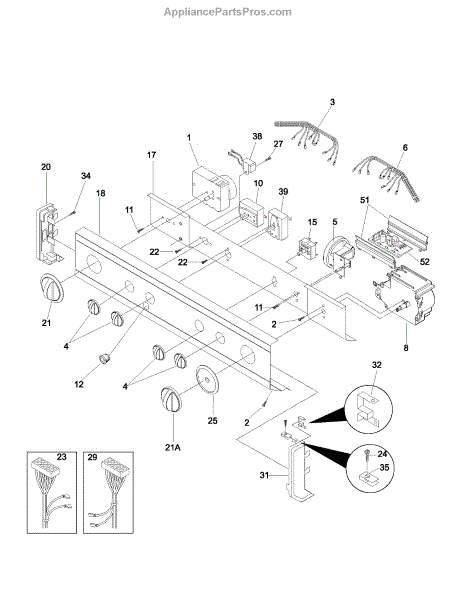

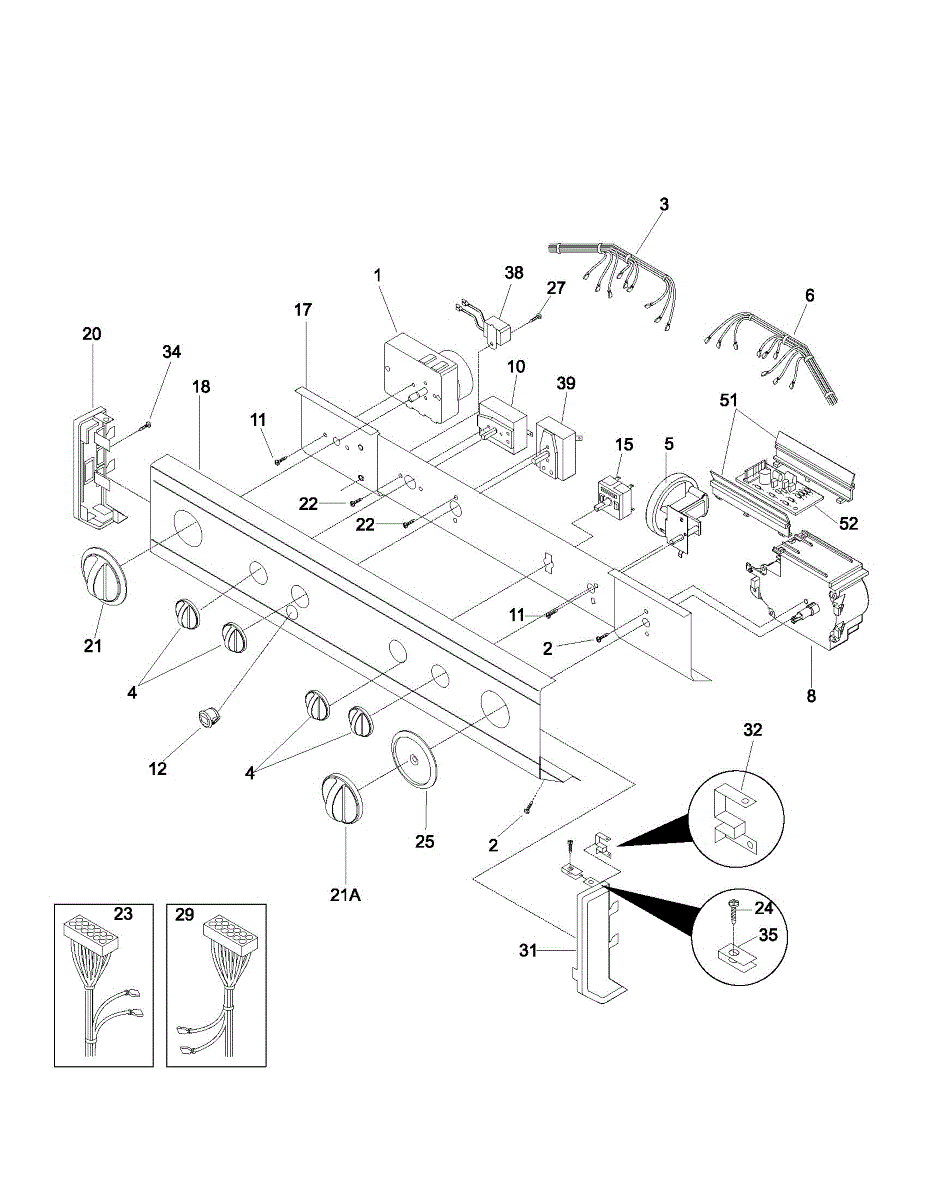

Parts for Kenmore 417.94802301 (41794802301, 417 94802301): Control Panel Parts

This dryer timer controls the sequence and length of drying cycles. Replacing a failed timer restores consistent cycle advancement and automatic shutoff so your dryer starts, runs, and ends at the correct time. What it does:

• Advances the selected cycle by opening and closing internal switch contacts on schedule
• Coordinates start/run timing and end-of-cycle shutoff for timed and auto settings
• Common failure signs: timer knob doesn't advance, dryer runs too long or won't shut off, stops early, or only certain cycles work

• Includes 1 dryer timer assembly

• Unplug the dryer or disconnect power before servicing
• Access the timer from the console; remove the control knob and mounting screws to release it
• Transfer wires one at a time to matching terminals on the new timer using your model's wiring diagram
• Mount securely, reassemble the console and knob, then test for proper cycle advancement

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

A white rotary control knob that restores user control of temperature or function settings on compatible appliances. Replaces a cracked, worn, or missing knob to make turning dials easier and safer. What it does

• Replaces a damaged or missing dial so controls can be selected and adjusted smoothly.
• Fits splined control shafts to transmit user input to the switch or timer.
• Common symptom fix: knob slips, spins freely, is cracked, or does not engage the shaft.
• Works for front-panel or console-mounted rotary controls on ranges, ovens, or similar appliances.

• Disconnect power to the appliance before servicing to avoid electric shock.
• Align the knob's internal spline with the control shaft; push straight on until seated.
• Do not force the knob; inspect the control shaft and inner spline for damage before installing.

This replacement timer is made by Frigidaire and is compatible with commercial washers.This timer controls the internal components that monitor the duration of the cycles. If the user notices that the laundry center cycles are not running for the correct amount of time or do not start at all, the timer may need to be tested for continuity and then replaced. Make sure to entirely disconnect the appliance from the power and water sources and wear work gloves before attempting any repairs or replacements. This is an authentic OEM part made of high-quality, durable, non-corrosive materials and is only sold individually. This timer can be used with washers that have been manufactured by Frigidaire, Kenmore, Electrolux, Gibson, Kelvinator, Westinghouse, and some other brands.

The Start Switch is an OEM replacement part for Frigidaire dryers. This part initiates the dryer's cycle once the user selects the desired settings. By pressing the start switch, the motor activates, and the drying process begins, ensuring clothes are dried according to the selected specifications.

Symptoms of a bad Start Switch include:

• The dryer not starting when the switch is pressed
• Intermittent starting issues, where the dryer sometimes starts and sometimes doesn’t
• The need to hold the switch in place to keep the dryer running
• Unusual noises when the switch is pressed

Causes for a malfunctioning Start Switch can include electrical issues, such as faulty wiring or connections, wear and tear from frequent use, or internal failures within the switch mechanism that prevent it from signaling the motor to start.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore dryers.

This factory replacement screw secures panels, brackets, or trim on your appliance so parts stay tight and aligned. Swap in a new screw when one is missing or stripped to restore a solid, rattle-free fit.

• Fastens compatible panels, brackets, handles, or internal hardware
• Helps maintain proper alignment and stability
• Common fix for loose or wobbly handles/trim, rattling noises, or missing hardware
• Replace if threads are stripped, head is damaged, or corrosion is present

• Disconnect power before servicing; wear cut-resistant gloves
• Use the correct screwdriver or nut driver to avoid stripping
• Start threads by hand to prevent cross-threading
• Tighten until snug; do not overtighten

This round on/off switch replaces the worn or broken power control on compatible appliances, restoring reliable on/off operation and user control at the front panel. Designed to match OEM fit and function for direct replacement. What it does:

• Provides a simple on/off user control for the appliance's power circuit
• Re-establishes consistent electrical contact when the original switch fails
• Commonly fixes symptoms like no power from the control location, intermittent power, or a switch that won't stay on
• Operates as the primary user-actuated power control for the associated circuit

• One round on/off switch

• Disconnect power to the appliance before testing or replacing the switch to avoid shock
• Verify correct wiring location and connectors before removing the old switch; transfer any wiring harness or connectors exactly
• Handle with care to avoid damage to the switch actuator or mounting tabs

White. Left hand side

Color: white. Measures about 2 inches in Diameter.

The Dryer Timer Knob is an OEM part for Frigidaire dryers. It is responsible for allowing users to set the drying time and cycle selection by turning the timer shaft. The knob securely attaches to the timer and provides an easy way to control dryer settings.

Over time, the timer knob can become damaged due to repeated use, excessive force when turning, or wear on the internal connection points. If the knob becomes stripped, cracked, or no longer stays in place, it may need to be replaced.

Symptoms of a bad timer knob include:

• The knob spins freely without adjusting the timer
• Cracks or breaks in the knob
• Difficulty selecting or changing dryer settings
• The knob does not stay attached to the timer

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Replacement mounting screw that secures appliance panels, trim or brackets to restore proper fit and reduce rattles. A simple fastener that helps keep components stable for safe, quiet operation. What it does:

• Secures panels, trim pieces or internal brackets in place
• Replaces lost, stripped or damaged screws that cause loose parts
• Helps stop rattling, vibration or misaligned panels
• Restores proper alignment so doors and covers sit flush

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten — snug until secure to prevent damage
• Disconnect power before working near electrical components
• Keep small parts away from children and pets

This is a replacement mounting screw used to secure appliance panels, brackets, and components. Replacing worn or missing screws restores proper fit and reduces rattles or loose parts for safe, stable operation. What it does:

• Secures panels, brackets, trim, or small components in place
• Helps eliminate rattling, vibration, and loose or misaligned parts
• Restores proper fastening after maintenance or part replacement
• Matches the appliance's original fastener style for correct fit

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent thread or component damage

White. Right hand side

This wiring clip secures a refrigerator's wire harness to the cabinet or components to prevent chafing and keep wires organized. It helps maintain safe routing and reduces strain on electrical connections. What it does

• Holds wiring harness in place to prevent rubbing against sharp edges or moving parts
• Keeps wires organized to reduce the risk of pinching or accidental disconnection
• Helps prevent intermittent electrical faults caused by loose or strained wiring
• Commonly used near compressor, fan, control box, or rear cabinet areas

• Install by snapping the clip onto the cabinet flange or component and routing the harness through the retainer
• Disconnect power before accessing electrical components or wiring
• Inspect surrounding wiring and insulation; replace any damaged wire or harness tape before reinstalling the clip

This terminal block screw secures the power cord leads to the appliance's terminal block, helping maintain a tight, reliable electrical connection. Replace missing, stripped, or heat-damaged screws to restore proper clamping of the wire lugs.

• Clamps incoming power wires to the terminal block for a secure electrical connection
• Replaces stripped, corroded, or missing terminal screw
• Designed to fit the original terminal block hardware locations

What's included: 1 terminal block screw Install notes:

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the terminal block (location varies by model); note wire positions
• Inspect terminal block and wire lugs; replace any heat-damaged components
• Install and tighten the new screw securely without over-tightening; reinstall access cover and verify strain relief is in place before restoring power

The Terminal Block is an OEM replacement part for Frigidaire clothes dryers. It is the part the power cord connects to. This kit includes 3 screws and 3 terminals.

Causes of a bad terminal block can include damage from age, overheating from worn wires or loose connections, or improper installation during manufacturing.

Symptoms of a bad terminal block include:

• The dryer not powering on
• Intermittent heating issues
• Loose, frayed, or damaged wires

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.
