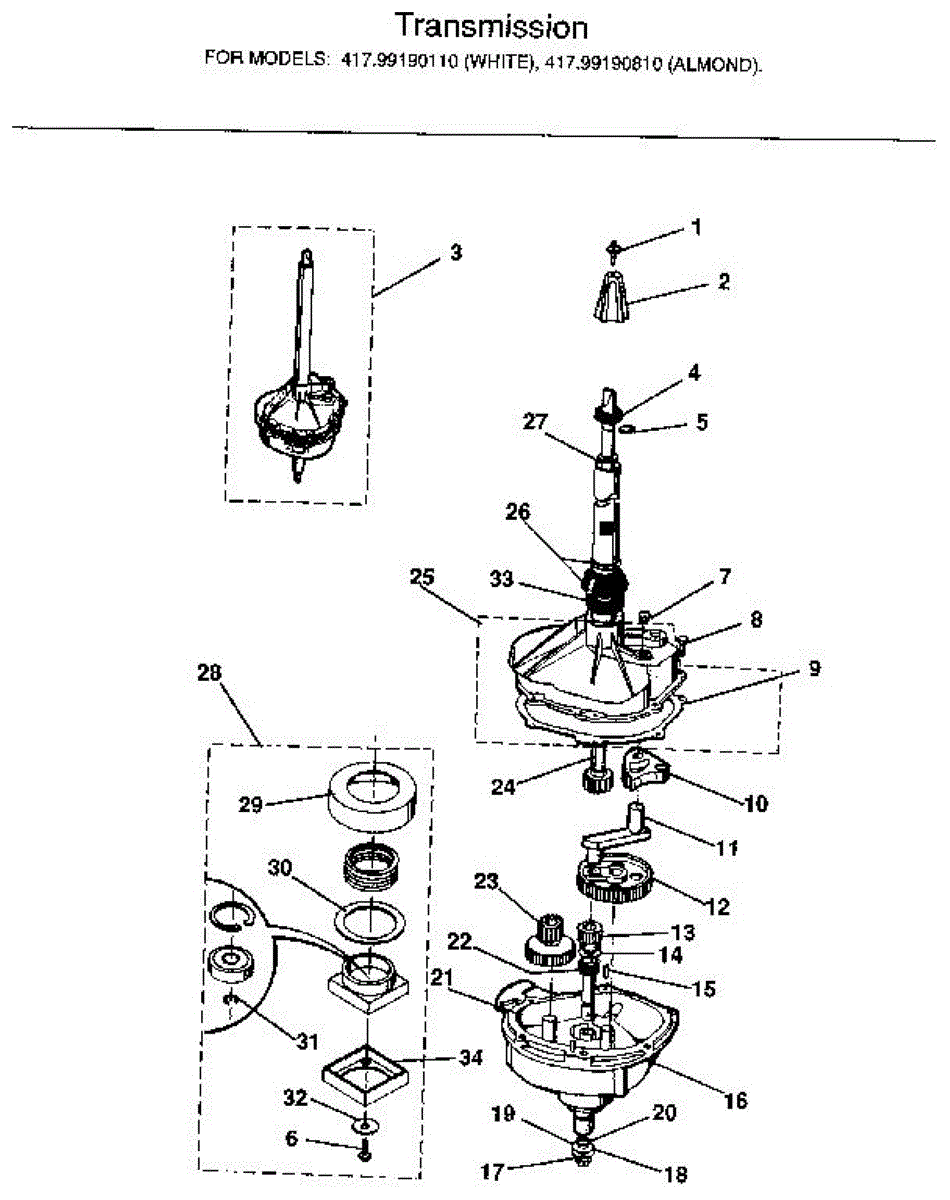

Parts for Kenmore 417.99190810 (41799190810, 417 99190810): Transmission Parts

The washer agitator stud cap is a small cover piece that fits on top of the central agitator post in top-loading washing machines. Replace this cap if it's cracked, missing, loose, or if fabric is getting caught on the exposed agitator mechanism.

The Agitator Hub is an OEM part for Frigidaire washing machines. It connects the agitator to the drive shaft, enabling the agitator to rotate and move clothes effectively during the wash cycle.

Causes of a bad agitator hub can include wear and tear from frequent use, exposure to harsh detergents or hard water, or damage from overloading the washer.

Symptoms of a bad agitator hub include:

• Agitator not moving or rotating properly
• Loud noises or grinding sounds during the wash cycle
• Clothes not being cleaned effectively
• The washer shaking or vibrating excessively

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This is a rubber lip seal that fits around the upper portion of the washer's basket drive tube, preventing water from leaking past the shaft and into the transmission or bearings below. It creates a watertight barrier between the wash tub and the drive mechanism. Replace this seal if you notice water leaking from beneath the washer tub, hear grinding noises during the spin cycle, or find oil residue under the machine.

This is a rubber seal gasket that fits between the transmission gear case housing halves on a washing machine. It prevents gear oil from leaking out of the transmission assembly during operation. Replace this gasket if you notice oil leaking from the bottom of the washer or if the transmission is being disassembled for repair.

Agitator rod and gear kit for washers. Connects the agitator to the drive system. Replace if gears are stripped, worn, or rod is broken or damaged.

This is an oil seal that fits around the transmission shaft where it enters the gear case on a washer or laundry center. It prevents water from leaking into the gear case and keeps lubricating oil from leaking out. Replace this seal if you notice oil leaking from the bottom of the washer, water entering the transmission, or if the unit is making grinding noises during the agitate or spin cycle.

Suspension spring for washer drum support system. Replaces worn, stretched, or broken springs that no longer properly suspend the tub assembly.

Replace the control panel housing cover on your washer or washer dryer combo. Needed when the original housing is cracked, broken, or damaged.

The Tub Seal is an OEM part for Frigidaire washing machines. It is designed to create a water-tight seal between the washing machine tub and the transmission or drive system. This seal prevents water from leaking out during the operation of the washer and protects the mechanical components from water damage.

Symptoms of a failing tub seal include:

• Water leaking from the underside of the washing machine.
• Increased moisture or puddles forming under the machine during use.
• A musty or moldy smell, indicating that water has been seeping and not properly drying.

Causes of a bad tub seal can include aging and wear over time, exposure to harsh detergents that degrade the material of the seal, or mechanical stress from unbalanced loads that can cause the seal to fail. It's important to address these issues promptly to prevent further damage to the washing machine.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

Red adhesive strip for washers. Secures components and panels inside the cabinet. Replace if peeling, missing, or no longer holding parts in place.

Snap-in bushing for washer assemblies. Replaces worn, cracked, or missing bushings that provide cushioning and support in internal components.

This component adjusts the tension of washer suspension springs in laundry center units and is located within the suspension system. Replace when experiencing excessive vibration, unbalanced loads, or unusual movement during spin cycles.

Secures refrigerator grille or trim to cabinet, preventing rattles and gaps. Replace when broken or missing to restore proper panel alignment. Verify fit with your model number before ordering.

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.
