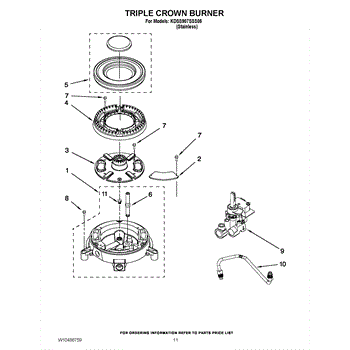

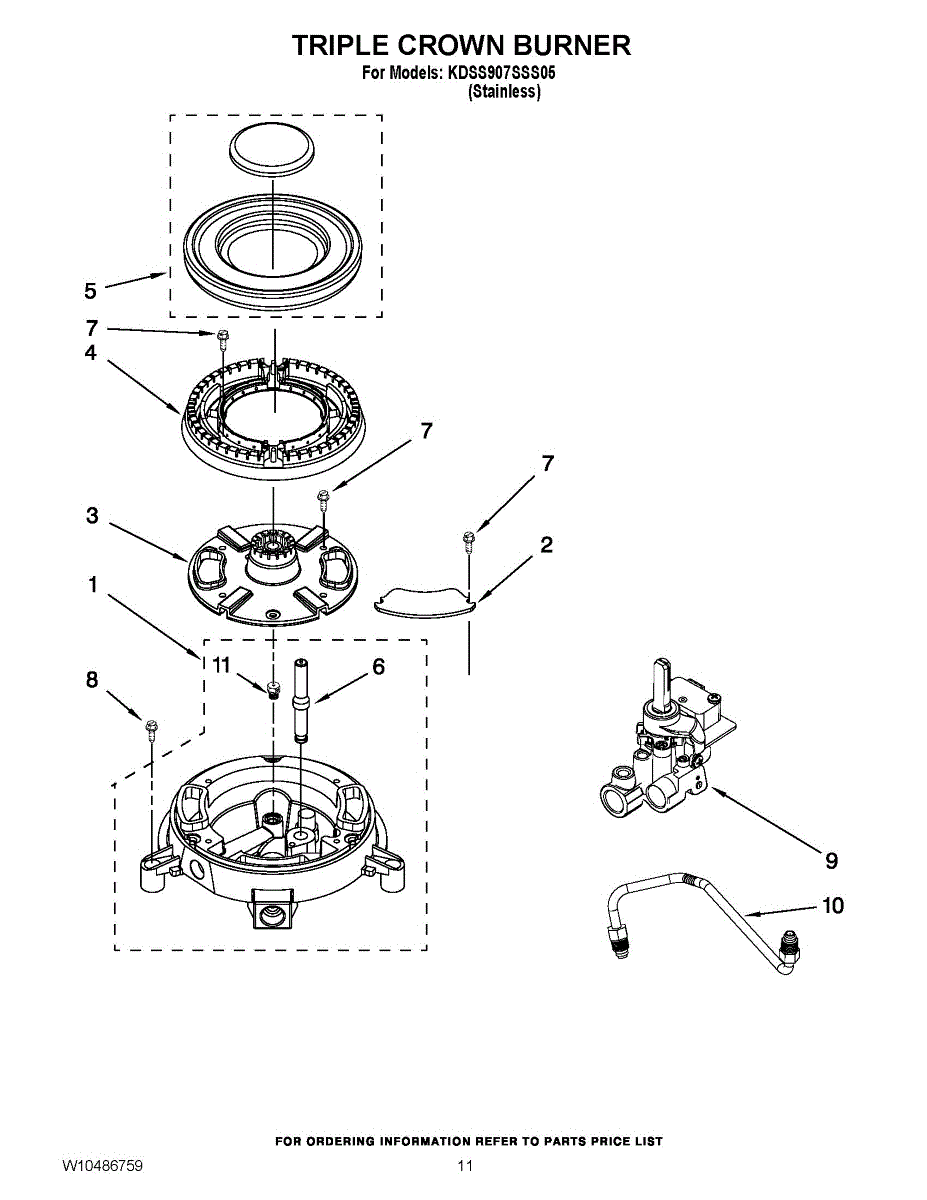

Parts for Kitchenaid KDSS907SSS05: 08 - Triple Crown Burner Parts

This orifice holder serves the gas surface burner position designated TCB. It directs gas from the valve to the burner and provides a stable mount for the igniter and burner head to maintain reliable ignition and flame performance.

• Routes gas from the manifold/valve through the orifice to the burner head
• Supports proper alignment of the burner head and cap
• Provides mounting point for the surface igniter/electrode
• Failure symptoms include a burner that won't light or is slow to ignite, weak or uneven flame, or igniter clicking without ignition on that burner

• Disconnect power and shut off the gas supply before servicing
• Allow the cooktop/range to cool completely
• Remove burner cap and head; lift top as required. Transfer the brass orifice and igniter/electrode from the old holder if applicable, then install the new holder
• Reassemble, restore gas/power, and check all connections for leaks with a soap solution. Verify proper ignition and flame

Fix uneven flames or damaged burner with this triple crown internal head. Easy DIY repair with a star screwdriver. Restores proper gas flow and flame.

Fixes uneven flames, poor ignition, or weak heat on your triple-crown burner. This external burner head restores proper flame shape and heat distribution.

Replace worn, cracked, or missing burner caps on your gas range cooktop. This cap kit sits atop burner heads to shape the flame and protect from spills.

Fixes burners that won't light or require manual ignition. This electrode creates the spark to ignite your range's surface burner flame automatically.

Secures panels, brackets, and internal components in your range. Replace this screw if it's stripped, missing, or worn to restore proper assembly alignment.

Hex head sheet metal screw secures appliance panels, brackets, and trim. Replace missing, stripped, or damaged screws to keep covers firmly attached.

Gas supply tube that connects the gas line to internal valves and burners in your range. Replace if cracked, corroded, or leaking to restore safe operation.

Replacement gas orifice spud for range burners. Meters gas flow to maintain proper flame height. Install when original is clogged, damaged, or worn.
