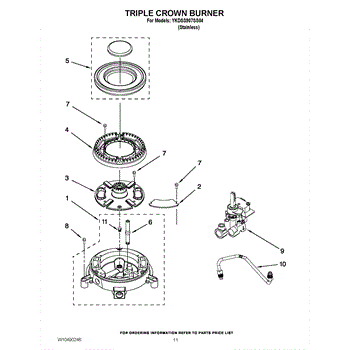

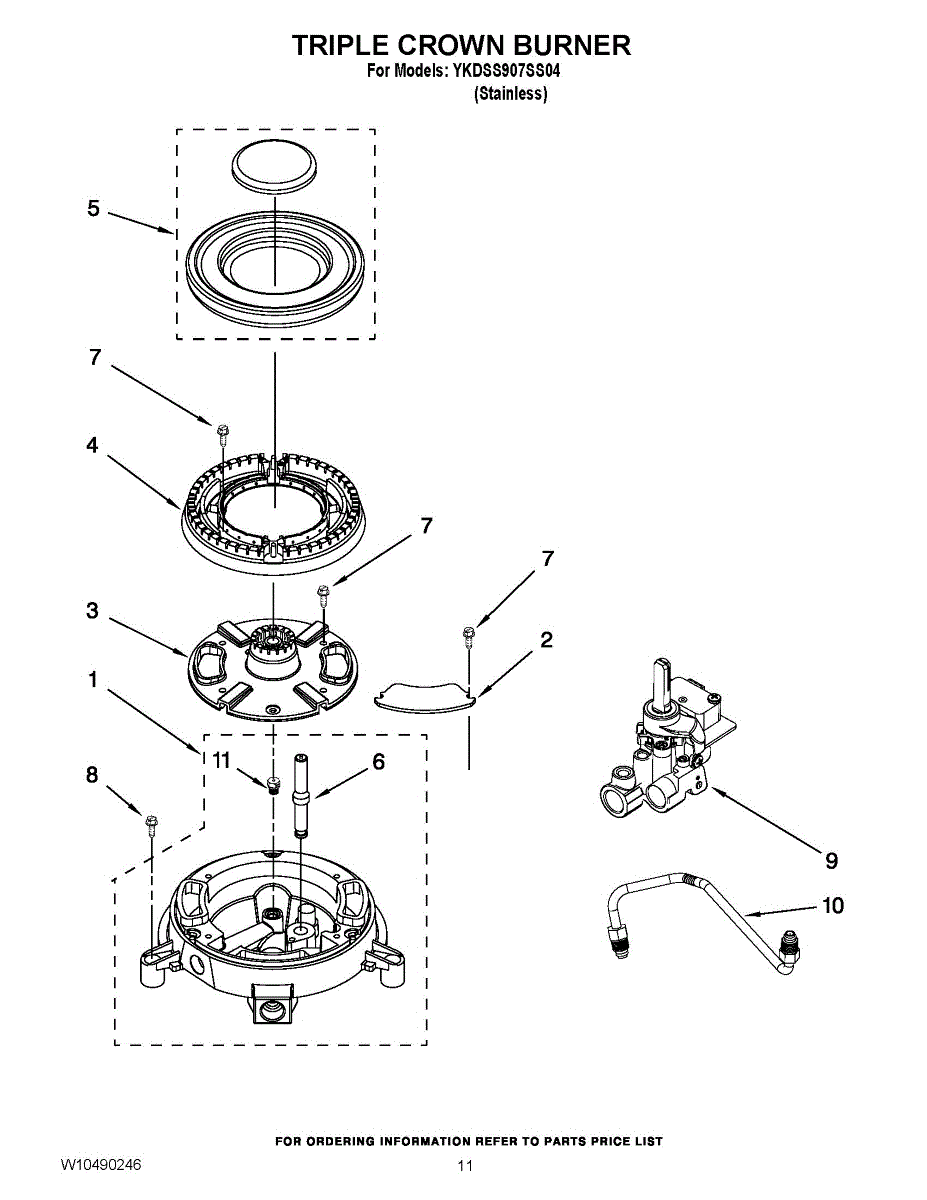

Parts for Kitchenaid YKDSS907SS04: 08 - Triple Crown Burner Parts

This orifice holder serves the gas surface burner position designated TCB. It directs gas from the valve to the burner and provides a stable mount for the igniter and burner head to maintain reliable ignition and flame performance.

• Routes gas from the manifold/valve through the orifice to the burner head
• Supports proper alignment of the burner head and cap
• Provides mounting point for the surface igniter/electrode
• Failure symptoms include a burner that won't light or is slow to ignite, weak or uneven flame, or igniter clicking without ignition on that burner

• Disconnect power and shut off the gas supply before servicing
• Allow the cooktop/range to cool completely
• Remove burner cap and head; lift top as required. Transfer the brass orifice and igniter/electrode from the old holder if applicable, then install the new holder
• Reassemble, restore gas/power, and check all connections for leaks with a soap solution. Verify proper ignition and flame

This internal triple crown burner head replaces the inner burner component that supports the burner cap and helps shape the flame for consistent cooking. It restores proper burner function when the inner head is damaged or warped. What it does:

• Directs gas flow to the burner ports to produce an even flame across the triple-C burner pattern
• Helps maintain stable flame for simmering and normal cooking heat
• Can resolve low, uneven, or fluctuating flame caused by a damaged or warped internal head
• Works with the matching burner cap and base to ensure correct flame distribution

• Disconnect power to the cooktop and shut off the gas supply before servicing
• Handle parts carefully to avoid bending ports or damaging mating surfaces
• Verify correct fit and orientation before reassembly; replace any other damaged burner components as needed

This replacement burner head restores the proper flame shape and heat distribution on gas cooktops with a triple-crown external burner design. It helps improve ignition and even cooking across pots and pans. What it does

• Directs and shapes the gas flame for even heat across cookware.
• Replaces damaged, corroded, or warped burner head surfaces that cause uneven heating.
• Can resolve weak, irregular, or misdirected flames and intermittent ignition at the burner.
• Works as part of the burner assembly to maintain safe, consistent combustion.

• Turn off gas supply and electrical power to the appliance before servicing.
• Remove grates and burner cap, then lift off and replace the burner head; ensure proper alignment before reassembly.
• Inspect other burner components (cap, base, or orifice) for damage or debris that may affect performance.

This surface burner cap kit replaces worn or missing caps on gas cooktops and ranges. Properly seated caps shape the flame, protect burner heads from spills, and help restore fast, even ignition and consistent heating.

• Sits atop each burner head to focus the flame and shield the burner from spills
• Helps address hard-to-light burners, uneven or yellow flames, and lifting/noisy flames
• Replace if caps are chipped, warped, discolored, or missing
• Size- and position-specific—each cap must match its designated burner

• Turn off gas supply and power; allow the surface to cool completely before service
• Clean burner heads; align and seat each cap flat and centered with no wobble
• After installation, test each burner for a steady, even flame; reseat caps if ignition is delayed or flames are uneven

This is the surface burner igniter electrode for gas cooktops/ranges. It creates the spark that lights the surface burner, restoring reliable ignition and eliminating the need for manual lighting.

• Generates the spark to ignite the surface burner flame
• Helps address issues like no spark at a burner, intermittent ignition, or clicking without lighting
• Can resolve weak/damaged electrode tip causing poor spark
• Correct arcing to ground near the burner head

• Disconnect power and shut off gas before servicing
• Handle the ceramic insulator carefully to avoid cracking
• Ensure proper positioning and gap to the burner cap per service guidance
• Route and secure the lead away from heat and sharp edges; reconnect firmly to the spark module harness

This screw secures panels, brackets, and internal components in your appliance, keeping assemblies tight and aligned. Replacing worn or missing hardware helps prevent vibration and rattling and restores a solid fit after service or everyday use.

• Fastens sheet-metal panels, brackets, and internal parts to the cabinet or frame
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, corroded, or stripped screws
• Supports safe, secure reassembly during repairs

• Disconnect power; for gas appliances, also shut off the gas supply before beginning
• Support parts being removed so components aren't stressed or misaligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves when working around sharp metal edges

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

This gas tubing connects the appliance gas supply to internal valves and burners, restoring a proper fuel path for safe operation. It replaces damaged or corroded tubing to help stop leaks and restore consistent burner performance. What it does

• Carries gas from the supply or manifold to the range/oven valve or burners
• Replaces cracked, corroded or kinked tubing that can cause gas leaks
• Can resolve symptoms such as burners that won't light or flames that are weak or uneven
• Helps restore a sealed fuel connection when installed correctly

• Turn off the gas supply and electrical power before servicing; follow local codes
• Use correct fittings and avoid kinks; tighten connections to manufacturer torque specs
• After installation, check all connections for leaks with an approved leak-test method (soapy water or gas detector) and test appliance operation

This orifice spud meters gas to a range or cooktop burner for correct flame size and reliable ignition. Replacing a damaged or clogged spud restores consistent burner performance and safer operation. What it does:

• Controls gas flow to the burner for proper flame height and shape
• Helps ensure reliable ignition and steady, even heating
• Commonly used when flames are weak, uneven, or burners fail to light
• Prevents gas flow issues caused by damage, wear, or blockage

• One orifice spud

• Always shut off the gas supply and disconnect power before servicing gas appliances
• Use appropriate wrench size and take care not to overtighten; replace any damaged gaskets or fittings
• After installation, check all fittings for leaks with a soap solution or approved leak detector
