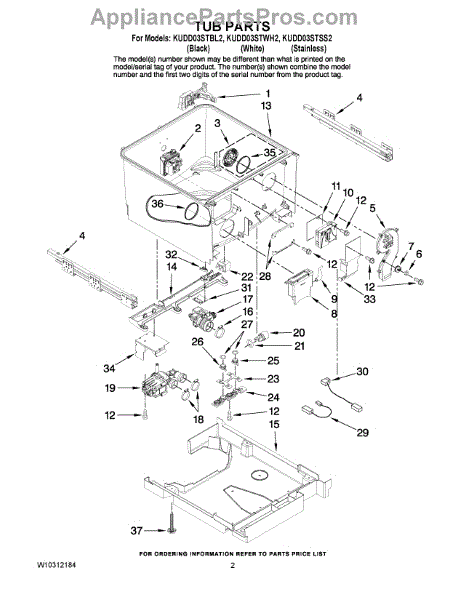

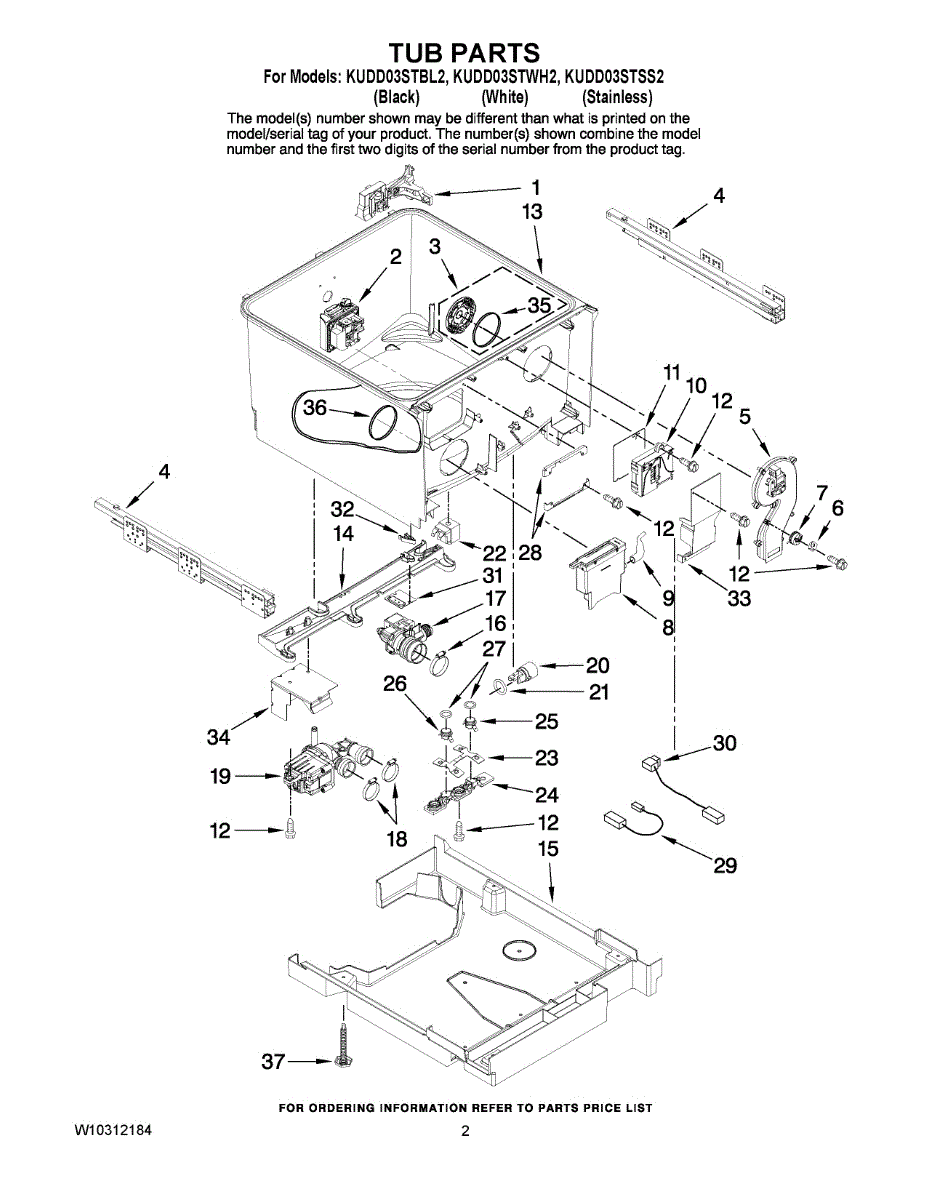

Parts for Kitchenaid KUDD03STBL2: 02 - Tub Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Air Duct Bezel is an OEM part for Whirlpool dishwashers. This component is designed to direct airflow within the dishwasher, ensuring that dishes are properly dried after the washing cycle.

Causes of a bad air duct bezel can include regular wear and tear, buildup of detergent or food particles, or physical damage due to mishandling. A malfunctioning air duct bezel can lead to poor drying performance and potentially cause dishes to remain wet or have water spots after a cycle.

Symptoms of a bad Air Duct Bezel include:

• Dishes not drying properly
• Increased moisture or condensation inside the dishwasher
• Noticeable damage or cracks in the bezel
• Unusual sounds during the drying cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This right-hand slide replaces a worn or damaged drawer/door slide to restore smooth, aligned movement and reliable operation. It helps stop sticking, binding, or uneven sliding for appliances that use a right-side guide. What it does:

• Acts as the right-side guide to support and guide a drawer or door along its track
• Restores smooth sliding and prevents binding, rubbing, or uneven movement
• Helps keep the drawer/door aligned and balanced during operation
• Addresses symptoms such as a drawer that sticks, drops, or does not close evenly

• Remove the appliance drawer/door and follow manufacturer instructions for access before replacing the slide
• Use basic hand tools; keep track of screws and mounting hardware for reassembly
• Verify correct orientation (right-hand) before installing to avoid damage
• Disconnect power to the appliance and exercise standard safety precautions.

This vent fan motor drives the exhaust blower to move air through the appliance, helping clear steam and heat while protecting internal components. Replace a failed or noisy fan to restore proper ventilation and consistent performance. What it does:

• Spins the blower to pull air through the vent path or recirculation filters
• Helps maintain airflow to prevent overheating of internal parts
• Common symptoms: fan won't run, hums but won't spin, weak airflow, or loud/rattling noise

• Includes 1 vent fan motor

• Disconnect power at the breaker and allow the unit to cool before servicing
• If servicing a microwave, be aware high-voltage components can retain a charge even when unplugged—use proper discharge procedures
• Remove the grille or panels to access the blower; note wire locations and the blower's orientation before removal
• After reassembly, verify unobstructed airflow and correct discharge direction (recirculating or vented)

This T20 recess-head screw secures appliance components that use a Torx T20 fastener, providing a reliable replacement for worn or missing hardware. Designed for exact fit where a T20 head screw is specified. What it does

• Fastens panels, brackets, or controls that accept a T20 recess-head screw
• Restores secure mounting when original screws are stripped, corroded, or lost
• Maintains correct alignment of parts to prevent vibration and noise
• Fits applications that require a Torx T20 driver for installation

• One T20 recess-head screw

• Use a T20 Torx driver and apply steady pressure to avoid stripping the recess
• Tighten until snug; do not overtighten to prevent damage to threads or mounting parts
• If replacing multiple fasteners, replace with matching screws to maintain original fit
• Disconnect power or follow appliance safety procedures before servicing nearby components

This hose clamp secures a hose connection to prevent leaks and keep your appliance running smoothly. It provides a tight, reliable hold on the hose fitting so water or air stays contained during operation.

• Tightens around a hose and fitting to maintain a secure seal
• Helps stop drips, seepage, or loose connections
• Common fix when you see moisture around a hose joint
• Useful if a clamp is rusted, stretched, or no longer holding tension

• Unplug power and shut off water (if applicable) before servicing
• Note clamp position/orientation before removal
• Use appropriate screwdriver or nut driver to tighten evenly
• Do not overtighten—ensure a snug, leak-free seal without damaging the hose

This drain pump assembly actively removes wastewater from the dishwasher at the end of each cycle. Replacing a failing pump restores proper draining, helps prevent standing water, and supports clean, odor-free performance.

• Pumps water out of the tub through the drain hose to the household drain
• Helps prevent water from backing up into the tub between cycles
• Common symptoms: won't drain/standing water, humming or buzzing during drain, intermittent draining, or leaking around the pump area
• Restores reliable end-of-cycle draining

• Disconnect power and turn off water supply before servicing
• Remove lower access panel; place a towel or pan to catch residual water
• Note wire and hose positions; transfer clamps and reconnect hoses securely to prevent leaks
• Inspect drain hose, air gap, and disposer/sink inlet for blockages before testing

This hose clamp secures a hose connection to prevent leaks and keep your appliance running smoothly. It provides a tight, reliable hold on the hose fitting so water or air stays contained during operation.

• Tightens around a hose and fitting to maintain a secure seal
• Helps stop drips, seepage, or loose connections
• Common fix when you see moisture around a hose joint
• Useful if a clamp is rusted, stretched, or no longer holding tension

• Unplug power and shut off water (if applicable) before servicing
• Note clamp position/orientation before removal
• Use appropriate screwdriver or nut driver to tighten evenly
• Do not overtighten—ensure a snug, leak-free seal without damaging the hose

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This inlet/outlet seal creates a watertight barrier where two water passages meet in your appliance. Replacing a worn seal helps stop leaks at the connection and maintains proper water flow and performance.

• Forms a tight seal at an inlet/outlet connection to prevent water leaks
• Helps maintain correct water flow and pressure through the system
• Common signs of failure: drips or pooling water near the unit, visible cracks, flattening, or deformation of the seal
• Can resolve recurring leaks after reassembly of water-line connections

• Disconnect power and shut off the water supply before servicing
• Access the connection point and note the seal's orientation
• Clean mating surfaces; seat the new seal evenly without twisting
• Reassemble, restore water/power, and check carefully for leaks during a test run

A replacement leveling leg that stabilizes your appliance and allows height adjustment for a secure, level install. Restores proper alignment to reduce rocking, vibration and uneven door gaps. What it does:

• Raises and levels the appliance so all feet contact the floor evenly.
• Stops rocking and excessive vibration that can cause noise or wear.
• Helps restore proper drainage and door alignment by correcting tilt.
• Matches original fit and function for reliable support.

• Disconnect power (and water for appliances with plumbing) before servicing.
• Raise or support the appliance safely before removing or adjusting legs.
• Turn the leg to raise or lower; make small adjustments and recheck level.
• Use common hand tools (wrench or pliers) and avoid forcing damaged threads.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
