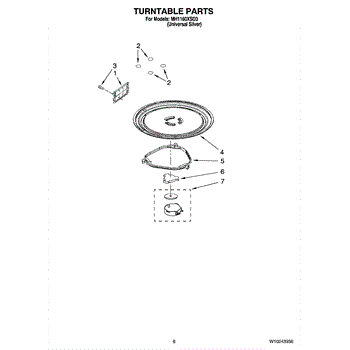

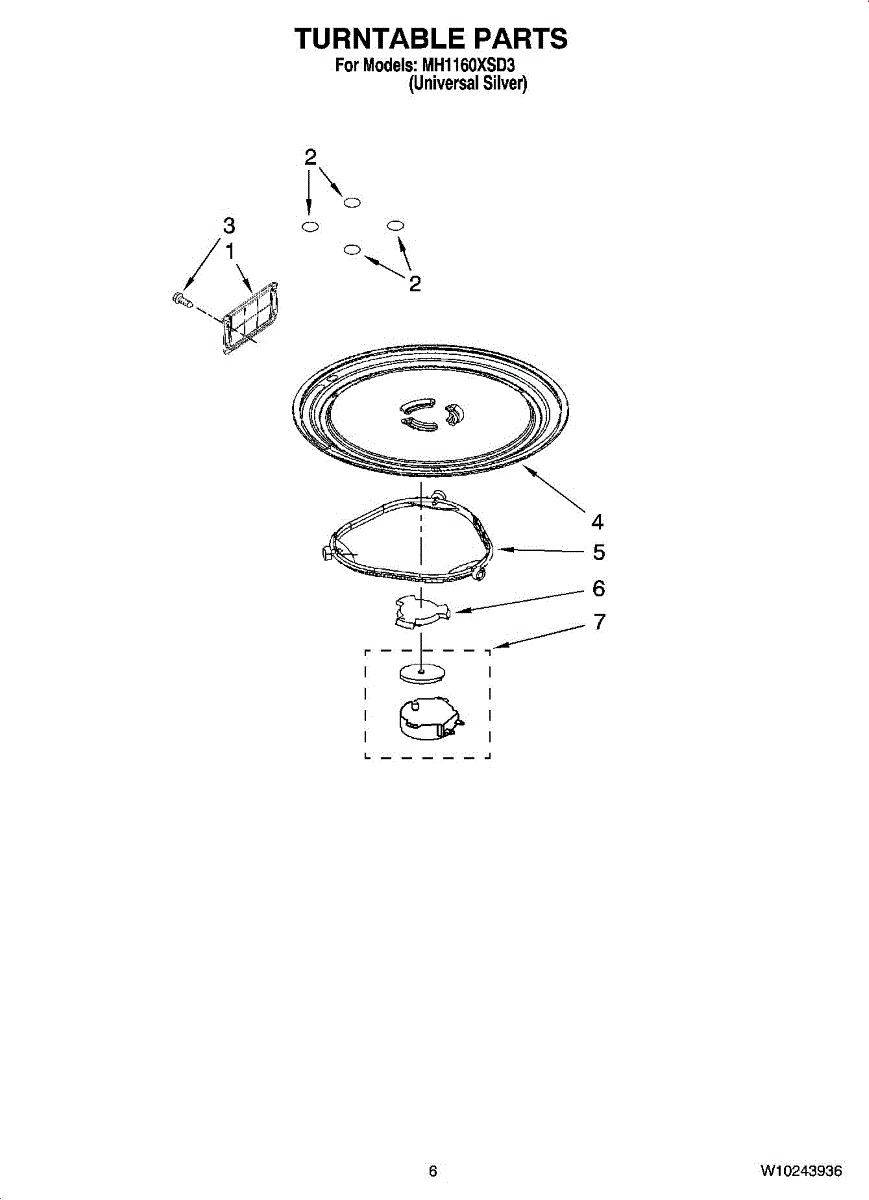

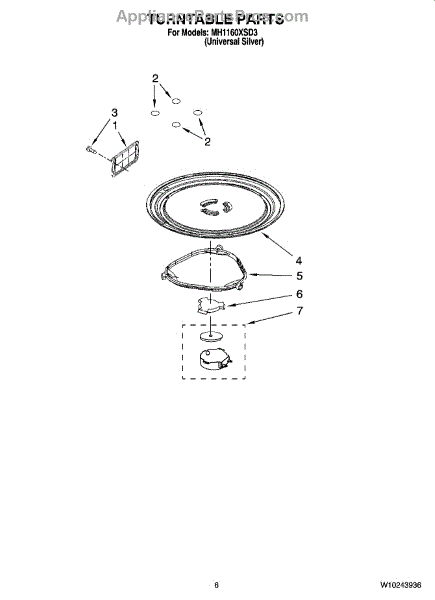

Parts for Whirlpool MH1160XSD3: 05 - Turntable Parts

Includes nails and bushings

*** Note: This glass tray has 3 partial-circles to engage the coupler. In some cases, the factory used a tray that has 3 triangles. For that glass tray use part# W11367904. ***

The Cooking Tray is an OEM part for Whirlpool microwaves. This glass tray sits on the turntable support and rotates to ensure that food heats evenly throughout the cooking cycle. It is designed to fit securely within the microwave, providing a stable platform for various dishes and containers.

Over time, the cooking tray can become damaged due to regular use, drops, or exposure to extreme temperatures. If the tray is cracked or broken, it can lead to uneven cooking and potential safety hazards.

Symptoms of a bad cooking tray include:

• Visible cracks or chips on the glass surface
• The tray not rotating properly
• Uneven heating or cooking of food
• The tray wobbling or not fitting securely on the turntable support

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Ring-Turn is an OEM part for Whirlpool microwaves. Designed with precision, this component plays a crucial role in the microwave's turntable system, supporting the glass plate and ensuring it rotates smoothly during operation. The ring-turn's seamless integration with the microwave design allows for the even distribution of microwave energy, which is essential for consistent cooking and heating results.

Causes of a bad Turntable Ring can include cracks or breaks developing from years of use rotating the turntable back and forth under high heat levels.

Symptoms of a bad Ring-Turn include:

• The microwave turntable not rotating properly
• Unusual noises during operation, indicating a misalignment or damage
• The glass plate not sitting flat or slipping during use
• Uneven or partially cooked food, resulting from improper rotation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Cooking Tray Coupler is an OEM part replacement part for Whirlpool microwaves. It securely connects the two halves of the microwave cooking tray together, allowing for easy placement and removal of food items.

Symptoms of a bad cooking tray coupler include:

• The cooking tray separating into two loose pieces that do not stay connected
• Food sliding off or falling through gaps in the disconnected tray halves
• Inability to use the microwave cooking tray properly

Causes of a bad coupler can be cracks, breaks, or wear over time that compromises its connecting ability.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: This coupler is compatible with the glass tray that has the 3 half circles that engage the coupler. In some cases, the factory used a tray that has 3 triangles. For that coupler, use part# W11245707.

This microwave turntable motor drives the glass tray to rotate food for more even heating. Replacing the motor restores smooth, consistent rotation and dependable cooking performance.

• Drives the turntable during cook/defrost cycles for more uniform heating
• Turntable won't turn or only turns intermittently
• Jerky movement or tray requires a push to start
• Humming, grinding, or clicking from beneath the tray area

• Disconnect power by unplugging the microwave or switching off the breaker before servicing; microwaves contain high-voltage components that can retain a charge
• Remove the glass tray and support ring before accessing the motor
• Access is typically from the bottom panel; note wire connections and motor orientation before removal
• After installation, ensure the coupler engages properly and the tray spins freely
