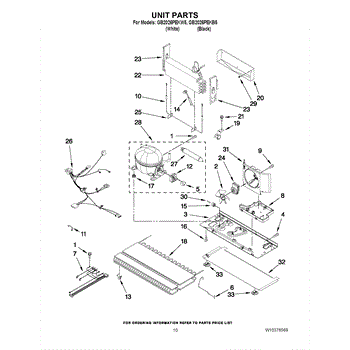

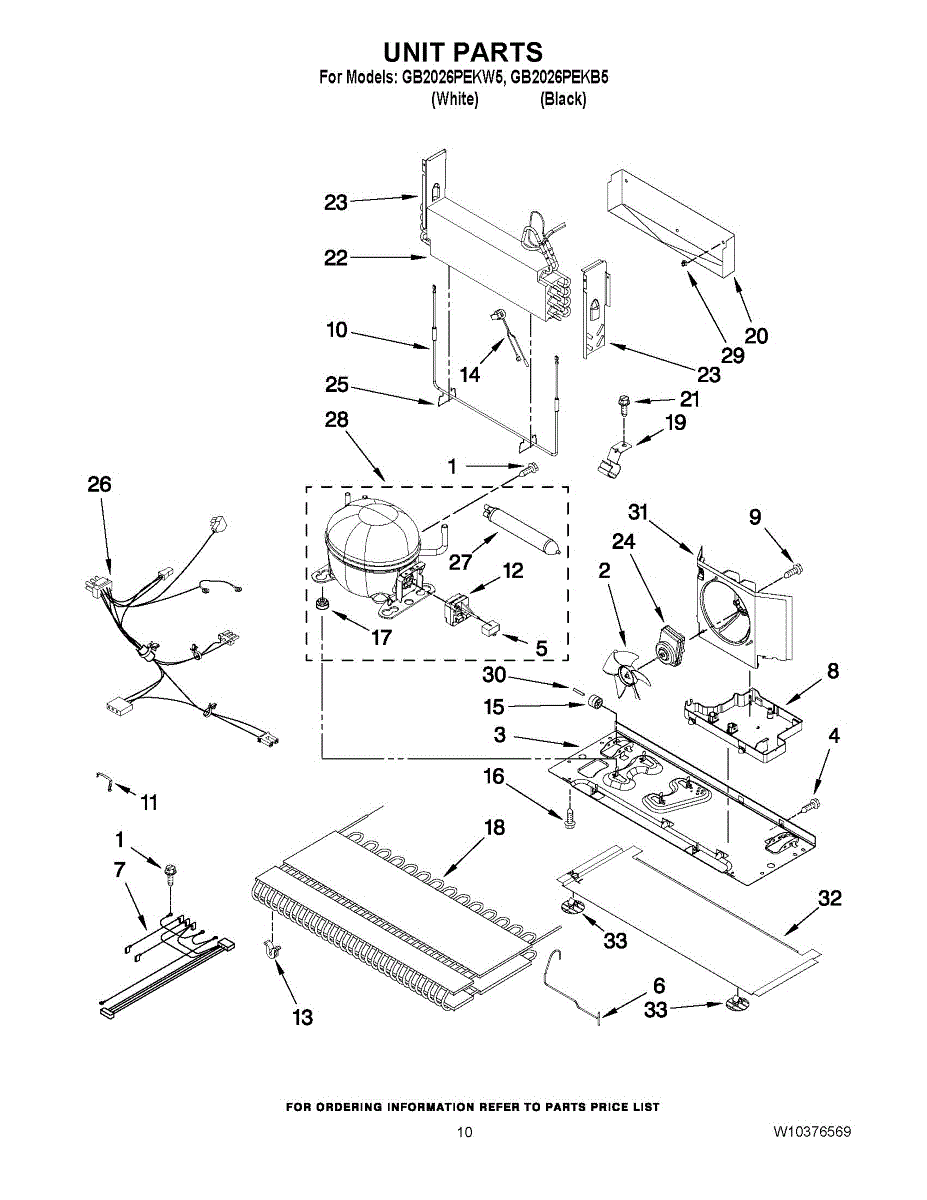

Parts for Amana GB2026PEKW5: 06 - Unit Parts

This condenser fan blade restores the airflow that carries heat away from the condenser coils and compressor. Replacing a cracked, warped, or loose blade helps your refrigerator remove heat properly so it cools reliably and runs more quietly. What it does

• Draws room air through the condenser coil and over the compressor to dissipate heat
• Helps maintain stable cabinet temperatures and overall cooling performance
• Typical failure symptoms: fan not spinning or moving enough air, wobbling or rattling from the rear base, weak cooling, compressor running hot

• 1 condenser fan blade

• Unplug the refrigerator and remove the rear lower access panel before servicing
• Note the blade's orientation; pull the old blade straight off the motor shaft and press the new blade on until fully seated
• Ensure proper clearance in the shroud and spin by hand to confirm it turns freely
• Wear gloves and eye protection; keep hands clear of the blade during testing

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This running capacitor restores proper motor operation by providing the phase shift needed for fan and compressor motors. It helps motors run smoothly and reduces overheating or hard-start symptoms when the original capacitor fails. What it does:

• Provides the steady electrical phase shift required for motor operation in refrigeration and HVAC systems
• Helps restore normal motor starting and running performance
• Can reduce motor overheating, humming, or intermittent operation caused by a bad capacitor
• Used when the motor runs poorly, won't reach full speed, or cycles unusually

• 1 running capacitor

• Disconnect power at the breaker and verify the appliance is de-energized before servicing
• Discharge the capacitor with an insulated tool and wear insulated gloves and eye protection
• Replace with the same type and mounting orientation; secure all wire connections firmly

The Drip Pan is an OEM part for Whirlpool refrigerators. Located beneath the refrigerator, it collects and holds water that drips from the defrost system, preventing it from leaking onto the floor.

Causes of a bad drip pan can include cracks or holes from physical damage, warping from exposure to temperature fluctuations, or excessive buildup of dirt and mold.

Symptoms of a bad drip pan include:

• Water pooling under the refrigerator
• Visible cracks, holes, or warping in the pan
• Mold or mildew growth in the pan
• Unpleasant odors emanating from the refrigerator base

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This rubber condenser grommet cushions and secures the condenser assembly to reduce vibration and noise, helping the refrigerator run quieter and preventing wear where the condenser mounts to the cabinet. What it does:

• Cushions condenser mounting points to reduce rattling and vibration
• Helps prevent metal-on-metal wear between condenser and chassis
• Keeps the condenser properly seated for reliable airflow
• Reduces noise caused by loose or worn condenser mounts

• Disconnect power to the appliance before beginning any service
• Access the condenser area per your model's service instructions
• Remove the old grommet and press the replacement into the mounting hole until seated
• Do not use solvents or adhesives unless specified by the manufacturer; wear gloves to protect hands

The Cabinet Roller is an OEM part for Whirlpool refrigerators. It facilitates the smooth movement and positioning of the refrigerator cabinet, making it easier to adjust or relocate the appliance as needed. This roller is designed to support the weight of the refrigerator while allowing for effortless mobility.

Causes of a bad Cabinet Roller can include wear and tear over time, exposure to heavy loads, or damage due to rough handling or impact. These factors can lead to the roller becoming ineffective or breaking altogether, resulting in difficulty moving the refrigerator.

Symptoms of a bad Cabinet Roller include:

• Difficulty moving or adjusting the refrigerator
• Unusual noises when attempting to move the appliance
• The refrigerator not sitting level or wobbling

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

This condenser coil assembly removes heat from the refrigerant so your refrigerator can maintain proper cooling. Replaces a damaged or corroded condenser to restore efficient heat transfer and stable internal temperatures. What it does:

• Circulates refrigerant through condenser coils to dissipate heat from the cooling circuit
• Helps the compressor operate within normal temperature range for reliable cooling
• Commonly needed when coils are bent, corroded, or leaking, or when the appliance runs warm
• Addresses symptoms such as reduced cooling performance, prolonged run times, or visible coil damage

• Disconnect power to the appliance before starting any repair.
• Handle the coil carefully to avoid bending fins or damaging connections.
• Some disassembly of the rear or bottom access panel may be required; keep fasteners organized.
• If refrigerant lines are opened or leaking, refrigerant handling requires certification.

This spring hose clamp secures flexible hoses to fittings to prevent leaks and keep connections tight. It's a simple, durable retaining clip used on water and vent lines to maintain a reliable seal during operation. What it does:

• Holds a hose or duct onto a spud or barb to prevent leaks and disconnection
• Keeps hoses secure against vibration and pressure changes
• Helps stop water leaks or airflow loss caused by loose connections
• Works on flexible rubber or corrugated hoses in laundry and appliance water/vent systems

• Disconnect power and water supply before servicing the appliance.
• Relieve any pressure and drain hoses before removing the old clamp.
• Use appropriate pliers or clamp tool to expand or compress the clamp for removal and installation.
• Test for leaks after reassembly.

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards

This evaporator clip secures the refrigerator evaporator assembly and related components so the cooling system stays aligned and vibration-free. It helps maintain proper airflow and prevents rubbing or loose parts. What it does:

• Holds the evaporator coil/assembly or associated covers in place
• Prevents vibration, noise, and contact between the coil and cabinet parts
• Helps maintain consistent airflow for reliable cooling performance
• Commonly linked to rattling, buzzing, or loose parts around the freezer evaporator

• Disconnect power before servicing the appliance
• Handle evaporator and surrounding fins carefully; they are sharp and fragile
• Verify clip orientation against the OEM diagram before fastening

This fastener is a small mounting clip used to secure panels and components in place, restoring proper fit and preventing rattles or loose parts. It's a simple replacement that helps maintain appliance stability and noise-free operation. What it does:

• Secures trim, panels, or small components to the appliance frame
• Prevents vibration and rattling caused by loose parts
• Restores proper alignment of the secured piece after damage or wear
• Commonly replaced when clips are broken, bent, or missing

• One replacement fastener

• High-level, do-it-yourself friendly replacement; basic hand tools may be required
• Disconnect power and water before servicing for safety
• Inspect mating hole or bracket for damage before installing new clip
• Tighten or seat clip fully to ensure secure fit; avoid forcing parts to prevent breakage

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
