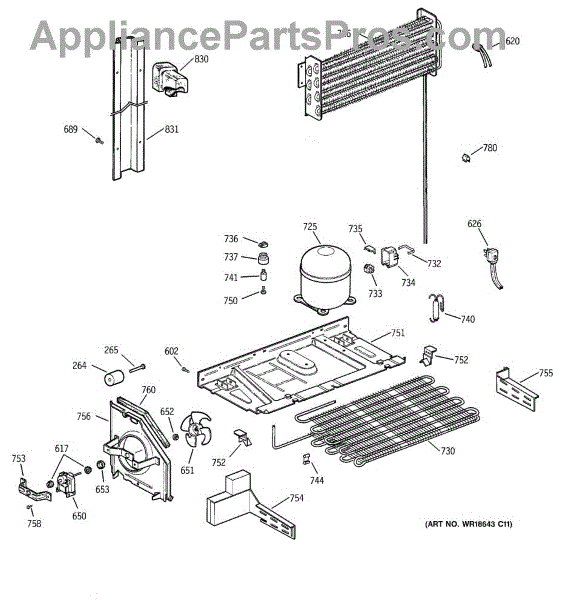

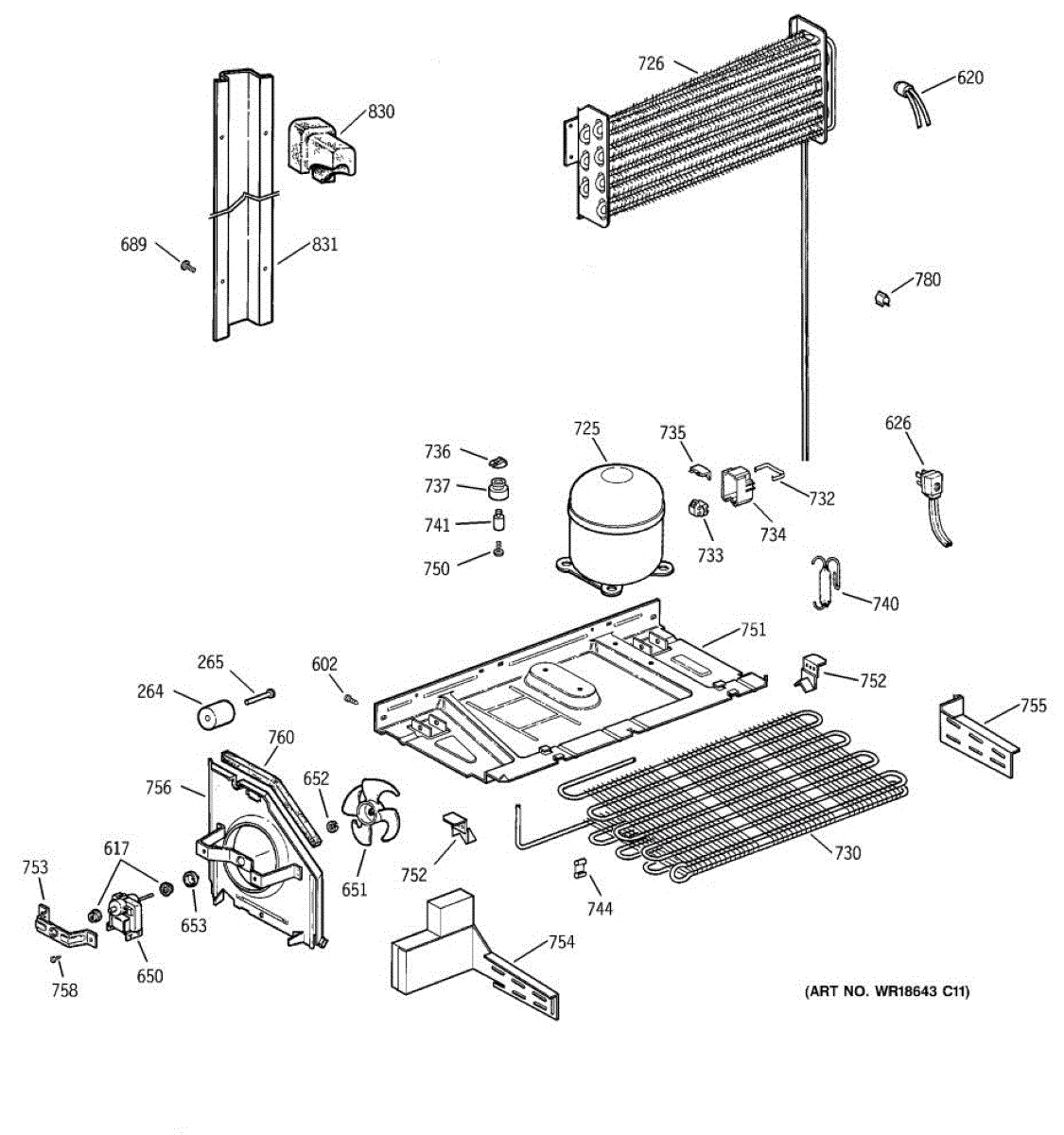

Parts for Ge ERT2018DBRCC: 06 - Unit Parts

This mobility wheel is the small cabinet roller that helps your refrigerator glide for cleaning or service. Replacing a worn, cracked, or missing wheel restores smooth movement and supports proper leveling and positioning. What it does:

• Supports the base of the cabinet and allows the unit to roll when repositioning
• Replaces wheels that are cracked, flat-spotted, broken, or missing
• Common symptoms: refrigerator is hard to move, drags or scrapes, sits unevenly, or shows visible wheel damage
• Aids in pulling the appliance out for maintenance or cleaning

• 1 mobility wheel

• Disconnect power and shut off the water supply before moving the appliance
• Use two people and protect flooring; raise/adjust leveling legs to relieve weight from the wheel
• Access the base/roller bracket, remove the damaged wheel, and install the new wheel securely
• Lower and re-level the unit, reconnect utilities, and verify smooth movement

The Evaporator Fan Grommet is an OEM part for GE refrigerators. This component serves as a cushion and stabilizer for the evaporator fan motor, reducing vibrations and noise while ensuring the fan operates smoothly. It helps to secure the fan motor in place, maintaining proper airflow and efficient cooling within the refrigerator.

Common causes of a bad grommet include wear and tear from constant use, damage from excessive vibrations, or degradation of the material over time.

Symptoms of a bad evaporator fan grommet include:

• Increased noise or rattling sounds coming from the fan area
• Vibrations felt within the refrigerator
• The evaporator fan motor becoming loose or misaligned
• Reduced cooling efficiency due to improper fan operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Defrost Thermostat is an OEM part for GE refrigerators. This component plays a crucial role in the defrost system by regulating the temperature within the freezer. It ensures the defrost heater activates when the temperature rises above a certain threshold, preventing ice build-up on the evaporator coils and maintaining efficient cooling.

Over time, the defrost thermostat can fail due to electrical issues, prolonged exposure to extreme temperatures, or wear and tear from regular use. When this part fails, it can lead to improper defrost cycles, causing ice accumulation and reducing the refrigerator's efficiency.

Symptoms of a bad defrost thermostat include:

• Excessive frost buildup in the freezer
• Inconsistent temperatures in the refrigerator and freezer compartments
• Refrigerator running continuously or not running at all
• Leaking water inside the fridge due to melted ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation

The Condenser Fan Motor is an OEM part for GE refrigerators. This motor is the primary component responsible for drawing cool air through the condenser coils to remove heat generated by the refrigeration system.

Causes of a bad condenser fan motor can include wear and tear over time, dust or debris buildup, electrical issues, or mechanical failure.

Symptoms of a bad condenser fan motor include:

• Increased temperature and humidity buildup inside the refrigerator
• Difficulty maintaining temperature setpoints
• Accumulation of frost or ice on external components
• Abnormal noise or vibration coming from the motor

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This evaporator fan motor dust cap is an authentic OEM replacement part found on refrigerator and freezer fan motors. This dust cap prevents the fan motor bearing and housing from being damaged by dirt and debris. If the dust cap is cracked or broken, the fan may make loud squealing noises. If the dust cap is not removed and replaced, the fan could stop working and ultimately cause the refrigerator's temperature to be affected. To start, disconnect the power and water to the refrigerator. Remove food from the freezer so that the back panel of the freezer can be accessed to reach the fan. Remove the ice maker and set it outside the freezer. Disconnect the fan and take it out of the freezer to expose the fan's shaft and the dust cover. Pry the dust cover off and install the new one. Replace the fan and cover. Reconnect the wires and reinstall the icemaker. Put the food back in the freezer. Reconnect the power and water.The evaporator fan motor dust cap is a white plastic part that is sold individually. This dust cover is made for use in refrigerators manufactured by General Electric, Hotpoint, and Kenmore.

This screw secures panels and components on compatible GE appliances to restore proper fit and reduce vibration. Use it to replace a lost or stripped fastener and keep covers and brackets held firmly in place. What it does:

• Fastens access panels, trim pieces, or internal brackets to maintain proper alignment
• Stops rattling or vibration caused by missing or loose screws
• Restores secure mounting after repair or parts replacement
• Works where the appliance requires a short sheet-metal or machine screw for fastening

• Disconnect power to the appliance before removing panels or performing repairs.
• Use the correct screwdriver or bit to avoid stripping the head.
• Hand-start the screw to ensure proper threading; tighten until snug but avoid over-torquing.

This compressor overload protects the refrigerator's compressor by interrupting power when it overheats or draws excessive current. Replacing a weak or failed overload can stop repeated click/no-start symptoms and help restore normal cooling performance.

• Opens the circuit to protect the compressor during overheat or over-current conditions
• Automatically resets after cooling to prevent sustained damage
• Symptoms include: compressor won't start, rapid clicking from the compressor area, starts then stops, and a warm refrigerator/freezer
• Helps prevent motor and wiring damage caused by repeated overload events

• Disconnect power before servicing; wear appropriate PPE
• Access the rear machine compartment and remove the compressor/start device cover
• Note wire positions; pull the old overload straight off the compressor terminal and push the new one on fully seated; reconnect wiring and covers
• If the overload trips again after replacement, further diagnosis of the start relay, run capacitor, or compressor may be required

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw used to secure appliance components and panels so parts stay properly attached for safe operation. It's a direct-fit fastener matching OEM form and function. What it does

• Secures panels, trim, or internal components to prevent rattling or gaps
• Restores factory attachment where a screw is missing or stripped
• Helps maintain proper alignment of housing and service access
• Suitable when repair requires original-fit fasteners

• Disconnect power or unplug the appliance before servicing to avoid shock
• Use the matching screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed screws organized; replace only the screws that match the original locations
