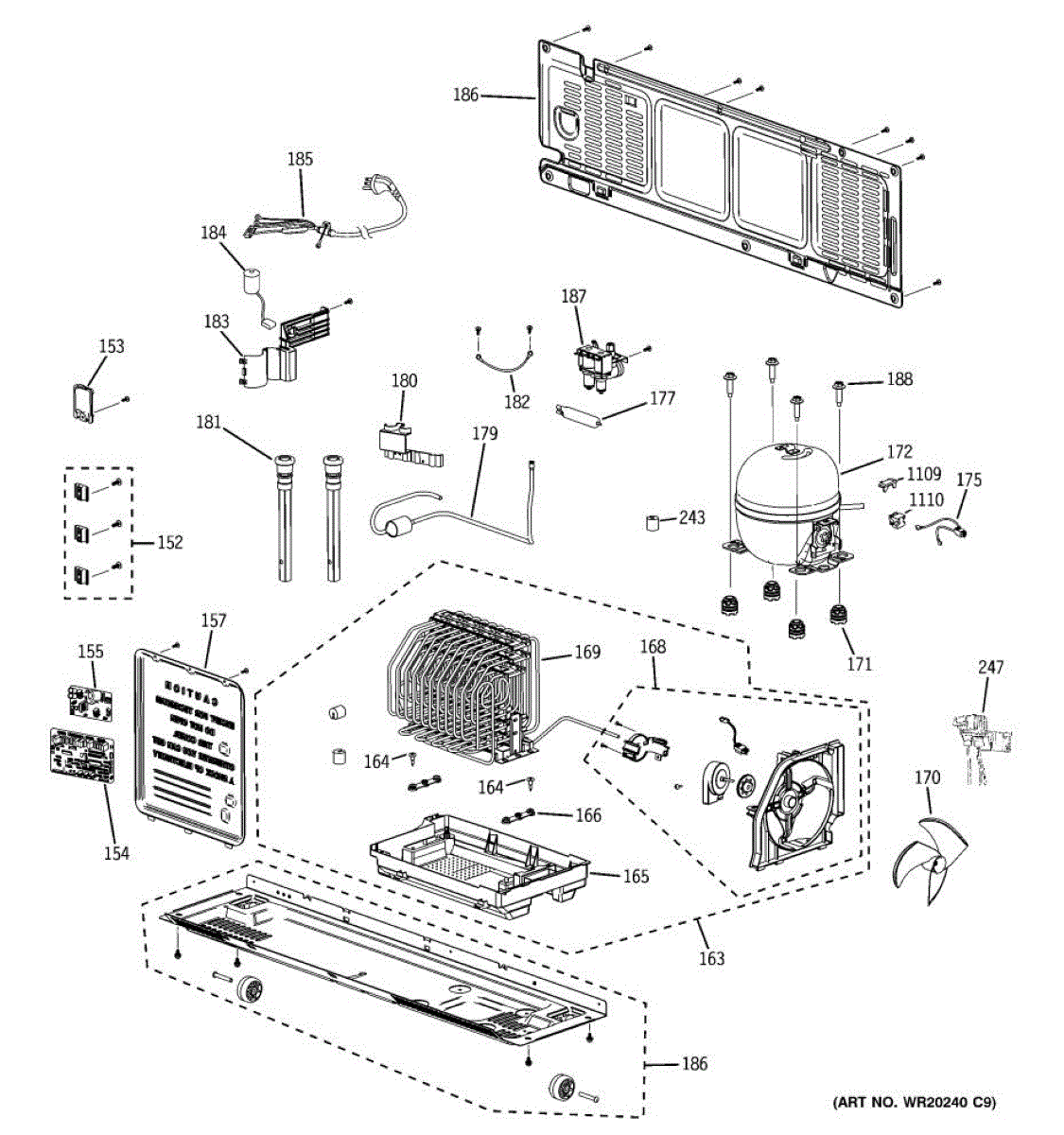

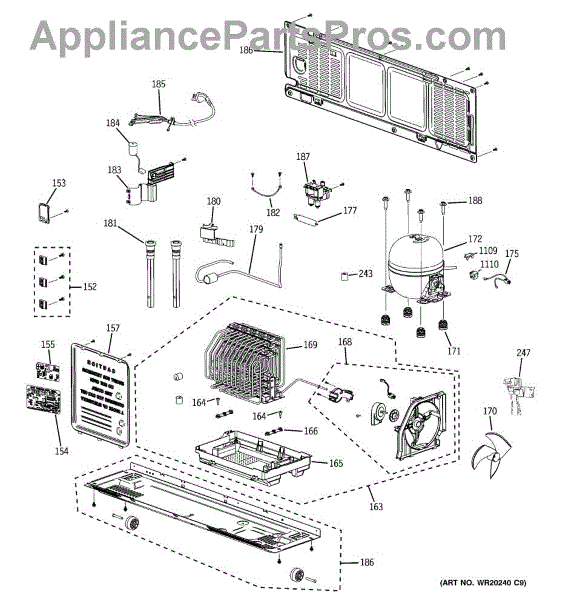

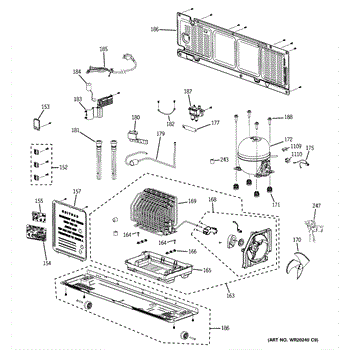

Parts for Ge PFSS9SKYBSS: 09 - Unit Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This water line holder secures a refrigerator or ice maker supply tube to the cabinet or internal frame to keep the line routed and stable. Replacing a worn or missing holder helps prevent rubbing, kinks, and stress on the water line. What it does:

• Holds the water supply line in place to reduce movement and wear
• Helps prevent kinks that can restrict water flow to icemakers and dispensers
• Reduces vibration and potential chafing against sharp edges
• Addresses symptoms like a loose or sagging water line, intermittent flow, or audible line movement

• One water line holder clip

• Disconnect power and shut off the water supply before servicing
• Inspect the water line for damage; replace the line if cracked or leaking
• Mounting may require a screw, push-fit, or slot engagement depending on model—retain existing fasteners or your model's instructions

The Main Control Board Assembly is an OEM replacement part for GE refrigerators. This control board manages tasks such as temperature control, defrost cycles, and compressor operation, ensuring optimal cooling performance and energy efficiency.

A bad main control board assembly can occur due to electrical issues, component failure, or damage to the board itself. If you notice symptoms such as erratic temperature readings, frequent cycling of the compressor, or unresponsive functions, it may indicate a need to replace the control board assembly.

Symptoms of a bad main control board assembly include:

• Erratic temperature readings
• Frequent cycling of the compressor
• Unresponsive functions

Restore your refrigerator by replacing the faulty main control board assembly with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This replacement inverter is made by General Electric and is compatible with refrigerators. The inverter supplies the required voltage to the compressor to run the refrigerator. If the inverter is bad, it may affect the functionality of the compressor, and the user may notice abnormal noises, the compressor overheating, or the compressor clicking on and off too frequently. Make sure that the refrigerator has been entirely disconnected from power to prevent injuries when attempting to replace this part. Work gloves are also recommended. This is a genuine OEM part and has been sourced directly from the manufacturer. This is an authentic part made of high-quality, durable metal and is only sold individually. This inverter can be used with refrigerators manufactured by General Electric, Hotpoint, RCA, and other brands.

This molded rubber condenser grommet cushions and positions the condenser assembly to reduce vibration and wear. It restores proper mounting alignment so the condenser sits securely and operates quietly. What it does:

• Cushions condenser against the cabinet frame to dampen vibration and rattling
• Helps hold the condenser in proper position for correct airflow and clearance
• Prevents metal-to-metal contact that can cause noise or part wear
• Commonly used when the condenser rattles, vibrates, or sits loose after impact or age

• One condenser grommet

• Disconnect power to the appliance before servicing to avoid electrical shock
• Access the condenser from the back or lower rear, remove any service panels as needed
• Remove the old grommet and press the new grommet into place on the condenser mounting post or bracket

This water fitting connects refrigerator water lines to keep the dispenser and icemaker supplied. It replaces a worn or leaking connector so your fridge can maintain a reliable, drip-free water path.

• Joins water tubing for the dispenser/icemaker circuit
• Helps resolve leaks at the connector or along the water line
• Can restore weak/no water flow caused by a damaged fitting
• Maintains a secure, food-safe connection under normal household water pressure

• Unplug refrigerator and shut off the water supply before servicing
• Place a towel or container to catch residual water
• Depress/loosen the connector collet to release tubing; cut ends square and fully seat lines when installing
• Check for leaks after restoring water and power

A replacement compressor mounting bolt that secures the refrigerator compressor to the chassis to help keep the compressor stable and reduce vibration. Direct-fit hardware to restore proper compressor attachment and quiet operation. What it does:

• Fastens the compressor to the refrigerator frame or mounting bracket for secure operation
• Keeps the compressor aligned to prevent movement and reduce vibration-related noise
• Helps maintain a stable seal for connected refrigerant lines by preventing compressor shifting
• Appropriate when original bolt is stripped, corroded, or missing

• Disconnect power to the appliance before starting any repair
• Support the compressor or mounting bracket while removing/installing the bolt to prevent strain on lines
• Use correct socket/wrench size and replace with identical hardware; do not overtighten
• Address those issues before reuse

The Relay Protector is an OEM part for GE refrigerators. The relay protector monitors voltage input for irregular surges or drops that could harm electronic control boards over time. Upon detection, it immediately redirects excess voltage away from relays to safeguard sensitive circuits.

Causes can be damage from sustained power fluctuations over years of use. Failure allows increased risk of voltage abnormalities affecting parts.

Symptoms of a faulty relay protector include:

• Refrigerator cycles unexpectedly turning off
• Inoperative zones within, like water/ice dispensers
• Frequent component burnouts requiring replacements
• Buzzing noises from the electrical outlet area

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This cover relay is a small protective housing that fits over the refrigerator compressor relay. It helps shield the relay from dirt, moisture and accidental contact to protect electrical connections and improve component longevity. What it does:

• Covers and protects the compressor start relay from debris and moisture
• Helps prevent accidental contact with relay terminals
• Maintains proper relay positioning on the compressor
• Commonly replaced when the original cover is cracked, melted or missing

• One cover relay

• Disconnect power to the appliance before servicing to avoid electric shock
• Handle compressor and relay components carefully to avoid damage
