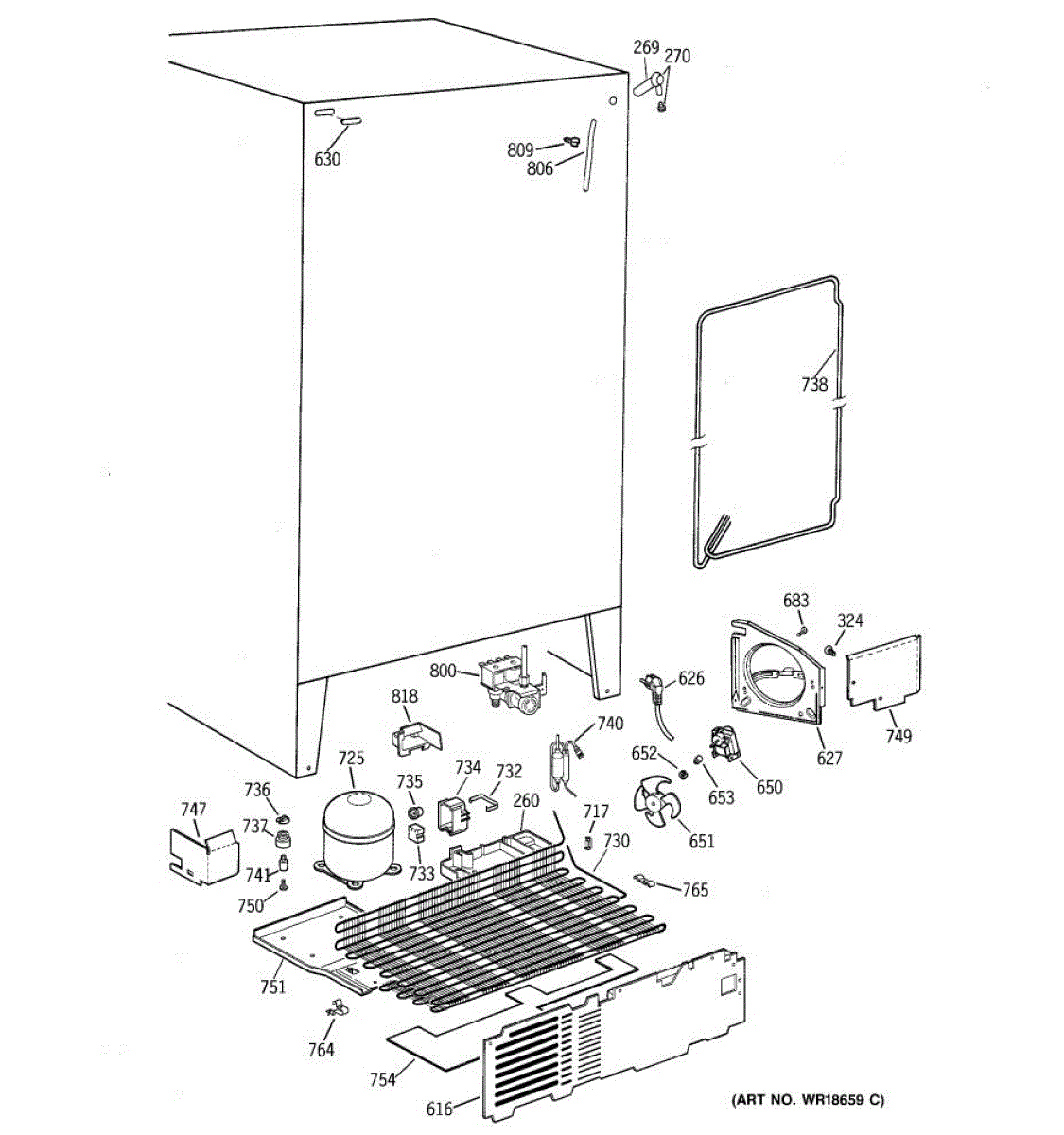

Parts for Ge TFX22PRBEBB: 06 - Unit Parts

This clamp secures small hoses or tubing and nearby wiring inside the appliance to keep lines held in place and reduce rubbing, leaks, or vibration noise. It's a direct-fit replacement designed to restore proper hose routing and stability. What it does:

• Holds water, drain or vent tubing securely to prevent sagging and rubbing that can cause leaks or wear
• Keeps hoses and wires aligned to reduce vibration and rattling during operation
• Helps maintain proper connections at fittings so seals stay seated and drip risk is minimized
• Simple mechanical clip action — no special tools or adhesives required

• Disconnect power and shut off the water supply before starting any repair
• Remove the old clamp and install this clamp in the same orientation; tubing sits fully in the fitting
• Use standard pliers (or the OEM-recommended tool) to compress/seat the clamp; avoid twisting or pinching the tubing
• Inspect surrounding tubing and fittings for wear; replace damaged hoses or seals if found

The Ice Maker Fill Tube Grommet is an OEM part for GE refrigerators. This grommet creates a seal between the ice maker fill tube and the refrigerator, preventing leaks and ensuring that water is properly directed into the ice maker during the filling process.

Causes of a bad grommet can include regular wear and tear, damage from exposure to freezing and thawing cycles, or degradation from exposure to water and moisture.

Symptoms of a bad ice maker fill tube grommet include:

• Water leaks around the ice maker fill tube area
• Ice maker not producing ice properly
• Visible cracks or deformation in the grommet
• Water pooling inside or around the refrigerator

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation

This black plug button is a small snap-on cover that restores a finished look and protects openings on your appliance. It replaces a missing or damaged button so panels and trim look complete and resist debris. What it does:

• Covers exposed holes or fasteners to improve appearance
• Helps keep dirt and moisture out of small openings
• Replaces worn, cracked, or broken plug buttons
• Useful when a panel or trim piece looks unfinished or has a missing cap

• One black plug button

• Typically installs with a simple snap-fit; press into place until seated
• No tools usually required; verify seating and alignment before finishing
• If the original is fastened or a backing clip is present, retain or replace that hardware as needed
• Disconnect power to the appliance before accessing areas that expose electrical components

This evaporator fan motor dust cap is an authentic OEM replacement part found on refrigerator and freezer fan motors. This dust cap prevents the fan motor bearing and housing from being damaged by dirt and debris. If the dust cap is cracked or broken, the fan may make loud squealing noises. If the dust cap is not removed and replaced, the fan could stop working and ultimately cause the refrigerator's temperature to be affected. To start, disconnect the power and water to the refrigerator. Remove food from the freezer so that the back panel of the freezer can be accessed to reach the fan. Remove the ice maker and set it outside the freezer. Disconnect the fan and take it out of the freezer to expose the fan's shaft and the dust cover. Pry the dust cover off and install the new one. Replace the fan and cover. Reconnect the wires and reinstall the icemaker. Put the food back in the freezer. Reconnect the power and water.The evaporator fan motor dust cap is a white plastic part that is sold individually. This dust cover is made for use in refrigerators manufactured by General Electric, Hotpoint, and Kenmore.

This part has been discontinued by the manufacturer and is no longer available.

This PTCR is the compressor's start device for select refrigerators. It helps the compressor start smoothly by momentarily boosting the start winding, then automatically reduces current as the motor reaches speed.

• Provides initial start assist to the compressor, then self-resets
• A failing PTCR can cause clicking, repeated start attempts, warm temperatures, or the compressor not running
• Helps protect the compressor by limiting inrush current during startup

• Disconnect power before servicing; allow components to cool
• Note wire positions and orientation before removal
• Inspect compressor terminals for heat damage and ensure firm connections
• If the old device shows signs of overheating, also check the overload and wiring

This is a grommet and it is intended for use on refrigerators and freezers. This is a genuine replacement part made by General Electric. A new grommet might be needed if the current one is visibly worn out or damaged in any way. If there are noises from vibration coming from the lower back area of the fridge there might be need for a new grommet. This is an OEM part sourced directly from the manufacturer, and it is sold individually. It is compatible with refrigerators and freezers, or units with a compressor and is made by General Electric.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw used to secure appliance components and panels so parts stay properly attached for safe operation. It's a direct-fit fastener matching OEM form and function. What it does

• Secures panels, trim, or internal components to prevent rattling or gaps
• Restores factory attachment where a screw is missing or stripped
• Helps maintain proper alignment of housing and service access
• Suitable when repair requires original-fit fasteners

• Disconnect power or unplug the appliance before servicing to avoid shock
• Use the matching screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed screws organized; replace only the screws that match the original locations

The Dual Water Inlet Valve Kit is an OEM part for GE refrigerators. It controls the flow of water to both the ice maker and the water dispenser. This dual-function valve ensures that your refrigerator can produce ice and dispense water efficiently. The valve operates by opening and closing in response to signals from the refrigerator, allowing water to flow into the ice maker or water dispenser when needed.

The dual water inlet valve may wear out over time, especially in hard water areas, leading to issues like no ice production, malfunctioning water dispenser, or leaks.

Symptoms of a bad Dual Water Inlet Valve Kit include:

• No water being dispensed
• The ice maker not producing any ice
• A slow or irregular flow of water from the dispenser
• Water leaking from the valve

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Maker Water Line is an OEM replacement part for GE refrigerators. It is an important supply line that delivers water from the main water source to the icemaker component. The water line allows water to flow smoothly, facilitating the icemaking process.

Causes of a bad water line can include cracks or punctures from impact or bending, mineral deposits and corrosion building up inside the line restricting flow, or improper connection fittings causing leakage.

Symptoms of a bad ice maker water line include:

• Irregular or insufficient ice production
• No water delivery to the icemaker despite activation
• Noticeable leaks or drips near the water line attachment points
• Strange knocking or hammering sounds are heard when the icemaker is running

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This water tube fastener secures the refrigerator's water tube/line to the cabinet or chassis, keeping the tubing routed and stable to prevent kinks and inconsistent water flow. Simple replacement helps restore proper line routing and reduces vibration noise. What it does:

• Holds the water inlet/dispenser tube in place to prevent movement and rubbing
• Keeps tubing routed away from sharp edges and hot components
• Helps prevent kinks that can restrict water flow to the dispenser/ice maker
• Reduces vibration-related noise from loose tubing

• Disconnect power and shut off the water supply before replacing any water-line hardware.
• Remove any access panels needed to reach the existing clip; use hand tools to unclip or remove fastener.
• Check for leaks and secure routing after installation.

This Guard Splash is a molded splash shield that helps direct water away from sensitive components and prevents drips or spray from reaching internal parts. It's a direct-fit replacement that restores proper water routing and protection. What it does:

• Redirects water and condensation away from electrical and mechanical components
• Helps prevent water from dripping into cabinets or onto wiring and connectors
• Restores the original splash protection after damage or wear
• Compatible with the OEM mounting locations to maintain correct fit and function

• One Guard Splash

• Disconnect power to the appliance before beginning work to avoid shock
• Remove any obstructing panels, shelves or trim to access the splash area
• Verify correct orientation and seating of the guard before reinstalling panels
• Replace damaged clips or fasteners to ensure a secure fit
