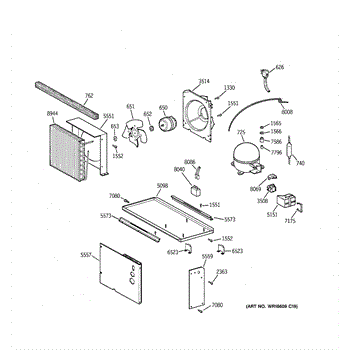

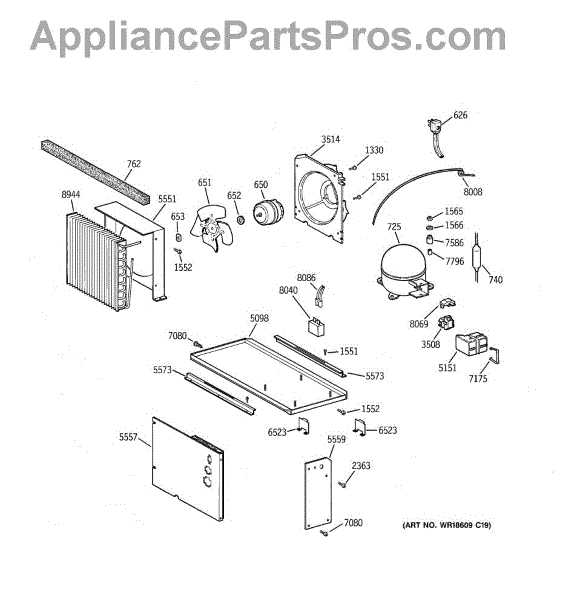

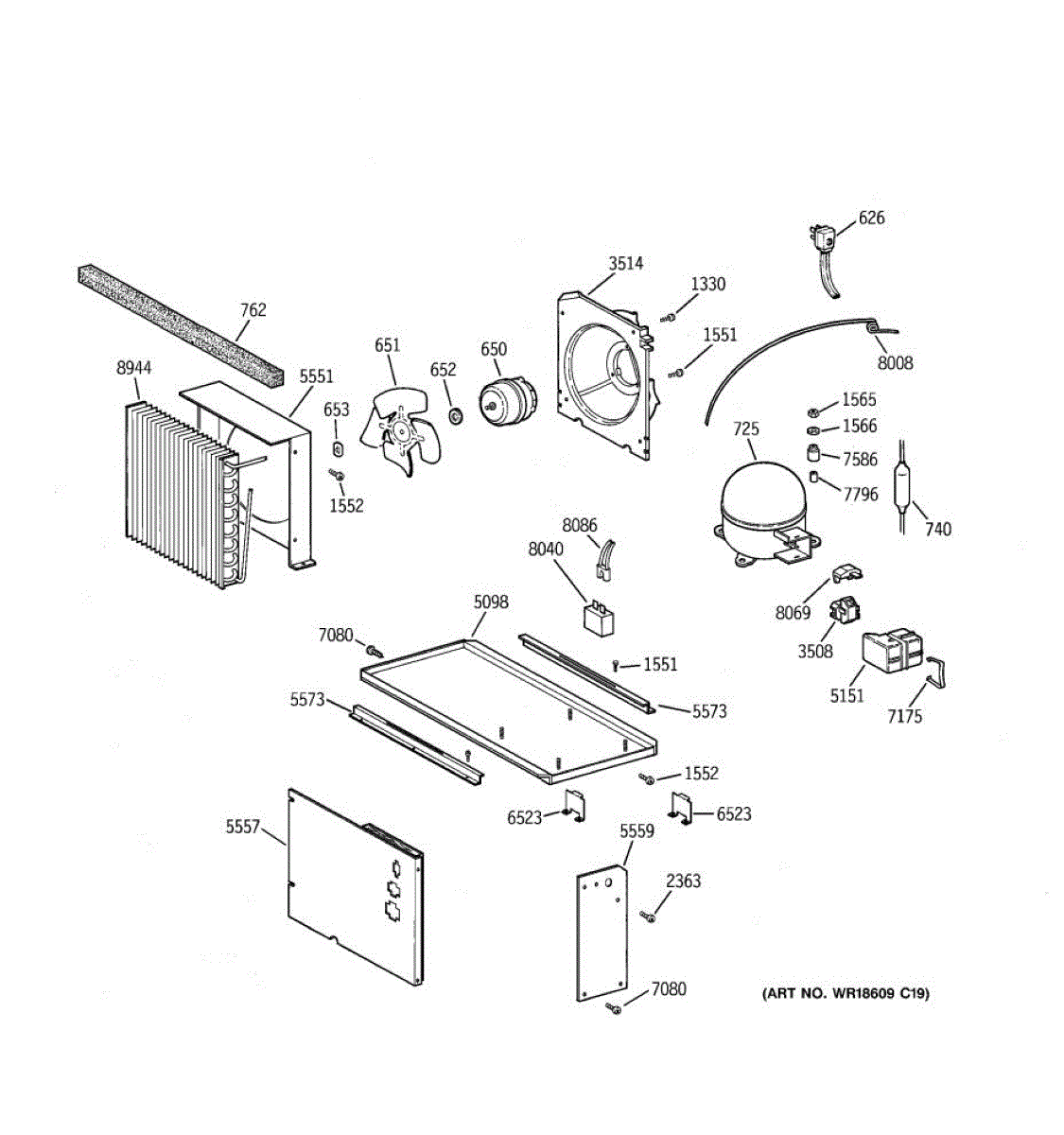

Parts for Ge ZIR36NMDLH: 04 - Unit Parts

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation

The Condenser Fan Motor is an OEM part for GE refrigerators. It is responsible for circulating air over the condenser coils, which are essential for removing heat from the refrigerant and enabling proper cooling.

Causes of a faulty Condenser Fan Motor include wear and tear over time, electrical issues, or bearings becoming seized or damaged.

Symptoms of a bad Condenser Fan Motor include:

• Inadequate cooling or the refrigerator not cooling at all
• Loud grinding or rattling noises from the fan area
• Error codes related to the condenser fan or cooling system

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Condenser Fan Blade is an OEM part for GE refrigerators. It is responsible for moving air across the condenser coils to help dissipate heat, allowing the refrigerator to maintain the proper cooling temperature. This fan blade ensures efficient operation of the cooling system by facilitating proper airflow.

You should replace this condenser fan blade if it becomes damaged, warped, or fails to move air effectively. Common causes of a bad fan blade include physical damage from debris, wear and tear over time, or warping due to prolonged exposure to heat.

Symptoms of a bad condenser fan blade include:

• Refrigerator not cooling properly
• Increased noise from the refrigerator
• Overheating of the condenser coils
• Reduced airflow around the condenser area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This genuine replacement screw secures appliance components and restores proper fit and function. Use it when original fasteners are missing, stripped, or corroded to stop loose panels and rattling and keep parts aligned. What it does

• Fastens panels, brackets, or small components to the appliance frame
• Replaces missing or damaged screws that cause loose trim or rattling noises
• Restores secure fit where threads are stripped or corroded
• Helps prevent further damage from loose parts by maintaining correct alignment

• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread and tighten by hand first, then snug — avoid over-tightening which can strip threads or crack plastic
• Disconnect power to the appliance before working on internal components
• Consider replacing the mating nut or insert for a secure repair

This refrigeration pan catches and channels defrost and condensation water away from the refrigerator cabinet to prevent puddling and redirect it to the evaporator area for evaporation. Durable plastic resists cracking under normal use. What it does:

• Collects defrost and condensation water that drips from the evaporator assembly
• Channels moisture to the evaporator/evaporation area to reduce cabinet leaks
• Helps prevent water damage and puddling inside or beneath the unit
• Fits under the evaporator/coil area and sits in the refrigerator base pan location

• One refrigeration/drip pan

• Inspect and replace only when pan is cracked, melted, or warped and leaking
• Remove power to the appliance before accessing the base area to avoid electrical hazards
• May require removal of front grille or toe plate and tilt/raise fridge for access
• Ensure proper drainage path after install

This part has been discontinued by the manufacturer and is no longer available.

This is a grommet and it is intended for use on refrigerators and freezers. This is a genuine replacement part made by General Electric. A new grommet might be needed if the current one is visibly worn out or damaged in any way. If there are noises from vibration coming from the lower back area of the fridge there might be need for a new grommet. This is an OEM part sourced directly from the manufacturer, and it is sold individually. It is compatible with refrigerators and freezers, or units with a compressor and is made by General Electric.

This suction and cap tube assembly routes refrigerant between the evaporator and compressor, combining the suction line and capillary metering tube for proper refrigeration flow. It's used during sealed-system service to restore correct refrigerant routing. What it does

• Carries low-pressure refrigerant vapor from the evaporator back to the compressor.
• Houses the capillary (metering) tube that helps regulate refrigerant flow into the evaporator.
• Replaces damaged or corroded suction/small-diameter tubing that can cause cooling loss or system performance issues.

• One suction & cap tube assembly as shown.

• Sealed-system component—installation requires a certified HVAC/refrigeration technician.
• System must be evacuated, brazed or connected per OEM service procedures, leak-tested, and recharged with the correct refrigerant.
• Always disconnect power before service and follow proper safety and refrigerant-handling regulations.
• Not a user-serviceable part; replacing this may require additional sealed-system components or compressor service.

The Run Capacitor is an OEM part for GE refrigerators. It plays a crucial role in the refrigerator's cooling system by providing the necessary start and run voltage to the compressor. Without a properly functioning run capacitor, your refrigerator may struggle to maintain the desired temperature, leading to spoiled food and inefficient energy use.

Causes of a bad run capacitor include electrical surges, wear and tear over time, or overheating due to a malfunctioning refrigerator compressor or poor ventilation.

Symptoms of a bad Run Capacitor include:

• The refrigerator compressor fails to start.
• Unusual humming noises coming from the refrigerator.
• The refrigerator cycles on and off more frequently than normal.
• A noticeable increase in energy consumption as the refrigerator struggles to maintain the proper temperature.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Condenser Coil is an OEM part for GE refrigerators. It is a part of the refrigeration system responsible for releasing heat from the refrigerator.

A bad condenser coil can occur due to factors such as dirt and debris buildup, damage to the coils, or a malfunctioning condenser fan. If you notice symptoms such as inadequate cooling, excessive heat on the back of the refrigerator, or the condenser fan not running, it may indicate a faulty or malfunctioning condenser coil.

Symptoms of a bad condenser coil include:

• Inadequate cooling or inconsistent temperature control
• Excessive heat on the back of the refrigerator
• Condenser fan not running or running intermittently

Restore your refrigerator by replacing the faulty condenser coil with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
