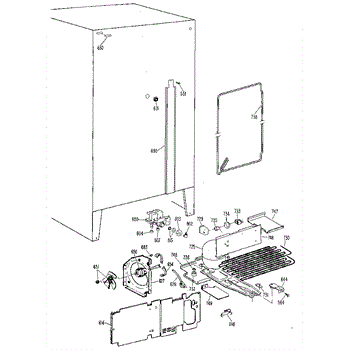

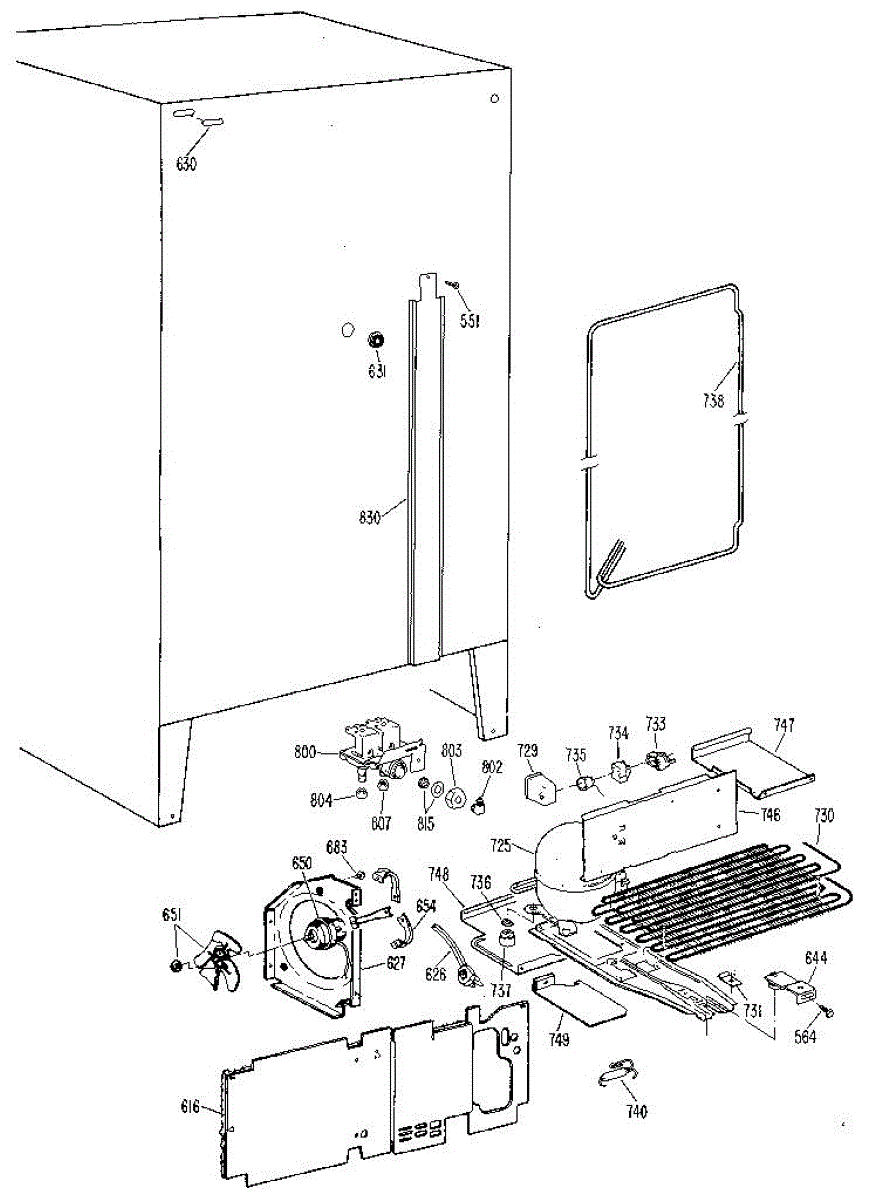

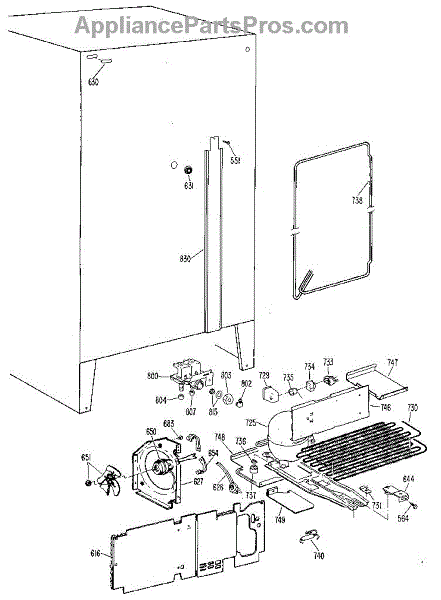

Parts for Kenmore 363.8500516 (3638500516, 363 8500516): Unit Parts

Package of 12

The Condenser Fan Motor is an OEM part for GE refrigerators. It is designed to circulate air through the condenser coils, helping to dissipate heat and keep the refrigerator's internal components cool. This ensures efficient operation and prevents the compressor from overheating, which is essential for maintaining the refrigerator's performance and longevity.

You should replace the condenser fan motor if it becomes faulty. Causes of a bad fan motor can include electrical failures, wear and tear from regular use, or blockages that cause the motor to overheat or burn out. A malfunctioning fan motor can lead to inadequate cooling, increased energy consumption, and potential damage to other refrigerator components.

Symptoms of a bad condenser fan motor include:

• The refrigerator not cooling properly
• Unusual noises coming from the back of the refrigerator
• The compressor running hot or cycling on and off frequently
• The condenser coils feeling excessively hot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 15 uF capacitor kit supports an AC motor by providing the phase shift needed to start and run smoothly. Replacing a weak or failed capacitor can help resolve hard-start or no-start issues and restore consistent performance. What it does

• Stores and releases energy to help a single-phase AC motor start and maintain proper torque
• Common symptoms include humming or buzzing without starting, repeated clicking, intermittent starting, or warmer-than-normal temperatures
• Visual clues of failure may include a swollen or cracked housing
• Matched 15 uF rating supports correct motor operation per the original design

• One 15 uF capacitor

• Disconnect power before servicing; verify the capacitor is fully discharged before handling
• Note wire positions; move one lead at a time to the new capacitor
• Match the microfarad (uF) rating to the original part for proper performance
• Secure the capacitor using the existing bracket/strap and route wires away from heat and moving parts

This front air baffle directs cooled air inside the refrigerator compartment to help maintain even temperatures and proper airflow. Replaces a cracked or broken baffle to restore correct air circulation and door seal alignment. What it does:

• Guides cold air from the evaporator into the fridge compartment for balanced cooling
• Helps maintain proper airflow paths so food stays colder and fresher
• Prevents rattling or obstruction caused by a broken or warped baffle
• Supports proper door closure where applicable

• One front baffle assembly

• Disconnect power to the appliance before beginning any work
• Remove any shelves or door bins that block access to the baffle
• The baffle typically snaps or screws into place; align carefully and secure without forcing

The Water Inlet Valve is an OEM part for GE refrigerators. It is responsible for controlling the flow of water into the refrigerator’s ice maker and water dispenser. The valve opens and closes to allow the right amount of water to fill the ice maker tray or to dispense water from the refrigerator door.

Over time, the water inlet valve can wear out or become damaged due to mineral deposits, corrosion, or electrical issues. A faulty valve can lead to problems with the water supply, affecting the refrigerator’s ability to produce ice or dispense water properly.

Symptoms of a bad water inlet valve include:

• No water or ice production
• Water dispenser not working
• Leaks or drips around the valve or inside the refrigeratorStrange noises coming from the valve area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Nut for 1/4 inch tubing.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
