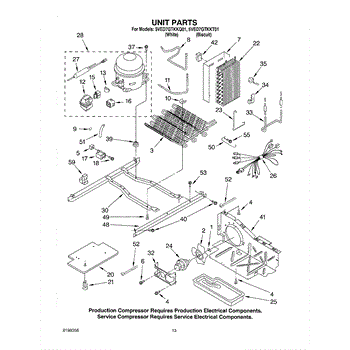

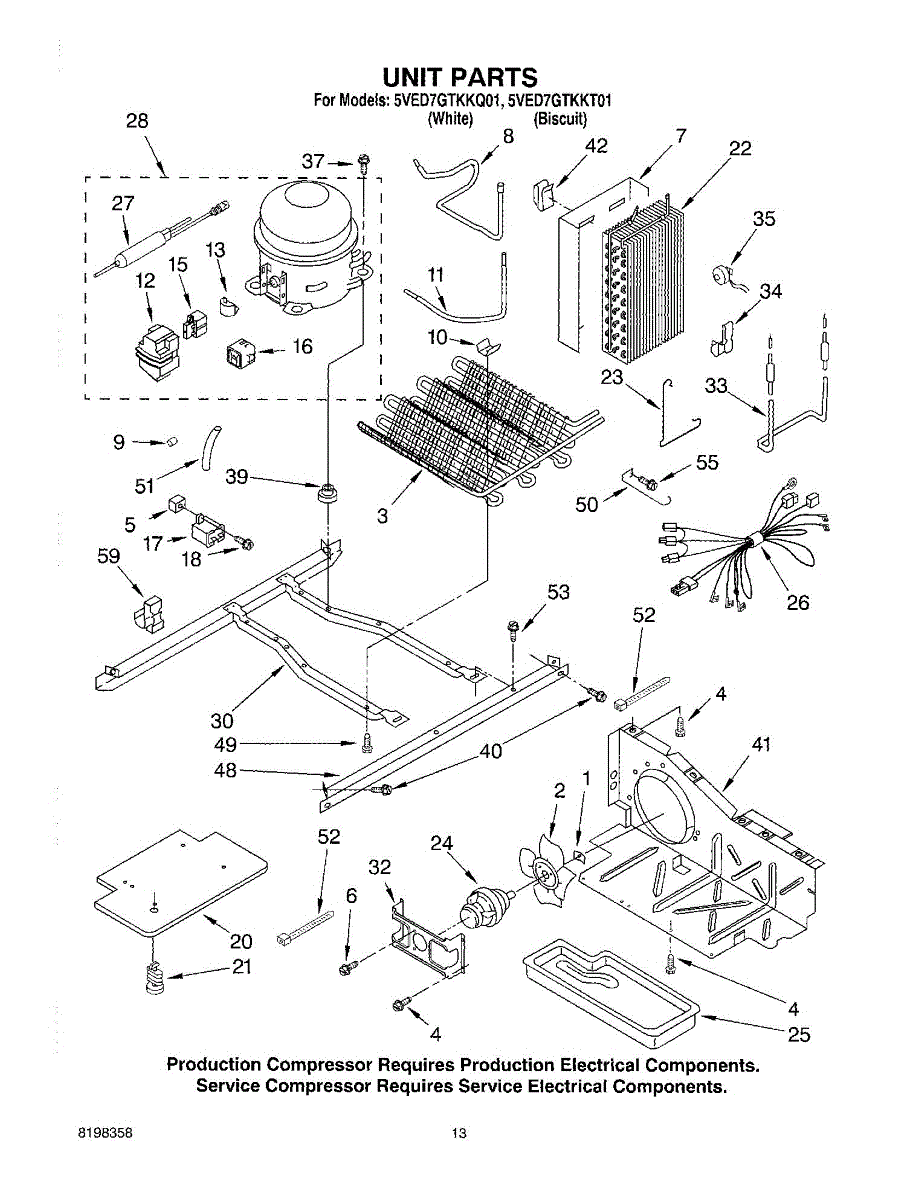

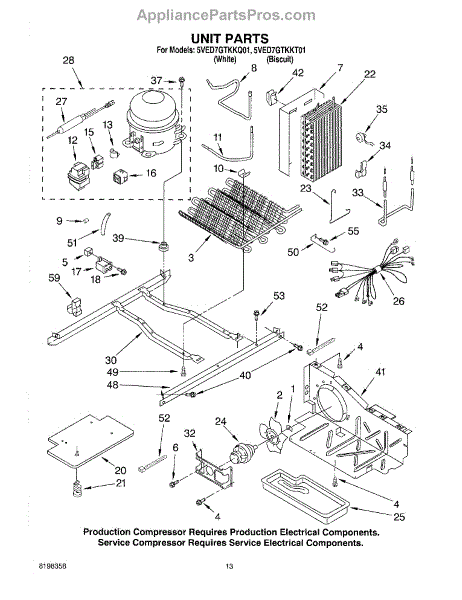

Parts for Whirlpool 5VED7GTKKT01: 08 - Unit Parts, Parts Not Illustrated Parts

The Nut is an OEM replacement part for Whirlpool refrigerators. This small yet essential component is used to secure various parts of the refrigerator, such as shelves, panels, or brackets, ensuring stability and proper alignment. Its durable design ensures reliable performance in the demanding environment of a refrigerator.

Causes of a bad or missing Nut can include wear over time, accidental stripping of threads, or loss during maintenance or repairs. A damaged or missing nut can lead to loose components and reduced functionality.

Symptoms of a bad or missing Nut include:

• Loose or wobbly shelves, brackets, or panels
• Difficulty keeping refrigerator components securely in place
• Rattling or unusual noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This genuine replacement screw secures panels and components so your appliance stays stable and trim pieces fit properly. It's a simple, exact-fit fastener intended to replace a missing or damaged mounting screw. What it does:

• Fastens panels, trim, control housings or brackets to the appliance frame
• Restores secure fit when a screw is missing, stripped, or corroded
• Helps eliminate rattling or loose panels caused by a missing fastener
• Matches OEM thread and head style for correct seating and torque

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until parts are firmly seated
• Disconnect power and follow appliance safety guidelines before servicing

This dampener cushions and stabilizes the washer tub during spin cycles to reduce vibration and noise for smoother operation. It replaces worn or damaged suspension dampeners to help restore proper tub balance and quieter performance. What it does:

• Absorbs and dampens tub movement during agitation and spin to reduce vibration and noise.
• Helps maintain proper tub alignment for more even spinning and less wobble.
• Commonly replaced when the washer rocks, thumps, or makes excessive noise during spin.
• Works with the washer's suspension system to protect other components from shock and wear.

• 1 dampener

• Disconnect power and shut off water supply before beginning any repair.
• Access typically requires removing the washer cabinet or front panel; follow OEM service instructions.
• Inspect mounting studs and clips for wear; replace as needed to ensure a secure fit.

This terminal block cover protects the appliance's electrical connection area from accidental contact and debris, helping reduce the risk of shorts and corrosion while keeping wiring secure and contained. What it does:

• Covers and shields the power terminal/block where the power cord connects
• Helps prevent accidental contact with live terminals and reduces short risk
• Keeps out dust, lint and debris that can cause corrosion or arcing
• Useful when the original cover is cracked, missing or showing burn marks

• Always disconnect power (unplug or switch off breaker) before servicing electrical components
• Typically installs over the terminal block and secures with the existing fastener(s); inspect mounting hardware for wear
• Replace if cracked, melted or if terminals are exposed; ensure cover seats fully before restoring power

This running capacitor restores proper motor operation by providing the phase shift needed for fan and compressor motors. It helps motors run smoothly and reduces overheating or hard-start symptoms when the original capacitor fails. What it does:

• Provides the steady electrical phase shift required for motor operation in refrigeration and HVAC systems
• Helps restore normal motor starting and running performance
• Can reduce motor overheating, humming, or intermittent operation caused by a bad capacitor
• Used when the motor runs poorly, won't reach full speed, or cycles unusually

• 1 running capacitor

• Disconnect power at the breaker and verify the appliance is de-energized before servicing
• Discharge the capacitor with an insulated tool and wear insulated gloves and eye protection
• Replace with the same type and mounting orientation; secure all wire connections firmly

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This evaporator assembly circulates refrigerant and removes heat inside the freezer section to enable proper cooling and frost control. Replaces a damaged or corroded evaporator to restore normal temperature performance. What it does:

• Holds refrigerant and transfers heat so the freezer evaporates moisture and cools the compartment.
• Commonly used when frost builds up, freezer runs warm, or cooling is intermittent.
• Works with the sealed refrigeration system and defrost components to maintain proper cold temperatures.
• Designed to match OEM fit and function for compatible refrigerators.

• System evacuation, recharge, and leak testing are required after installation.
• Disconnect power before servicing to avoid electrical shock and appliance damage.
• Inspect related defrost and sealing components during replacement.

This replacement clip secures the defrost heater to the evaporator so the heater stays in proper contact and defrosts frost buildup efficiently. Durable, OEM-style retention clip designed for refrigerators. What it does

• Secures the defrost heater to the evaporator assembly to ensure consistent defrost cycles
• Prevents the heater from shifting or coming loose, which can cause frost buildup or interrupted defrosting
• Helps maintain proper contact for efficient heat transfer during defrost
• Small, inexpensive part that can prevent larger ice/frost-related issues

• Disconnect power to the appliance before accessing the evaporator compartment.
• Handle the evaporator fins and heater element carefully to avoid damage.
• Typically installs with basic hand tools; replace any damaged or corroded clips.

This motor capacitor helps the appliance motor start and run smoothly by providing the electrical phase shift needed for motor operation. Replace a failing capacitor to restore reliable motor starting and consistent performance. What it does:

• Provides the electrical charge that helps the motor start and maintain rotation
• Commonly replaced when the motor hesitates to start or runs weakly
• Can prevent excessive motor strain and reduce occasional stalling or intermittent operation
• Related to symptoms such as humming from the motor, slow or no start, or irregular motor performance

• Disconnect power to the appliance before servicing to avoid shock hazard
• Capacitors can hold charge—discharge safely before touching terminals
• Inspect mounting and wiring; replace with the exact specified capacitor for the appliance

The Evaporator Drip Tray is an OEM replacement part for Whirlpool refrigerators.

Causes of a bad drip tray can include cracks developing in the plastic over time. Mineral deposits may also accumulate, reducing the tray's drainage functionality.

Symptoms of a bad Evaporator Drip Tray include:

• Water leaks or overflow detected inside the freezer base
• Potential freezing or short circuits from excess pooled moisture
• Inability to effectively direct condensate away from coils
• Promotes conditions for mold or odor development

This OEM Whirlpool part is also compatible with Maytag, KitchenAid and some Kenmore models.

This condenser fan motor bracket secures the condenser fan motor to the appliance chassis, keeping the cooling fan stable so it can move air across the condenser for proper cooling performance and prevent wobble or contact. What it does:

• Holds the condenser fan motor in the correct position so the fan blades clear surrounding components.
• Stabilizes the motor to reduce vibration and noise caused by a loose or damaged mount.
• Helps maintain proper condenser airflow to avoid overheating or reduced cooling.
• Can be replaced when the original bracket is bent, cracked, or broken and no longer supports the motor.

• Disconnect power before starting any repair to avoid electric shock.
• Verify motor and fan assembly alignment when reinstalling the bracket; secure mounting hardware snugly but do not overtighten.
• Inspect related fasteners and fan components for wear and replace as needed.

The Defrost Thermostat is an OEM part for Whirlpool refrigerators. It is responsible for monitoring the temperature of the evaporator coils. When the coils reach a certain temperature, the thermostat signals the defrost heater to turn on and melt any ice or frost buildup. This ensures proper airflow and prevents excessive ice formation.

Causes of a bad defrost thermostat can be attributed to normal wear and tear over time or electrical malfunctions.

Symptoms of a bad defrost thermostat include:

• Excessive ice buildup in the freezer section.
• Inadequate cooling in the refrigerator compartment.
• Frost or ice accumulating on the evaporator coils.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This part is a grommet. This is a genuine OEM part made by Whirlpool and has been sourced directly from the manufacturer. This part is intended to replace a broken or misplaced grommet in a variety of different appliance models.Grommets have a number of uses in different appliances. Typically, grommets are important for letting water pass through the appliance without leaking. Over time, grommets can become brittle, cracked, or lost and may need replacing. Please follow appropriate safety precautions when attempting to replace any appliance parts. Make sure the appliance is completely disconnected from its gas, water, and power sources before attempting any repairs or replacements. Proper tools might be required to replace this part. For more accurate information on how and where to install this replacement grommet, reference the appropriate manufacturer owner's manual and diagrams. As an authentic replacement part, this grommet is suitable for use on several different models of refrigerators, freezers, and washers manufactured by Whirlpool, Kenmore, KitchenAid, Roper, and other Whirlpool brands. Please note that this is a genuine part made of high-quality, durable, rubber material and is sold individually.

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

This small rubber grommet cushions and supports a fan motor, helping reduce vibration and noise while the appliance is running. It fits into the motor bracket to provide a snug, insulated mounting point.

• Isolates fan motor vibration to cut rattling or buzzing
• Helps keep the motor aligned in its bracket
• Can wear, crack, or compress over time, causing vibration or noise
• Replacing a deteriorated grommet restores smooth, quieter operation

• Disconnect power before servicing
• Access the fan assembly and support the motor to relieve strain
• Note grommet orientation; transfer any sleeves or hardware as found
• Seat the new grommet fully in the bracket before remounting the motor

8 x 1/12

This air baffle directs and controls cold airflow inside the refrigerator compartment to help maintain even temperatures and proper circulation. Replaces a cracked, warped, or missing baffle to restore intended airflow paths. What it does

• Directs cold air from the evaporator into the refrigerator compartment for balanced cooling.
• Helps prevent uneven temperatures and localized warm or cold spots.
• Reduces excessive airflow directly onto stored items that can cause freezing or drying.
• Can rattle or obstruct airflow when cracked or loose, causing noise or reduced performance.

• One air baffle

• Disconnect power to the appliance before beginning work.
• Installation typically requires removing shelves or drawers for access; handle plastic parts gently to avoid damage.
• Align tabs or tracks and snap the baffle into place; do not force or bend beyond natural fit.

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

Size: 8 x 1/2 ab.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.

Epoxy repair kit - aluminum tubing.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Size: 1/4 lb.

Size: 63-1/2 x 35-1/2 x 2-5/8 inch.

Sealer for refrigerant line insulation.

This OEM grease is a purpose-made appliance lubricant that reduces friction and protects moving parts for smoother operation and longer component life. Use where specified by the manufacturer for bearings, slides, or motor shafts. What it does:

• Lubricates gears, bearings, rollers and shafts to reduce wear and noise
• Helps prevent binding, seizing, and grinding on moving components
• Protects metal parts from corrosion where grease is specified
• Keeps parts moving smoothly under normal operating temperatures

• Disconnect power before servicing any appliance; follow manufacturer service instructions
• Apply sparingly to clean, dry surfaces; avoid over-greasing which can attract debris
• Wear gloves and wipe excess grease from surrounding areas to prevent staining

Color: White. Size: 13 oz. Spray paint primer. can.

This clip kit secures small panels, wiring harnesses, or trim on compatible Whirlpool appliances to prevent rattling and keep components in their intended position. It restores proper fit and helps reduce noise from loose parts. What it does:

• Holds wiring harnesses and cables in place to prevent chafing or contact with moving parts
• Secures panels, trim, or hoses so assemblies stay aligned and quiet
• Reduces rattling, buzzing, or vibration caused by loose components
• Keeps parts positioned during normal use and transport

• Disconnect power (unplug or shut off breaker) before starting any repair
• Use basic hand tools; avoid forcing clips into place to prevent breakage
• Replace any damaged clips with the exact kit to ensure proper fit
• Re-check that fastened parts are secure and that there are no pinched wires before restoring power

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Color: White. Size: 2 oz. can. Porcelain touch-up paint.

Color: Almond

Almond. Size: 13 oz. can. Acrylic appliance paint.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

The Alumilastic Cement is an OEM part for Whirlpool appliances, typically used in refrigerators and freezers. It serves as a thermal mastic compound, designed to provide a secure and heat-conductive bond between various components, such as evaporator coils and the interior walls of the appliance.

Causes of a bad alumilastic cement can include drying out, cracking, or losing its adhesive properties over time. This can occur due to age, exposure to temperature fluctuations, or improper application. When the cement fails, it can lead to poor thermal conductivity and decreased cooling efficiency.

Symptoms of a bad alumilastic cement include:

• Reduced cooling performance
• Unusual noises from the cooling system
• Components becoming loose or detaching
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Icemaker Complete Add-On Kit is an OEM replacement part for Whirlpool side-by-side refrigerators. The kit includes the icemaker head, auger motor assembly, wire harness, installation hardware, and more. These allow ice production capability to be added to older refrigerators that were not initially equipped with icemaking.

Causes of a bad icemaker can include wear and tear from regular use, mineral buildup from hard water, and electrical issues that affect the ice production cycle.

Symptoms of a bad icemaker include:

• No ice production or slow ice-making
• Ice cubes that are irregularly shaped or smaller than usual
• Leaks or water pooling in the ice maker area
• Unusual noises during the ice-making process

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
