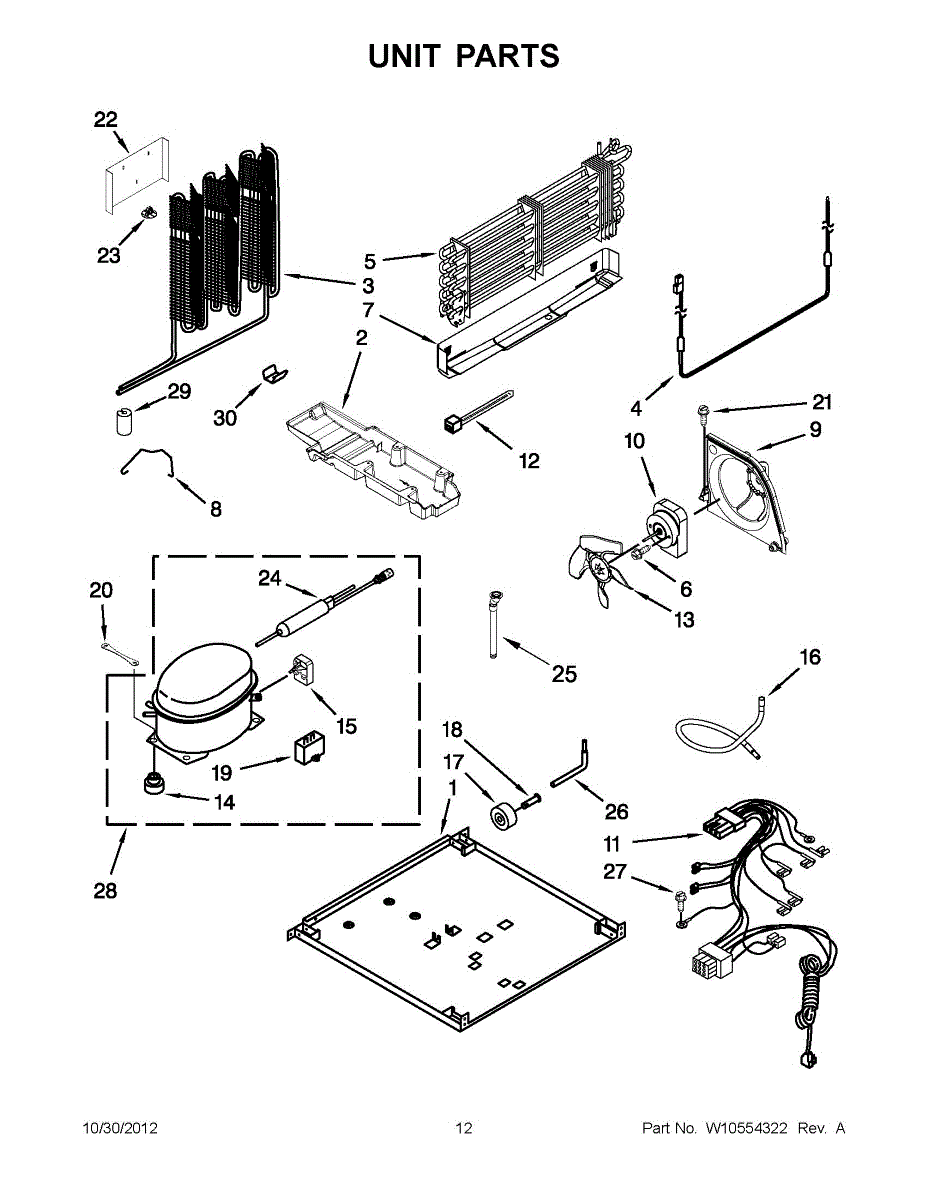

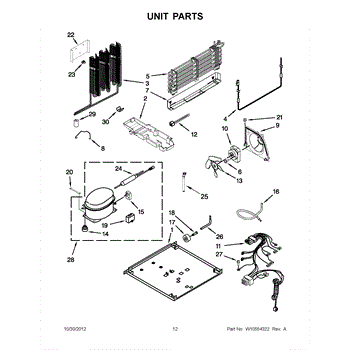

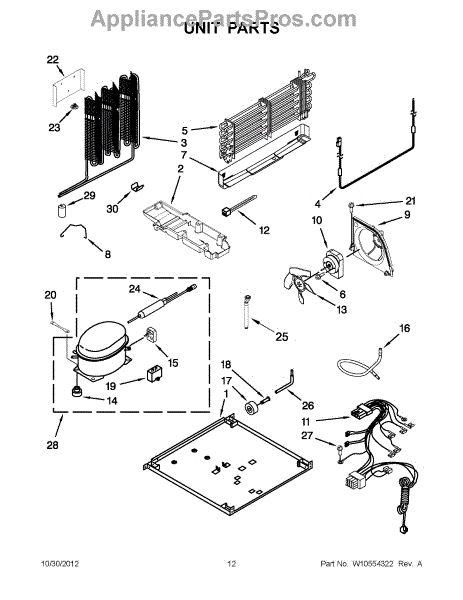

Parts for Whirlpool 5VWT59SFYF00: 06 - Unit Parts

Collects defrost water from the evaporator and directs it to the drain. Replace if cracked, broken, or leaking to prevent water pooling under your fridge.

Refrigerator not cooling properly? A dirty or failing condenser coil may be the culprit. This component releases heat to keep your fridge cool.

Refrigerator not cooling or freezing over? The evaporator coil absorbs heat to cool your fridge. Moderate DIY repair with basic tools needed.

Replacement mounting screw for securing panels, brackets, and components in appliances. Needed when original screws are stripped, missing, or damaged.

This is a metal heat shield designed to protect internal components from excessive heat inside the refrigerator or freezer compartment. It acts as a thermal barrier, typically installed near the defrost heater or compressor area, preventing heat damage to surrounding parts. Replace this shield if it is warped, corroded, or missing, which can lead to uneven cooling or frost buildup.

This air baffle mounts near the condenser fan motor area at the back or bottom of the refrigerator. It directs airflow across the condenser coils to ensure efficient heat dissipation. Replace this part if the refrigerator is running warm, the compressor is overheating, or the baffle is cracked or missing, which can reduce cooling performance.

Fix a refrigerator that's not cooling properly or running too warm. This condenser fan motor keeps your fridge at the right temperature. DIY-friendly repair.

Fix clicking noise, poor cooling, or overheating compressor by replacing a cracked or warped condenser fan blade. Restores airflow across the coil.

Protective seal grommet for hoses, tubes, or wires passing through refrigerator cabinet. Replaces cracked, worn, or missing grommets to prevent leaks.

If your refrigerator isn't cooling or the compressor won't start, the start device relay may have failed. This part helps the compressor motor start up.

This refrigerator roller supports the unit's weight and enables smooth movement for positioning and cleaning. Replace when wheels crack or roll roughly.

Cabinet roller axle supports refrigerator wheels for smooth movement. Replace if rollers wobble or fridge is hard to move. Verify fit with your model.

Fix a refrigerator that won't cool or has a humming compressor with this running capacitor. Restores smooth motor operation and prevents overheating.

Secures components inside your refrigerator. Replace this retainer strap if the original is cracked, broken, or missing to properly hold parts in place.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

Channels defrost water from the drain outlet to the pan. Replace if cracked, disconnected, or clogged to prevent water pooling inside or leaking onto floor.

Process tube for refrigerator sealed system. Connects refrigerant lines in cooling system. Replace if damaged, cracked, or leaking during repairs.

Screw: 8-16 x 3/8 inch.

Refrigerator not cooling or running constantly? This compressor is the heart of your cooling system. Professional installation strongly recommended.

Seals openings where hoses or wires pass through cabinet walls. Replace if cracked, torn, or missing to prevent chafing and vibration noise. Verify fit.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
