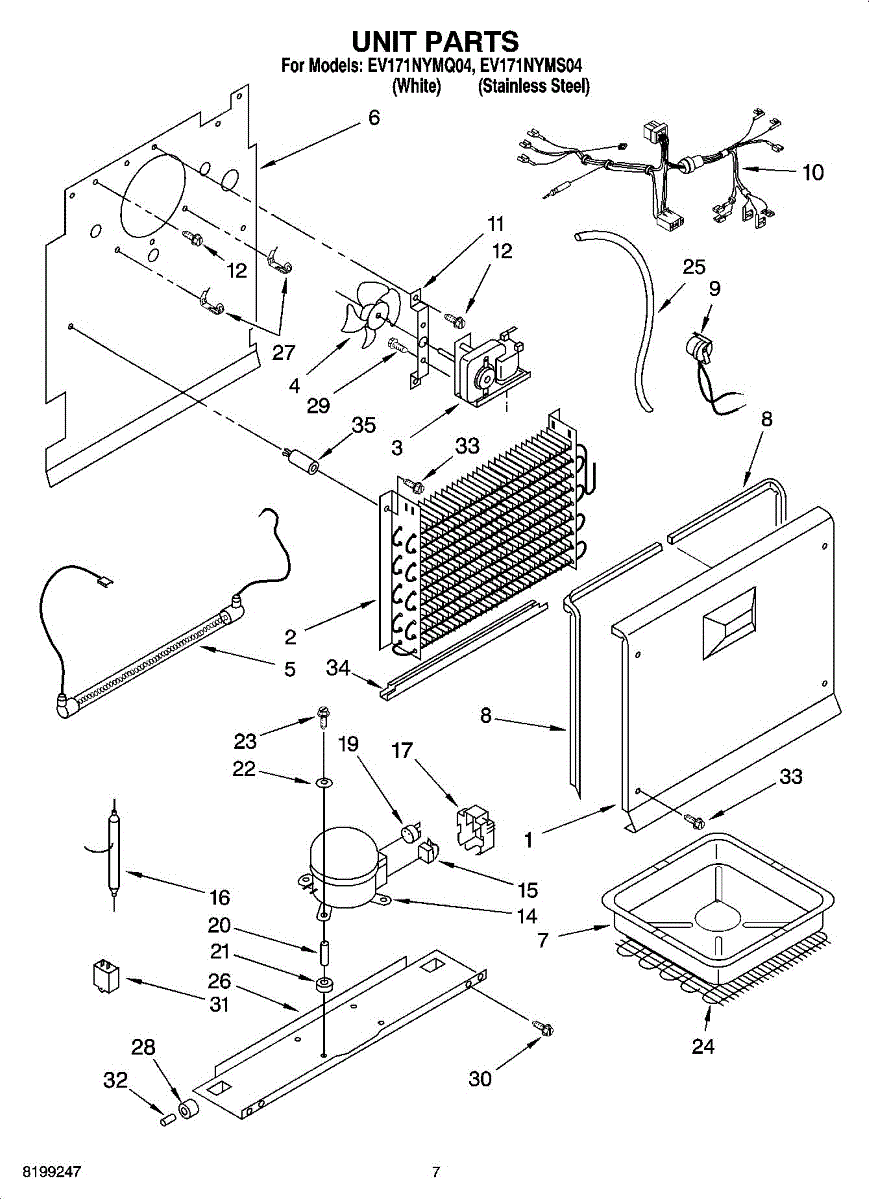

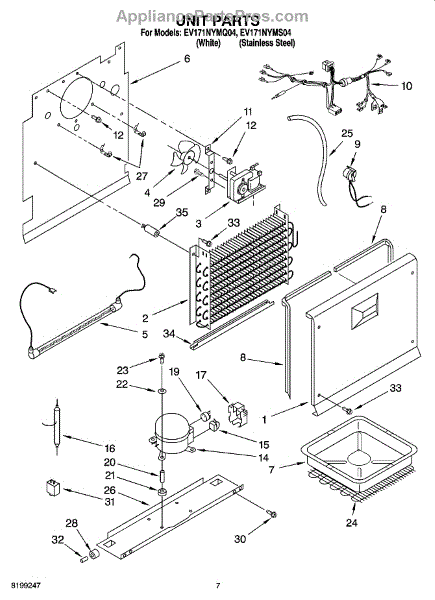

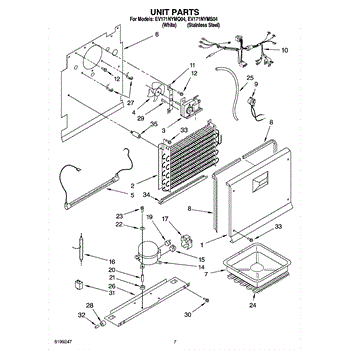

Parts for Whirlpool EV171NYMQ04: 04 - Unit Parts, Optional Parts (Not Included) Parts

The Evaporator Motor is an OEM replacement part for Whirlpool refrigerators. This small but powerful motor circulates cold air inside the fridge and freezer compartments.

Causes of a bad evaporator motor include bearings seizing up or windings burning out due to age. Without proper lubrication, motors can quickly fail in refrigeration applications.

Symptoms of a bad evaporator motor include:

• Inefficient or fluctuating cooling inside the fridge and freezer
• Buzzing or grinding noises from cooling ventilation
• Frost developing unevenly or melting unexpectedly

This OEM Whirlpool replacement is also compatible with Maytag, KitchenAid, Jenn-Air, and some Kenmore refrigeration units as well.

The Fan Blade and Spring Clip is an OEM part for Whirlpool refrigerators. This component is responsible for circulating air within the refrigerator, ensuring even cooling throughout the compartments. The fan blade moves the air, while the spring clip secures it in place, maintaining optimal airflow.

Causes of a bad fan blade and spring clip can include wear and tear over time, damage from debris or food particles, or issues with the motor that cause the blade to malfunction. If the fan blade is not working correctly, it can lead to inadequate cooling and uneven temperatures in the refrigerator.

Symptoms of a bad fan blade and spring clip include:

• Unusual noises from the fan area
• Inconsistent temperatures inside the refrigerator
• The refrigerator running constantly or not cooling properly
• Visible damage or wear to the fan blade

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement heater restores proper heat output to the feature that uses it, helping your appliance reach and maintain temperature for consistent results. When the original heater fails open or shorts, related cycles may not heat or take much longer.

• Converts electrical energy into heat within the appliance's heating circuit
• Maintains target temperature during the selected function
• Common symptoms: no heat in the related feature, extended preheat/warm-up, uneven results, or heating-circuit error codes
• Visible signs can include breaks, burn spots, or an open element on continuity testing

• Disconnect power at the breaker or unplug before servicing; allow components to cool
• Note wire positions and fasteners for accurate reassembly; transfer any reusable clips/insulators
• Handle the element carefully—avoid bending or striking; make clean, tight electrical connections
• After installation, run a brief test cycle to ensure proper heating

This right-side evaporator cover gasket seals the evaporator cover to help prevent air leaks and reduce frost buildup, supporting consistent cooling and efficient refrigerator operation. What it does:

• Seals the evaporator cover to minimize warm air intrusion and reduce ice accumulation on the evaporator
• Helps maintain stable compartment temperatures for better cooling performance
• Reduces moisture and dripping that can cause water pooling inside the cabinet
• Can address symptoms such as increased frost on the evaporator, higher-than-normal temperatures, or water inside the fresh food/freezer area

• Disconnect power to the appliance before beginning any repair
• Remove necessary interior panels or shelves to access the evaporator cover per the service manual
• Seat the gasket fully around the cover flange; inspect the cover and seating surface for damage or debris

This defrost thermostat is a bi-metal switch that senses evaporator temperature during defrost and opens to stop heater power once the coil warms. Replacing a failed thermostat restores proper defrost, reducing ice buildup and airflow-related cooling problems.

• Monitors evaporator coil temperature during defrost
• Opens the heater circuit at a set temperature; recloses when cold for the next defrost
• Helps protect against overheating and ensures consistent defrost operation
• Common symptoms: heavy frost on the evaporator, weak airflow/warm fresh food section, repeated ice buildup after manual defrost

• Disconnect power before servicing; wear cut-resistant gloves
• Access the thermostat at the evaporator behind the freezer's rear panel
• Move wires one-for-one from the old part; mount in firm contact with the coil/tubing and secure leads away from the fan
• After installation, the thermostat should show continuity when cold and open circuit when warm

This sealed-system compressor circulates refrigerant to cool your refrigerator, restoring normal cooling performance when the compressor fails. Designed to replace a failing compressor and help bring temperatures back to safe food-storage levels. What it does:

• Compresses and circulates refrigerant through the sealed refrigeration circuit
• Restores cooling when the compressor motor runs properly
• Commonly linked to symptoms like weak or no cooling, loud humming or clattering sounds, or a refrigerator that cycles continuously
• May be the cause if the appliance frequently trips a circuit breaker or shows hard-starting behavior

• Sealed-system work requires certified HVAC/refrigeration service and proper refrigerant handling per local regulations
• Disconnect power before beginning any repair; follow lockout/tagout practices
• Compressor replacement often requires system evacuation, brazing, and recharge — do not attempt unless qualified
• Use the identical replacement part number and follow OEM service instructions to avoid damage

This 10-32 x 3/8 machine screw secures panels and components in many appliances where a small, threaded fastener is required. It replaces stripped, missing, or loose screws to restore stable assembly and reduce vibration. What it does:

• Fastens panels, brackets, and small components using 10-32 unified threads
• Restores secure mounting when screws are missing, stripped, or loose
• Helps stop rattling, misalignment, and intermittent part contact caused by loose fasteners
• Works wherever a 10-32 x 3/8 machine screw is specified by the manufacturer

• Disconnect power or unplug the appliance before servicing
• Use the correct size screwdriver or nut driver to avoid stripping the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic
• Replace with the same size and thread spec to ensure proper fit and function

This replacement screw secures appliance panels, brackets, and components. Using the correct size restores a snug fit to reduce vibration, prevent loosening, and keep assemblies properly aligned during operation. What it does:

• Fastens sheet metal and component brackets in designated locations
• Replaces missing, stripped, or corroded hardware
• Helps eliminate rattling and vibration from loose panels
• Maintains proper alignment of covers and assemblies

• 1 screw

• Disconnect electrical power; shut off water or gas supplies if applicable
• Match length/thread to the original; replace one fastener at a time to preserve alignment
• Start by hand to avoid cross-threading; use the correct driver size
• Snug firmly but do not overtighten to prevent stripping

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Size: 1/4 lb.

Size: 63-1/2 x 35-1/2 x 2-5/8 inch.

Sealer for refrigerant line insulation.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Icemaker is an OEM replacement part for Whirlpool refrigerators. It is responsible for producing ice in the freezer compartment. The icemaker automatically fills with water, freezes it into cubes, and then ejects the ice into the storage bin. This icemaker ensures a consistent supply of ice for your household.

Over time, icemakers can fail due to wear, malfunctioning components, or issues with the water supply. Common causes include a faulty water inlet valve, clogged water lines, or electrical malfunctions in the icemaker's internal mechanisms.

Symptoms of a bad icemaker include:

• No ice production
• Ice cubes that are too small or irregular in shape
• Ice not ejecting into the storage bin
• Leaks or ice buildup around the icemaker

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
