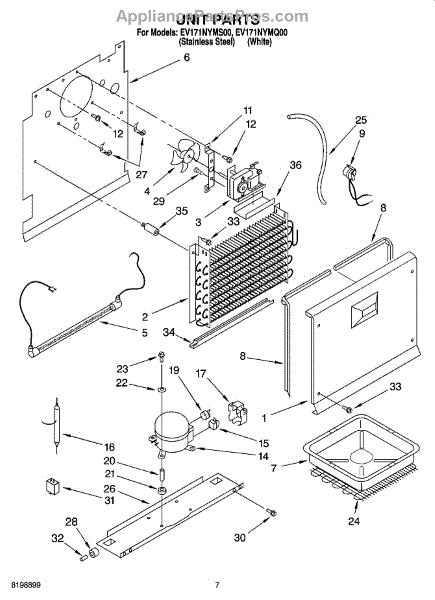

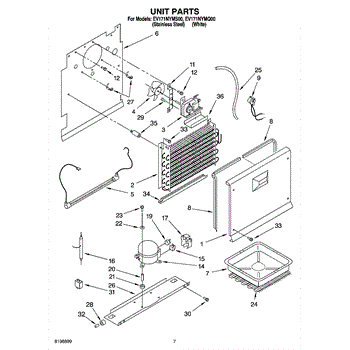

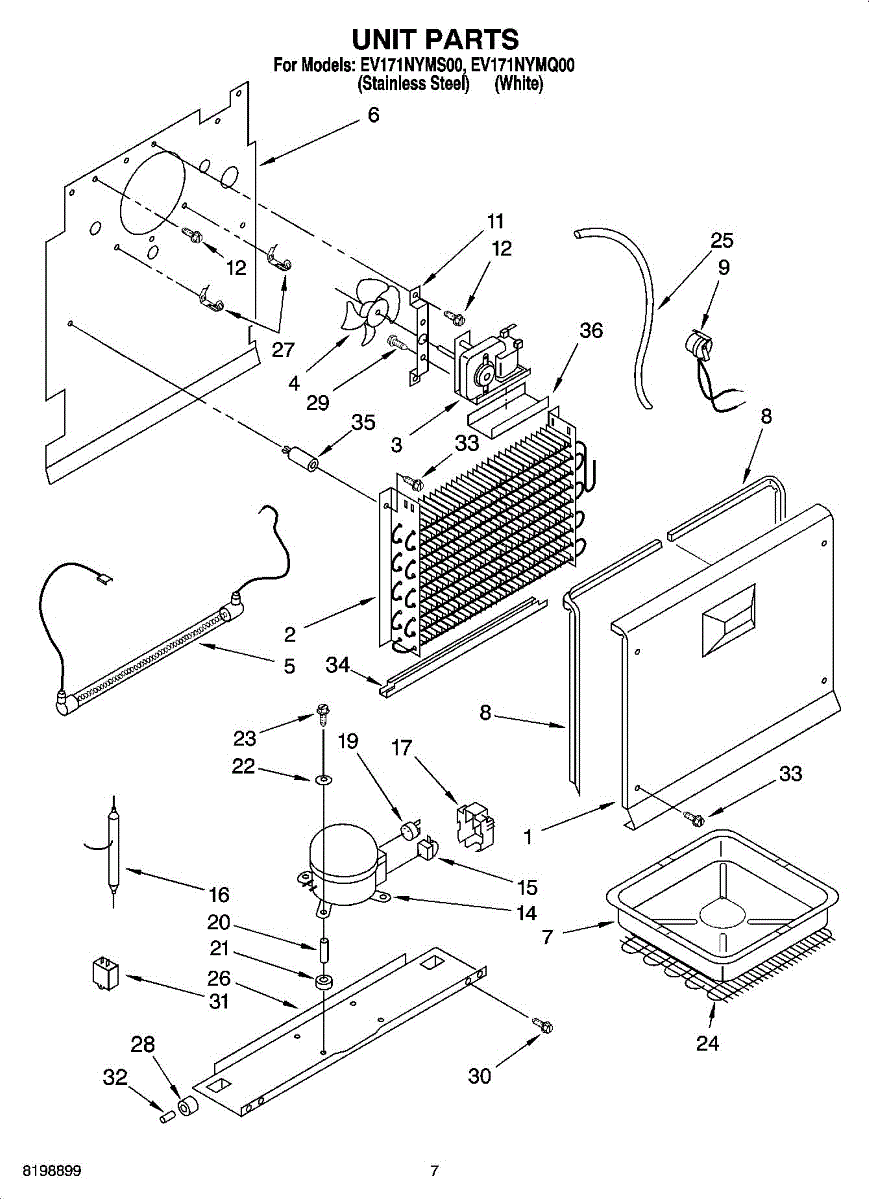

Parts for Whirlpool EV171NYMS00: 04 - Unit Parts, Parts Not Illustrated Parts

Fix a freezer that won't cool or has frost buildup with this evaporator coil. Requires soldering skills and heat shield for installation.

This electric fan motor is mounted near the evaporator coils inside the freezer compartment and circulates cold air throughout the freezer and refrigerator sections. It ensures even cooling by pushing air over the evaporator coils and distributing it to all compartments. Replace this motor if the freezer is warm, the refrigerator section is not cooling properly, or you hear unusual buzzing or humming noises coming from the back of the freezer.

The Fan Blade and Spring Clip is an OEM part for Whirlpool refrigerators. This component is responsible for circulating air within the refrigerator, ensuring even cooling throughout the compartments. The fan blade moves the air, while the spring clip secures it in place, maintaining optimal airflow.

Causes of a bad fan blade and spring clip can include wear and tear over time, damage from debris or food particles, or issues with the motor that cause the blade to malfunction. If the fan blade is not working correctly, it can lead to inadequate cooling and uneven temperatures in the refrigerator.

Symptoms of a bad fan blade and spring clip include:

• Unusual noises from the fan area
• Inconsistent temperatures inside the refrigerator
• The refrigerator running constantly or not cooling properly
• Visible damage or wear to the fan blade

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This defrost heater assembly mounts near the evaporator coils inside the freezer compartment and generates heat to melt frost buildup during the automatic defrost cycle. It keeps the evaporator coils clear so the refrigerator can cool efficiently. Replace this heater if you notice excessive frost buildup in the freezer, the refrigerator is not cooling properly, or the defrost cycle is not functioning.

Replacement drain pan for freezers and refrigerators. Installs beneath the appliance to collect defrost water. Replace if cracked, damaged, or missing.

Seals the evaporator cover to prevent air leaks and frost buildup. Replace if you notice ice accumulation or warm air intrusion. Confirm fit by model.

Fixes frost buildup on evaporator coils and inconsistent cooling. This bi-metal thermostat monitors temperature and controls defrost heater cycles.

Motor mounting bracket for freezers. Secures the motor assembly in place. Replace if cracked, broken, or causing motor misalignment or vibration.

Replacement mounting screw for securing panels, brackets, and components inside your appliance. Needed when original screws are stripped, lost, or damaged.

Refrigerator not cooling or running too warm? A failed compressor stops refrigerant circulation. This is an advanced repair requiring special tools.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

Fix a refrigerator that won't cool or run with this compressor overload protector. Prevents compressor damage from electrical overheating. Easy install.

Cabinet roller wheel for freezers and refrigerators. Replaces damaged, cracked, or worn rollers that affect drawer or cabinet gliding. Essential component.

Machine screw fastens panels, brackets, and components inside appliances. Replace stripped, missing, or loose screws to restore secure assembly.

Replacement mounting screw for freezers and refrigerators. Secures internal components and panels. Order a new screw if original is stripped or missing.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

This is a metal mounting bracket that secures the motor in place inside the freezer compartment. It holds the fan motor steady to reduce vibration and ensure proper airflow for consistent cooling. Replace this bracket if the motor is loose, rattling, or vibrating excessively, which can lead to increased noise and uneven temperatures.

Size: 1/4 lb.

Foam insulation panel that fits inside refrigerator doors to maintain temperature efficiency. Replace if cracked, compressed, or missing.

Putty sealer adhesive for refrigerators and freezers. Seals joints, gaps, and connections. Replace when old sealant is cracked, dried out, or missing.

Sealer for refrigerant line insulation.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.

Refrigerator not making ice? This ice maker assembly automatically fills, freezes, and ejects ice cubes into your bin. Moderately easy DIY repair.
