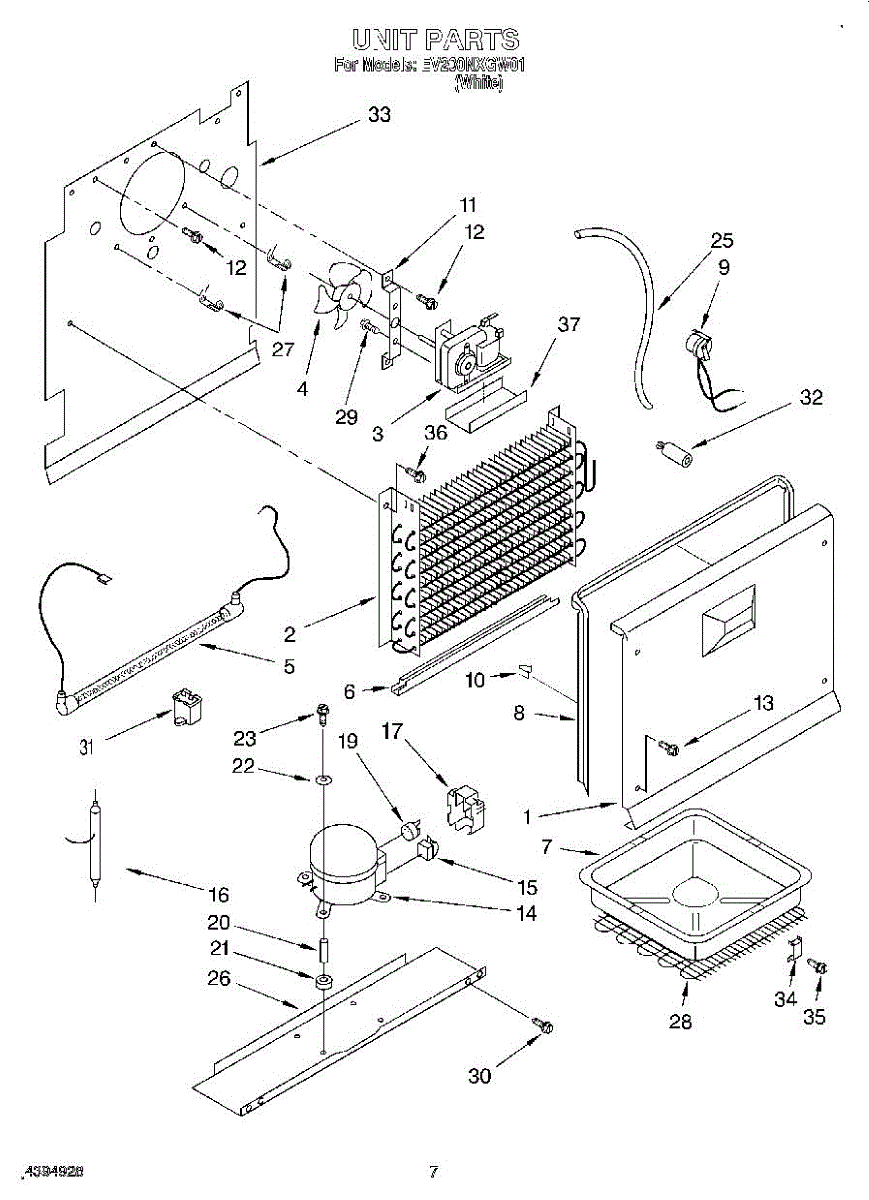

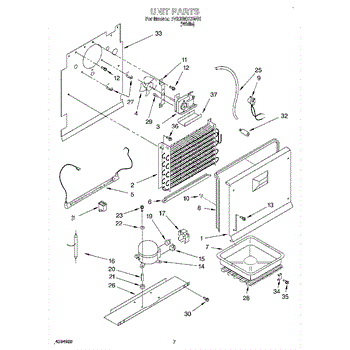

Parts for Whirlpool EV200NXGW01: 04 - Unit Parts

Fix a freezer that won't cool or has frost buildup with this evaporator coil. Requires soldering skills and heat shield for installation.

If your freezer is making loud noises or not cooling properly, a damaged evaporator fan blade may be the cause. This DIY fix takes about 45 minutes.

Fix ice buildup in your freezer with this defrost heater. Replaces burnt-out heating elements on evaporator coils. Moderately difficult, 2-5 hour repair.

Fixes frost buildup on evaporator coils and inconsistent cooling. This bi-metal thermostat monitors temperature and controls defrost heater cycles.

Motor mounting bracket for freezers. Secures the motor assembly in place. Replace if cracked, broken, or causing motor misalignment or vibration.

Replacement mounting screw for securing panels, brackets, and components inside your appliance. Needed when original screws are stripped, lost, or damaged.

Pan head screw secures panels, brackets, and trim on refrigerators and freezers. Replace missing, stripped, or damaged screws to restore proper fastening.

Refrigerator not cooling or running too warm? A failed compressor stops refrigerant circulation. This is an advanced repair requiring special tools.

Refrigerator not cooling or compressor won't start? This start device assembly includes relay and overload. DIY-friendly 15-minute repair for most models.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

This overload is a thermal protection device that mounts on the motor/compressor and opens the circuit when excessive heat or current is detected. Replacing a weak or failed overload helps restore safe startup and protects the windings from damage. What it does:

• Monitors motor/compressor temperature and current draw
• Interrupts power on overheat/overload to prevent damage
• Aids troubleshooting of start/run issues when paired with the start device
• Common symptoms: hums then clicks off, won't start, intermittent shutdown, frequent tripping

• 1 thermal overload protector

• Disconnect power before servicing; allow components to cool
• Access the terminal area on the motor/compressor; remove any cover
• Note/photograph wire positions; transfer wires and fully seat the new overload on the correct terminal
• Inspect the start relay, capacitor, and terminals for heat damage; replace any compromised parts

Replacement mounting screw for freezers and refrigerators. Secures internal components and panels. Order a new screw if original is stripped or missing.

Replace a faulty heat exchanger if water is freezing in the drain tube during defrost cycles. Compatible with various freezer and refrigerator models.

Machine screw fastens panels, brackets, and components inside appliances. Replace stripped, missing, or loose screws to restore secure assembly.

Replacement mounting screw for freezers and refrigerators. Secures internal components and panels. Order a new screw if original is stripped or missing.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Protective shield that covers and guards the motor assembly in your freezer. Replace if the original is cracked, broken, or missing to protect components.
