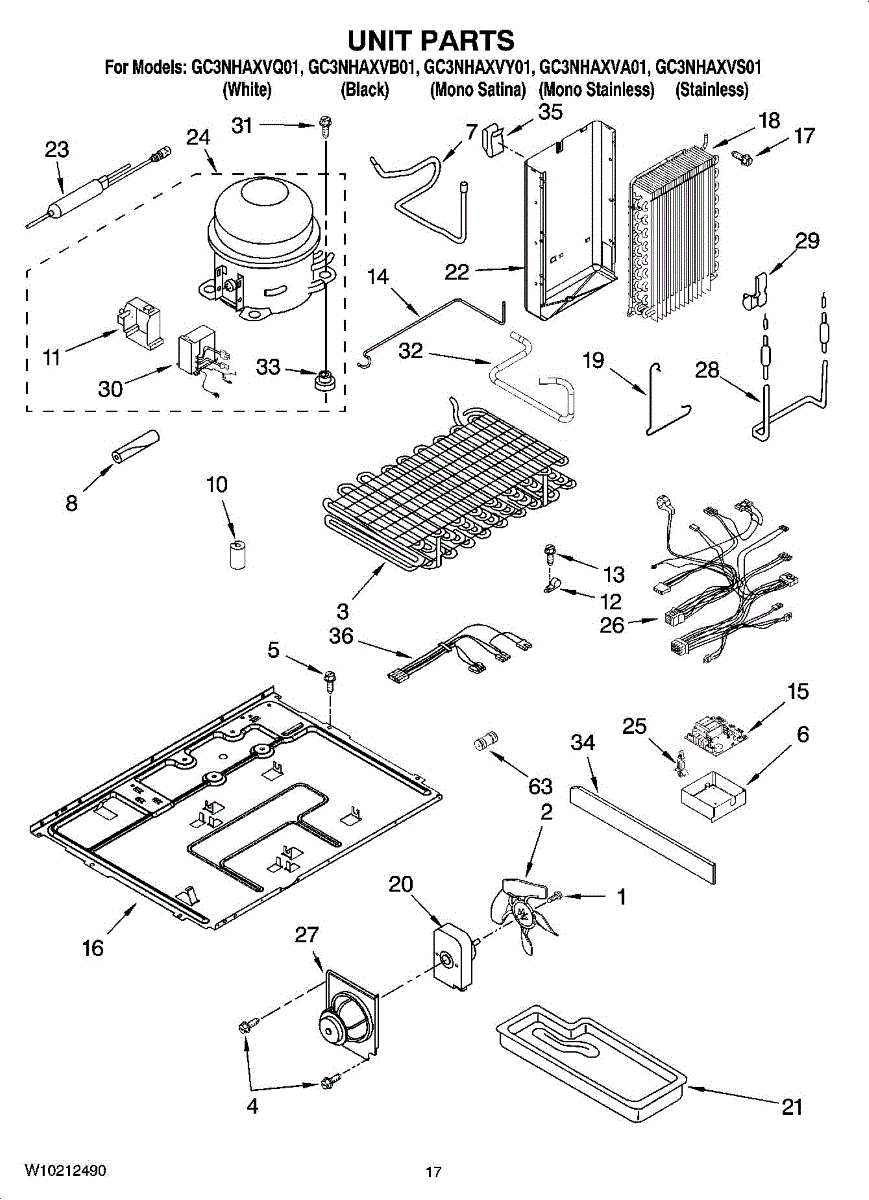

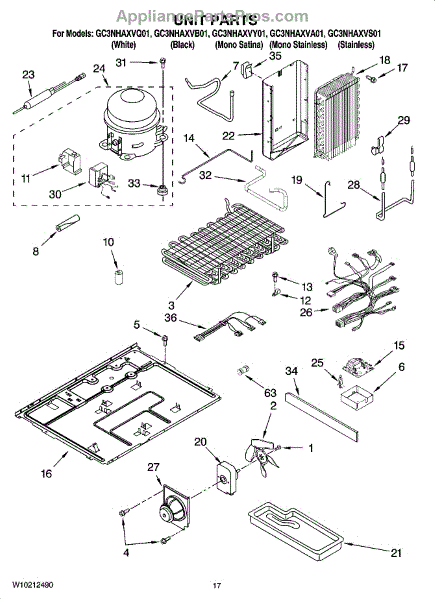

Parts for Whirlpool GC3NHAXVB01: 11 - Unit Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

Size: 8-32 x 1/4 inch.

Fix clicking noise, poor cooling, or overheating compressor by replacing a cracked or warped condenser fan blade. Restores airflow across the coil.

Mounting screw for refrigerator assembly. Secures internal components and panels. Replace if stripped, rusted, missing, or damaged during repairs.

Replace stripped, missing, or corroded mounting screws in your refrigerator or freezer. Secures panels, brackets, and components for proper fit.

Seals openings where hoses or wires pass through cabinet walls. Replace if cracked, torn, or missing to prevent chafing and vibration noise. Verify fit.

Protects the terminal block on your refrigerator compressor by shielding electrical connections. Replace if cracked, broken, or missing for safety.

Secures power cord to your ice maker or refrigerator. Replace if cracked, broken, or missing to prevent cord damage and ensure safe operation. Verify fit.

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Freezer not cooling or excessive frost buildup? The evaporator assembly circulates refrigerant to remove heat. Moderately difficult repair for DIYers.

Fix frost buildup in your refrigerator with this defrost heater mounting clip. Secures heater to evaporator for consistent defrosting performance.

Refrigerator not cooling but freezer works? A failed condenser fan motor prevents heat from escaping. DIY repair takes 10-20 minutes with basic tools.

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

If your refrigerator isn't cooling or runs constantly, the compressor may have failed. This critical component circulates refrigerant through the system.

This main wire harness provides the factory-style wiring that links the control and major components, restoring reliable electrical connections and stable operation. Designed as a direct replacement to help fix wiring faults and intermittent component issues. What it does:

• Routes power and signal connections between the control board and appliance components.
• Replaces damaged, chafed or corroded wiring that can cause intermittent operation or component failures.
• Helps resolve symptoms such as components not responding, intermittent cycles, or electrical arcing at connectors.
• Maintains correct connector fit and wiring order to preserve original function and safety.

• Disconnect all power (unplug or switch off breaker) before starting any repair.
• Compare the new harness to the old harness and follow the appliance wiring diagram for routing and connector locations.
• Handle connectors carefully; press release tabs fully to avoid breaking locking clips.
• If wiring shows heat damage or connector melting, inspect adjacent components and replace damaged parts rather than repairing with tape or splices.

Refrigerator won't cool or compressor won't run? This inverter box assembly controls the compressor and fan motor to restore proper cooling function.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Replace your refrigerator's internal wire harness if damaged, frayed, or corroded. Connects electrical components inside the appliance compartment.

Connects water line sections in your refrigerator. Replace if cracked, leaking, or damaged to restore secure connections to ice maker and dispenser.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
