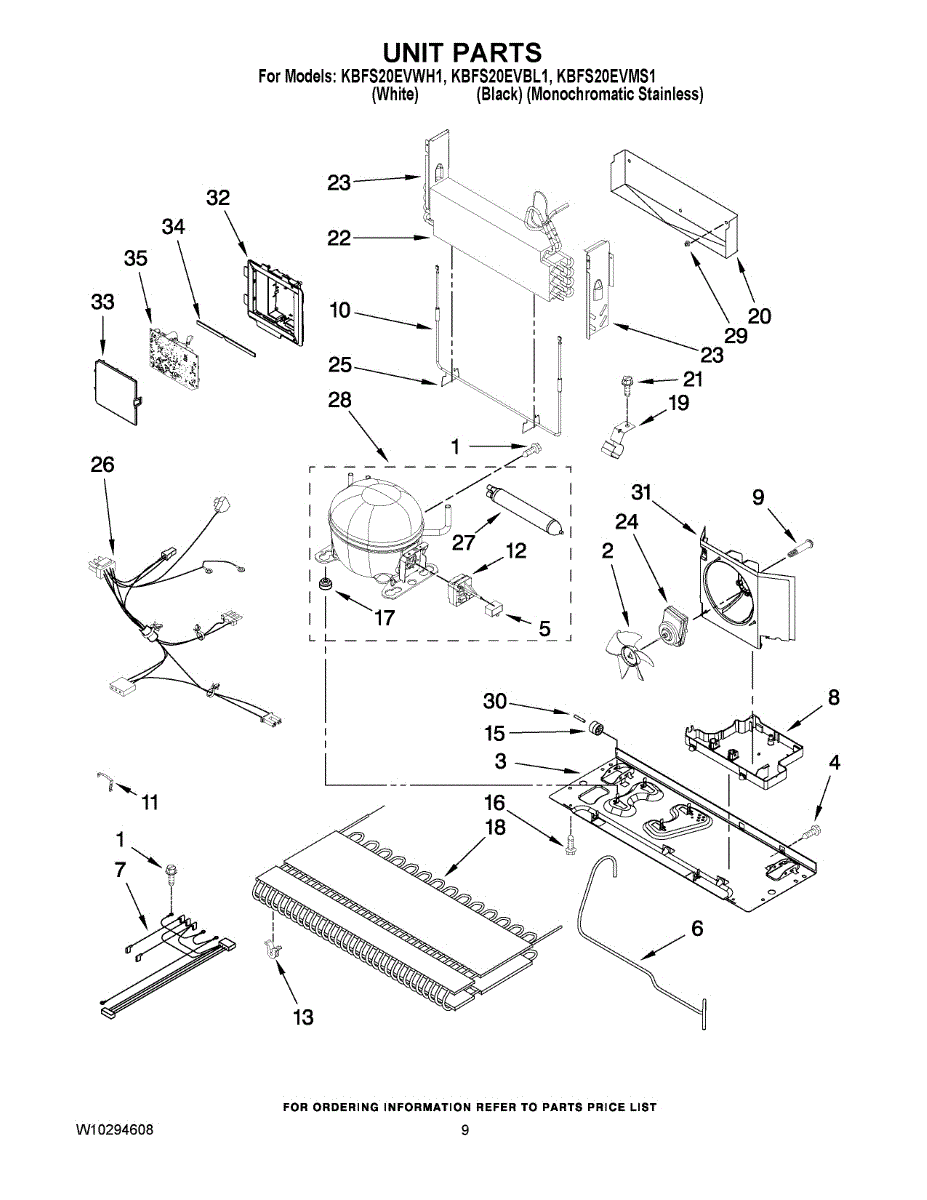

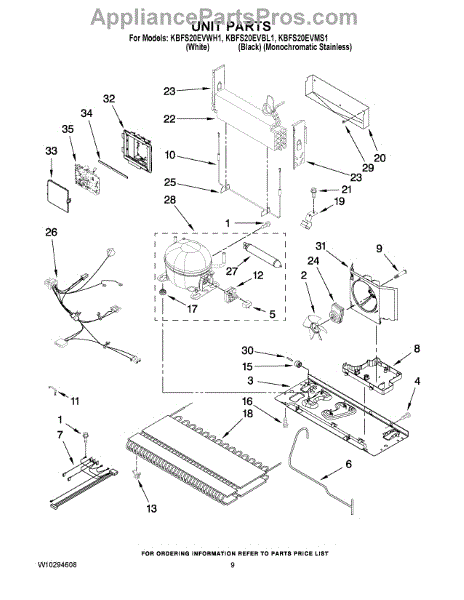

Parts for Kitchenaid KBFS20EVWH1: 05 - Unit Parts

Replace your refrigerator water filter every 6 months to ensure clean, fresh-tasting water and ice. Easy twist-on installation. Verify fit with your model.

Refrigerator making loud noise or not cooling? A cracked or broken condenser fan blade disrupts airflow. Easy 10-minute DIY fix with our video guide.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Water supply tube for bottom-mount refrigerators. Connects water line to dispenser or ice maker. Replace if cracked, leaking, or damaged during service.

This wire harness connects and organizes your appliance's internal wiring. It delivers power and control signals between the control system and components, restoring reliable connections when the original harness is damaged or heat-stressed. What it does:

• Distributes power and control signals between boards, sensors, motors, valves, and other components
• Replaces cut, brittle, corroded, or melted wiring and terminals
• Can help resolve intermittent operation, components not running, or visible burn/arc marks at connectors
• Maintains proper wire routing and strain relief to reduce future fatigue or shorts

• 1 wire harness assembly

• Disconnect power; shut off water or gas supplies before service
• Label or photograph each connector to ensure one-for-one transfer
• Route the harness along the original path; secure with existing clips/ties and keep clear of hot, sharp, or moving parts
• Push connectors straight and fully until they lock; avoid pulling on wires during removal/installation

The Drip Pan is an OEM part for Whirlpool refrigerators. Located beneath the refrigerator, it collects and holds water that drips from the defrost system, preventing it from leaking onto the floor.

Causes of a bad drip pan can include cracks or holes from physical damage, warping from exposure to temperature fluctuations, or excessive buildup of dirt and mold.

Symptoms of a bad drip pan include:

• Water pooling under the refrigerator
• Visible cracks, holes, or warping in the pan
• Mold or mildew growth in the pan
• Unpleasant odors emanating from the refrigerator base

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Replaces stripped, missing, or damaged mounting screws that secure panels, brackets, and components in your refrigerator. Restores proper assembly.

This defrost heater is mounted near the evaporator coils and generates heat to melt frost buildup during the automatic defrost cycle. It helps maintain proper airflow and cooling efficiency inside the refrigerator. Replace this heater if you notice excessive frost on the evaporator coils, the refrigerator is not cooling properly, or the freezer section is warm.

Refrigerator shelf retainer clip secures shelves and bins in place. Replace if cracked, broken, or shelves won't stay secure. Confirm fit with model number.

The compressor start device provides the initial electrical boost needed to start the refrigerator's compressor motor. Located near the compressor at the back of the refrigerator, replace it when the compressor won't start, runs intermittently, or the refrigerator isn't cooling properly.

Refrigerator making rattling or vibrating noises? This condenser grommet cushions the condenser assembly to reduce noise and prevent mounting wear.

Rear roller that helps move your refrigerator smoothly. Replace if broken, cracked, or wobbling to restore easy mobility. Confirm fit by model number.

Protective seal grommet for hoses, tubes, or wires passing through refrigerator cabinet. Replaces cracked, worn, or missing grommets to prevent leaks.

36-inch drip tray for refrigerators. Collects water and condensation beneath the appliance. Replace if cracked, warped, or missing to prevent leaks.

Self-drilling screw secures panels, brackets, and trim without pre-drilling. Replace missing or stripped screws during appliance repair or reassembly.

This genuine replacement part is an evaporator used in refrigerators. The evaporator is the part that exchanges heat to cool the refrigerator. It is the component of the refrigerator that absorbs the heat from the air inside, turning it cool through absorption. If the refrigerator is no longer cooling properly, this could mean it's time for a new evaporator. This is a genuine replacement evaporator compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears, and Kenmore brand refrigerators.

Fix a noisy or non-cooling refrigerator with this condenser fan motor. Solves overheating compressor issues. DIY-friendly repair with video guide.

Wire harness for refrigerators. Connects electrical components inside your appliance. Replace if wires are damaged, connectors are broken, or worn.

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

Refrigerator not cooling or humming without starting? The compressor pumps refrigerant to cool your fridge. Requires EPA certification for install.

This evaporator clip secures the refrigerator evaporator assembly and related components so the cooling system stays aligned and vibration-free. It helps maintain proper airflow and prevents rubbing or loose parts. What it does:

• Holds the evaporator coil/assembly or associated covers in place
• Prevents vibration, noise, and contact between the coil and cabinet parts
• Helps maintain consistent airflow for reliable cooling performance
• Commonly linked to rattling, buzzing, or loose parts around the freezer evaporator

• Disconnect power before servicing the appliance
• Handle evaporator and surrounding fins carefully; they are sharp and fragile
• Verify clip orientation against the OEM diagram before fastening

Replacement roller axle support shaft for refrigerators. Installs to support rotating assemblies. Replace when worn, damaged, or causing wobble.

This electronic control board manages key refrigerator functions including compressor operation, defrost cycles, and temperature regulation. It receives input from sensors and user controls to maintain proper cooling in both the fresh food and freezer compartments. Replace this board if the refrigerator is not cooling, displays error codes, runs continuously, or exhibits erratic temperature behavior.
