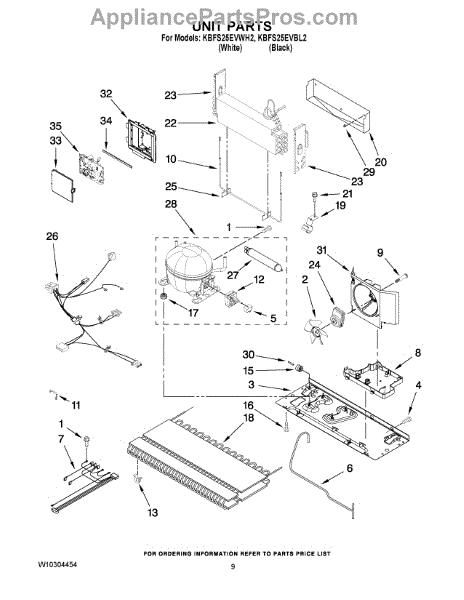

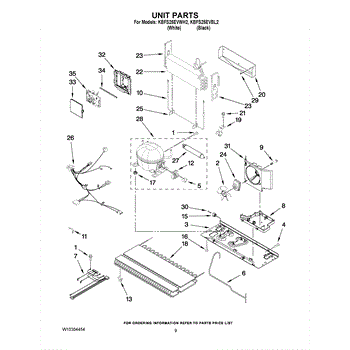

Parts for Kitchenaid KBFS25EVBL2: 05 - Unit Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This condenser fan blade restores the airflow that carries heat away from the condenser coils and compressor. Replacing a cracked, warped, or loose blade helps your refrigerator remove heat properly so it cools reliably and runs more quietly. What it does

• Draws room air through the condenser coil and over the compressor to dissipate heat
• Helps maintain stable cabinet temperatures and overall cooling performance
• Typical failure symptoms: fan not spinning or moving enough air, wobbling or rattling from the rear base, weak cooling, compressor running hot

• 1 condenser fan blade

• Unplug the refrigerator and remove the rear lower access panel before servicing
• Note the blade's orientation; pull the old blade straight off the motor shaft and press the new blade on until fully seated
• Ensure proper clearance in the shroud and spin by hand to confirm it turns freely
• Wear gloves and eye protection; keep hands clear of the blade during testing

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This wire harness connects and organizes your appliance's internal wiring. It delivers power and control signals between the control system and components, restoring reliable connections when the original harness is damaged or heat-stressed. What it does:

• Distributes power and control signals between boards, sensors, motors, valves, and other components
• Replaces cut, brittle, corroded, or melted wiring and terminals
• Can help resolve intermittent operation, components not running, or visible burn/arc marks at connectors
• Maintains proper wire routing and strain relief to reduce future fatigue or shorts

• 1 wire harness assembly

• Disconnect power; shut off water or gas supplies before service
• Label or photograph each connector to ensure one-for-one transfer
• Route the harness along the original path; secure with existing clips/ties and keep clear of hot, sharp, or moving parts
• Push connectors straight and fully until they lock; avoid pulling on wires during removal/installation

The Drip Pan is an OEM part for Whirlpool refrigerators. Located beneath the refrigerator, it collects and holds water that drips from the defrost system, preventing it from leaking onto the floor.

Causes of a bad drip pan can include cracks or holes from physical damage, warping from exposure to temperature fluctuations, or excessive buildup of dirt and mold.

Symptoms of a bad drip pan include:

• Water pooling under the refrigerator
• Visible cracks, holes, or warping in the pan
• Mold or mildew growth in the pan
• Unpleasant odors emanating from the refrigerator base

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This genuine replacement screw secures appliance components for reliable fit and function, helping restore proper assembly and reduce rattling or loose panels. Use it to replace a stripped or missing fastener during repairs. What it does:

• Fastens panels, brackets, or components to maintain structural stability
• Prevents movement that can cause noise, vibration, or misalignment
• Replaces stripped, corroded, or missing screws to restore secure assembly
• Compatible where the OEM mounting screw is required for safe operation

• Turn off and unplug the appliance before performing any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Do not overtighten; snug until secure to prevent damage to parts
• If other fasteners show wear, inspect and replace as needed for safe operation

This dishwasher heater mounts at the bottom of the tub to raise wash-water temperature and boost the heated dry cycle. Replacing a failed element restores proper heating, helping cycles finish on time and improving drying performance.

• Heats wash water to the correct temperature for effective cleaning
• Aids the dry cycle by evaporating moisture from dishes
• Common symptoms of failure: dishes not drying, water staying cool, longer-than-normal cycles, sanitize option not reaching target temperature
• May show visible damage or test open for continuity

• Disconnect power and shut off water supply before servicing
• Pull the dishwasher forward for access to the underside
• Remove wires and retaining nuts from the old element; lift it out through the tub openings
• Seat the new element evenly, tighten hardware securely without overtightening, reconnect wires, then run a short cycle and check for leaks at the ports

The Compressor Start Device is an OEM part for Whirlpool refrigerators. It is responsible for starting the compressor, which is crucial for the refrigeration cycle. The start device provides the necessary electrical current to initiate the compressor's operation, ensuring that the refrigerator maintains the proper cooling temperature.

You should replace the compressor start device if it becomes faulty. Causes of a bad start device can include electrical failures, wear and tear from regular use, or damage from power surges. A malfunctioning start device can prevent the compressor from starting, leading to cooling issues in the refrigerator.

Symptoms of a bad compressor start device include:

• The refrigerator not cooling properly or at all
• The compressor not running or making a clicking sound as it tries to start
• Unusual noises coming from the compressor area
• The refrigerator cycling on and off frequently

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This rubber condenser grommet cushions and secures the condenser assembly to reduce vibration and noise, helping the refrigerator run quieter and preventing wear where the condenser mounts to the cabinet. What it does:

• Cushions condenser mounting points to reduce rattling and vibration
• Helps prevent metal-on-metal wear between condenser and chassis
• Keeps the condenser properly seated for reliable airflow
• Reduces noise caused by loose or worn condenser mounts

• Disconnect power to the appliance before beginning any service
• Access the condenser area per your model's service instructions
• Remove the old grommet and press the replacement into the mounting hole until seated
• Do not use solvents or adhesives unless specified by the manufacturer; wear gloves to protect hands

This rear roller is a replacement for the rollers in a refrigerator. The rollers are not used often, but they have an important purpose. They make it easier to move the refrigerator from one area to another. If the roller had been damaged and is not working properly, it will be difficult to maneuver the refrigerator. Replacing the damaged roller with a new one before moving the refrigerator a long distance is a good idea.The rollers on the refrigerator are meant to handle a lot of pressure. However, they can still wear down and break eventually. They could also be damaged during a previous move. Before replacing the rear roller, unplug the refrigerator and remove the connection to the water supply. The replacement will require only a few tools, such as a screwdriver. It may require moving other parts of the refrigerator to get access to the rear rollers.The rear roller will work for certain models of refrigerators from Whirlpool, GE, KitchenAid, Inglis, Maytag, Admiral, International, Amana, Jenn-Air, Crosley, and Magic Chef. This is a genuine OEM replacement part that is sold individually.

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards

This genuine replacement part is an evaporator used in refrigerators. The evaporator is the part that exchanges heat to cool the refrigerator. It is the component of the refrigerator that absorbs the heat from the air inside, turning it cool through absorption. If the refrigerator is no longer cooling properly, this could mean it's time for a new evaporator. This is a genuine replacement evaporator compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears, and Kenmore brand refrigerators.

The Motor-Condenser Fan is an OEM part for Whirlpool refrigerators. This motor drives the condenser fan, which is essential for cooling the compressor and expelling heat from the refrigerator. By maintaining optimal temperatures within the cooling system, it ensures the efficient operation of the refrigerator.

Over time, the motor-condenser fan can fail due to electrical issues, wear and tear, or exposure to dust and debris. A malfunctioning fan motor can lead to overheating and reduced cooling efficiency.

Symptoms of a bad motor-condenser fan include:

• The refrigerator running continuously or not cooling properly
• Unusual noises from the back of the refrigerator
• The compressor overheating
• Poor airflow around the condenser coils

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is the refrigerator's sealed-system compressor. It pressurizes and moves refrigerant through the system to remove heat from the cabinet, restoring consistent cooling performance when the original compressor has failed or lost capacity. What it does and common symptoms:

• Pumps and circulates refrigerant through the evaporator and condenser to remove heat
• Maintains target temperatures in both fresh food and freezer sections
• Symptoms of failure can include: no cool/poor cooling, unit warms up after short operation, humming then clicking from the compressor area, or repeated thermal overload trips
• Runs but not cool effectively when the compressor is weak or internally damaged (after ruling out start components and charge issues)

• 1 compressor

• Disconnect power before servicing; sealed-system work involves high pressure and high temperatures
• Sealed-system repairs require EPA Section 608 certification and specialized tools (gauges, vacuum pump, brazing equipment)
• Replace the filter-drier, braze connections properly, evacuate to deep vacuum, and charge to the model's specification
• Related components (start device/overload, run capacitor, controls) are tested before condemning the compressor

This evaporator clip secures the refrigerator evaporator assembly and related components so the cooling system stays aligned and vibration-free. It helps maintain proper airflow and prevents rubbing or loose parts. What it does:

• Holds the evaporator coil/assembly or associated covers in place
• Prevents vibration, noise, and contact between the coil and cabinet parts
• Helps maintain consistent airflow for reliable cooling performance
• Commonly linked to rattling, buzzing, or loose parts around the freezer evaporator

• Disconnect power before servicing the appliance
• Handle evaporator and surrounding fins carefully; they are sharp and fragile
• Verify clip orientation against the OEM diagram before fastening

This axle roller is the replacement support shaft that lets the appliance's rotating assembly turn smoothly and quietly. Installing a new axle roller corrects wobble and reduces grinding or squealing caused by a worn shaft. What it does:

• Supports the rotating drum or rack so it spins freely and stays aligned
• Helps prevent metal-to-metal contact that causes loud noise or scraping
• Stops uneven rotation and vibration that can lead to further wear
• Restores smooth operation when an original axle is bent, worn, or broken

• Disconnect power (and gas, if applicable) before starting any repair
• Access location and removal steps vary by model; follow the OEM service manual or diagram
• Inspect related parts (pulleys, idler, glides, bearings) and replace if they show wear
• Use basic hand tools; keep fingers and loose clothing clear of moving parts during testing

This electronic control board is the central module that runs your dishwasher's cycles. It controls power and timing so the unit fills, washes, drains, and dries correctly—restoring normal operation when the original board has failed.

• Manages cycle timing and options, routing power to the wash motor, drain pump, water inlet valve, and heating circuit
• Interfaces with sensors and the door latch to start and advance cycles
• Monitors faults to help protect components and ensure proper operation

• Disconnect power at the breaker and verify no voltage before service
• Access location varies by model
• Use ESD precautions; move connectors one at a time to the matching terminals
• After reassembly, run the unit's diagnostic/service cycle per the tech sheet to verify operation

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/4 inch.
