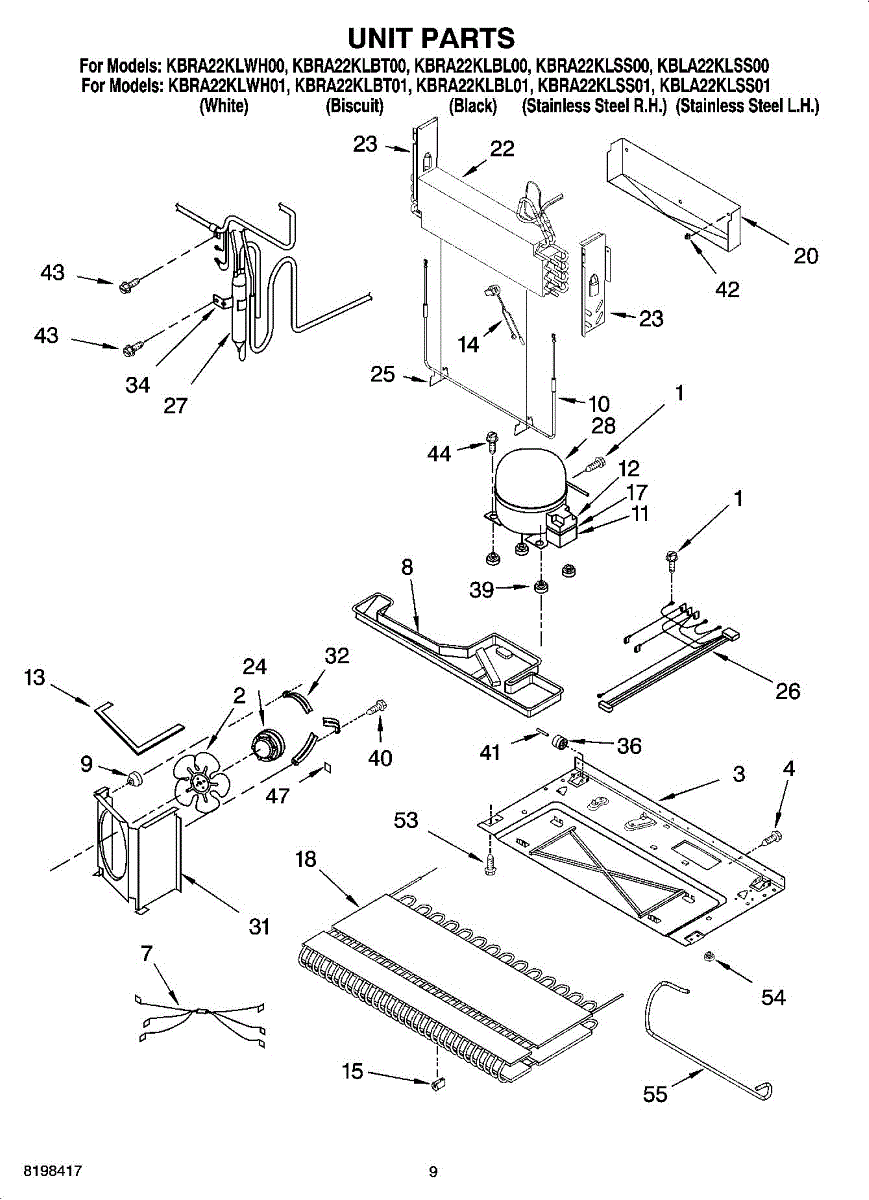

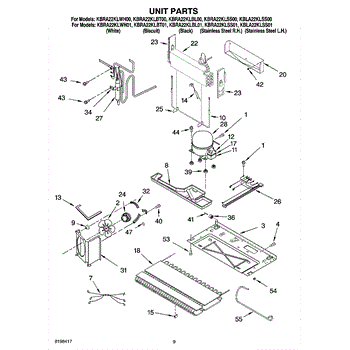

Parts for Kitchenaid KBRA22KLBT01: 06 - Unit Parts

This condenser fan blade is the rotating plastic blade that moves air across the condenser coils to help remove heat from the refrigerator. Replacing a damaged blade restores proper airflow for more consistent cooling. What it does:

• Spins on the condenser fan motor to circulate air over condenser coils
• Helps dissipate heat so the compressor and fridge run efficiently
• Can cause reduced cooling or higher temperatures if broken or missing

• Disconnect power to the appliance before starting any service
• Inspect the fan motor shaft and mounting for wear; replace motor if shaft is damaged
• Handle the blade carefully to avoid cracking; ensure blade is seated and secured before testing

This evaporator defrost heater melts frost from the freezer's evaporator coil during the automatic defrost cycle, restoring proper airflow and cooling. Replacing a failed heater helps prevent recurring ice buildup and temperature swings.

• Heats the evaporator coil at set intervals to clear ice
• Maintains airflow so the fresh food section and freezer cool consistently
• Common signs of failure: heavy frost on the back freezer panel or evaporator
• Other symptoms may include warm refrigerator temperatures, reduced airflow, or fan noise from ice contact

• Disconnect power before servicing; wear appropriate PPE
• Access the heater behind the freezer's rear panel; defrost ice with warm air/steam—avoid sharp tools
• Reinstall in the original position; keep wiring clear of the fan and moving/hot parts; ensure secure harness connections
• After reassembly, verify the defrost cycle per service instructions; if frost returns, also check the defrost thermostat/bi-metal and control

This overload/relay is the compressor start device for select refrigerators. It provides the brief start assist and overload protection the compressor needs to start and run safely, helping restore consistent cooling when the original part fails.

• Supplies the momentary start pathway for the compressor, then disengages
• Opens on overcurrent/overheat to protect compressor windings
• Failure may present as clicking near the compressor, warm temps, compressor not starting, or intermittent cooling
• Visible heat damage or a rattling start device can also indicate replacement

• Disconnect power and remove the rear lower access panel to reach the compressor area
• Note wire locations; pull the old start device straight off the compressor pins—do not bend the terminals; transfer any harnesses
• Reinstall the cover, restore power, and verify the compressor starts

This seal strip replaces a worn or damaged door gasket edge to restore a proper seal and help the appliance maintain temperature and operate quietly. It's a direct-fit service part used where a continuous seal is required. What it does:

• Provides a flexible barrier along the door/frame to reduce air leaks and heat/cold loss
• Helps prevent moisture buildup and improves energy efficiency when sealing is restored
• Reduces rattling and vibration caused by a compressed or torn seal edge
• Commonly replaced when the strip is torn, missing, or no longer adheres properly

• One seal strip

• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Clean and dry the mounting surface; remove old adhesive or residue for best adhesion
• Align the strip carefully and press firmly; allow any adhesive to cure per manufacturer instructions

The Defrost Thermostat Kit is an OEM part for Whirlpool refrigerators. It regulates the temperature in the freezer during the defrost cycle, ensuring that the defrost heater activates to melt any frost buildup and then turns off to maintain the proper freezer temperature. This thermostat opens at 42°F and closes at 30°F. This mechanism allows for short, controlled heating periods to melt frost without affecting the contents of the appliance.

You should replace this defrost thermostat kit if it becomes defective. Common causes of a bad defrost thermostat include electrical failures, prolonged exposure to extreme temperatures, or wear and tear over time.

Symptoms of a bad defrost thermostat include:

• Frost buildup in the freezer
• The refrigerator running continuously without cycling off
• The freezer not maintaining the correct temperature
• Water leaks from the freezer during the defrost cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This condenser grommet cushions and secures the refrigerator condenser assembly, reducing vibration and preventing metal-to-metal contact. It helps keep the condenser stable for quieter operation and longer component life. What it does:

• Isolates condenser from the cabinet to reduce rattling and vibration noise
• Prevents condenser edges from rubbing or wearing against the chassis
• Helps maintain proper condenser alignment for efficient airflow
• Commonly replaced when cracked, torn, or missing and causing noise or movement

• Disconnect power before servicing the appliance.
• Support the condenser assembly before removing or installing the grommet to avoid stress on tubing.
• Push the grommet into position; replace any grommets that are brittle or deformed.

This OEM Replacement Part is a high-quality, 2-watt condenser fan motor for Whirlpool refrigerators.The motor is designed to optimize your refrigerator's cooling performance. This 115-volt motor operates with a clockwise rotation.

Symptoms of a bad condenser fan motor kit include:

• Gradual rise in interior freezer temperatures
• Inability to maintain consistent cooling performance
• Loud buzzing or grinding noises coming from inside
• Tripped breakers or failure to restart after service

Causes stem from normal wear of ball bearings as the high-efficiency motor operates continuously. Exposure to dust or debris introduced through openings accelerates wear over many years of use.

This OEM part is also compatible with brands including Kenmore, KitchenAid, and Danby.

This rear roller is a replacement for the rollers in a refrigerator. The rollers are not used often, but they have an important purpose. They make it easier to move the refrigerator from one area to another. If the roller had been damaged and is not working properly, it will be difficult to maneuver the refrigerator. Replacing the damaged roller with a new one before moving the refrigerator a long distance is a good idea.The rollers on the refrigerator are meant to handle a lot of pressure. However, they can still wear down and break eventually. They could also be damaged during a previous move. Before replacing the rear roller, unplug the refrigerator and remove the connection to the water supply. The replacement will require only a few tools, such as a screwdriver. It may require moving other parts of the refrigerator to get access to the rear rollers.The rear roller will work for certain models of refrigerators from Whirlpool, GE, KitchenAid, Inglis, Maytag, Admiral, International, Amana, Jenn-Air, Crosley, and Magic Chef. This is a genuine OEM replacement part that is sold individually.

This axle roller is the replacement support shaft that lets the appliance's rotating assembly turn smoothly and quietly. Installing a new axle roller corrects wobble and reduces grinding or squealing caused by a worn shaft. What it does:

• Supports the rotating drum or rack so it spins freely and stays aligned
• Helps prevent metal-to-metal contact that causes loud noise or scraping
• Stops uneven rotation and vibration that can lead to further wear
• Restores smooth operation when an original axle is bent, worn, or broken

• Disconnect power (and gas, if applicable) before starting any repair
• Access location and removal steps vary by model; follow the OEM service manual or diagram
• Inspect related parts (pulleys, idler, glides, bearings) and replace if they show wear
• Use basic hand tools; keep fingers and loose clothing clear of moving parts during testing

This replacement screw fastens internal components and panels so parts stay secure and quiet. It's a direct-fit fastener used where the original mounting screw is missing or damaged to restore proper assembly. What it does:

• Secures panels, brackets or components to prevent movement and vibration
• Restores proper alignment for covers and access panels
• Stops rattling or loose-fitting parts caused by a missing or stripped screw
• Works as the factory-specified fastener for the original mounting point

• The screw location and type before installing; use the original hole and thread
• Power off and disconnect the appliance before accessing internal components
• Start the screw by hand to avoid cross-threading, then snug with the appropriate screwdriver
• Do not overtighten — stop once the part is secure to avoid stripping or cracking

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
