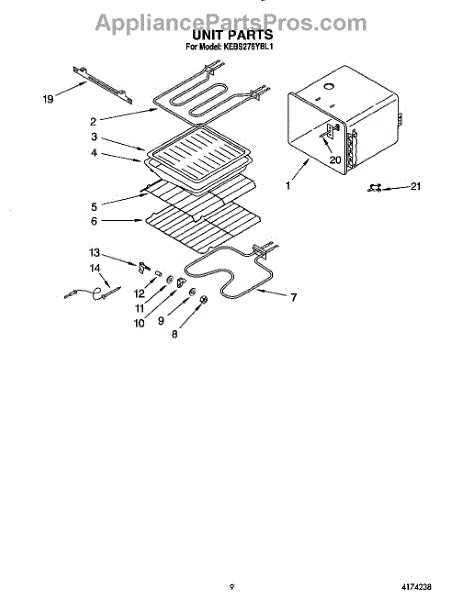

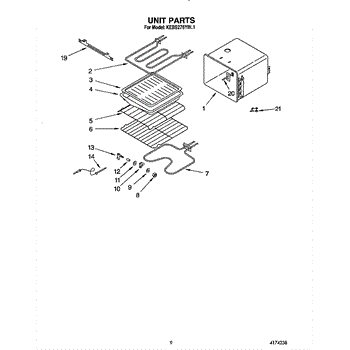

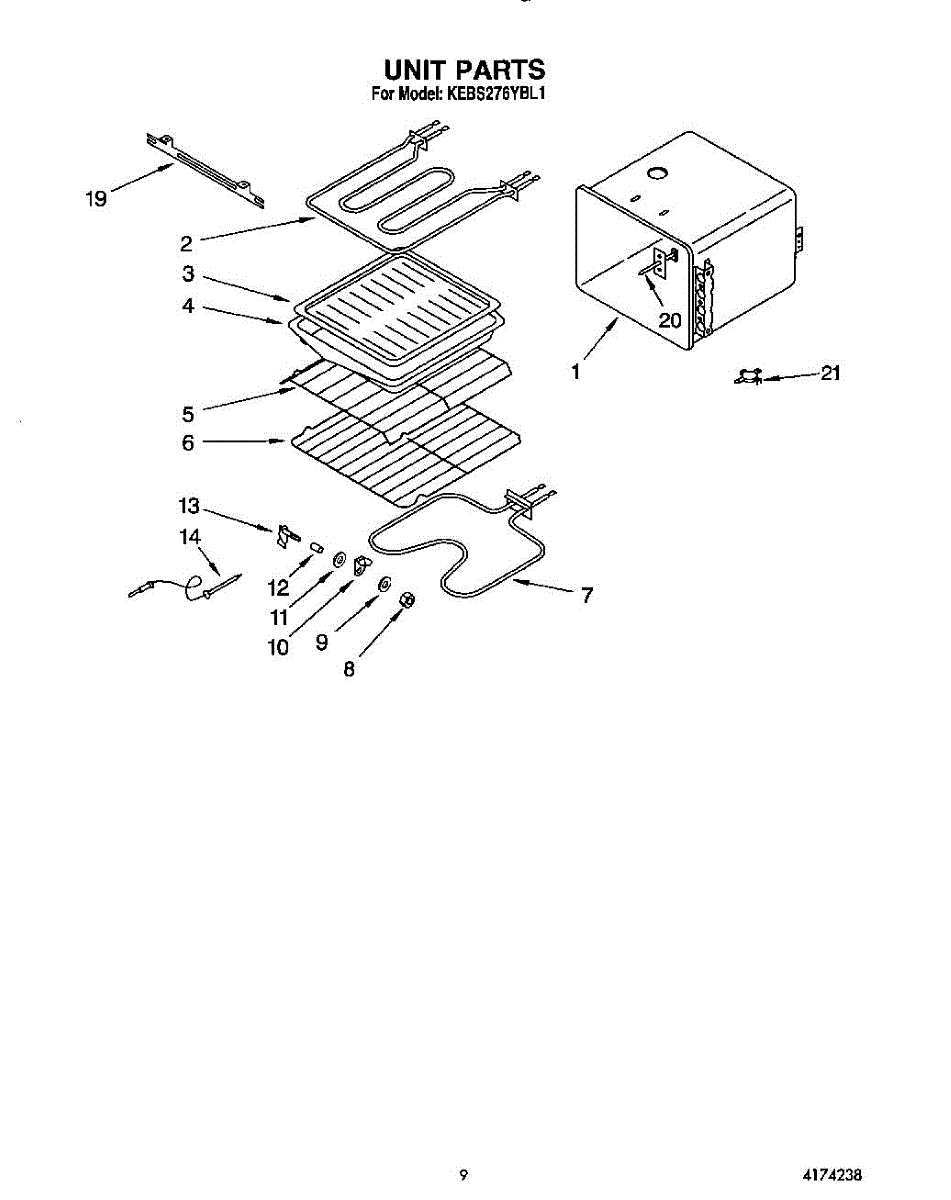

Parts for Kitchenaid KEBS276YBL1: 07 - Unit Parts

This part has been discontinued and is no longer available.

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

The bake element is the oven's primary lower heat source. Replacing a failed element restores proper preheating and even baking performance when the oven won't heat or struggles to maintain temperature during the bake cycle. What it does

• Provides the main heat for the bake cycle in electric ovens
• Common failure symptoms: no heat on bake, very slow preheat, or uneven baking
• Visible damage such as blistering, cracks, or burn spots on the element indicates replacement is needed
• Helps the oven reach and hold set temperature when functioning correctly

• 1 bake element

• Disconnect power at the breaker before servicing to prevent electrical shock
• Remove oven racks; access the element mounting screws from inside the oven cavity
• Carefully pull the element forward, support the wires, and transfer the connectors one at a time to avoid losing them behind the liner
• Ensure terminals are fully seated; do not overtighten mounting screws, then restore power and test bake

Meat temperature probe.

Size: 6 inches long. Includes ceramic wire connectors.

This lower oven thermostat regulates oven temperature for accurate baking and roasting. Replaces a failed temperature-sensing thermostat to restore consistent oven heat and reliable cooking results. What it does:

• Senses oven cavity temperature and signals the control to cycle the heating element
• Stops oven overheating or underheating when the thermostat is functioning correctly
• Commonly replaced for inconsistent temperatures, oven running too hot/too cold, or no temperature control
• Works as the lower-oven temperature regulator in ranges with separate upper/lower oven controls

• Disconnect power to the appliance before beginning any service
• Handle the sensing bulb and capillary tube carefully; do not kink or sharply bend
• Verify oven is fully cooled and remove oven racks for access before installation

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
