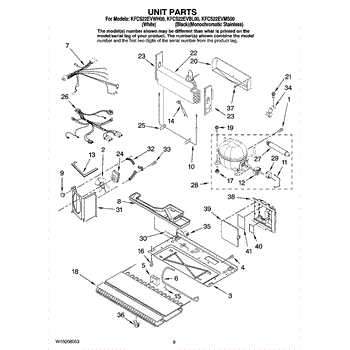

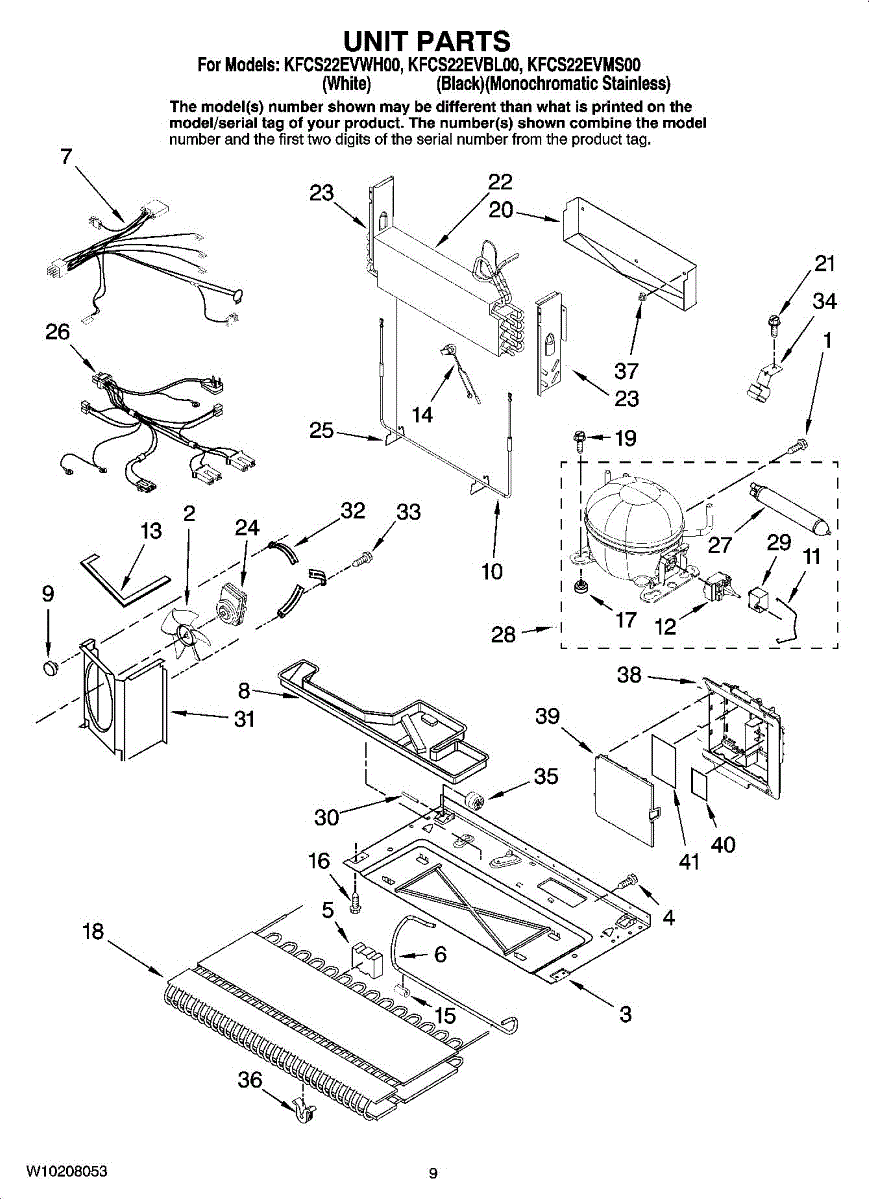

Parts for Kitchenaid KFCS22EVMS00: 05 - Unit Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Fan Blade is an OEM part for Whirlpool refrigerators. It is essential for circulating air throughout the refrigerator, ensuring that the temperature remains consistent and the cooling process is efficient. The fan blade helps distribute cold air from the evaporator coils to different parts of the refrigerator and freezer compartments, maintaining an even temperature throughout.

Over time, the fan blade can become damaged due to wear and tear, obstruction by debris, or impact from moving items within the refrigerator. If the fan blade is cracked, broken, or loose, it will not be able to circulate air effectively, leading to cooling issues and potential food spoilage.

Symptoms of a bad fan blade include:

• Unusual noises coming from the refrigerator
• Inconsistent cooling or warm spots within the compartments
• The refrigerator running more frequently or for longer periods
• Frost buildup in the freezer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This bracket grommet cushions a component where it mounts to a bracket in your refrigerator. It isolates metal-to-metal contact to reduce vibration and rattling and helps keep parts aligned for quieter, reliable operation.

• Fits into a mounting bracket to provide a cushioned seat for a component
• Isolates vibration and reduces noise by preventing metal-to-metal contact
• Helps maintain secure mounting and proper alignment
• Common signs of wear: cracking, flattening, missing grommet, increased vibration or rattling

• Disconnect power before servicing; shut off water supply if working near water lines
• Access the bracket and support the mounted component to relieve weight
• Remove the worn grommet and press the new grommet fully into the bracket opening
• Reassemble and snug fasteners—do not overtighten, so the grommet can isolate vibration

This dishwasher heater mounts at the bottom of the tub to raise wash-water temperature and boost the heated dry cycle. Replacing a failed element restores proper heating, helping cycles finish on time and improving drying performance.

• Heats wash water to the correct temperature for effective cleaning
• Aids the dry cycle by evaporating moisture from dishes
• Common symptoms of failure: dishes not drying, water staying cool, longer-than-normal cycles, sanitize option not reaching target temperature
• May show visible damage or test open for continuity

• Disconnect power and shut off water supply before servicing
• Pull the dishwasher forward for access to the underside
• Remove wires and retaining nuts from the old element; lift it out through the tub openings
• Seat the new element evenly, tighten hardware securely without overtightening, reconnect wires, then run a short cycle and check for leaks at the ports

The Compressor Start Device is an OEM part for Whirlpool refrigerators. It is responsible for starting the compressor, which is crucial for the refrigeration cycle. The start device provides the necessary electrical current to initiate the compressor's operation, ensuring that the refrigerator maintains the proper cooling temperature.

You should replace the compressor start device if it becomes faulty. Causes of a bad start device can include electrical failures, wear and tear from regular use, or damage from power surges. A malfunctioning start device can prevent the compressor from starting, leading to cooling issues in the refrigerator.

Symptoms of a bad compressor start device include:

• The refrigerator not cooling properly or at all
• The compressor not running or making a clicking sound as it tries to start
• Unusual noises coming from the compressor area
• The refrigerator cycling on and off frequently

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This genuine replacement door gasket creates an airtight seal around the refrigerator door to help maintain proper temperature and efficiency. It restores sealing performance to reduce frost buildup and stabilize internal cooling. What it does:

• Seals the refrigerator door edge to keep cold air in and warm air out
• Helps prevent frost and ice buildup in the freezer/refrigerator compartment
• Reduces compressor run time caused by a leaking door seal
• Improves temperature consistency for food preservation

• Disconnect power to the appliance before starting any work
• Clean and dry the door flange thoroughly before installing the new gasket
• Press the gasket into the channel evenly, working around the door to align the magnetic lip
• Inspect the seal after installation and allow normal operation to seat the gasket; check for gaps and re-seat if needed

The Bimetal Defrost Thermostat is an OEM part for Whirlpool refrigerators. It plays a vital role in the defrost system, regulating the freezer temperature to prevent excessive frost buildup. The thermostat serves as a safety device by shutting off power to the defrost heater if the temperature gets too high, thereby protecting the appliance from overheating and potential damage. Its specifications include a 5-1/4" orange wire, a 25" brown wire, and a 1/2" clip.

You should replace the bimetal defrost thermostat if it becomes faulty. Over time, it can deteriorate due to normal wear and tear, electrical problems, or exposure to extreme temperatures, leading to malfunctioning of the defrost cycle.

Symptoms of a bad bimetal defrost thermostat include:

• Excessive frost accumulation in the freezer
• The refrigerator running continuously or not maintaining the proper temperature
• The defrost heater failing to activate

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This condenser grommet cushions and secures the refrigerator condenser assembly, reducing vibration and preventing metal-to-metal contact. It helps keep the condenser stable for quieter operation and longer component life. What it does:

• Isolates condenser from the cabinet to reduce rattling and vibration noise
• Prevents condenser edges from rubbing or wearing against the chassis
• Helps maintain proper condenser alignment for efficient airflow
• Commonly replaced when cracked, torn, or missing and causing noise or movement

• Disconnect power before servicing the appliance.
• Support the condenser assembly before removing or installing the grommet to avoid stress on tubing.
• Push the grommet into position; replace any grommets that are brittle or deformed.

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

This short machine screw secures small appliance panels, trim pieces, and components to keep assemblies stable and aligned. It's a direct-fit fastener commonly used in laundry and kitchen appliances to replace lost or damaged screws. What it does:

• Fastens panels, bezels, brackets, or small components to the main appliance cabinet or subassembly
• Restores a secure fit when loose or missing screws cause rattling or misaligned parts
• Prevents further wear or damage from unsecured panels or trim
• Works where a short-length machine screw is specified by the manufacturer

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic parts
• Disconnect power or follow appliance safety procedures before servicing electrical appliances
• If threads are damaged, replace the mating fastener or insert rather than relying on an oversized screw

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards

This genuine replacement part is an evaporator used in refrigerators. The evaporator is the part that exchanges heat to cool the refrigerator. It is the component of the refrigerator that absorbs the heat from the air inside, turning it cool through absorption. If the refrigerator is no longer cooling properly, this could mean it's time for a new evaporator. This is a genuine replacement evaporator compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears, and Kenmore brand refrigerators.

The Motor-Condenser Fan is an OEM part for Whirlpool refrigerators. This motor drives the condenser fan, which is essential for cooling the compressor and expelling heat from the refrigerator. By maintaining optimal temperatures within the cooling system, it ensures the efficient operation of the refrigerator.

Over time, the motor-condenser fan can fail due to electrical issues, wear and tear, or exposure to dust and debris. A malfunctioning fan motor can lead to overheating and reduced cooling efficiency.

Symptoms of a bad motor-condenser fan include:

• The refrigerator running continuously or not cooling properly
• Unusual noises from the back of the refrigerator
• The compressor overheating
• Poor airflow around the condenser coils

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is the refrigerator's sealed-system compressor. It pressurizes and moves refrigerant through the system to remove heat from the cabinet, restoring consistent cooling performance when the original compressor has failed or lost capacity. What it does and common symptoms:

• Pumps and circulates refrigerant through the evaporator and condenser to remove heat
• Maintains target temperatures in both fresh food and freezer sections
• Symptoms of failure can include: no cool/poor cooling, unit warms up after short operation, humming then clicking from the compressor area, or repeated thermal overload trips
• Runs but not cool effectively when the compressor is weak or internally damaged (after ruling out start components and charge issues)

• 1 compressor

• Disconnect power before servicing; sealed-system work involves high pressure and high temperatures
• Sealed-system repairs require EPA Section 608 certification and specialized tools (gauges, vacuum pump, brazing equipment)
• Replace the filter-drier, braze connections properly, evacuate to deep vacuum, and charge to the model's specification
• Related components (start device/overload, run capacitor, controls) are tested before condemning the compressor

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This axle roller is the replacement support shaft that lets the appliance's rotating assembly turn smoothly and quietly. Installing a new axle roller corrects wobble and reduces grinding or squealing caused by a worn shaft. What it does:

• Supports the rotating drum or rack so it spins freely and stays aligned
• Helps prevent metal-to-metal contact that causes loud noise or scraping
• Stops uneven rotation and vibration that can lead to further wear
• Restores smooth operation when an original axle is bent, worn, or broken

• Disconnect power (and gas, if applicable) before starting any repair
• Access location and removal steps vary by model; follow the OEM service manual or diagram
• Inspect related parts (pulleys, idler, glides, bearings) and replace if they show wear
• Use basic hand tools; keep fingers and loose clothing clear of moving parts during testing

This rear roller is a replacement for the rollers in a refrigerator. The rollers are not used often, but they have an important purpose. They make it easier to move the refrigerator from one area to another. If the roller had been damaged and is not working properly, it will be difficult to maneuver the refrigerator. Replacing the damaged roller with a new one before moving the refrigerator a long distance is a good idea.The rollers on the refrigerator are meant to handle a lot of pressure. However, they can still wear down and break eventually. They could also be damaged during a previous move. Before replacing the rear roller, unplug the refrigerator and remove the connection to the water supply. The replacement will require only a few tools, such as a screwdriver. It may require moving other parts of the refrigerator to get access to the rear rollers.The rear roller will work for certain models of refrigerators from Whirlpool, GE, KitchenAid, Inglis, Maytag, Admiral, International, Amana, Jenn-Air, Crosley, and Magic Chef. This is a genuine OEM replacement part that is sold individually.

This rubber condenser grommet cushions and secures the condenser assembly to reduce vibration and noise, helping the refrigerator run quieter and preventing wear where the condenser mounts to the cabinet. What it does:

• Cushions condenser mounting points to reduce rattling and vibration
• Helps prevent metal-on-metal wear between condenser and chassis
• Keeps the condenser properly seated for reliable airflow
• Reduces noise caused by loose or worn condenser mounts

• Disconnect power to the appliance before beginning any service
• Access the condenser area per your model's service instructions
• Remove the old grommet and press the replacement into the mounting hole until seated
• Do not use solvents or adhesives unless specified by the manufacturer; wear gloves to protect hands

This clip is a small mounting retainer that secures appliance panels and components to keep parts aligned and reduce vibration. It restores a snug fit for trim, panels, and harnesses so covers stay in place and operate quietly. What it does

• Holds trim, panels or wire harnesses in position to prevent rubbing and rattling
• Keeps access panels and covers aligned for a proper seal and finish
• Prevents electrical harnesses or hoses from sagging or contacting moving parts
• Stops intermittent scraping or vibration noises caused by loose fittings

• Disconnect power to the appliance before replacing the clip to avoid shock or injury
• Replacement typically requires basic hand tools (flat screwdriver, pliers) to remove the old clip and snap the new one into place
• Inspect surrounding trim, fasteners and harnesses and replace any additional damaged clips as needed

This replacement OEM part is a control board for refrigerators. It controls the digital display of the refrigerator. If the digital display is no longer visible and the buttons are no longer operating properly, it might be time to replace the control board. Luckily replacing the control board on a refrigerator with a digital display is a relatively simple process. To begin, start by unplugging the refrigerator. Then remove the display board by popping it out of the mounting brackets that attach to the refrigerator. Once the dispenser and display have been removed, access the old control board. Unfasten the screws attaching it to the refrigerator and remove the wire harness along with any individual wires. Be sure to take note of the orientation of the wires. Re-insert them into the correct terminals on the new board and reattach the new board to the refrigerator. reinstall the dispenser and display board and restore power to the refrigerator.This genuine replacement part is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand refrigerators.

This electronic control board is the appliance's central control module, directing power and responding to user commands. Replace a failed board to restore normal operation when the display is blank, controls are unresponsive, or cycles behave unpredictably.

• Interprets user inputs and sensor signals, then controls connected loads (motors, valves, heaters, or fans)
• Coordinates timing and overall operating logic for the appliance
• Communicates status to the display and stores/reports error codes
• Typical failure symptoms: no power/display, won't start or stops mid-cycle, unresponsive controls, erratic operation, or error codes

• Disconnect power before servicing; electrical shock risk
• Protect the PCB from static discharge; handle by the edges and use ESD precautions
• Photograph wiring and transfer connectors one at a time to identical locations
• Inspect wiring, fuses, and related components; follow your model's service procedures for any required setup or diagnostics after installation

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/4 inch.
