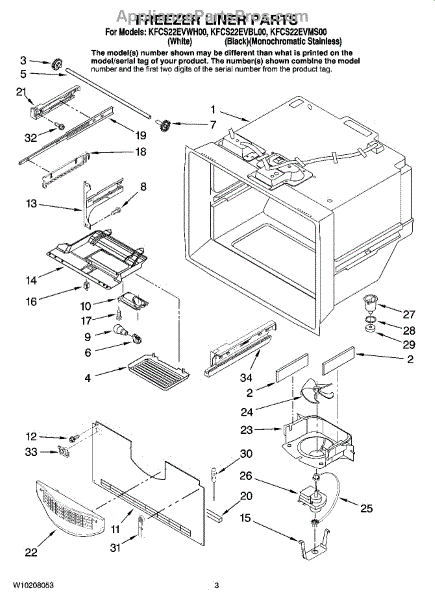

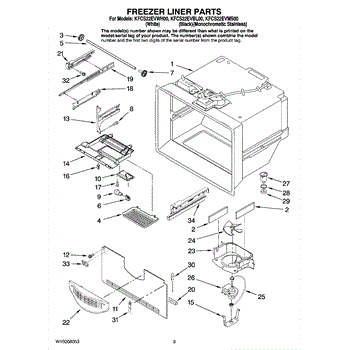

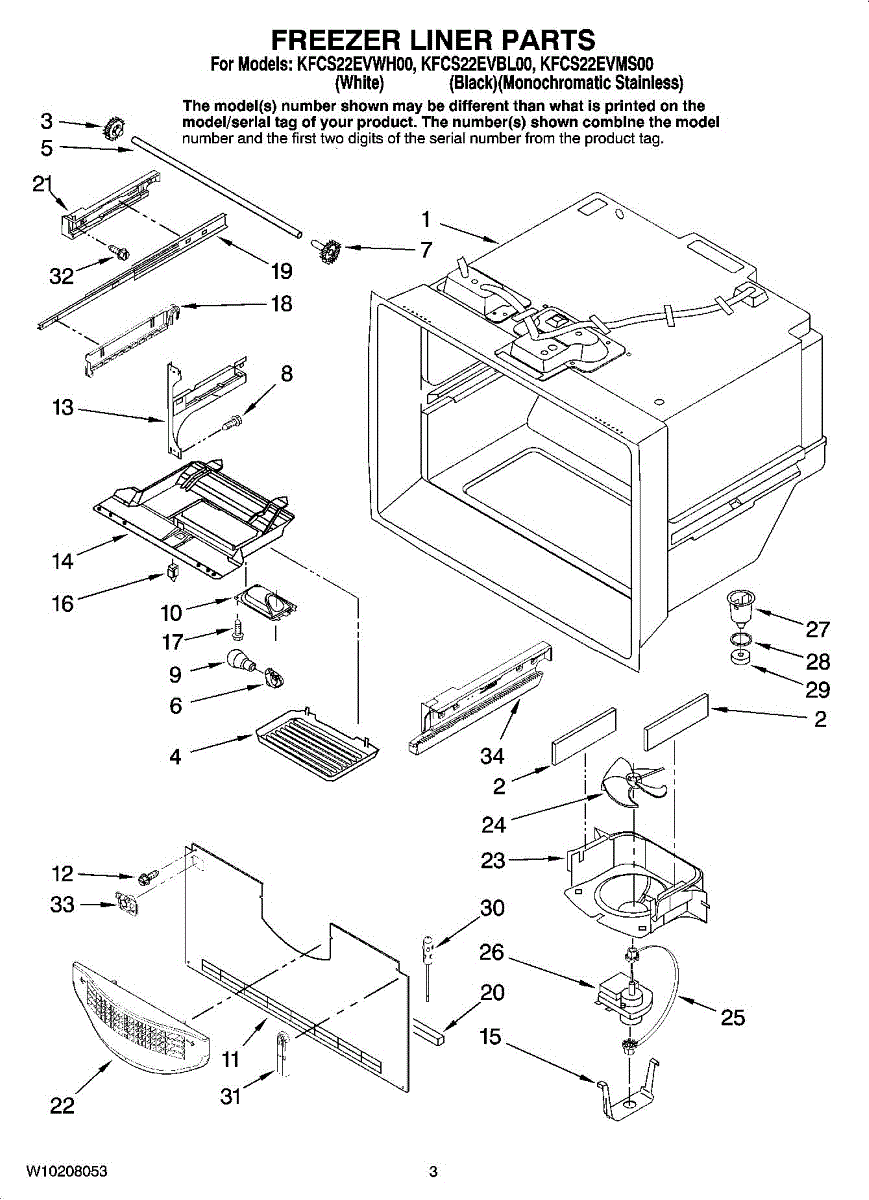

Parts for Kitchenaid KFCS22EVMS00: 02 - Freezer Liner Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This gasket forms a tight seal between mating surfaces inside your appliance to help contain air or water and maintain proper performance. Replacing a worn or damaged gasket restores reliable sealing and helps prevent leaks or escapes. What it does:

• Maintains an airtight/watertight seal between components
• Helps prevent leaks, drips, and moisture or air escaping
• Supports correct temperatures and operating efficiency
• Common signs of failure: visible cracks or flattening, leaking, moisture around the joint, or poor sealing

• 1 gasket

• Disconnect power; shut off water supply if applicable
• Note gasket orientation before removal and clean mating surfaces
• Seat the gasket evenly without stretching or kinking
• Reassemble and test for proper seal and any leaks

The Drawer Gear Kit is an OEM part for Whirlpool refrigerators. This kit is designed to repair or replace the gear system that operates the sliding or rolling mechanism of a refrigerator drawer. It includes all necessary gears and components to ensure smooth operation of the drawer, allowing for easy access to fruits, vegetables, meats, or other items stored inside.

Causes for replacement can vary, including wear and tear from regular use, damage from overloading the drawer, or accidental breakage. Over time, the gears can wear down, lose teeth, or become misaligned, leading to poor drawer performance.

Symptoms of a bad Drawer Gear Kit include:

• The drawer is difficult to open or close
• A grinding or clicking noise when the drawer is moved
• The drawer sticks or jams during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This 33-inch shaft-rack replaces the rack support shaft that the dishwasher rack slides on, restoring smooth in-and-out movement and correct rack alignment for easier loading and unloading. What it does:

• Acts as the axle for a dishwasher rack, supporting and guiding rack travel along the tub.
• Restores smooth sliding if the original shaft is bent, worn, or broken.
• Helps eliminate rack misalignment, rubbing, or sticking during use.
• Matches OEM fit and mounting points when used with the correct part number.

• Disconnect power and water to the appliance before beginning any repair.
• Remove the affected rack to access the shaft; keep track of end caps or retaining clips.
• Slide out the old shaft and install the replacement, ensuring clips/end caps are properly secured.

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drawer Gear Kit is an OEM part for Whirlpool refrigerators. This kit is designed to repair or replace the gear system that operates the sliding or rolling mechanism of a refrigerator drawer. It includes all necessary gears and components to ensure smooth operation of the drawer, allowing for easy access to fruits, vegetables, meats, or other items stored inside.

Causes for replacement can vary, including wear and tear from regular use, damage from overloading the drawer, or accidental breakage. Over time, the gears can wear down, lose teeth, or become misaligned, leading to poor drawer performance.

Symptoms of a bad Drawer Gear Kit include:

• The drawer is difficult to open or close
• A grinding or clicking noise when the drawer is moved
• The drawer sticks or jams during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This outer cabinet housing provides a durable structural shell that supports internal components and protects them from debris and wear. It restores proper alignment and enclosure for safe, stable appliance operation. What it does:

• Replaces a cracked, dented, or misshapen outer housing that can allow debris or moisture into the appliance
• Restores proper mounting surfaces and clearances for panels, controls, and internal assemblies
• Helps reduce rattling or vibration caused by a compromised cabinet
• Prevents exposure of internal wiring and components to contaminants

• One outer cabinet housing

• Recommended for experienced DIYers; some disassembly of panels and components is required
• Disconnect power and any water lines before beginning work
• Keep track of screws and brackets; some fasteners may be reused

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This right-hand slide bracket secures and supports a cabinet or drawer slide assembly so drawers and shelves open and close smoothly. It restores alignment and support for proper sliding action. What it does:

• Anchors the right-side slide or rail to the cabinet frame or drawer assembly
• Keeps the slide aligned to prevent binding, sagging, or uneven travel
• Helps restore smooth opening and closing when the drawer or shelf sticks
• Works with the existing slide/rail hardware; replaces damaged or broken brackets

• One right-hand slide bracket

• Turn off power to any nearby powered components and remove contents before starting
• Remove the drawer or shelf to access the bracket
• Typical installation requires basic hand tools (screwdriver or nut driver) and original fasteners; retain screws for reuse unless replacement is specified
• Inspect mating slide/rail and adjacent brackets for wear and replace any damaged components to ensure proper function

This left-side slide bracket secures and guides a sliding assembly so drawers or components open smoothly and stay aligned. It replaces a worn or broken bracket to restore proper support and reduce binding or sagging. What it does:

• Provides structural support for the left side of a sliding drawer/assembly
• Keeps slides aligned so the drawer opens and closes smoothly
• Helps stop sagging, catching, or uneven movement of the sliding part
• Replaces cracked, bent, or damaged brackets that interfere with operation

• Disconnect power and/or unplug the appliance before starting any repair
• Remove any outer panels or drawer components as needed to access the bracket
• Keep original fasteners; install bracket in the same orientation and tighten screws securely but do not overtighten
• If movement still feels restricted after replacement, check mating slide components and alignment

This housing is the factory replacement outer cabinet that secures and protects internal components while restoring proper fit and appearance. It's a direct-fit body panel that helps keep parts aligned and shields wiring and controls from damage. What it does:

• Replaces cracked, warped, or damaged outer housing that affects cabinet fit or appearance
• Supports and secures internal components and mounting points for panels and controls
• Protects wiring, switches, and electronics from exposure, debris, and accidental contact
• Helps reduce rattles or misalignment caused by a broken or loose housing

• Disconnect power (and water if applicable) before starting any repair
• Handle edges carefully — metal/plastic edges can be sharp
• Basic hand tools required; alignment and fastener locations must match the original housing

This clip is a small mounting retainer that secures appliance panels and components to keep parts aligned and reduce vibration. It restores a snug fit for trim, panels, and harnesses so covers stay in place and operate quietly. What it does

• Holds trim, panels or wire harnesses in position to prevent rubbing and rattling
• Keeps access panels and covers aligned for a proper seal and finish
• Prevents electrical harnesses or hoses from sagging or contacting moving parts
• Stops intermittent scraping or vibration noises caused by loose fittings

• Disconnect power to the appliance before replacing the clip to avoid shock or injury
• Replacement typically requires basic hand tools (flat screwdriver, pliers) to remove the old clip and snap the new one into place
• Inspect surrounding trim, fasteners and harnesses and replace any additional damaged clips as needed

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This right-side basket cradle secures and supports a dishwasher rack so it rolls and nests correctly. It replaces worn or broken cradles to restore smooth rack movement and stable loading in the dishwasher. What it does:

• Holds the right side of the upper/lower basket in place and guides rack travel
• Restores proper alignment when racks tilt, wobble, or catch during sliding
• Helps prevent rack detachment or uneven loading caused by a broken cradle
• Works with the existing rack hardware and rollers to maintain normal operation

• Designed for straightforward replacement; remove the rack to access the cradle
• Inspect adjacent rollers and clips while replacing; replace any damaged hardware
• Use basic hand tools; disconnect power only if working near electrical components
• Dispose of damaged pieces and package new part per local regulations

This left-side basket cradle replaces a damaged or worn support that holds and stabilizes a removable basket. It restores proper basket alignment and prevents rubbing or sagging so the basket operates smoothly. What it does:

• Supports the left side of the basket to keep it level and secure during use
• Prevents the basket from rubbing against the cabinet or other components
• Restores proper fit and alignment for smooth sliding and operation
• Helps eliminate noise and uneven movement caused by a broken cradle

• Disconnect power to the appliance before starting any repair
• Remove the basket to access the cradle; retain all fasteners for reassembly
• Align the cradle and snap or fasten it into place; verify the basket slides and seats correctly
• If hardware is damaged or missing, replace with OEM-specified fasteners

*** Note: Sold individually ***

This replacement refrigerator door gasket seals the cabinet to maintain consistent temperatures and help keep food fresh. It restores a tight seal to reduce drafts, condensation, and frost buildup around the door. What it does:

• Creates an airtight seal between the door and cabinet to help keep cold air in
• Helps prevent warm spots, excess frost, and water/ice buildup inside the compartment
• Can improve cooling consistency and reduce extra runtime from a leaking seal
• Replaces torn, stretched, or flattened seals that no longer close fully

• Disconnect power to the appliance before starting any work
• Clean the door flange and remove old gasket before fitting the new seal
• Press the gasket evenly into the retainer channel and check that the magnetic edge engages all around
• Allow 24 hours for the gasket to fully seat against the cabinet; reposition if gaps are visible

Note: Left Side

Note: Right Side

Restore the clean look and proper ventilation of your microwave with this air grille. It covers the upper front vent opening, helps guide airflow through the vent path, and shields internal components for reliable performance.

• Covers the upper/front vent opening while allowing proper airflow
• Helps secure the charcoal filter on many recirculating models
• Restores appearance and fit when the original grille is cracked or missing
• Common fix for a loose, rattling, or broken vent cover

• Disconnect power to the microwave before servicing
• Open the door (most models), remove the screws along the top edge, and slide the old grille to release its tabs
• Position the new grille, ensure tabs engage fully, and reinstall the screws without overtightening

This replacement shroud is the outer housing that covers and protects internal dryer components, restoring proper fit and appearance and helping keep wiring and parts shielded from lint and damage. What it does

• Covers and protects internal components and wiring from lint, debris, and accidental contact
• Helps maintain correct clearances between parts to prevent rubbing or interference
• Restores appliance appearance and secure mounting where the original shroud is cracked or broken
• Can reduce rattles or vibration caused by loose or damaged shroud tabs

• One shroud

• Disconnect power (unplug or shut off breaker) before any service
• Removal typically requires taking off outer panels or access covers and keeping track of fasteners
• Use basic hand tools; avoid forcing tabs—inspect and replace any damaged clips or screws

The Evaporator Fan Motor Blade is an OEM part for Whirlpool refrigerators. It is a crucial component of the refrigerator's cooling system, attached to the evaporator fan motor to circulate air over the evaporator coils. This circulation helps distribute cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures and efficient operation.

Symptoms of a bad Evaporator Fan Motor Blade include:

• Unusual noise coming from the fan area, indicating the blade may be hitting another component or is unbalanced,
• Insufficient cooling in the refrigerator or freezer compartments,
• The refrigerator running longer than usual to maintain the desired temperature.

Causes of evaporator fan motor blade failure typically include physical damage from interference with other components, wear from continuous use, or buildup of ice or debris that unbalances the blade.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A small rubber grommet that cushions and protects wiring or hoses where they pass through sheet metal or plastic openings. Replaces a worn or damaged grommet to help prevent chafing and reduce vibration-related noise. What it does

• Cushions and protects wires, hoses, or tubing from sharp edges
• Helps prevent abrasion that can cause fraying or electrical shorts
• Reduces vibration and rattling where components pass through panels
• Commonly replaced when the original shows cracking, tearing, or visible wear

• One rubber grommet

• Disconnect power before accessing internal wiring or panels
• Remove the damaged grommet and press the replacement into the opening until fully seated
• Use blunt tools or a cloth to avoid cutting or distorting the new grommet

The Evaporator Motor is an OEM replacement part for Whirlpool refrigerators. It is a vital component that powers the evaporator fan, which circulates air over the evaporator coils to provide cooling within the refrigerator compartments.

Symptoms of a need to replace the evaporator motor:

• Inadequate cooling or uneven temperature distribution within the refrigerator
• Loud noises or excessive vibrations coming from the evaporator area
• Complete failure of the refrigerator to cool or maintain temperature

Causes of a faulty evaporator motor can include general wear and tear, electrical malfunctions, bearing failures, or physical damage from impact or foreign objects.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

A molded defrost drain funnel that routes condensation and melted frost into the refrigerator's drain to help prevent pooling and interior leaks. Replaces cracked or clogged funnels to restore proper water flow in the drain path. What it does

• Guides defrost and condensation water from the evaporator area into the fridge drain system.
• Helps prevent water pooling inside the fresh-food or freezer compartments.
• Worn, cracked or clogged funnels can cause dripping, pooling or frost build-up near the evaporator.
• Restores a secure, directed path for meltwater to reach the drain tube and pan.

• Disconnect power to the appliance before accessing internal components to reduce shock risk.
• Remove food and any removable shelving to access the evaporator/drain area; handle plastic trim carefully to avoid breakage.
• Inspect surrounding drain area for ice, debris or clogs and clear before reinstalling the funnel.
• If clips or screws secure the funnel, retain hardware and reinstall securely; test a small amount of water to ensure proper drainage.

This O-ring seal provides a watertight seal for the appliance's water path, helping prevent leaks and maintain proper operation. Use this exact replacement when the original ring is cracked, flattened, or worn. What it does:

• Creates a pressure-tight seal at a water connection to stop drips and leaks
• Keeps water contained inside hoses, valves or pump fittings
• Restores proper sealing when the original O-ring becomes brittle or deformed
• Helps prevent water damage to cabinetry and flooring from appliance leaks

• One O-ring seal

• Turn off power and water supply before beginning any repair
• Remove the old O-ring and clean mating surfaces of debris and buildup
• Inspect the groove or fitting for damage; replace the part if the mating surface is scored
• If needed, use a small amount of manufacturer-recommended lubricant to ease installation and protect the O-ring

This drain tube gasket seals the connection between the drain tube and its mating port to prevent leaks. A tight seal helps keep water where it belongs and protects surrounding components from moisture damage.

• Creates a watertight seal at the drain tube connection point
• Can help address water leaks around the drain area
• Deterioration, cracking, or hardening of the old gasket may cause seepage
• Replacing a worn gasket can restore proper leak prevention

• Unplug the appliance and shut off water supply before service
• Place a towel or pan to catch residual water when disconnecting the tube
• Inspect the tube and mating surfaces; clean before installing the new gasket
• Do not overtighten fittings; verify a snug, even seal and check for leaks on first run

This thermistor service kit monitors internal refrigerator temperature and relays it to the control to regulate cooling. The plastic-housed sensor restores accurate readings and steadier temperatures when the original sensor is damaged, out of range, or intermittent.

• Senses compartment or evaporator temperature and sends a resistance signal to the control
• Helps the control manage compressor and fan operation for consistent cooling
• Common signs of a faulty sensor: temperatures too warm/too cold, long run times or short cycling, frost buildup, or thermistor/sensor error codes

• Disconnect power to the appliance before servicing
• Access the sensor location (often behind an interior panel or on the evaporator cover); remove the original sensor/holder
• Install the new sensor in the same position/orientation; route wires away from sharp edges and moving parts; ensure the plastic housing is fully seated
• Restore power and allow up to 24 hours for temperatures to stabilize

This replacement cover shields and secures the freezer temperature sensor, keeping it correctly positioned for accurate temperature feedback. An intact cover helps protect the sensor and maintain proper placement for consistent cooling performance.

• Holds the freezer thermistor in the correct location and orientation
• Protects the sensor from accidental damage or dislodging
• Supports stable temperature readings to the control system
• Replace if the cover is cracked, missing, or its tabs are broken; if the sensor is loose/exposed; or after visible damage

• Disconnect power to the refrigerator before servicing
• Remove shelves/obstructions to access the thermistor area; release or unfasten the old cover
• Seat the thermistor properly, align the new cover, and secure using existing fastener or tabs
• Restore power and verify normal cooling operation

Size: 8 x 1-1/4 inch.

This right-hand side adapter bracket secures the appliance cabinet or panel, restoring proper fit and stability. Replacing a damaged or missing bracket helps stop loose or misaligned panels and reduces rattling. What it does:

• Secures the right-side cabinet or panel to the chassis to maintain alignment and support.
• Helps eliminate panel movement, vibration and rattling that result from a cracked or missing bracket.
• Restores correct panel gaps so doors or drawers operate and close properly.

• Disconnect power (unplug or shut off breaker) before accessing the appliance.
• Remove the required access panels to reach the bracket; keep and reuse existing fasteners unless new hardware is specified by the model diagram.
• Transfer the bracket into position and fasten securely; check for proper panel alignment after installation.
