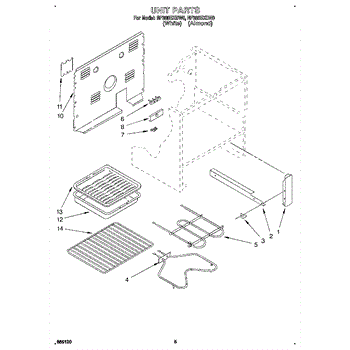

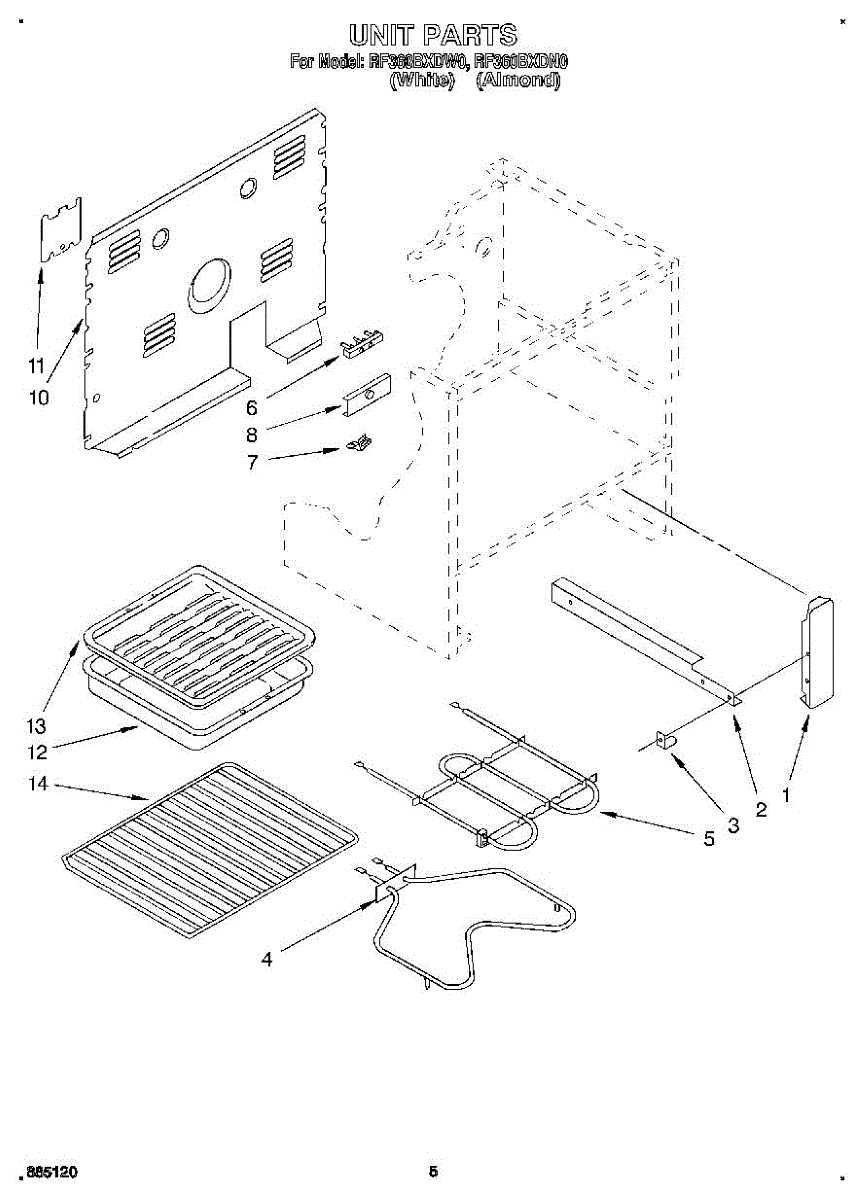

Parts for Whirlpool RF360BXDN0: 04 - Unit, Optional Parts

Size: 10-32 x 1/2 inch.

This bake element mounts at the bottom of the oven cavity and supplies the heat required for baking and roasting. Replace a failed element to restore proper preheat, even temperature, and reliable oven performance.

• Provides radiant heat for the lower oven during Bake mode
• Helps maintain the set temperature for consistent results
• Common failure symptoms: no heat in Bake, very slow preheat, uneven/undercooked food, or visible blisters/cracks/breaks in the element
• A shorted element may trip a breaker when Bake is started

• Disconnect power at the breaker or unplug the range before servicing (high-voltage hazard)
• Remove oven racks; take out element mounting screws and carefully pull the element forward to access terminals
• Note/photograph wire positions and transfer wires one at a time; ensure terminals are tight
• Reinstall mounting hardware, verify the element is centered and not touching the cavity, restore power, and test Bake

The Oven Bake Element is an OEM part for Whirlpool ovens. This part heats the oven's interior during the baking process. Located at the bottom of the oven, the bake element heats up when electricity passes through it, allowing for consistent and even cooking.

Causes of damage to the Oven Bake Element can include normal wear and tear from regular use, a buildup of food debris causing hot spots and potential burns out, or electrical issues leading to shorts or surges that damage the element.

Symptoms of a bad Oven Bake Element include:

• Visible signs of damage to the element, such as blistering, holes, or breaks in the element itself.
• The oven failing to heat up at all
• A lack of visible glowing from the element during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 10-32 x 1/2 inch.

The Broil Element is an OEM component for Whirlpool wall ovens and ranges. Located at the top of the oven cavity, the broil element is responsible for providing intense heat from above for searing and browning foods. The element measures approximately 12" wide x 19" long.

Symptoms of a bad broil element include:

• The broil function not working or heating very little
• Oven takes a long time to preheat

Over many uses, the coil filaments within the broil element can weaken and break from prolonged exposure to high heat. Cracks and breaks in the coil will diminish the element's ability to efficiently produce quality broiling results.

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: #9-15 x 1 inch long. Hex head.

Size: 10-32 inch.

This terminal block is the insulated connection point where the appliance's incoming power ties into the internal wiring. Replacing a heat-damaged or loose block restores a safe, reliable electrical path and helps prevent arcing and intermittent power loss.

• Connects the supply conductors to the unit's internal wiring
• Provides insulated posts to securely fasten and distribute power
• Helps maintain tight, low-resistance connections
• Common failure signs: melted/discolored plastic, burned or loose terminals, arcing, scorching, or intermittent/no power after confirming the cord and breaker

• Disconnect power at the breaker or unplug the appliance; verify no voltage before servicing
• Photograph or label wire positions to ensure correct reassembly
• Inspect and replace any heat-damaged wire ends or lugs; use appropriate terminals
• Tighten connections securely and ensure wires are fully seated and strain-relieved as originally installed

Specs: 10-16 x 1/2 inch.

Specs: 10-16 x 1/2 inch.

This terminal block access cover protects the appliance's electrical connection area, helping keep wires shielded and reducing the risk of accidental contact. It restores the factory appearance and helps maintain safe operation. What it does:

• Shields the terminal block and wiring from dust, debris, and accidental contact
• Helps prevent shorting or arcing at the power connection area
• Restores a finished look after service or replacement of wiring components
• Supports safe access control by covering live terminals when installed

• Disconnect power at the breaker or unplug the appliance before servicing.
• Remove or loosen the mounting fasteners for the old cover, then position and secure the replacement cover.
• Verify the cover fits flush and does not pinch wiring; ensure all connections are tight before restoring power.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Specs: 25ft, 14 Ga. 150 c Black

Bottle with brush. Color: Toast. Size: 0.6 fl.oz.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Color: White. Size: 1/2 oz. Porcelain or evaporator repair kit.

Size: 25ft, 12 Ga. 150 c Black

Spray paint. Color: Coffee. Size: 13 oz. can.

Spray paint. Color: Avocado. Size: 13 oz. can.

Spray paint. Color: Harvest gold. Size: 12 oz. can.

Touch-up paint. Color: Harvest gold. Size: 1 qt. can.

Touch-up paint. Color: Toast. Size: 1 qt. can.

Touch-up paint. Color: Platinum. Size: 1qt. can.

Bottle with brush. Color: Coffee. Size: 0.6 fl.oz.

Spray paint. Color: Toast. Size: 12 oz. can.

Spray paint. Color: Platinum. Size: 12 oz. can.

Specs: 25ft, 14 Ga. 150 c Blue

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Orange 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Bottle with brush. Color: New avocado. Size: 0.6 fl.oz.

Made specifically for oven bottoms, this foil helps catch spills in your oven. Perfect for BBQ grills as well.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Specs: 25ft,14 Ga., 200 c Brown

Bottle with brush. Color: Harvest Gold. It's 0.6 fluid ounces.

Color: White. Size: 13 oz. Spray paint primer. can.

Bottle with brush. Color: Platinum. Size: 0.6 fl.oz.

The Oven Liner Touch Up Paint is an OEM part for Whirlpool ovens. This 2 oz warm white touch-up paint is designed to cover minor scratches, chips, and blemishes on the oven liner, restoring its appearance and protecting it from further damage.

Causes of a bad oven liner include exposure to high temperatures, accidental impacts, and abrasive cleaning materials, which can lead to scratches, chips, and discoloration. Over time, these imperfections can worsen, making it necessary to use touch-up paint to maintain the oven liner’s integrity.

Symptoms of a bad oven liner include:

• Visible scratches or chips on the oven interior
• Discoloration or fading of the liner
• Increased difficulty in cleaning the oven liner
• Potential rust or corrosion in affected areas

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Color: White. Size: 2 oz. can. Porcelain touch-up paint.

Color: Almond

Almond. Size: 13 oz. can. Acrylic appliance paint.

Color: chrome. Measures about 22 inches wide by 16 inches deep.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This anti-tip bracket kit is an OEM replacement part for Whirlpool ranges. This bracket is typically installed at the back of the range and is secured to the wall or floor to prevent the range from tipping forward when heavy items, such as pots or pans, are placed on the open oven door.

The anti-tip bracket should be installed during the initial installation of the range and checked regularly to ensure that it is securely attached. If the bracket becomes loose or damaged in any way, it should be replaced immediately to ensure the safety of the range and anyone using it.

This kit includes:

• Anti-tip bracket
• Mounting screws (2)
• Anchors (2)
• Washer (1)

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
