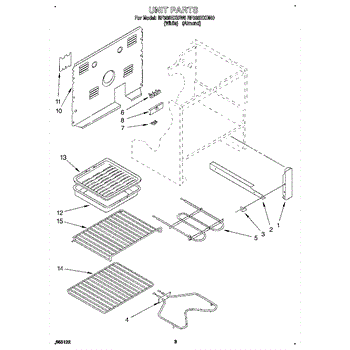

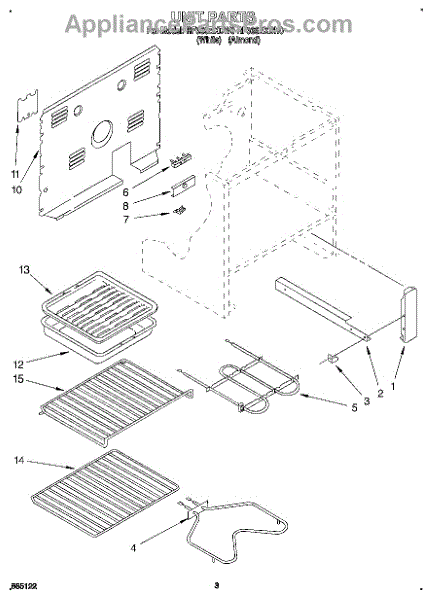

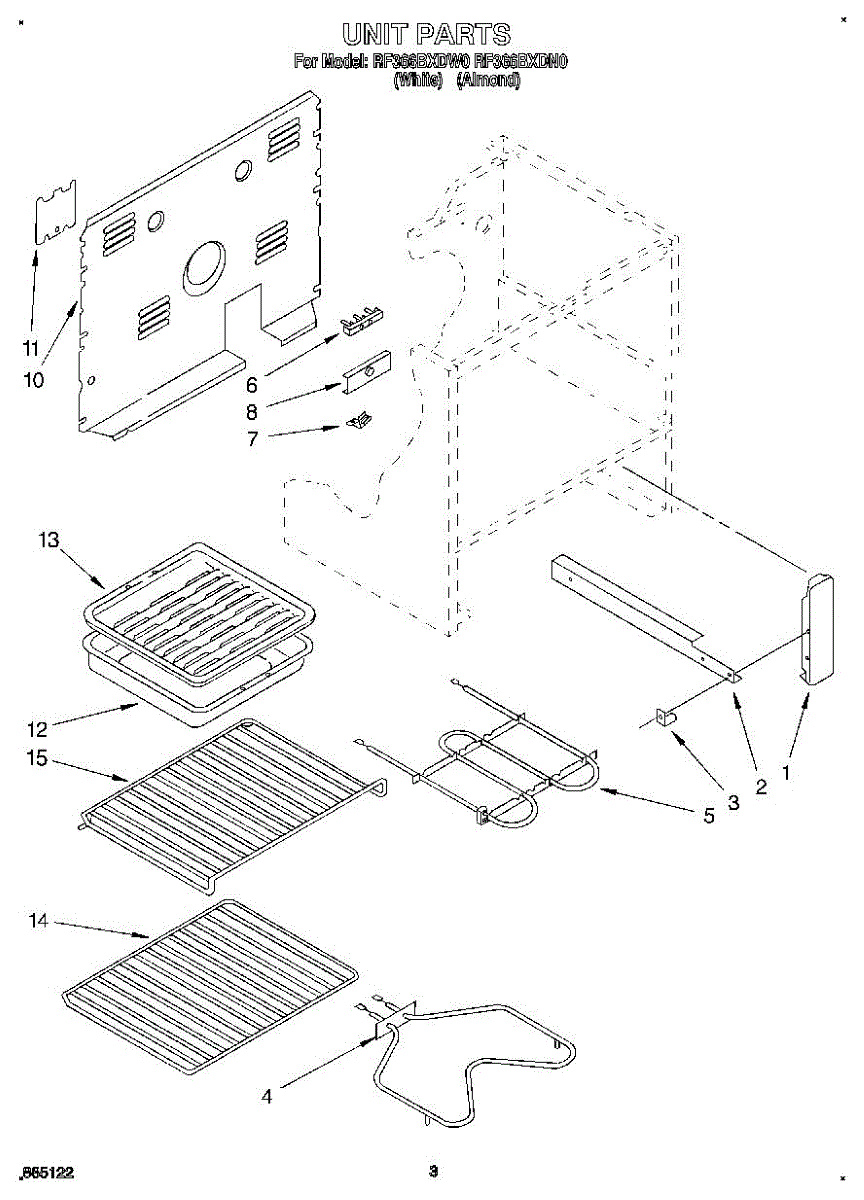

Parts for Whirlpool RF366BXDN0: 02 - Unit Parts

Specs: 10-16 x 1/2 inch.

Size: 10-32 x 1/2 inch.

The Oven Bake Element is an OEM part for Whirlpool ovens. This part heats the oven's interior during the baking process. Located at the bottom of the oven, the bake element heats up when electricity passes through it, allowing for consistent and even cooking.

Causes of damage to the Oven Bake Element can include normal wear and tear from regular use, a buildup of food debris causing hot spots and potential burns out, or electrical issues leading to shorts or surges that damage the element.

Symptoms of a bad Oven Bake Element include:

• Visible signs of damage to the element, such as blistering, holes, or breaks in the element itself.
• The oven failing to heat up at all
• A lack of visible glowing from the element during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 10-32 x 1/2 inch.

The Broil Element is an OEM component for Whirlpool wall ovens and ranges. Located at the top of the oven cavity, the broil element is responsible for providing intense heat from above for searing and browning foods. The element measures approximately 12" wide x 19" long.

Symptoms of a bad broil element include:

• The broil function not working or heating very little
• Oven takes a long time to preheat

Over many uses, the coil filaments within the broil element can weaken and break from prolonged exposure to high heat. Cracks and breaks in the coil will diminish the element's ability to efficiently produce quality broiling results.

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: #9-15 x 1 inch long. Hex head.

Size: 10-32 inch.

This terminal block is the insulated connection point where the appliance's incoming power ties into the internal wiring. Replacing a heat-damaged or loose block restores a safe, reliable electrical path and helps prevent arcing and intermittent power loss.

• Connects the supply conductors to the unit's internal wiring
• Provides insulated posts to securely fasten and distribute power
• Helps maintain tight, low-resistance connections
• Common failure signs: melted/discolored plastic, burned or loose terminals, arcing, scorching, or intermittent/no power after confirming the cord and breaker

• Disconnect power at the breaker or unplug the appliance; verify no voltage before servicing
• Photograph or label wire positions to ensure correct reassembly
• Inspect and replace any heat-damaged wire ends or lugs; use appropriate terminals
• Tighten connections securely and ensure wires are fully seated and strain-relieved as originally installed

Specs: 10-16 x 1/2 inch.

This terminal block access cover protects the appliance's electrical connection area, helping keep wires shielded and reducing the risk of accidental contact. It restores the factory appearance and helps maintain safe operation. What it does:

• Shields the terminal block and wiring from dust, debris, and accidental contact
• Helps prevent shorting or arcing at the power connection area
• Restores a finished look after service or replacement of wiring components
• Supports safe access control by covering live terminals when installed

• Disconnect power at the breaker or unplug the appliance before servicing.
• Remove or loosen the mounting fasteners for the old cover, then position and secure the replacement cover.
• Verify the cover fits flush and does not pinch wiring; ensure all connections are tight before restoring power.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: chrome. Measures about 22 inches wide by 16 inches deep.

This part has been discontinued by the manufacturer and is no longer available.

This anti-tip bracket kit is an OEM replacement part for Whirlpool ranges. This bracket is typically installed at the back of the range and is secured to the wall or floor to prevent the range from tipping forward when heavy items, such as pots or pans, are placed on the open oven door.

The anti-tip bracket should be installed during the initial installation of the range and checked regularly to ensure that it is securely attached. If the bracket becomes loose or damaged in any way, it should be replaced immediately to ensure the safety of the range and anyone using it.

This kit includes:

• Anti-tip bracket
• Mounting screws (2)
• Anchors (2)
• Washer (1)

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Razor blade scraper.

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.
