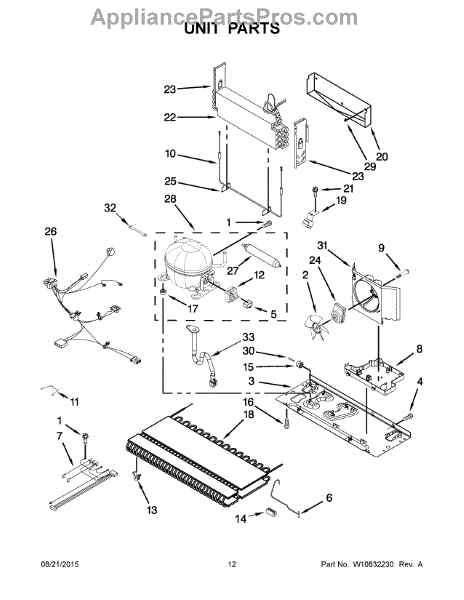

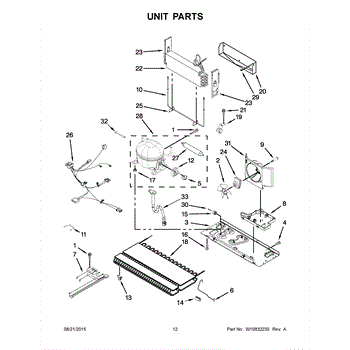

Parts for Kitchenaid KRFC300ESS01: 07 - Unit Parts

Refrigerator making loud noise or not cooling? A cracked or broken condenser fan blade disrupts airflow. Easy 10-minute DIY fix with our video guide.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Compressor won't start or kicks on and off? This run capacitor powers the compressor motor. A 15-minute DIY repair that restores cooling cycles.

Water supply tube for refrigerators. Connects water line to dispenser or ice maker. Replace if cracked, leaking, kinked, or damaged during service.

This wire harness connects and organizes your appliance's internal wiring. It delivers power and control signals between the control system and components, restoring reliable connections when the original harness is damaged or heat-stressed. What it does:

• Distributes power and control signals between boards, sensors, motors, valves, and other components
• Replaces cut, brittle, corroded, or melted wiring and terminals
• Can help resolve intermittent operation, components not running, or visible burn/arc marks at connectors
• Maintains proper wire routing and strain relief to reduce future fatigue or shorts

• 1 wire harness assembly

• Disconnect power; shut off water or gas supplies before service
• Label or photograph each connector to ensure one-for-one transfer
• Route the harness along the original path; secure with existing clips/ties and keep clear of hot, sharp, or moving parts
• Push connectors straight and fully until they lock; avoid pulling on wires during removal/installation

The Drip Pan is an OEM part for Whirlpool refrigerators. Located beneath the refrigerator, it collects and holds water that drips from the defrost system, preventing it from leaking onto the floor.

Causes of a bad drip pan can include cracks or holes from physical damage, warping from exposure to temperature fluctuations, or excessive buildup of dirt and mold.

Symptoms of a bad drip pan include:

• Water pooling under the refrigerator
• Visible cracks, holes, or warping in the pan
• Mold or mildew growth in the pan
• Unpleasant odors emanating from the refrigerator base

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Replaces stripped, missing, or damaged mounting screws that secure panels, brackets, and components in your refrigerator. Restores proper assembly.

Fix frost buildup and grinding noises with a refrigerator defrost heater. Melts ice on evaporator coils. Video guide included for easier installation.

This refrigerator compressor start device supplies the initial boost to start the compressor and supports reliable operation. When it weakens or fails, you may hear clicking from the rear and experience poor cooling or a compressor that won't run. What it does:

• Sends momentary power to the compressor's start winding for dependable start-up
• Opens the start circuit once the compressor is running
• Works with the compressor's protection to prevent overheating damage
• Failure symptoms may include: warm temps or no cooling, compressor won't start, or repeated clicking/humming then shutting off

• One start device assembly

• Disconnect power before servicing
• Access the compressor compartment (rear lower panel); locate the start device on the side of the compressor
• Note wire positions, pull the old device straight off the compressor pins, and seat the new device fully; reconnect wiring
• Reinstall panels and restore power; allow temperatures to stabilize

Refrigerator making rattling or vibrating noises? This condenser grommet cushions the condenser assembly to reduce noise and prevent mounting wear.

Seals openings where hoses or wires pass through cabinet walls. Replace if cracked, torn, or missing to prevent chafing and vibration noise. Verify fit.

Rear roller that helps move your refrigerator smoothly. Replace if broken, cracked, or wobbling to restore easy mobility. Confirm fit by model number.

Protective seal grommet for hoses, tubes, or wires passing through refrigerator cabinet. Replaces cracked, worn, or missing grommets to prevent leaks.

Secures hoses to fittings on water and vent lines to prevent leaks. Replace if loose, cracked, or connection drips. Confirm fit with your model number.

36-inch drip tray for refrigerators. Collects water and condensation beneath the appliance. Replace if cracked, warped, or missing to prevent leaks.

Self-drilling screw secures panels, brackets, and trim without pre-drilling. Replace missing or stripped screws during appliance repair or reassembly.

Fix a refrigerator that's not cooling properly or has frost buildup with a new evaporator coil. This part absorbs heat to keep your fridge cold.

Fix a noisy or non-cooling refrigerator with this condenser fan motor. Solves overheating compressor issues. DIY-friendly repair with video guide.

Wire harness for refrigerators. Connects electrical components inside your appliance. Replace if wires are damaged, connectors are broken, or worn.

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

This evaporator clip secures the refrigerator evaporator assembly and related components so the cooling system stays aligned and vibration-free. It helps maintain proper airflow and prevents rubbing or loose parts. What it does:

• Holds the evaporator coil/assembly or associated covers in place
• Prevents vibration, noise, and contact between the coil and cabinet parts
• Helps maintain consistent airflow for reliable cooling performance
• Commonly linked to rattling, buzzing, or loose parts around the freezer evaporator

• Disconnect power before servicing the appliance
• Handle evaporator and surrounding fins carefully; they are sharp and fragile
• Verify clip orientation against the OEM diagram before fastening

Replacement roller axle support shaft for refrigerators. Installs to support rotating assemblies. Replace when worn, damaged, or causing wobble.

Secures components inside your refrigerator. Replace this retainer strap if the original is cracked, broken, or missing to properly hold parts in place.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 1/4 inch.
