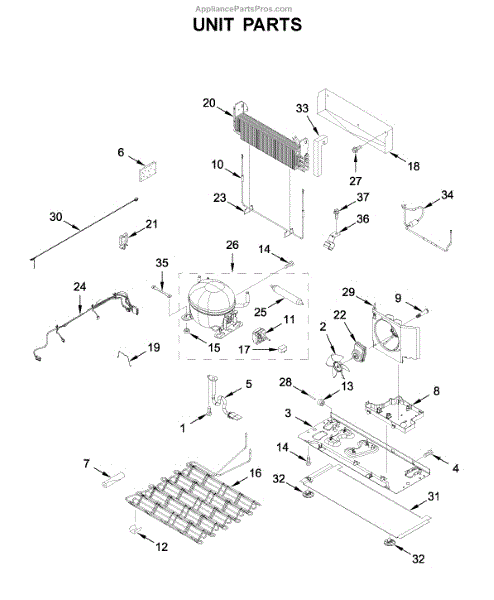

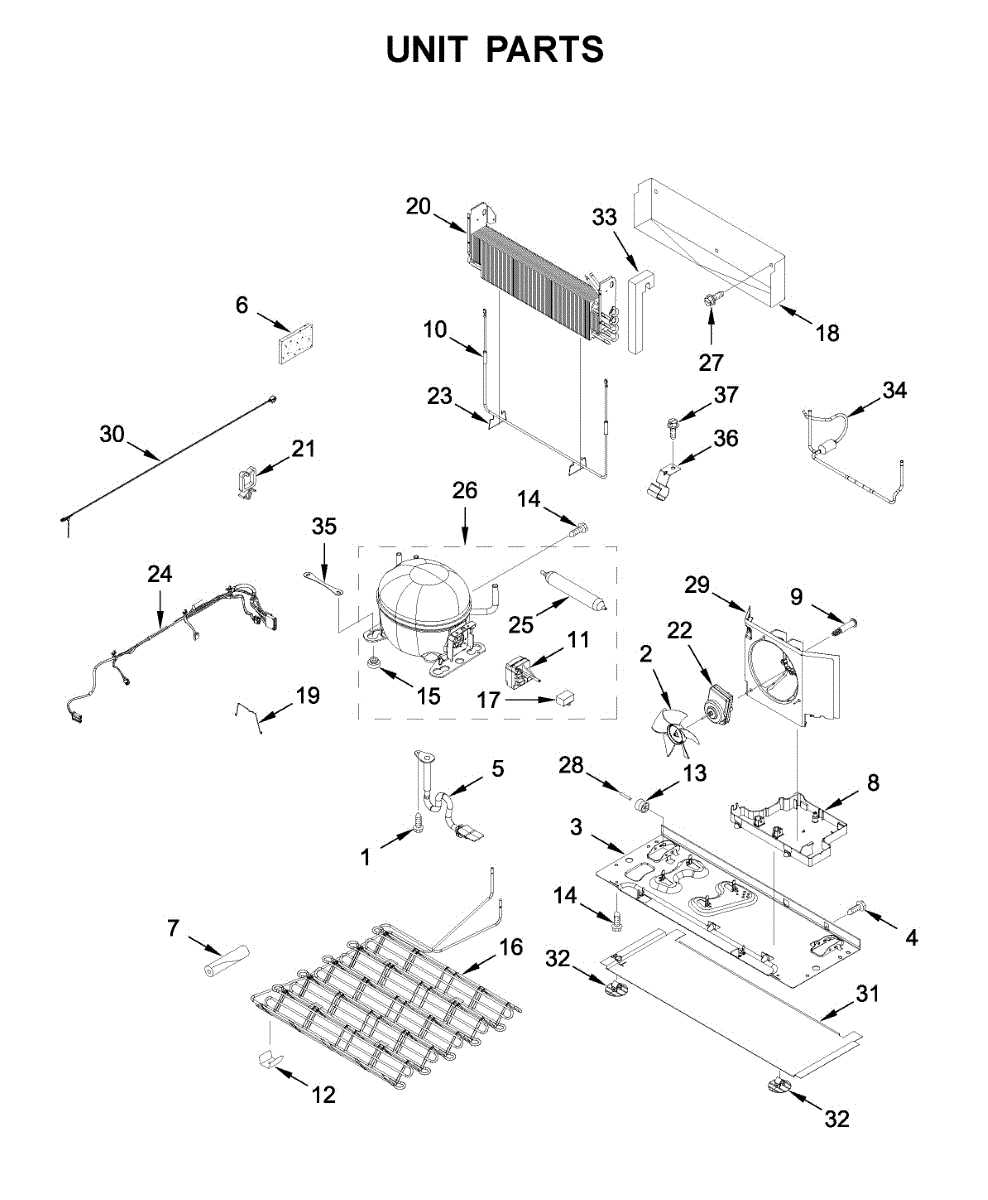

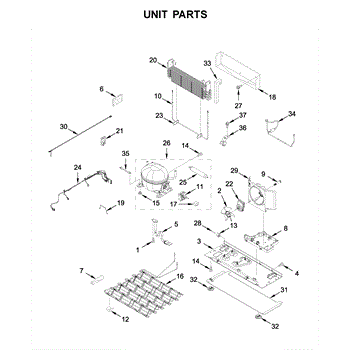

Parts for Kitchenaid KRFF507HPS02: Unit Parts

A genuine replacement screw used to secure appliance panels, brackets, and components so assemblies stay aligned and stable. Installs quickly with a screwdriver or driver bit to restore proper fit and reduce rattling. What it does:

• Secures panels, trim, brackets or internal components to keep parts properly aligned
• Prevents loose or vibrating panels that can cause noise or wear
• Holds mounting points that keep doors, seals, and assemblies operating correctly
• Replaces stripped, missing, or corroded fasteners that compromise fit

• Turn off and unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or deform parts
• Keep removed hardware organized and replace like-for-like for best fit

This condenser fan blade moves air across the refrigerator's condenser coil and compressor to remove heat, helping the unit cool efficiently. Replace a cracked, warped, or loose blade to restore proper airflow and reduce noise.

• Circulates air through the condenser section to dissipate heat from the refrigerant
• Supports stable fridge and freezer temperatures and efficient compressor operation
• Common symptoms: rattling/scraping noises, weak or no airflow at the rear/bottom, longer run times, or warming compartments
• Replace if the blade is cracked, warped, wobbling, or loose on the motor shaft

• Disconnect power and pull the refrigerator away from the wall; remove the rear access panel to reach the condenser fan
• Note the original blade orientation/rotation; remove the old blade from the motor shaft (release any retainer if present)
• Press the new blade onto the shaft until fully seated; ensure it spins freely with proper clearance and airflow direction
• Reinstall the panel, restore power, and verify normal airflow and sound

The Extension is an OEM part for Whirlpool refrigerators. It helps remove excess water from the defrost process and directs it to the drain pan, preventing water buildup and potential leaks.

A bad extension can be caused by blockages, clogs, or damage to the pipe itself. If you notice water pooling inside the refrigerator orleaking onto the floor, it may indicate a problem with the extension.

Symptoms of a bad extension include:

• Water pooling inside the refrigerator or leaking onto the floor
• Excessive frost or ice buildup in the freezer compartment
• Unpleasant odors from the refrigerator

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

The Evaporator Tray is an OEM part for Whirlpool refrigerators. Located inside the refrigerator, below the evaporator coil and fan, the tray collects condensation from the evaporation process. It works to capture water and properly channel it to the drain.

Symptoms of a bad evaporator tray include:

• Water leaks inside the refrigerator
• Excess moisture buildup near the evaporator area
• Drain issues caused by clogged or damaged tray
• Ice or frost accumulation below the evaporator

Causes for replacement are cracks, warping, or clogs in the tray over time. It's important for moisture to drain effectively.

This OEM tray ensures proper evaporation and prevents mold issues. Compatible with Kenmore, KitchenAid, Maytag, and other brands.

This genuine replacement screw secures appliance components for reliable fit and function, helping restore proper assembly and reduce rattling or loose panels. Use it to replace a stripped or missing fastener during repairs. What it does:

• Fastens panels, brackets, or components to maintain structural stability
• Prevents movement that can cause noise, vibration, or misalignment
• Replaces stripped, corroded, or missing screws to restore secure assembly
• Compatible where the OEM mounting screw is required for safe operation

• Turn off and unplug the appliance before performing any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Do not overtighten; snug until secure to prevent damage to parts
• If other fasteners show wear, inspect and replace as needed for safe operation

The Start Device is an OEM component specifically designed for Whirlpool refrigerators. It initiates compressor and condenser functions at startup to begin cooling cycles. This includes relays between temperature sensors, thermostat contacts, and electrical power feeds.

Symptoms of a faulty start device include:

• The refrigerator failing to maintain proper temperatures
• Abnormal buzzing or humming noises emanating from inside
• Lights or fans running without associated cooling

Causes can be related to the usual wear of electrical contacts or voltage drops over extended use.

Replacing the start device with this genuine OEM part helps keep cooling functionality dependable. This Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

This drip tray collects and channels defrost and condensation water away from the refrigerator cabinet to prevent leaks and puddles. It helps keep the interior base area dry and directs meltwater to the drain system. What it does:

• Catches meltwater from the evaporator during defrost cycles to prevent pooling under the cabinet
• Channels water toward the refrigerator's drain system to reduce leaks and floor damage
• Helps limit ice buildup and moisture-related odors around the freezer base
• Common symptom: visible water or puddling under or beside the fridge, or excessive moisture in the base pan area

• One drip tray as shown

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove food and, if needed, the lower access panel or kickplate to access the tray
• Inspect adjacent drain tubing and grommets while replacing the tray to ensure proper drainage
• Reinstall panels and restore power; run a short defrost or water cycle to ensure proper drainage

This small retaining clip secures appliance components in place to prevent movement and ensure reliable operation. It's a simple replacement that stops rattles and keeps assemblies aligned. What it does:

• Holds panels, trim, or components securely to a mounting point
• Prevents parts from shifting, vibrating, or producing noise during use
• Restores proper fit where a worn or broken clip causes looseness
• Works as a direct-fit replacement when the original clip is damaged or lost

• One retaining clip

• Disconnect power and water before starting any repair
• Remove affected panel or trim to access the clip; needle-nose pliers often help with removal/install
• Replace with the same part number to ensure proper fit and function
• Wear eye protection and avoid force that could damage surrounding parts

The Condenser Fan Motor is an OEM replacement part for Whirlpool refrigerators. Located inside the machine compartment, it powers the condenser fan needed for heat exchange.

Causes involve standard motor degradation from prolonged usage. Excess dirt buildup over time may also hinder adequate blade movement.

Symptoms of a faulty condenser fan motor include:

• Inability to adequately cool interior compartments
• The refrigerator runs continuously with the exterior surface staying hot
• Grinding or buzzing noises emanating from the refrigerator's rear
• Visible condenser fan blades stalled or rotating slowly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

This sealed refrigeration compressor circulates and compresses refrigerant to enable your refrigerator's cooling cycle, restoring proper cooling performance when the compressor fails. What it does

• Compresses refrigerant to raise pressure and temperature for the cooling cycle
• Enables heat exchange so the evaporator can produce cold air
• Common symptom: refrigerator or freezer running but not cooling
• Other symptom: loud humming, clicking, or intermittent compressor operation
• Can be the source of tripped overloads or frequent start/stop cycling

• One sealed refrigeration compressor

• Disconnect power before servicing; follow all electrical safety practices
• May require replacement of associated components (start relay, overload, drier) and system evacuation; before ordering
• Warranty and return eligibility may depend on installation/proof of service

This condenser fan shroud secures and directs airflow around the condenser fan to help efficient heat dissipation. Replaces a damaged or missing shroud to restore proper fan positioning and airflow around the condenser coil. What it does:

• Holds the condenser fan motor and blade in the correct position relative to the condenser coil
• Channels airflow for more effective heat transfer from the condenser
• Prevents the fan blade from contacting nearby components
• Can reduce noisy operation caused by a loose or damaged shroud

• Intended to be installed by someone comfortable with basic appliance repair
• Disconnect power to the appliance before accessing the condenser area
• Inspect surrounding components (fan blade, motor mounts, fasteners) and replace any damaged parts
• Use the OEM mounting hardware and torque to manufacturer recommendations when reassembling

This power cord supplies electrical power to your appliance, restoring safe, reliable connection to the household outlet. Use it to replace damaged or frayed cords that can cause intermittent power or unsafe operation. What it does:

• Re-establishes the appliance's main AC connection so it can power on and run normally
• Replaces cords with visible damage, exposed wires, burning smell, or intermittent power
• Helps eliminate arcing or loose-connection symptoms at the plug or cord strain relief
• Matches OEM function and wiring configuration as shown in manufacturer parts diagrams

• One power cord assembly

• Disconnect power at the breaker or unplug the appliance before replacing the cord
• Inspect the cord entry and strain relief; replace the strain relief if damaged

This cover-unit is the outer housing cover that protects internal appliance components and helps keep the cabinet sealed from dust and debris. It restores proper enclosure and helps maintain safe operation. What it does:

• Protects internal components from dust, lint and accidental contact
• Helps maintain cabinet alignment and reduces minor rattles or vibration
• Preserves airflow paths and seals that affect performance
• Restores proper mounting for adjacent panels and controls

• Use basic hand tools; follow the appliance service manual for disassembly and reassembly
• Disconnect power (and water, if applicable) before starting any repair
• Inspect adjacent seals, fasteners and mounting hardware; replace any damaged pieces for best fit

This spring hose clamp secures flexible hoses to fittings to prevent leaks and keep connections tight. It's a simple, durable retaining clip used on water and vent lines to maintain a reliable seal during operation. What it does:

• Holds a hose or duct onto a spud or barb to prevent leaks and disconnection
• Keeps hoses secure against vibration and pressure changes
• Helps stop water leaks or airflow loss caused by loose connections
• Works on flexible rubber or corrugated hoses in laundry and appliance water/vent systems

• Disconnect power and water supply before servicing the appliance.
• Relieve any pressure and drain hoses before removing the old clamp.
• Use appropriate pliers or clamp tool to expand or compress the clamp for removal and installation.
• Test for leaks after reassembly.

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it
