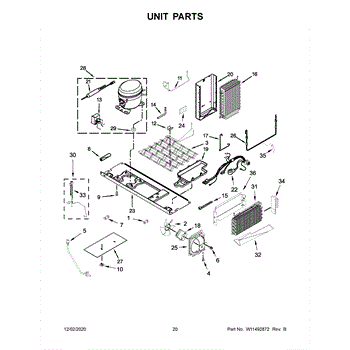

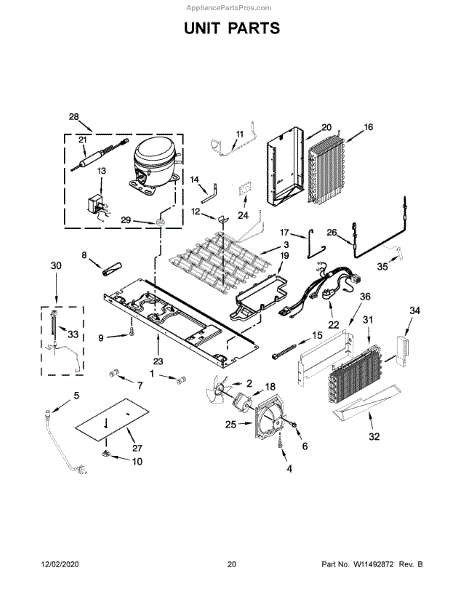

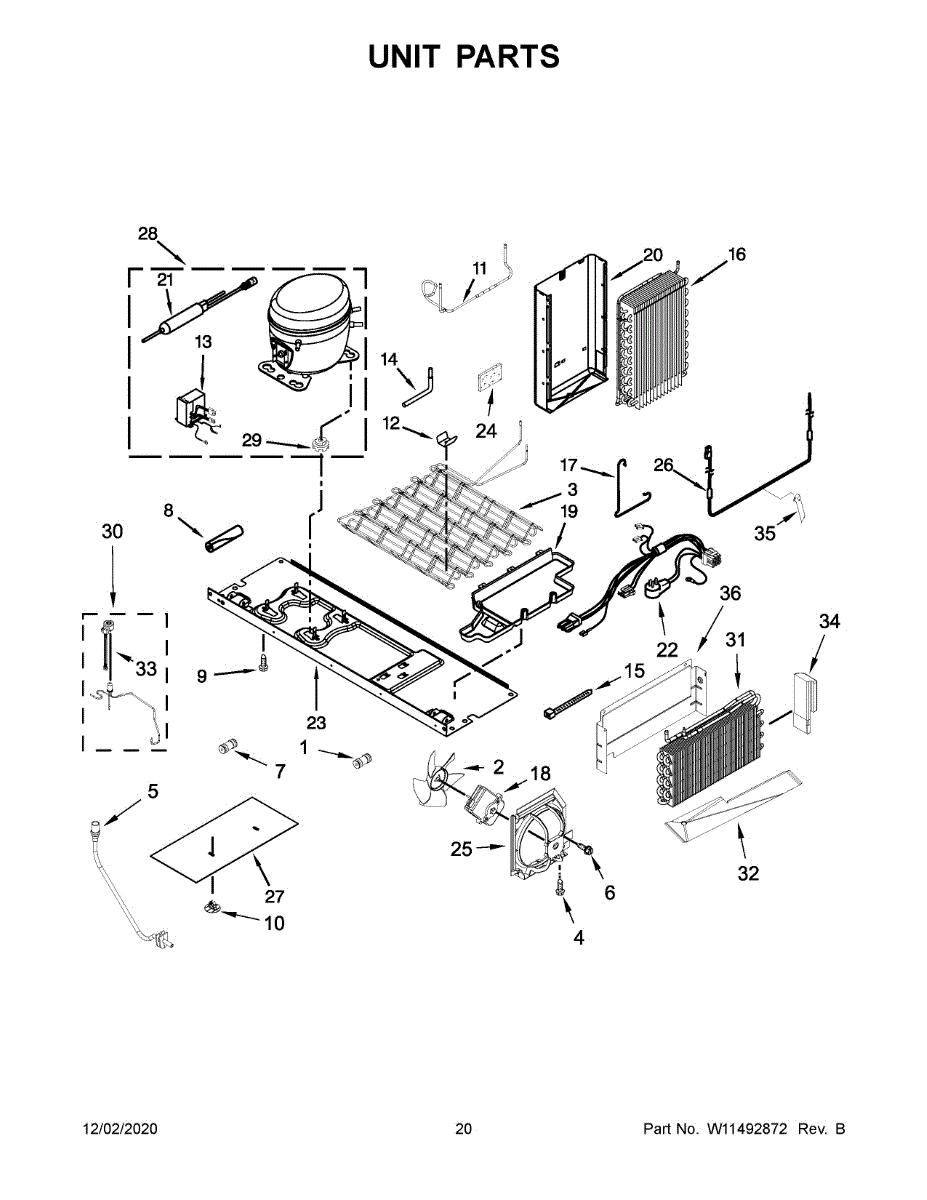

Parts for Kitchenaid KRSC703HPS01: Unit Parts

This water tube connector joins sections of your refrigerator's water line for the dispenser and ice maker. It restores a secure, leak-resistant connection when the original coupling is damaged or leaking.

• Connects two segments of refrigerator water tubing
• Helps maintain proper water flow to dispenser and ice maker
• Resolves leaks caused by a cracked, worn, or loose connector
• Useful when replacing or rerouting water lines during service

• Disconnect power and shut off the water supply before servicing
• Dispense water to relieve line pressure
• Cut tubing square and insert fully until seated; tug gently to confirm a secure fit
• Restore water and check all connections for leaks; replace any damaged tubing as needed

The Fan Blade is an OEM part for Whirlpool refrigerators. It helps cool down the condenser coils by drawing air over them, providing cooling and temperature regulation inside the refrigerator.

A bad fan blade can be caused by wear and tear, damage from debris or foreign objects, or motor malfunctions. If you notice issues such as poor cooling performance, unusual noises coming from the refrigerator, or the fan not spinning properly, it may indicate a problem with the fan blade.

Symptoms of a bad fan blade include:

• Inadequate cooling or temperature fluctuations
• Unusual noises coming from the refrigerator
• The fan not spinning or spinning slowly

Replace your faulty fan blade with this genuine OEM part to restore your refrigerator.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The DRAIN TUBE is an OEM part specifically engineered for Whirlpool refrigerators. This essential component plays a crucial role in efficiently removing excess water or condensation from the refrigerator. Its precise design and compatibility ensure proper fitting and functionality within the appliance, preventing moisture buildup and potential water damage.

A damaged or clogged drain tube can result in issues related to excess moisture within the refrigerator. Causes of a malfunctioning drain tube might include blockages due to debris accumulation, physical damage, or wear and tear over time, leading to inadequate drainage or water pooling.

Symptoms of a faulty DRAIN TUBE may include:

• Water pooling or leakage inside the refrigerator
• Excessive condensation or moisture buildup
• Inadequate drainage resulting in water accumulation in the refrigerator

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

This water connector is an inlet fitting that connects the household water line to the appliance, providing a secure path for water to reach the valve, dispenser or ice system. It helps maintain proper water flow and prevents leaks when installed correctly. What it does:

• Connects the incoming water supply to the appliance's inlet valve or ice/dispenser plumbing
• Provides a sealed transition between supply tubing and appliance fittings
• Restores normal water flow for ice makers and dispensers when damaged or corroded
• Can prevent dripping or pooling from a failing or broken connector

• Turn off the appliance power and shut off the house water supply before replacing
• Inspect and replace any worn tubing, O-rings, or clamps for a proper seal
• Hand-start threads to avoid cross-threading, then snug with a wrench—do not overtighten
• After installation, restore water and power and check all connections carefully for leaks

The Inverter Box is an OEM component specifically designed for Whirlpool French door refrigerators. Located inside the refrigerator compartment top behind removable panels, the inverter box houses electronic components that control the compressor motor and refrigeration systems.

Causes of a bad inverter box include failure of internal circuit boards over several years of regulating refrigeration cycles or damage from liquid spills inside the unit.

Symptoms of a bad inverter box include:

• Failure of the refrigerator section to adequately cool and maintain temperatures
• Erratic fluctuations in cold air dispensing from vents
• Repeated triggering of defrosting modes unnecessarily
• Inability to regulate between freezer and refrigerator settings

This Whirlpool replacement part is compatible with Maytag, Jenn-Air, Amana, Magic Chef, and Kenmore side-by-side refrigerators.


This replacement clip secures the defrost heater to the evaporator so the heater stays in proper contact and defrosts frost buildup efficiently. Durable, OEM-style retention clip designed for refrigerators. What it does

• Secures the defrost heater to the evaporator assembly to ensure consistent defrost cycles
• Prevents the heater from shifting or coming loose, which can cause frost buildup or interrupted defrosting
• Helps maintain proper contact for efficient heat transfer during defrost
• Small, inexpensive part that can prevent larger ice/frost-related issues

• Disconnect power to the appliance before accessing the evaporator compartment.
• Handle the evaporator fins and heater element carefully to avoid damage.
• Typically installs with basic hand tools; replace any damaged or corroded clips.

The Condenser Fan Motor is an OEM replacement part for Whirlpool refrigerators. Located inside the machine compartment, it powers the condenser fan needed for heat exchange.

Causes involve standard motor degradation from prolonged usage. Excess dirt buildup over time may also hinder adequate blade movement.

Symptoms of a faulty condenser fan motor include:

• Inability to adequately cool interior compartments
• The refrigerator runs continuously with the exterior surface staying hot
• Grinding or buzzing noises emanating from the refrigerator's rear
• Visible condenser fan blades stalled or rotating slowly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

This evaporator drain tray collects and channels defrost water away from the freezer compartment to prevent pooling and potential leaks. It restores proper drainage and helps the cooling system run cleanly. What it does:

• Catches defrost and condensation water from the evaporator assembly
• Directs water to the refrigerator drain system to prevent interior pooling
• Helps avoid ice buildup and water leaks under the evaporator area
• Supports proper airflow by keeping the evaporator area clear of standing water

• Disconnect power to the appliance before starting any repair to avoid electrical shock.
• Remove freezer panels or shelves as needed for access; keep track of fasteners and clips.
• Seat the tray fully in its mounting position and ensure the drain channel aligns with the drain tube.
• Inspect surrounding seals and the drain for clogs or damage during installation; replace or clean as needed.

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

This fan mounting bracket secures the evaporator/condenser fan assembly and helps direct airflow for consistent cooling performance. It restores proper fan alignment and airflow when the original bracket is damaged or loose. What it does:

• Holds the fan motor/blade assembly in the correct position to prevent wobble and contact with housing
• Channels airflow for efficient heat exchange and temperature control
• Reduces vibration and noise caused by a broken or bent bracket
• Helps prevent fan-related contact damage to nearby components

• Inspect surrounding components for damage before installing; replace any worn fasteners
• Use appropriate hand tools; avoid overtightening to prevent cracking the bracket
• Disconnect power to the appliance before beginning work to avoid injury

This factory heater restores proper, controlled heat in the location your appliance was designed to warm. Replacing a failed heater helps eliminate freeze-ups or moisture-related issues so the system can operate as intended. What it does:

• Supplies localized heat for the appliance's intended function (defrosting, anti-sweat, or freeze prevention)
• Helps clear ice/frost that can restrict airflow or block passages
• Can resolve performance issues tied to insufficient heat or a failed heater circuit
• Typical signs include persistent frost/ice, moisture/condensation problems, or error codes related to the heater

• 1 heater

• Disconnect power before servicing; turn off water supply if working near ice maker or dispenser components
• Access and routing vary by model—photograph wiring and harness path before removal
• Handle the element and wiring carefully; avoid contact with sharp fins and plastic liners
• Ensure secure electrical connections and proper routing; do not allow the heater to rest against plastic surfaces

This cover-unit is the outer cabinet cover that protects internal components and gives the appliance a finished appearance. It restores a secure, neat exterior and prevents exposure to wiring or moving parts. What it does:

• Replaces a cracked, dented, or missing outer cabinet cover to restore appearance and protection
• Shields internal components from dust and accidental contact
• Helps maintain proper alignment of adjacent panels and trim
• Reduces risk of snagging or injury from exposed edges

• Disconnect power to the appliance before starting any repair
• Installation typically requires basic hand tools (screwdriver, nut driver) and care to align mounting tabs
• Inspect mounting clips and screws; replace any damaged fasteners for a secure fit

The Drip Pan is an OEM replacement part for Whirlpool refrigerators. It is designed to collect and catch any excess water that forms during the defrosting process, preventing it from pooling or causing any damage to the refrigerator.

A bad drip pan can occur due to clogging, cracking, or damage. If you notice symptoms such as water leakage, excessive moisture, or a musty smell within your refrigerator, it may be time to replace the drip pan.

Symptoms of a bad drip pan include:

• Water leakage or pooling in the refrigerator
• Excessive moisture or condensation inside the refrigerator
• Unpleasant odors emanating from the refrigerator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This heat probe senses evaporator temperature on refrigerators that use R600a refrigerant, helping the control board cycle defrost and cooling properly. Replaces a failed probe to restore accurate temperature feedback and more consistent cooling. What it does:

• Monitors evaporator temperature so the control can start/stop cooling and defrost cycles
• Helps prevent continuous running, frost buildup, and uneven cooling when working correctly
• Commonly replaced if fridge runs continuously, cycles erratically, or has frequent frost/defrost issues
• Works with R600a systems — matches OEM sensing function and connector type

• Disconnect power to the appliance before accessing the evaporator or control components
• Handle the probe and wiring gently; avoid kinking the sensing element or strain on the connector
• R600a is a flammable refrigerant—do not pierce or handle refrigerant lines;
• After replacement, run a full cooling/defrost cycle check
