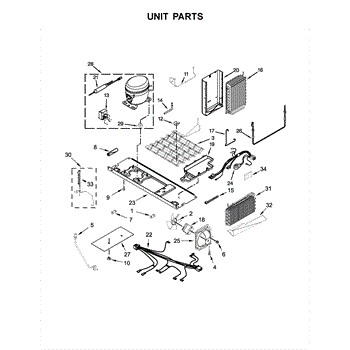

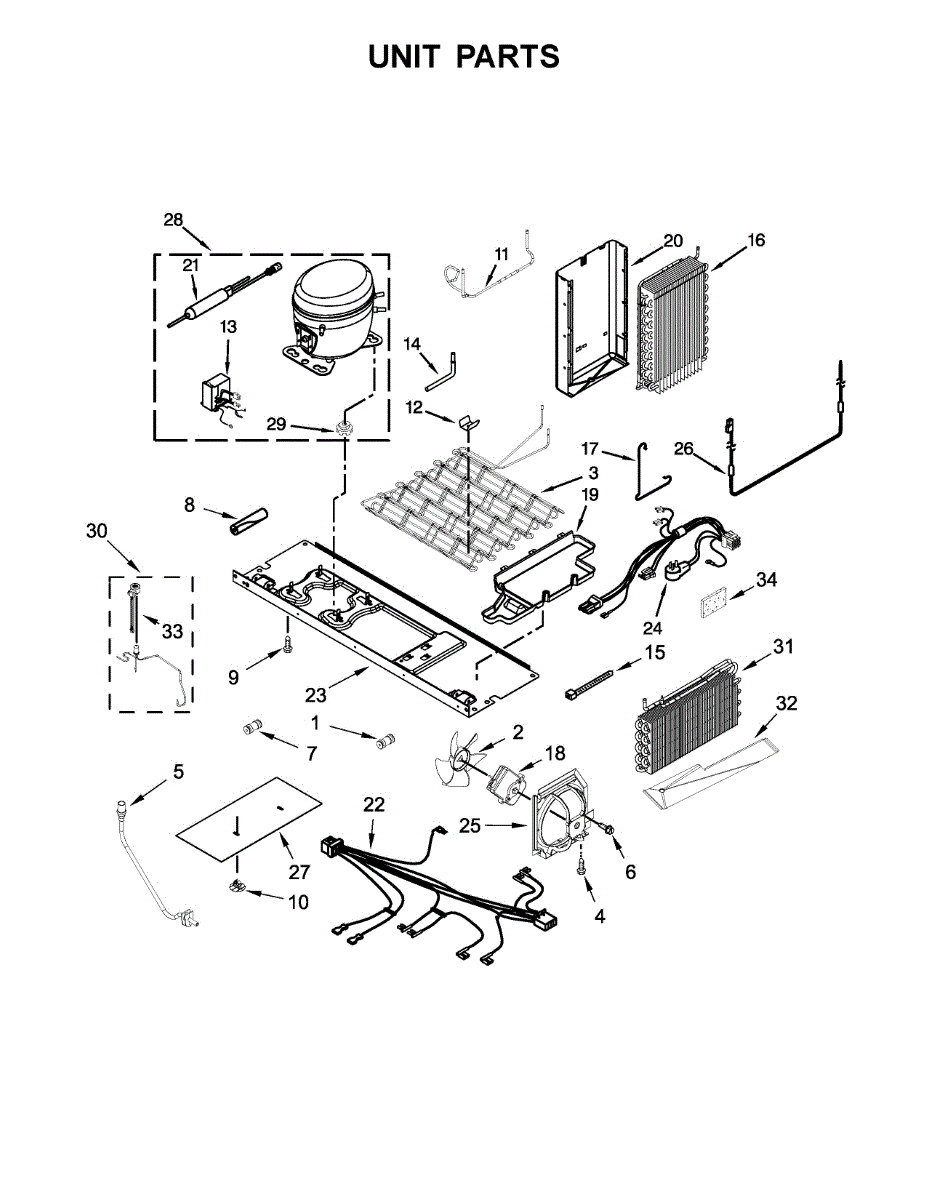

Parts for Kitchenaid KRSF505EBL01: Unit Parts

Purifies circulating air in your refrigerator to reduce odors. Replace every 6 months for optimal freshness. Verify fit with your model number.

Removes contaminants for clean, great-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit with your model number.

Joins sections of your refrigerator's water line for the dispenser and ice maker. Replace when the original coupling is cracked, damaged, or leaking.

Drains condensation from the evaporator to the drain pan. Replace if cracked, clogged, corroded, or leaking, causing water pooling in the fridge bottom.

Mounting screw for refrigerator assembly. Secures internal components and panels. Replace if stripped, rusted, missing, or damaged during repairs.

Fix leaking water connections with this refrigerator water inlet fitting. Connects household water line to valve and dispenser system. Easy DIY repair.

Replace stripped, missing, or corroded mounting screws in your refrigerator or freezer. Secures panels, brackets, and components for proper fit.

Replace a cracked or leaking water dispenser tube in your side-by-side refrigerator. This tube connects water supply components to the dispenser system.

Replacement clip for refrigerators and freezers. Secures shelves, bins, or internal components. Order a new clip if yours is broken, cracked, or missing.

Compressor clicking on and off every 5 minutes? Freezer warming up? This inverter control board regulates compressor operation in modern refrigerators.

Refrigerator not cooling or making unusual noises? This compressor system tube connects critical sealed system components for proper refrigerant flow.

Wire tie secures and organizes internal wiring harnesses in your appliance. Replace if the original tie is broken, cracked, or missing during repairs.

Refrigerator not cooling or freezing food? A faulty evaporator coil prevents proper temperature regulation. Requires brazing and refrigerant work.

Fix frost buildup in your refrigerator with this defrost heater mounting clip. Secures heater to evaporator for consistent defrosting performance.

Fix a refrigerator that's not cooling properly with this condenser fan motor. Replaces worn motors causing poor heat exchange. Video guide included.

Fix water pooling under your refrigerator with a new evaporator drip tray. Collects defrost runoff and prevents leaks. Moderate DIY repair.

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

Wire harness for refrigerators. Connects electrical components including valves, condenser fan, and inverter. Replace if split, damaged, or worn.

Fix a refrigerator that won't power on or has intermittent power with this power cord assembly. Restores reliable electrical connection when cord is worn.

This is a plastic air baffle that directs cold airflow from the evaporator fan into the refrigerator compartment. It helps ensure even cooling by channeling air to the proper areas within the cabinet. Replace this baffle if it is cracked, warped, or missing, which can cause uneven temperatures, frost buildup, or warm spots inside the refrigerator.

Ice buildup blocking airflow? Replace the defrost heater to melt frost from the evaporator coil and restore proper cooling. DIY-friendly 10-minute repair.

Outer housing cover for refrigerators. Protects internal components and seals the cabinet. Replace if cracked, broken, or missing to restore enclosure.

Refrigerator not cooling or running constantly? This compressor circulates refrigerant to maintain proper temperature. Advanced repair, 2-4 hours.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Refrigerator side completely frosted up? A faulty evaporator disrupts cooling and causes ice buildup. This part restores proper refrigeration function.

Water pooling in your refrigerator? A cracked or clogged drain pan fails to catch defrost water. Simple 10-minute replacement restores proper drainage.

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.
