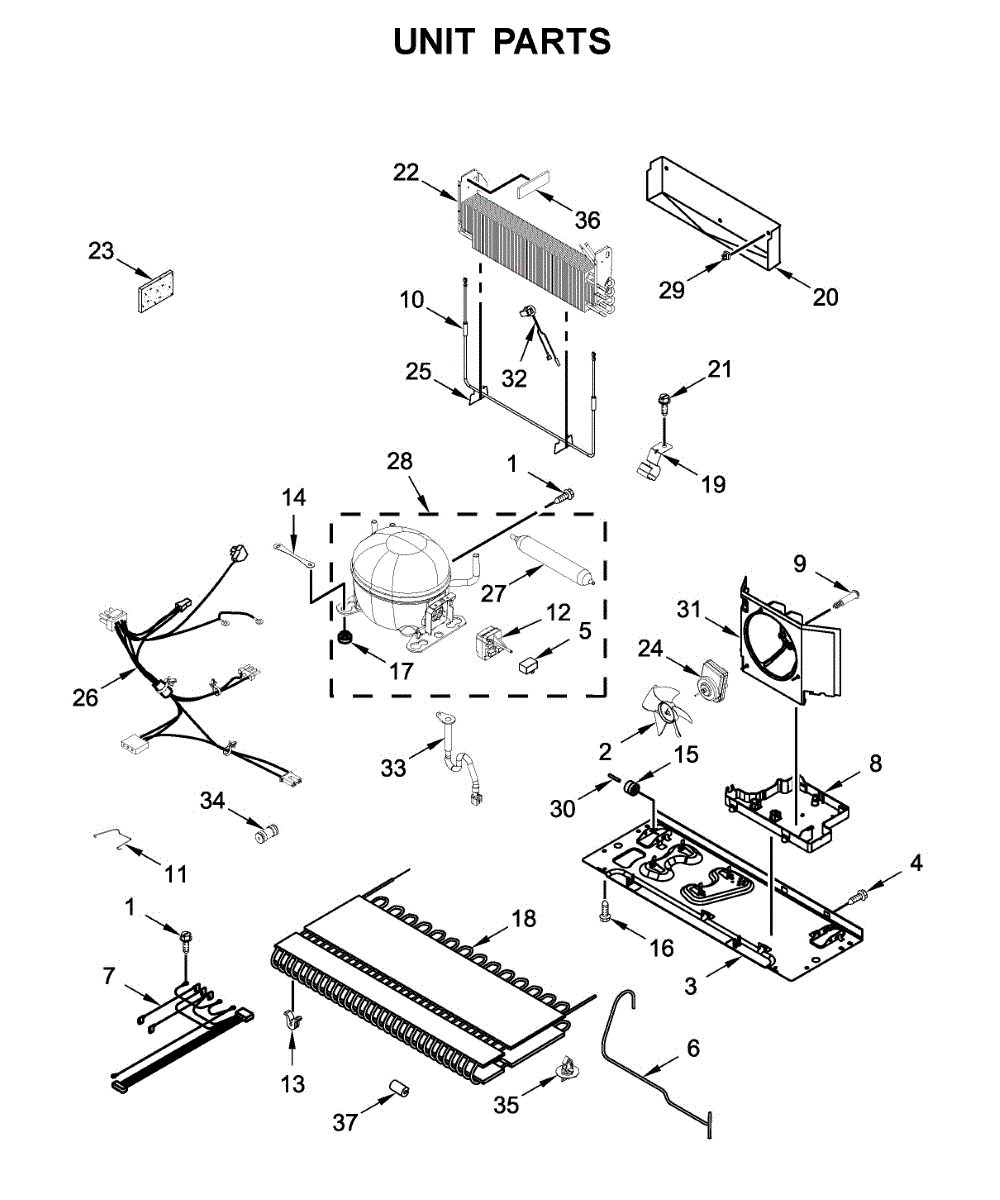

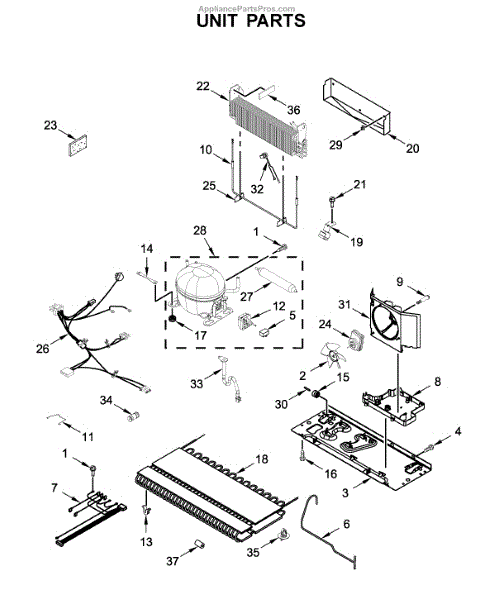

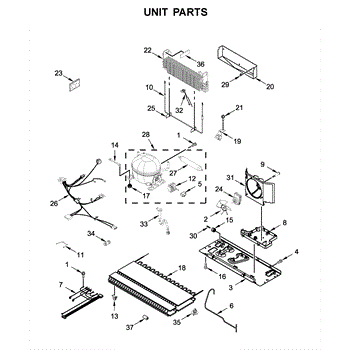

Parts for Whirlpool WRF550CDHZ02: Unit Parts

The Drip Pan is an OEM part for Whirlpool refrigerators. Located beneath the refrigerator, it collects and holds water that drips from the defrost system, preventing it from leaking onto the floor.

Causes of a bad drip pan can include cracks or holes from physical damage, warping from exposure to temperature fluctuations, or excessive buildup of dirt and mold.

Symptoms of a bad drip pan include:

• Water pooling under the refrigerator
• Visible cracks, holes, or warping in the pan
• Mold or mildew growth in the pan
• Unpleasant odors emanating from the refrigerator base

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This genuine replacement screw secures appliance components for reliable fit and function, helping restore proper assembly and reduce rattling or loose panels. Use it to replace a stripped or missing fastener during repairs. What it does:

• Fastens panels, brackets, or components to maintain structural stability
• Prevents movement that can cause noise, vibration, or misalignment
• Replaces stripped, corroded, or missing screws to restore secure assembly
• Compatible where the OEM mounting screw is required for safe operation

• Turn off and unplug the appliance before performing any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Do not overtighten; snug until secure to prevent damage to parts
• If other fasteners show wear, inspect and replace as needed for safe operation

The Defrost Heater is an OEM part for Whirlpool refrigerators. This part melts frost and ice that accumulate on the evaporator coils.

Common causes of a bad defrost heater include electrical issues, wear and tear over time, or damage due to power surges.

Symptoms of a bad defrost heater include:

• Frost or ice accumulation on the evaporator coils
• The refrigerator or freezer not maintaining proper temperatures
• Water leakage inside the refrigerator
• The defrost cycle not activating

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Start Device is an OEM part for Whirlpool refrigerators. It is a critical component that helps initiate the compressor, enabling the refrigerator to start the cooling process. This device provides the necessary electrical boost to get the compressor running and then disengages once the compressor is up to speed.

Some common causes of a faulty start device include electrical issues, wear and tear, or damage from power surges. A malfunctioning start device can prevent the compressor from starting, leading to cooling problems in your refrigerator.

Symptoms of a bad start device include:

• Refrigerator not cooling properly
• Clicking noises coming from the refrigerator
• Compressor not running
• Overheating of the refrigerator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This compressor grommet is the rubber isolator that cushions the refrigerator's compressor at its mounting points. Replacing a worn grommet helps quiet vibration and rattling and reduces stress on refrigerant tubing for smoother, safer operation.

• Isolates the compressor from the base to damp vibration and humming
• Helps prevent metal-to-metal contact and rattling at the mounts
• Supports proper compressor alignment to reduce stress on tubing
• Helps with symptoms like loud buzzing/rattling or cracked/flattened rubber at the compressor feet

• Unplug the appliance and remove the rear access cover to reach the compressor area
• Support the compressor while removing hardware; replace the grommet in the same orientation
• Avoid kinking or stressing refrigerant lines; no sealed-system opening is required
• Tighten mount fasteners evenly and ensure the compressor sits level and isolated

This spring hose clamp secures flexible hoses to fittings to prevent leaks and keep connections tight. It's a simple, durable retaining clip used on water and vent lines to maintain a reliable seal during operation. What it does:

• Holds a hose or duct onto a spud or barb to prevent leaks and disconnection
• Keeps hoses secure against vibration and pressure changes
• Helps stop water leaks or airflow loss caused by loose connections
• Works on flexible rubber or corrugated hoses in laundry and appliance water/vent systems

• Disconnect power and water supply before servicing the appliance.
• Relieve any pressure and drain hoses before removing the old clamp.
• Use appropriate pliers or clamp tool to expand or compress the clamp for removal and installation.
• Test for leaks after reassembly.

The Evaporator is an OEM part for Whirlpool refrigerators. It is part of the refrigerator's cooling system, responsible for removing heat from the interior and maintaining the desired temperature.

A bad evaporator can be caused by various factors, including a buildup of frost or ice, a malfunctioning fan, or a refrigerant leak. If you notice your refrigerator not cooling properly, excessive frost or ice buildup in the freezer, or strange noises coming from the appliance, it may indicate a problem with the evaporator.

Symptoms of a bad evaporator include:

• Inconsistent temperature inside the refrigerator
• Excessive frost or ice buildup in the freezer compartment
• Unusual noises such as buzzing, hissing, or gurgling
• Water leakage or pooling beneath the refrigerator

Replace your faulty evaporator with this genuine OEM part to restore your refrigerator.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

The Motor-Condenser Fan is an OEM part for Whirlpool refrigerators. This motor drives the condenser fan, which is essential for cooling the compressor and expelling heat from the refrigerator. By maintaining optimal temperatures within the cooling system, it ensures the efficient operation of the refrigerator.

Over time, the motor-condenser fan can fail due to electrical issues, wear and tear, or exposure to dust and debris. A malfunctioning fan motor can lead to overheating and reduced cooling efficiency.

Symptoms of a bad motor-condenser fan include:

• The refrigerator running continuously or not cooling properly
• Unusual noises from the back of the refrigerator
• The compressor overheating
• Poor airflow around the condenser coils

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Wiring Harness is an OEM part for Whirlpool refrigerators. It ensures proper connectivity between various parts of the electrical system.

The wiring harness provides a secure and reliable connection for power supply and communication within the refrigerator. It allows for efficient operation of the refrigerator's functions, such as temperature control, ice making, and defrosting.

A bad wiring harness can occur due to factors like wear and tear, accidental damage, or electrical faults. If you notice symptoms such as intermittent power loss, malfunctioning controls, or erratic behavior of the refrigerator, it may be time to replace this part.

Symptoms of a bad wiring harness include:

• Intermittent power loss
• Malfunctioning controls
• Erratic behavior of the refrigerator

Restore your Whirlpool refrigerator by replacing the faulty or damaged wiring harness with this genuine OEM part.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Compressor is an OEM part for Whirlpool refrigerators. It is responsible for the cooling process of your refrigerator.  It compresses the refrigerant gas, creating the necessary pressure to circulate refrigerant and regulate the temperature inside the refrigerator.

A bad compressor can occur due to various factors, including wear and tear, electrical issues, or refrigerant leaks. If you notice symptoms such as inadequate cooling, unusual noises coming from the refrigerator, or the refrigerator not running at all, it may be time to replace the compressor.

Symptoms of a bad compressor include:

• Inadequate cooling or inconsistent temperature
• Unusual noises, such as clicking or buzzing
• Refrigerator not running or not cooling at all

Repair your refrigerator by replacing the faulty or damaged compressor with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Refrigerator Drain Tube is an OEM replacement part for Whirlpool refrigerators. It is the tube responsible for draining condensation and any other moisture that collects at the back of the refrigerator compartment. The drain tube guides liquid to the evaporation pan located below the refrigerator to be evaporated.

Symptoms of a bad drain tube include:

• Water collecting in the back of the refrigerator
• Musty odors emanating from the refrigerator
• Water leakage from the bottom of the refrigerator

Causes of a bad drain tube can be blockages from food particles or debris, cracks or leaks that prevent proper drainage, or damage due to impact or kinking of the tube over time.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Water tube connector that joins two sections of a refrigerator's water tubing for a secure, leak-resistant connection. Replacing a cracked or leaking connector can help restore consistent water flow to the dispenser and ice maker.

• Connects two lengths of refrigerator water tubing in the supply, filter, dispenser, or ice maker circuit
• Helps maintain a sealed connection to reduce leaks and air intrusion
• Common symptoms of failure: dripping at the fitting, water under the unit, weak/no dispensing, or ice maker not filling
• Replace if the connector is cracked or will not hold tubing securely

• Unplug the refrigerator and shut off the water supply
• Dispense water to relieve line pressure; place a towel under the connection
• Cut tube ends square; push each tube fully into the connector until seated, then tug gently to confirm engagement
• Restore water and check carefully for leaks before reconnecting power

This rubber grommet provides a tidy, protective seal where hoses, wires, or shafts pass through the appliance cabinet—helping prevent chafing, reduce vibration noise, and maintain proper sealing around openings. What it does:

• Cushions and protects wiring or hoses from rubbing against metal edges
• Helps maintain a seal to reduce water or air bypass where fitted
• Dampens vibration and reduces related noise at the penetration point
• Keeps openings finished and helps prevent further component wear

• Disconnect power (and water for washers) before starting any repair
• Inspect the mounting area for sharp edges or damage; replace if surrounding parts are compromised
• Push the grommet into the opening and seat evenly; do not stretch excessively
