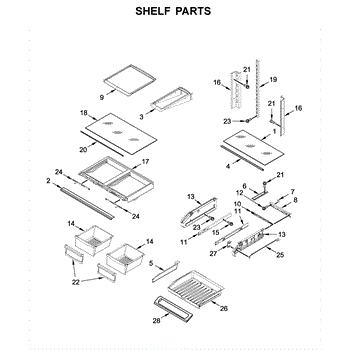

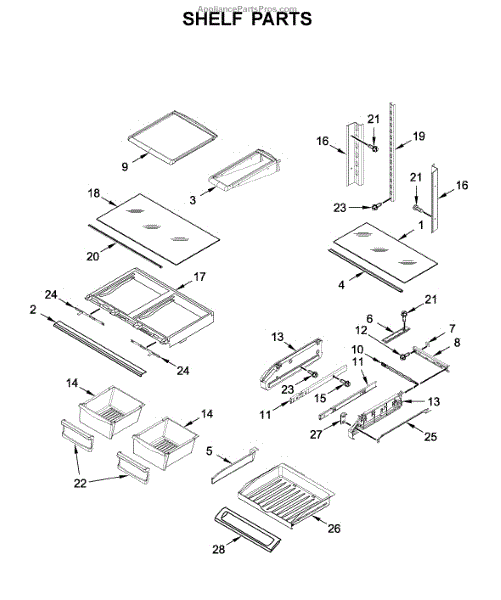

Parts for Whirlpool WRF550CDHZ02: Shelf Parts

Glass shelf that provides a sturdy, flat surface for organizing refrigerator items and maximizing usable storage. Replaces damaged or missing shelves to restore stable support and proper spacing inside the fridge. What it does:

• Provides a stable surface for food containers, beverages and produce.
• Restores correct shelf height and spacing for efficient storage and door/drawer operation.
• Replaces cracked, chipped or broken glass to prevent items from falling or shifting.
• Installs into existing shelf rails to re-establish usable storage area.

• Remove all items from the shelf area and support the glass at both ends during removal and installation.
• Align the shelf with the existing rails and slide evenly until fully seated; do not force.
• Handle broken glass with heavy gloves and dispose of the old shelf safely.

This shelf cantilever support holds and stabilizes a refrigerator shelf so stored items stay level and secure. It restores proper shelf alignment and helps prevent shelves from slipping or tilting. What it does:

• Supports cantilever-style refrigerator shelves to maintain level storage surfaces
• Secures the shelf edge to the liner, preventing downward tilt or accidental release
• Helps stop dishes, containers, and food from sliding when the door opens
• Commonly replaced when shelves wobble, sag, or no longer lock into place

• One shelf cantilever support

• Disconnect power before working inside the refrigerator for safety
• Remove the shelf and liner trim as needed to access the mounting area
• Align and seat the support fully into the shelf track or mounting slot until it clicks
• Replace with OEM-specified parts if mounting hardware is damaged or missing

This shelf trim is the replacement trim piece that restores the front edge of a refrigerator shelf or door shelf rail, improving appearance and helping keep items from sliding forward. It provides a clean, finished look and stable edge control. What it does:

• Replaces a cracked, broken or missing front shelf trim that lets items slide or snag
• Restores proper edge containment for stored items and improves shelf appearance
• Prevents small items from shifting off the shelf during door movement
• Matches the original part shape and attachment points for a secure fit

• One shelf trim piece

• Disconnect power to the appliance or ensure the door is secured per the model service guide before starting
• Typically installs by aligning with the shelf/rail and snapping or sliding into the original mounting location
• Inspect mating shelf or rail for damage and clean the area before installing
• If fasteners were used on the original trim, retain and reinstall them; your model's service instructions for details

The Pantry Drawer Rail is an OEM part for Whirlpool refrigerators. This part allows it to slide in and out smoothly for easy access to stored food items.

Causes of a bad pantry drawer rail can include repeated heavy loads, general wear and tear, or accidental damage.

Symptoms of a bad pantry drawer rail include:

• Difficulty sliding the pantry drawer in and out
• Pantry drawer not staying in place
• Uneven or wobbly drawer movement
• Visible damage or bending of the rail

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Note: Left Pantry End Cap

The Pantry End Cap is an OEM part for Whirlpool refrigerators. It provides structural support to the pantry drawer, ensuring smooth operation and proper alignment within the refrigerator.

Causes of a bad Pantry End Cap can include regular wear and tear, overloading the drawer, or accidental impact that causes the support to break or become misaligned. A damaged support can hinder the drawer's functionality and lead to difficulty in accessing stored items.

Symptoms of a bad Pantry Pantry End Cap include:

• Difficulty in opening or closing the pantry drawer
• The drawer not staying aligned or falling out of its track
• Cracks or breaks in the support structure
• Unusual noises when using the drawer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Right Pantry End Cap

The Pantry END CAP is an OEM part for Whirlpool refrigerators. It functions as a structural component that helps to stabilize and support the pantry drawer, ensuring it slides smoothly and remains level within the refrigerator.

Symptoms of a bad Pantry END CAP include:

• The pantry drawer becoming difficult to open or close.
• Noticeable sagging or misalignment of the drawer, affecting its function.
• Unusual noises or resistance when moving the drawer, indicating improper support.

Causes of a bad pantry drawer support can include excessive weight in the drawer that exceeds design limits, physical impacts from loading or unloading items, or general wear and tear from frequent use.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For the left-hand side Pantry Drawer Support, order part number WP12656105.

The Crisper Pan is an OEM part for Whirlpool refrigerators. This component is designed to store fruits and vegetables in an organized and accessible manner within the refrigerator. It helps maintain optimal humidity levels to keep produce fresh for longer periods. The drawer measures approximately 12.847" Depth x 15.217" Width x 6.93" High. Please note, this part does not include the plastic faceplate. If your current drawer has one, you will need to transfer it to the new crisper.

Causes of a bad crisper pan can include cracks or breaks from overloading, impact damage from dropping or mishandling, and wear and tear from regular use. A damaged crisper pan can compromise its ability to maintain proper humidity levels and safely store your produce.

Symptoms of a bad crisper pan include:

• Cracks or breaks in the pan
• Difficulty sliding the pan in and out of the refrigerator
• Reduced effectiveness in keeping produce fresh
• The pan not fitting securely in its designated slot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This crisper drawer front replaces the damaged face of your refrigerator's produce bin, restoring a solid handhold and proper drawer fit. Install it to keep contents contained and help the drawer open, close, and align smoothly. What it does:

• Attaches to the front of the crisper pan and serves as the handhold for opening and closing
• Retains items inside the bin to prevent spills into the compartment
• Helps the drawer sit squarely and slide correctly in its tracks
• Common symptoms: cracked or missing front, loose/broken tabs, drawer hard to open/close, or popping off rails

• 1 crisper drawer front

• Disconnect power to the refrigerator before servicing
• Remove the crisper drawer and place it on a padded, flat surface
• Release the locking tabs/clips to remove the old front; avoid over-flexing the drawer box
• Align the new front and press until all tabs fully engage, then reinstall the drawer

The Pantry Drawer Door Cover is an OEM part for Whirlpool refrigerators. It serves as the front cover for the refrigerator's pantry drawer, helping to maintain consistent temperature and humidity levels within the compartment. This part is crucial for preserving the freshness and longevity of fruits, vegetables, and other perishables.

Symptoms of a bad Pantry Drawer Door Cover include:

• Difficulty maintaining consistent humidity levels in the drawer
• Visible cracks or damage to the cover
• Problems with the drawer not closing properly

Causes of a bad pantry drawer door cover can stem from mechanical stress, accidental impacts during loading or unloading of groceries, or material fatigue over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
