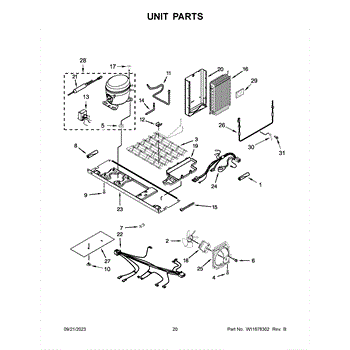

Parts for Whirlpool WRS588FIHB06: Unit Parts

The Fan Blade is an OEM part for Whirlpool refrigerators. It helps cool down the condenser coils by drawing air over them, providing cooling and temperature regulation inside the refrigerator.

A bad fan blade can be caused by wear and tear, damage from debris or foreign objects, or motor malfunctions. If you notice issues such as poor cooling performance, unusual noises coming from the refrigerator, or the fan not spinning properly, it may indicate a problem with the fan blade.

Symptoms of a bad fan blade include:

• Inadequate cooling or temperature fluctuations
• Unusual noises coming from the refrigerator
• The fan not spinning or spinning slowly

Replace your faulty fan blade with this genuine OEM part to restore your refrigerator.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

This water connector is an inlet fitting that connects the household water line to the appliance, providing a secure path for water to reach the valve, dispenser or ice system. It helps maintain proper water flow and prevents leaks when installed correctly. What it does:

• Connects the incoming water supply to the appliance's inlet valve or ice/dispenser plumbing
• Provides a sealed transition between supply tubing and appliance fittings
• Restores normal water flow for ice makers and dispensers when damaged or corroded
• Can prevent dripping or pooling from a failing or broken connector

• Turn off the appliance power and shut off the house water supply before replacing
• Inspect and replace any worn tubing, O-rings, or clamps for a proper seal
• Hand-start threads to avoid cross-threading, then snug with a wrench—do not overtighten
• After installation, restore water and power and check all connections carefully for leaks

The Condenser Fan Motor is an OEM replacement part for Whirlpool refrigerators. Located inside the machine compartment, it powers the condenser fan needed for heat exchange.

Causes involve standard motor degradation from prolonged usage. Excess dirt buildup over time may also hinder adequate blade movement.

Symptoms of a faulty condenser fan motor include:

• Inability to adequately cool interior compartments
• The refrigerator runs continuously with the exterior surface staying hot
• Grinding or buzzing noises emanating from the refrigerator's rear
• Visible condenser fan blades stalled or rotating slowly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

This evaporator tray collects and directs defrost/condensate away from the evaporator area to prevent pooling and help maintain proper drainage. It restores normal water flow and reduces interior or under-appliance leaks. What it does:

• Catches defrost and condensation runoff from the evaporator and channels it to the drain
• Helps prevent water from pooling inside the appliance or beneath the cabinet
• Reduces ice or frost buildup caused by trapped water around the evaporator
• Restores proper drainage when the original tray is cracked, warped, or clogged

• One evaporator/drip tray

• Disconnect power to the appliance before beginning any repair
• Remove access panels and shelving as needed to reach the evaporator area
• Replace any damaged fasteners or seals and ensure the tray seats flat and drains freely
• Handle edges carefully;

This Drier Tube is an OEM part for Whirlpool Refrigerators. It plays a role in filtering and drying the refrigerant. Wear, leaks, or clogs can cause issues with this part.

What Causes a Bad Refrigerator Drier Tube:
Wear, leaks, or clogs within the tube can affect the refrigeration process or cause leaks.

Symptoms of a Bad Refrigerator Drier Tube:

• Insufficient cooling or freezing
• Refrigerant leaks or hissing sounds
• Excessive moisture around the tube area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This wire harness links the appliance's electrical components, providing reliable power and signal paths. Replaces damaged or overheated wiring to help restore consistent operation and prevent intermittent failures caused by loose terminals, open circuits, or shorts.

• Routes power and control signals between the main control and key components
• Helps address intermittent operation or components that won't run due to broken/shorted wires
• Resolves issues associated with burned, brittle, or chafed wiring and damaged connectors
• Clears fault codes traced to open/short circuits once properly diagnosed

• Disconnect power to the appliance before servicing
• Document original routing; move one connector at a time and ensure locking tabs engage
• Route through all original clips and channels; keep clear of sharp, hot, or moving parts
• Handle connectors by the housings; use ESD precautions when attaching to a control board

Power cord assembly that replaces a worn or damaged supply cord to restore reliable electrical connection. Ideal when the appliance won't power on, has intermittent power, visible cord damage, or a burning odor. What it does:

• Replaces the appliance's supply cord to deliver mains power and restore normal operation.
• Replaces frayed, cut, or otherwise damaged cords that can cause intermittent power or failure to start.
• Helps address arcing, burning smells, or nuisance breaker trips caused by damaged wiring.

• Always disconnect power at the wall outlet and switch off the circuit breaker before servicing the appliance.
• Follow the original cord routing and secure the cord with the factory strain relief to prevent chafing.
• Do not attempt to splice or repair a damaged power cord — replace it to maintain safety.

This fan mounting bracket secures the evaporator/condenser fan assembly and helps direct airflow for consistent cooling performance. It restores proper fan alignment and airflow when the original bracket is damaged or loose. What it does:

• Holds the fan motor/blade assembly in the correct position to prevent wobble and contact with housing
• Channels airflow for efficient heat exchange and temperature control
• Reduces vibration and noise caused by a broken or bent bracket
• Helps prevent fan-related contact damage to nearby components

• Inspect surrounding components for damage before installing; replace any worn fasteners
• Use appropriate hand tools; avoid overtightening to prevent cracking the bracket
• Disconnect power to the appliance before beginning work to avoid injury

This cover-unit is the outer housing cover that protects internal appliance components and helps keep the cabinet sealed from dust and debris. It restores proper enclosure and helps maintain safe operation. What it does:

• Protects internal components from dust, lint and accidental contact
• Helps maintain cabinet alignment and reduces minor rattles or vibration
• Preserves airflow paths and seals that affect performance
• Restores proper mounting for adjacent panels and controls

• Use basic hand tools; follow the appliance service manual for disassembly and reassembly
• Disconnect power (and water, if applicable) before starting any repair
• Inspect adjacent seals, fasteners and mounting hardware; replace any damaged pieces for best fit

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.
