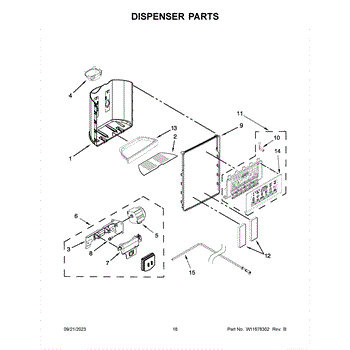

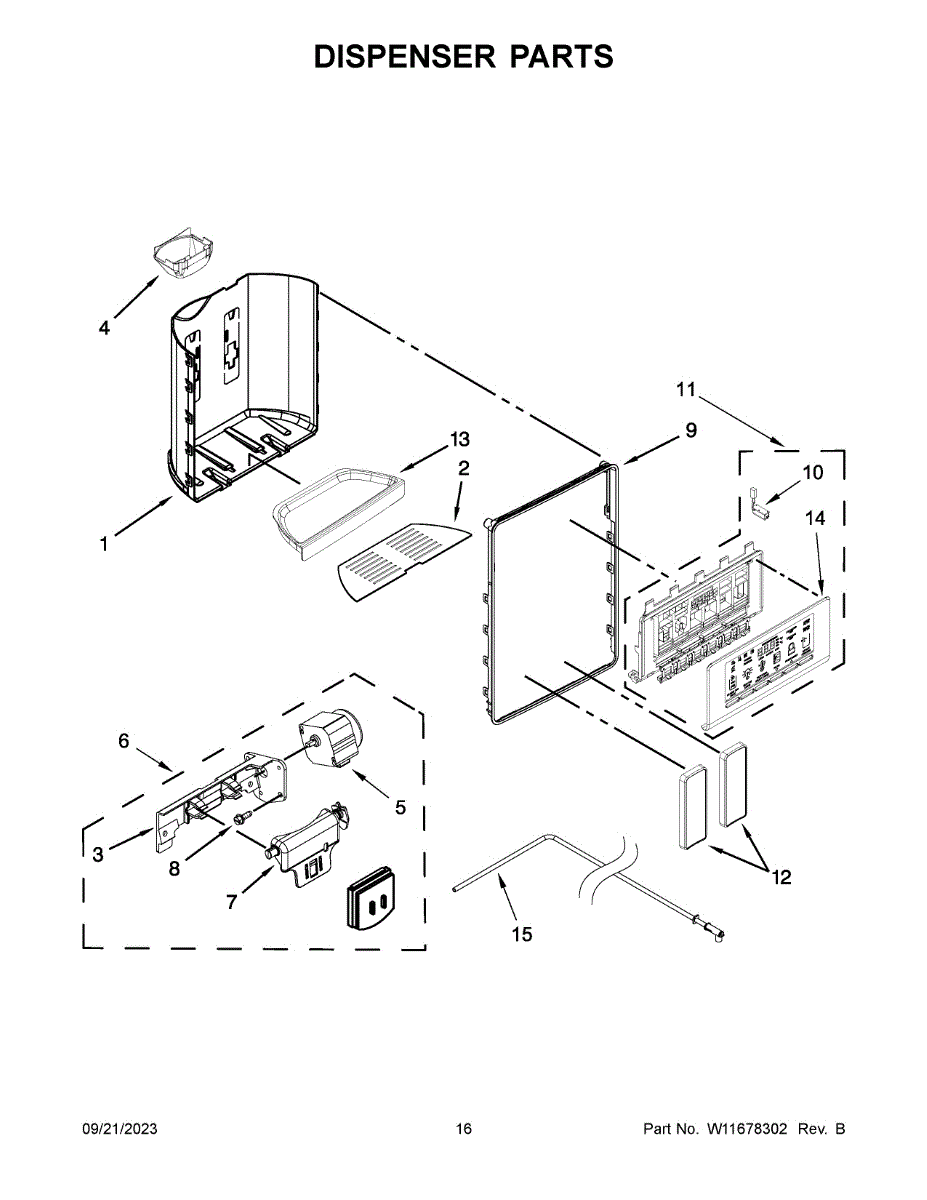

Parts for Whirlpool WRS588FIHB06: Dispenser Parts

This separator is a molded flow guide that helps channel water and debris in the appliance's sump area for more reliable draining and reduced clogging. It replaces a worn or broken guide to restore proper water flow paths. What it does:

• Directs water flow within the sump or drain area to help prevent pooling and promote complete drainage
• Helps keep debris and small particles away from critical pump and valve inlets
• Reduces noise and vibration caused by loose or damaged internal flow parts
• Commonly replaced when cracked, warped, or missing and when draining issues or intermittent pump noise occur

• One separator piece

• Disconnect power and water supply before servicing
• Verify proper orientation and seating in the sump or housing during installation
• Use existing fasteners or clips unless manufacturer specifies replacements

This dispenser drip tray grille sits on the refrigerator's ice/water dispenser tray. It provides a stable rest for cups and lets drips pass into the tray below, keeping the dispenser area neat with a finished, stainless look.

• Supports glasses and mugs while dispensing ice or water
• Slotted design allows moisture to drain into the tray beneath
• Replaces a cracked, warped, stained, or missing grille
• Restores a clean, factory appearance around the dispenser

• Lock the dispenser or disconnect power before servicing near controls
• Lift out the old grille from the drip tray and clean any debris or mineral buildup
• Place the new grille into the tray; ensure it sits flat and drain openings remain clear
• Avoid abrasive cleaners that can damage the finish

This bracket is a factory-design mounting support that secures internal components in place for stable operation and alignment. It helps keep parts seated correctly to reduce noise and prevent component movement. What it does:

• Provides structural support for internal assemblies and panels
• Holds components in correct alignment to maintain proper operation
• Helps reduce rattling or vibration caused by loose parts
• Compatible where the OEM bracket W10174827 is specified

• Disconnect power to the appliance before starting any repair
• Use the correct fasteners and torque as specified by the manufacturer
• Wear safety gloves and eye protection to avoid cuts on sharp edges

This refrigerator ice guide channels cubes and crushed ice along the intended path so they land in your bin or glass. When the guide is damaged or missing, ice can scatter, jam, or miss the dispenser opening. What it does

• Guides ice from the ice maker/bucket into the bin and through the dispenser chute
• Helps keep ice flowing smoothly and reduces spills at the opening
• Restores proper aim for cubed and crushed ice
• Typical symptoms: ice spraying or missing the glass, frequent jams, or visible damage to the guide

• 1 ice guide

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the guide per your model's design
• Transfer and reuse existing mounting screws or clips, if applicable
• Verify alignment, then test both cubed and crushed dispensing

This ice door motor drives the dispenser's ice chute door, opening to let ice out and closing to seal the chute. Replacing a worn motor restores proper door movement and helps reduce warm-air leaks and frost around the dispenser.

• Opens and closes the dispenser ice door (flapper) during use
• Helps keep the ice chute sealed between dispenses to limit frost and moisture
• Failure symptoms can include the ice door not opening/closing, frost or condensation in the chute, air leakage at the dispenser, or clicking from the dispenser area

• Unplug the refrigerator and shut off water before servicing
• Remove the dispenser front panel/trim and control to access the ice door mechanism
• Note wire positions; install the new motor, transferring any levers/arms as configured on your model
• Restore power and test ice door operation before reassembly

The Ice Chute Door is an OEM part for Whirlpool top-mount refrigerators. This door covers the opening where ice is dispensed.

Symptoms of a bad ice chute door include:

• Difficulty closing securely with a poor seal
• Cracks or holes affecting insulation
• Warping or sticking that prevents smooth operation
• Detached hinge screws or post causing loose fitting

Causes may be excessive opening/closing stressing hinges over time, moisture exposure degrading materials, or accidental damage compromising integrity.

This OEM replacement part is compatible with select Maytag, KitchenAid, Jenn-Air, and Kenmore top-mount refrigerator models as well.

This ice door support bracket holds and stabilizes the freezer ice door so it opens and closes smoothly and keeps the ice compartment sealed. Replaces a worn or broken support to restore proper door alignment and operation. What it does:

• Supports the ice door assembly to prevent drooping or misalignment
• Helps ensure the ice door opens and closes smoothly for reliable dispensing
• Reduces rattling or noise from a loose or damaged door support
• Prevents gaps that can lead to frost buildup or ice spillage

• Disconnect power to the appliance before starting any repair
• Remove the ice bin or door panel per service instructions to access the support
• Use common hand tools; handle plastic parts gently to avoid cracking
• Secure all fasteners; test door movement after installation

Screw for control panel.

This dispenser light replaces the small lamp that illuminates the refrigerator's ice/water dispenser alcove. It restores clear visibility of the dispenser area in low light so you can see fill levels and selections while dispensing.

• Provides illumination for the dispenser alcove when the control turns the light on
• Common symptoms: no dispenser light, dim or flickering light, or intermittent illumination
• Helps with accurate filling and improves visibility when dispensing ice or water

• Unplug the refrigerator or disconnect power before servicing
• Access the dispenser housing; remove any trim or lens as needed to reach the light
• Release locking tabs or screws and unplug the wire connector from the old light
• Connect and seat the new light, reassemble, restore power, and test operation

This drip tray is the molded drain pan that collects and channels excess water away from appliance components to help prevent pooling and water damage. It replaces a worn, cracked, or missing tray to restore proper drainage. What it does:

• Collects condensation and defrost water and guides it to the appliance drain
• Helps prevent water from pooling under internal components or on the floor
• Restores proper fit and alignment where a damaged tray allowed leaks
• Commonly replaced when tray is cracked, warped, or has drainage openings blocked

• One drip tray

• Disconnect power and water before accessing internal panels or removing the old tray
• Remove any items or shelves blocking access; handle plastic parts gently to avoid breakage
• Confirm correct tray orientation and seating before reassembling panels

This drip tray is the evaporator drain pan that collects defrost and condensate water to help prevent leaks and water damage beneath the appliance. It restores proper drainage and keeps the cabinet dry. What it does:

• Collects and channels defrost/condensate water away from internal components
• Helps prevent water pooling under or around the appliance
• Reduces risk of water-related damage and odors when installed correctly
• Fits into the factory location to restore original drainage performance

• Disconnect power to the appliance before beginning service to avoid shock.
• Access the tray by removing the lower access panel or grille per the owner's manual.
• Inspect surrounding seals and drain tubing; clear any clogs before installing the new tray.
• Handle parts carefully to avoid damaging adjacent panels; for model-specific instructions.

This escutcheon is a replacement control-panel trim piece that restores a finished appearance and protects controls and wiring from dirt and moisture. It replaces cracked, chipped, missing or worn trim around the control area. What it does:

• Covers and protects the control area and switch/knob openings from spills and debris
• Restores proper fit and alignment for knobs and switches
• Improves appearance by replacing cracked, faded or damaged trim
• Helps prevent dirt and moisture from reaching internal components

• Disconnect power to the appliance before starting any work
• Removal of knobs or the control panel may be required to access mounting tabs
• Align mounting tabs and snap or fasten into place without forcing; use only the correct fasteners
