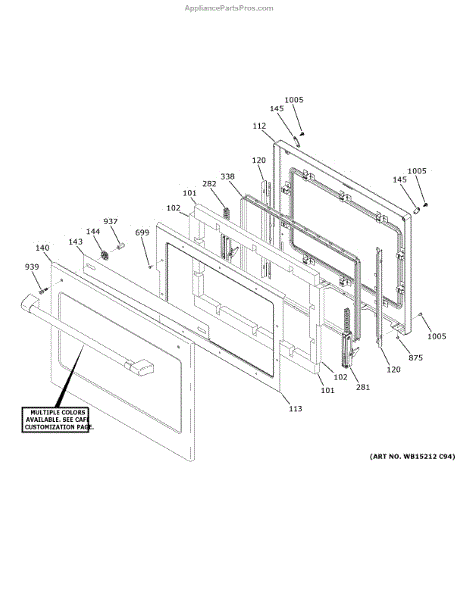

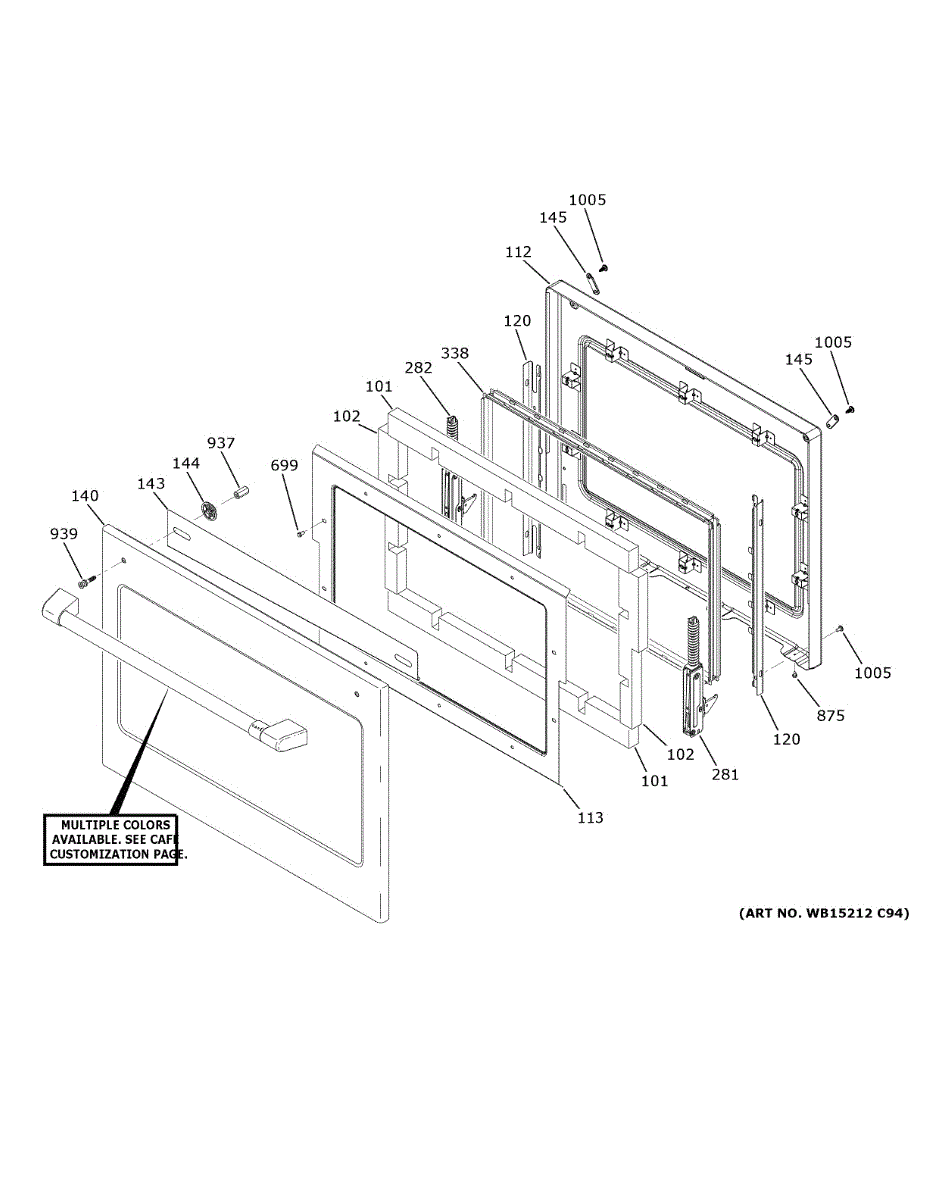

Parts for Ge CKD70DP2N4S1: Upper Door Parts

This oven door liner is the inner metal panel that forms the inside surface of the oven door, restoring structural support and the finished interior appearance. Replaces a damaged or warped liner to help the door seal and support the inner glass. What it does:

• Provides the interior surface and structural backing for the oven door and inner glass
• Restores proper alignment and support when liner is dented, cracked, or bent
• Helps maintain the door's sealing surface to reduce heat loss and maintain cooking performance
• Prevents contact between the inner glass and insulation or components

• Disconnect power to the appliance before starting and allow all surfaces to cool completely
• Handle glass and metal edges with care; wear gloves and eye protection
• Installation typically requires removing the oven door and inner glass; follow the oven manufacturer's instructions

Secures cabinet liner and interior trim panels in wall ovens. Replace if cracked or loose to restore proper alignment and prevent gaps. Confirm fit with your model.

Deflector that mounts to the oven door to direct airflow. Replace if your deflector is cracked, broken, warped, or missing from the door assembly.

Spacer that fits behind oven door handles to ensure proper alignment and fit. Replace if cracked, missing, or worn to restore a snug, finished appearance.

Covers fastener holes in your oven's inner door liner for a clean finish. Replace when missing, loose, or damaged to keep grease out. Confirm fit with your model.

Oven door window pack assembly includes glass pane and frame for viewing food while cooking. Replace if cracked, shattered, or broken from heat damage.

ST10-16 X 7/16"

Black. 8-18 AB HXW 3/8

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
