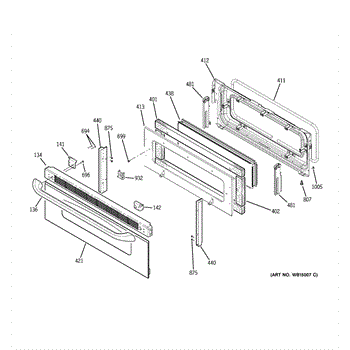

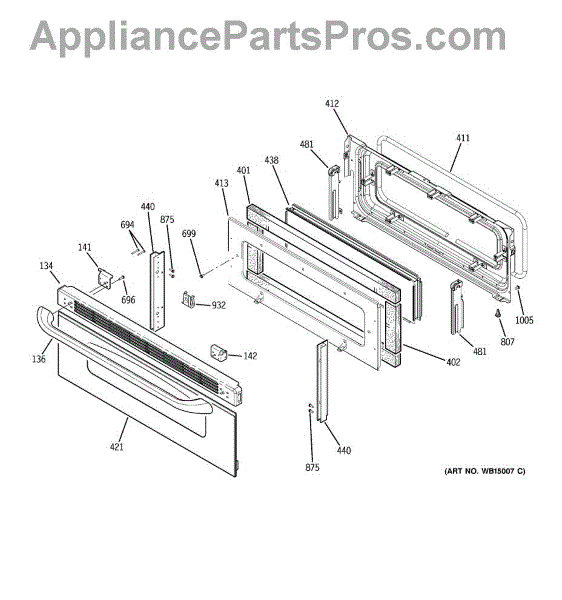

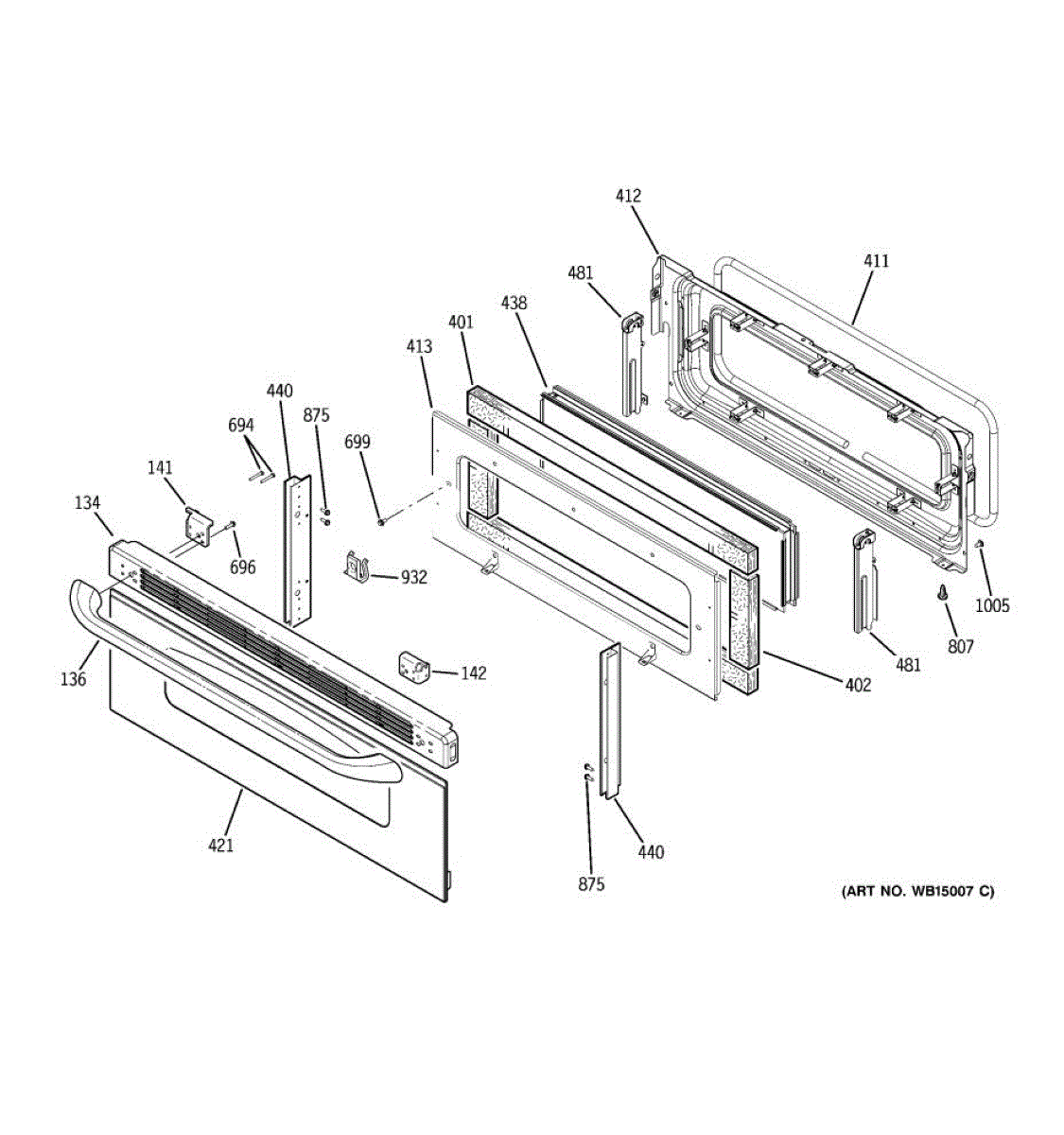

Parts for Ge JB850SP3SS: 05 - Upper Door Parts

A replacement trim vent door that restores the vent opening and appearance on compatible appliances. Replaces a cracked, loose, or missing vent door to help protect the vent opening and maintain proper airflow. What it does:

• Covers the exterior vent opening and provides a finished trim around the vent
• Helps prevent debris and pests from entering the vent when closed
• Replaces damaged or warped doors that stick or won't latch properly
• Restores proper door movement and a clean, finished exterior appearance

• One black trim vent door

• Disconnect power (or gas) and follow the appliance manufacturer's safety instructions before replacing parts
• Installation typically requires removing a few mounting screws; keep hardware for reuse
• Handle the part carefully to avoid scratching the finish during installation
• After installation, check that the door opens and closes freely and is securely fastened

Color: Stainless

This left-hand door handle bracket secures the refrigerator door handle to the door, restoring a stable grip and proper handle alignment. Durable replacement part helps stop a loose or wobbly handle and keeps the door operating smoothly. What it does:

• Mounts the door handle to the left side of the refrigerator door
• Provides a secure anchor to prevent handle movement or sagging
• Restores proper handle alignment for comfortable opening and closing
• Helps eliminate rattling or looseness when the door is used

• One left-hand door handle bracket

• Designed for direct replacement; inspect mounting screws and handle for wear before installing
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the bracket
• Disconnect power only when working near electrical components; follow appliance safety guidance
• If screws or handle hardware are missing or damaged, replace those parts as well

This right-side door trim bracket secures the exterior trim to the appliance door, restoring a flush, finished appearance and preventing the trim from coming loose. Designed to replace a damaged or missing right-hand bracket. What it does:

• Holds the door trim in place on the right side to maintain alignment and appearance
• Prevents trim gaps, vibration noise, and rattling caused by a loose or broken bracket
• Restores proper trim attachment after collision, wear, or failed fasteners
• Works with the factory trim assembly to ensure a straight, secure fit

• One right-side door trim bracket

• Use basic hand tools; retain any reusable screws or clips unless damaged
• Power off and unplug the appliance before starting work for safety
• Align the bracket and trim before tightening fasteners to avoid cracking the trim
• Replace missing or damaged clips or screws with OEM-specified fasteners

Upper window pack assembly that replaces a cracked or damaged refrigerator door window panel, restoring appearance and helping protect the components behind the outer window. What it does:

• Replaces the upper door window pack to restore a clear, finished exterior on the appliance door.
• Addresses visible damage symptoms such as cracked, scratched, cloudy or broken window panels.
• Protects internal door components from exposure to moisture and debris.
• Matches the OEM-style mounting points for a like-for-like replacement when used with the correct model parts.

• Disconnect power and remove food from the door area before starting any repair.
• Handle the window pack carefully; wear cut-resistant gloves and eye protection when removing broken or cracked pieces.
• Remove any trim or fasteners per the appliance's service instructions; retain mounting screws and gaskets as needed.
• Refer to the OEM service manual or diagram for model-specific removal and reassembly steps.

This right-side hinge assembly secures and guides the appliance door for consistent opening and closing, restoring proper alignment and sealing. It's a direct-fit replacement when the door feels loose, binds, or won't stay aligned. What it does:

• Supports the door on the right side and maintains correct pivoting motion
• Restores proper door alignment to improve closing and sealing
• Helps eliminate sagging, binding, or uneven gaps during operation
• Works with existing hinge pins and mounts where applicable

• Replace both hinges if the left-side hinge shows similar wear; balance is recommended for long-term alignment
• Disconnect power and remove any panels or door components per manufacturer instructions before starting
• Use proper tools and keep fasteners organized; tighten to OEM torque if specified

A single replacement screw used to secure appliance components and restore proper fit. This OEM-design fastener replaces a missing or damaged screw so panels, brackets, or small assemblies stay properly attached. What it does

• Fastens panels, brackets, or small assemblies to maintain component alignment and stability.
• Replaces stripped, corroded, or lost screws that cause rattling or loose parts.
• Restores secure connections that can prevent vibration noise or component movement.

• One screw.

• Disconnect power and unplug the appliance before starting any work.
• Match screw head type and length to the original before installation; use the correct driver to avoid stripping.
• Tighten snugly but avoid over-torquing, which can damage threads or parts.

A single mounting screw used to secure panels and components on compatible GE appliances. This genuine-fit fastener keeps parts firmly attached so panels and assemblies stay aligned and function safely. What it does:

• Secures trim, panels, brackets, or small components in place
• Restores loose or rattling panels caused by missing or stripped screws
• Helps maintain proper alignment of service panels and assemblies
• Prevents vibration-related noise from unsecured parts

• Use the correct size screwdriver or bit to avoid stripping the head
• Hand-start threads, then tighten securely but avoid overtightening to prevent damage
• If working near electrical components, disconnect power before servicing
• If a screw was stripped or the mounting hole is damaged, replace with the correct fastener size

ST10-16 X 7/16"

This black-finished screw secures appliance panels, brackets, or trim in place. Replacing a missing or damaged fastener restores a solid fit and helps prevent rattling, gaps, and loose components.

• Fastens panels, trim, brackets, or covers on the appliance
• Helps maintain proper alignment and reduces vibration noise
• Common replacement when the original is lost, stripped, rusted, or broken
• Symptoms include loose or wobbly parts, rattling, or visible gaps

• Disconnect power; for gas appliances, also shut off the gas supply
• Allow hot surfaces to cool before servicing
• Start threads by hand to avoid cross-threading, then tighten snugly—do not overtighten
• Reuse any original washers or spacers in the same order and location

Package of 12

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
