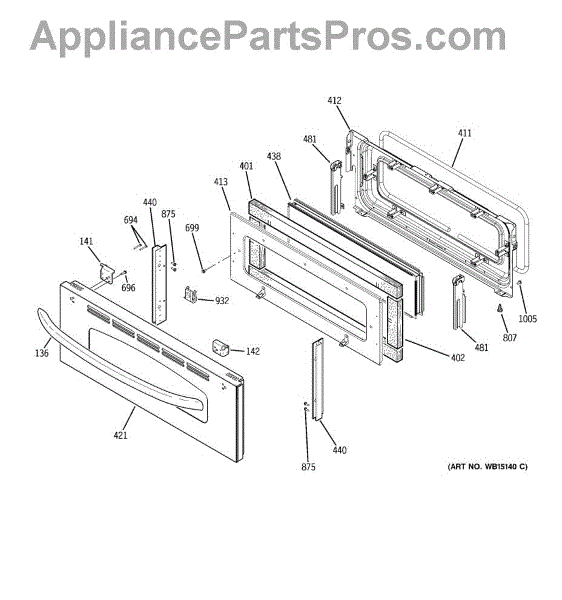

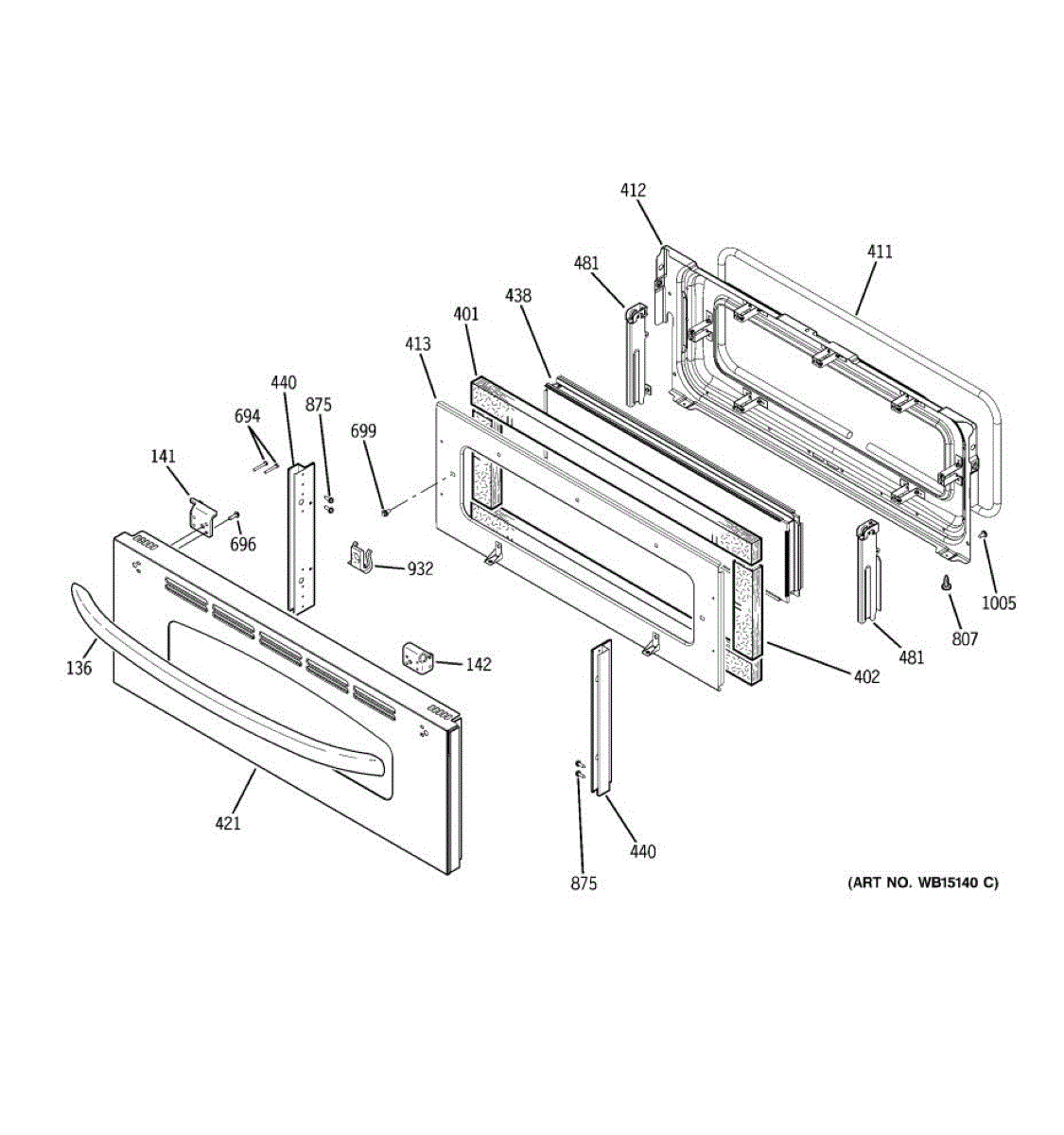

Parts for Ge JB850ST1SS: 05 - Upper Door Parts

This left-hand door handle bracket secures the refrigerator door handle to the door, restoring a stable grip and proper handle alignment. Durable replacement part helps stop a loose or wobbly handle and keeps the door operating smoothly. What it does:

• Mounts the door handle to the left side of the refrigerator door
• Provides a secure anchor to prevent handle movement or sagging
• Restores proper handle alignment for comfortable opening and closing
• Helps eliminate rattling or looseness when the door is used

• One left-hand door handle bracket

• Designed for direct replacement; inspect mounting screws and handle for wear before installing
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the bracket
• Disconnect power only when working near electrical components; follow appliance safety guidance
• If screws or handle hardware are missing or damaged, replace those parts as well

This right-side door trim bracket secures the exterior trim to the appliance door, restoring a flush, finished appearance and preventing the trim from coming loose. Designed to replace a damaged or missing right-hand bracket. What it does:

• Holds the door trim in place on the right side to maintain alignment and appearance
• Prevents trim gaps, vibration noise, and rattling caused by a loose or broken bracket
• Restores proper trim attachment after collision, wear, or failed fasteners
• Works with the factory trim assembly to ensure a straight, secure fit

• One right-side door trim bracket

• Use basic hand tools; retain any reusable screws or clips unless damaged
• Power off and unplug the appliance before starting work for safety
• Align the bracket and trim before tightening fasteners to avoid cracking the trim
• Replace missing or damaged clips or screws with OEM-specified fasteners

Upper window pack assembly that replaces a cracked or damaged refrigerator door window panel, restoring appearance and helping protect the components behind the outer window. What it does:

• Replaces the upper door window pack to restore a clear, finished exterior on the appliance door.
• Addresses visible damage symptoms such as cracked, scratched, cloudy or broken window panels.
• Protects internal door components from exposure to moisture and debris.
• Matches the OEM-style mounting points for a like-for-like replacement when used with the correct model parts.

• Disconnect power and remove food from the door area before starting any repair.
• Handle the window pack carefully; wear cut-resistant gloves and eye protection when removing broken or cracked pieces.
• Remove any trim or fasteners per the appliance's service instructions; retain mounting screws and gaskets as needed.
• Refer to the OEM service manual or diagram for model-specific removal and reassembly steps.

This right-side hinge assembly secures and guides the appliance door for consistent opening and closing, restoring proper alignment and sealing. It's a direct-fit replacement when the door feels loose, binds, or won't stay aligned. What it does:

• Supports the door on the right side and maintains correct pivoting motion
• Restores proper door alignment to improve closing and sealing
• Helps eliminate sagging, binding, or uneven gaps during operation
• Works with existing hinge pins and mounts where applicable

• Replace both hinges if the left-side hinge shows similar wear; balance is recommended for long-term alignment
• Disconnect power and remove any panels or door components per manufacturer instructions before starting
• Use proper tools and keep fasteners organized; tighten to OEM torque if specified

A single replacement screw used to secure appliance components and restore proper fit. This OEM-design fastener replaces a missing or damaged screw so panels, brackets, or small assemblies stay properly attached. What it does

• Fastens panels, brackets, or small assemblies to maintain component alignment and stability.
• Replaces stripped, corroded, or lost screws that cause rattling or loose parts.
• Restores secure connections that can prevent vibration noise or component movement.

• One screw.

• Disconnect power and unplug the appliance before starting any work.
• Match screw head type and length to the original before installation; use the correct driver to avoid stripping.
• Tighten snugly but avoid over-torquing, which can damage threads or parts.

Replacement screw that secures panels, trim and internal brackets to keep appliance components stable and rattle-free. Use when originals are missing, stripped, or broken to restore proper fit and safe operation. What it does:

• Secures panels, control housings, trim and small brackets so parts stay aligned and stable.
• Replaces missing or damaged fasteners that cause rattling, vibration, or loose assemblies.
• Keeps electrical and mechanical components properly positioned for reliable operation.
• Intended as a direct replacement where the OEM screw specified for the application is required.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or bit and seat the screw squarely to avoid stripping the head or threads.
• Do not overtighten—stop when snug to prevent damage to panels or plastic components.
• Keep removed screws organized; replace only with the identical OEM screw for proper fit.

ST10-16 X 7/16"

This is a truss-head screw used to fasten appliance panels and trim securely. It provides a low-profile, wide bearing surface to hold components in place and resist pull-through. What it does:

• Fastens trim, access panels, brackets, and lightweight components
• Wide truss head spreads load to prevent damage to thin sheet metal
• Replaces missing or stripped screws that cause loose panels or rattling
• Maintains proper alignment of cosmetic and service panels

• One truss-head screw (8-32 x 0.343 in)

• Use the correct #2 Phillips driver; a magnetic bit helps hold the screw
• Tighten snugly but avoid overtightening to prevent thread or panel damage
• Disconnect power before removing or working near electrical components
• If threads are damaged, replace with the exact part rather than reusing with thread repair

Package of 12

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
