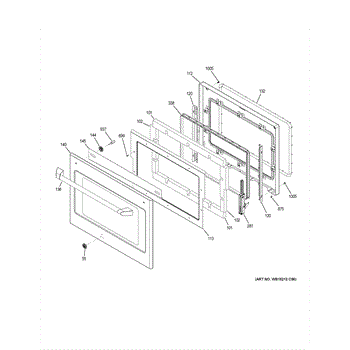

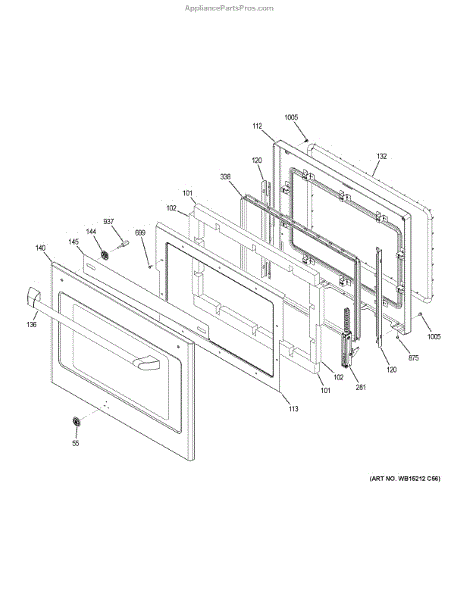

Parts for Ge CK7500SH3SS: Upper Door Parts

The Badge Assembly is an OEM part for GE ranges. It includes the magnetic decorative badge affixed to the front of the range. This badge displays important information such as the brand name, model number, and technical specifications.

Causes of a bad badge assembly can include damage from impacts or abrasions over time, adhesive failure from repeated heat exposure, or normal wear from routine cleaning. On a range, the badge must withstand higher cooking temperatures.

Symptoms of a bad badge assembly include:

• Faded or illegible print on the badge face
• Cracks or breaks in the plastic material
• The badge lifting or peeling away from the surface
• Missing or loose attachment clips/fasteners

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This inner refrigerator door panel replaces a damaged or worn door liner to restore a clean interior surface and proper bin mounting. Fits select GE refrigerators and helps maintain organized storage and proper door function. What it does:

• Replaces a cracked, warped, or stained inner door panel to restore interior appearance
• Provides mounting surface for door bins, shelves, and hardware
• Helps ensure a proper seal and consistent cooling by restoring the door's structural fit
• Reduces rattles or movement from a loose or broken liner

• Intended for experienced DIYers; follow manufacturer instructions
• Power down the refrigerator and remove food from the door before beginning
• Use appropriate hand tools; avoid overtightening fasteners which can crack the liner
• Inspect door bins and fasteners during reassembly; replace any damaged clips or screws as needed

A replacement liner support that secures the refrigerator cabinet liner and keeps interior trim and panels aligned for a proper seal and appearance. Restores stability to cracked or broken support points. What it does:

• Holds the cabinet liner and interior trim in position to prevent gaps and movement
• Helps maintain door seal alignment by keeping liner edges stable
• Reduces rattling or shifting caused by a damaged support
• Commonly replaced when liner pieces are cracked, broken, or loose

• One liner support

• Disconnect power to the appliance before beginning any repair
• Remove food, shelves, and trim pieces as needed to access the damaged support
• This part typically secures with clips or fasteners; inspect existing hardware and replace if necessary

The Oven Door Gasket is an OEM replacement part for GE electric ranges. As the seal that lines the edges of the oven door, the gasket plays a crucial role in insulating the oven cavity from heat loss.

Causes of a bad gasket can include dry-rot, warping, or compression from repeated door closing over time. Exposure to cleaning chemicals or high-heat cooking accelerates degradation.

Symptoms of a bad oven door gasket include:

• Inefficient or uneven baking/cooking results
• Increased energy costs due to heat escaping
• A loud squeaking or squealing sound when opening/closing the door
• Visible cracks, splits, or fraying along the gasket edges

 This OEM GE part is also compatible with Hotpoint, RCA, and select Kenmore electric ranges.

This handle endcap assembly finishes and secures a refrigerator or freezer door handle, restoring a clean look and proper handle fit. It replaces a broken, loose, or missing endcap to improve door handle stability and appearance. What it does:

• Covers and secures the end of a door handle so the handle stays properly aligned and attached
• Restores a finished appearance where the original endcap was cracked, warped, or missing
• Helps eliminate wiggle or looseness at the handle end caused by damaged endcaps
• Fits and interfaces with the manufacturer's handle system for a proper cosmetic and functional repair

• One handle endcap assembly (right)

• Disconnect power to the appliance before opening doors or removing trim when required
• Remove the handle or trim per the manufacturer's instructions to access the endcap mounting points
• Use appropriate hand tools; avoid overtightening fasteners to prevent cracking the plastic

A door handle spacer that fits behind a range of GE appliance handles to ensure correct fit and alignment, restoring a snug, finished appearance. Helps keep the handle positioned and prevents contact rubbing. What it does:

• Positions the door handle at the correct distance from the door surface for proper fit and operation
• Helps prevent handle wobble, rubbing, and cosmetic gaps
• Supports secure attachment of the handle to the door assembly
• Useful when replacing a damaged or missing spacer during handle repair

• One door handle spacer

• Install with the handle hardware in the correct order; confirm orientation before tightening
• Use proper-size screwdrivers; avoid over-tightening fasteners to prevent cracking the spacer
• Disconnect power or follow appliance-specific safety instructions when working near electrical components or heating elements
• Replace those components as well for a reliable repair

The Window Pack Assembly is an OEM part for GE ranges. This part includes the glass window and frame, which provide a clear view into the oven cavity, allowing you to monitor the cooking process without opening the door and losing heat.

Causes of a bad window pack assembly can include wear and tear over time, thermal stress from repeated heating and cooling cycles, or physical damage from impacts.

Symptoms of a bad Window Pack Assembly include:

• Cracks or breaks in the glass
• Difficulty seeing through the window due to fogging or staining
• Heat escaping from the oven door, making the outer surface excessively hot
• Visible damage or wear to the frame or seal

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models..

ST10-16 X 7/16"

Black. 8-18 AB HXW 3/8

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
