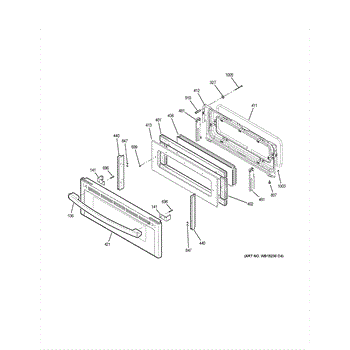

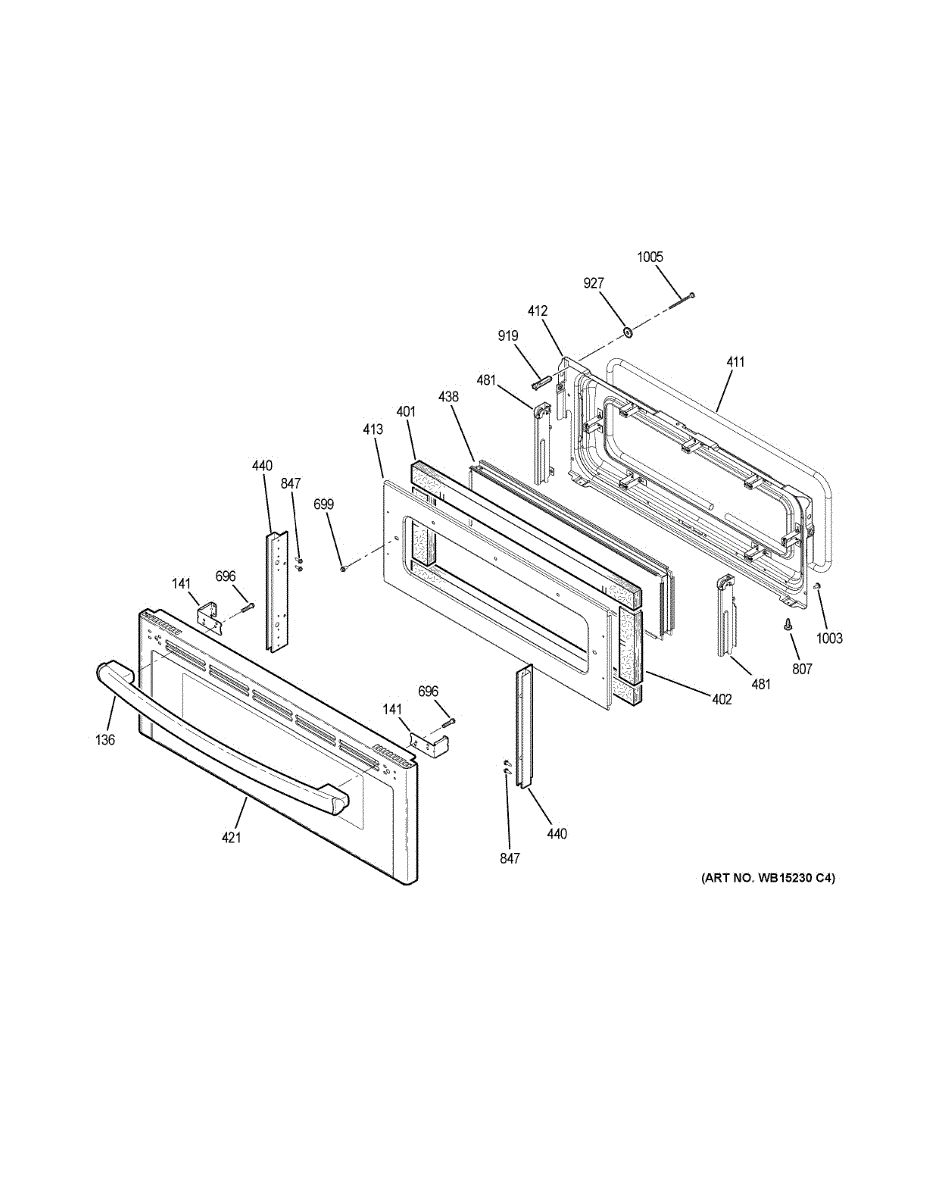

Parts for Ge JB860DJ5BB: Upper Door Parts

Replaces cracked, broken, or missing left-side black door handle on your range. Restores secure grip and finished appearance. Direct-fit replacement.

This oven vent trim bracket secures the vent/handle trim to the oven door so the trim stays aligned and stable during normal use. It replaces a worn or broken mounting bracket to restore proper fit and appearance. What it does:

• Holds the oven vent trim and handle assembly in place to prevent shifting or rattling
• Restores correct trim alignment and a finished look to the oven front
• Addresses symptoms like a loose, sagging, or noisy vent trim or handle
• Prevents further wear to surrounding trim and fasteners caused by a loose bracket

• Disconnect power to the appliance before starting any repair to avoid electric shock
• Typical installation requires removal of the oven door trim and/or screws; keep fasteners organized
• Use basic hand tools and avoid overtightening to prevent trim damage

This left-hand door handle bracket secures the refrigerator door handle to the door, restoring a stable grip and proper handle alignment. Durable replacement part helps stop a loose or wobbly handle and keeps the door operating smoothly. What it does:

• Mounts the door handle to the left side of the refrigerator door
• Provides a secure anchor to prevent handle movement or sagging
• Restores proper handle alignment for comfortable opening and closing
• Helps eliminate rattling or looseness when the door is used

• One left-hand door handle bracket

• Designed for direct replacement; inspect mounting screws and handle for wear before installing
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the bracket
• Disconnect power only when working near electrical components; follow appliance safety guidance
• If screws or handle hardware are missing or damaged, replace those parts as well

Replace worn or missing oven door top insulation. Installs at the upper edge of the door to provide thermal protection and sound dampening. Essential part.

This Oven Door Gasket forms a heat-resistant seal between the oven door and the front frame. Replacing a worn seal helps your oven preheat efficiently, hold temperature more consistently, and keep heat and spills contained.

• Creates a perimeter seal to retain heat and support even baking
• Helps reduce long preheat times and noticeable temperature swings
• Replace if the gasket is torn, frayed, hardened, flattened, or leaking heat around the door
• Restores proper door closure feel and uniform contact

• Disconnect power and allow the oven to cool completely before servicing.
• Open the door and remove the old gasket by releasing it from its existing mounting points.
• Install the new gasket into the same points without stretching; ensure an even seal around the full perimeter before use.

This upper outer door assembly restores the exterior front panel of the refrigerator door and improves appearance and sealing. Replaces a damaged, dented or scratched outer door panel to help the door close properly and look like new. What it does:

• Replaces the refrigerator's upper outer door panel and outer trim
• Restores a smooth, undamaged exterior surface and factory finish
• Helps the door seal and align when dented or bent areas interfere with closing
• Removes visible scratches, dents or cosmetic damage to the door front

• Disconnect power to the appliance before beginning any repair
• May require removing inner door components and door fasteners to swap assemblies
• Handle carefully to avoid scratching the finish; a second person may be needed for safe installation
• Follow manufacturer service instructions for proper alignment

Upper window pack assembly that replaces a cracked or damaged refrigerator door window panel, restoring appearance and helping protect the components behind the outer window. What it does:

• Replaces the upper door window pack to restore a clear, finished exterior on the appliance door.
• Addresses visible damage symptoms such as cracked, scratched, cloudy or broken window panels.
• Protects internal door components from exposure to moisture and debris.
• Matches the OEM-style mounting points for a like-for-like replacement when used with the correct model parts.

• Disconnect power and remove food from the door area before starting any repair.
• Handle the window pack carefully; wear cut-resistant gloves and eye protection when removing broken or cracked pieces.
• Remove any trim or fasteners per the appliance's service instructions; retain mounting screws and gaskets as needed.
• Refer to the OEM service manual or diagram for model-specific removal and reassembly steps.

Upper hinge receiver for oven doors. Secures the door hinge assembly to the cabinet frame. Replace if cracked, broken, or missing for proper alignment.

Hex washer-head screw secures panels, brackets, and internal assemblies. Replace missing, stripped, or rusted fasteners to restore tight fit.

ST10-16 X 7/16"

Truss head screw for fastening oven panels, trim, and brackets. Replace if missing, stripped, or corroded to secure loose components and panels.

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Door spacer for electric ranges. Installs between door panels to maintain proper spacing and alignment. Replace if cracked, broken, or missing.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.

Replacement screw for securing panels and components on ranges and ovens. Needed when original fastener is stripped, missing, or damaged during repairs.
