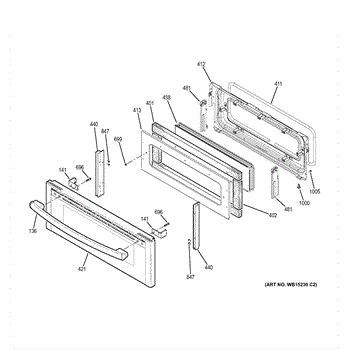

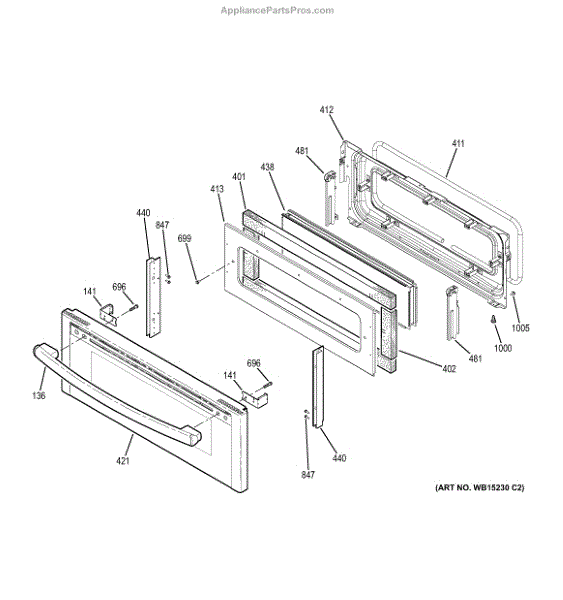

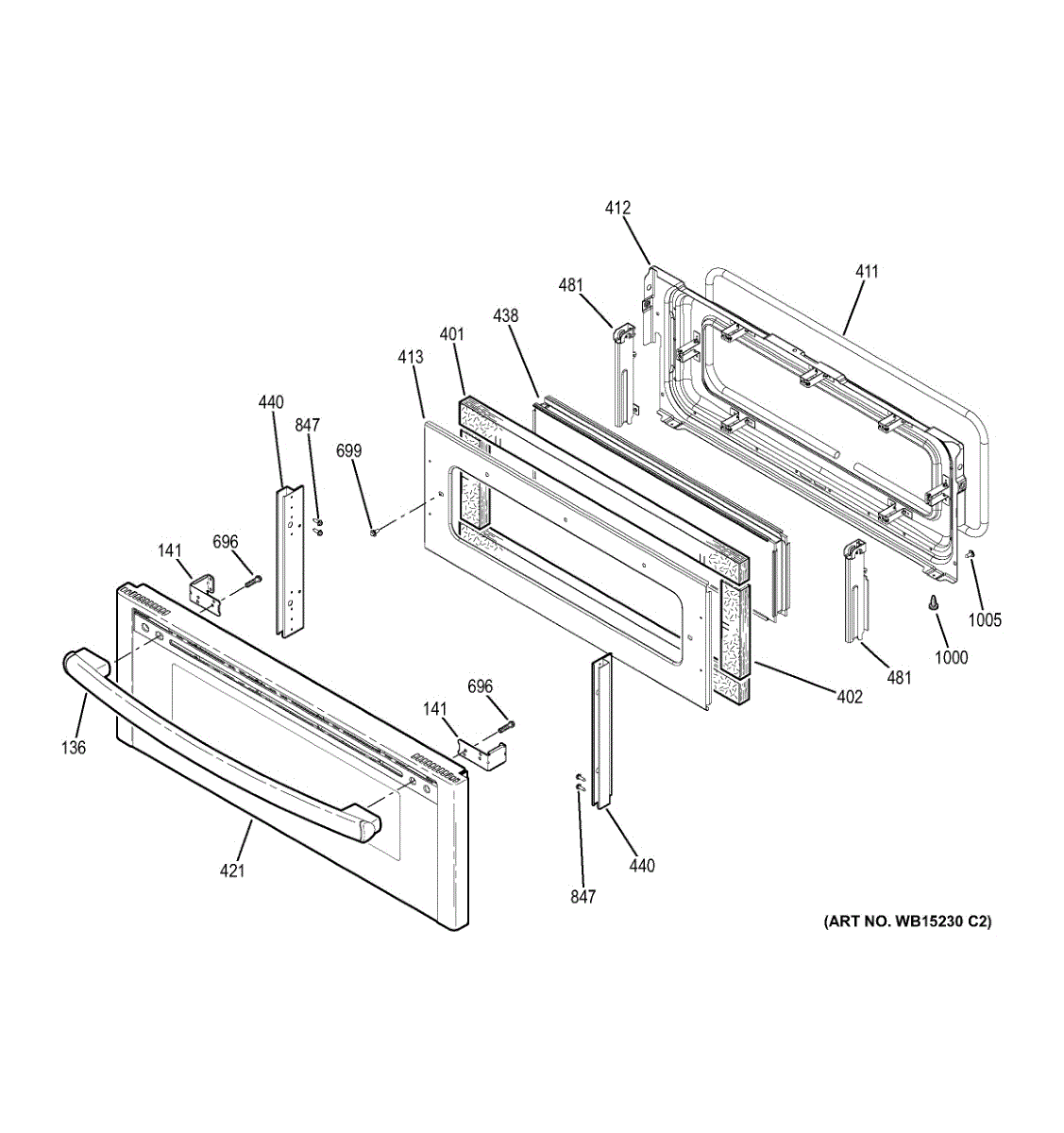

Parts for Ge JB870SF2SS: Upper Door Parts

The Handle and End Cap Assembly is an OEM part for GE ovens. This assembly comprises the handle used to open and close the oven door, along with the end caps that secure the handle firmly in place. The handle measures 27.5 inches long

Over time, the handle and end caps can become worn or damaged due to frequent use, exposure to high temperatures, or accidental impact. Such issues can make it challenging to operate the oven door properly and safely.

Symptoms of a bad Handle and End Cap Assembly include:

• Difficulty in opening or closing the oven door
• A loose or wobbly handle
• Visible cracks or damage to the handle or end caps
• The handle detaching from the oven door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This Oven Door Gasket forms a heat-resistant seal between the oven door and the front frame. Replacing a worn seal helps your oven preheat efficiently, hold temperature more consistently, and keep heat and spills contained.

• Creates a perimeter seal to retain heat and support even baking
• Helps reduce long preheat times and noticeable temperature swings
• Replace if the gasket is torn, frayed, hardened, flattened, or leaking heat around the door
• Restores proper door closure feel and uniform contact

• Disconnect power and allow the oven to cool completely before servicing.
• Open the door and remove the old gasket by releasing it from its existing mounting points.
• Install the new gasket into the same points without stretching; ensure an even seal around the full perimeter before use.

Upper window pack assembly that replaces a cracked or damaged refrigerator door window panel, restoring appearance and helping protect the components behind the outer window. What it does:

• Replaces the upper door window pack to restore a clear, finished exterior on the appliance door.
• Addresses visible damage symptoms such as cracked, scratched, cloudy or broken window panels.
• Protects internal door components from exposure to moisture and debris.
• Matches the OEM-style mounting points for a like-for-like replacement when used with the correct model parts.

• Disconnect power and remove food from the door area before starting any repair.
• Handle the window pack carefully; wear cut-resistant gloves and eye protection when removing broken or cracked pieces.
• Remove any trim or fasteners per the appliance's service instructions; retain mounting screws and gaskets as needed.
• Refer to the OEM service manual or diagram for model-specific removal and reassembly steps.

Replacement screw that secures panels, trim and internal brackets to keep appliance components stable and rattle-free. Use when originals are missing, stripped, or broken to restore proper fit and safe operation. What it does:

• Secures panels, control housings, trim and small brackets so parts stay aligned and stable.
• Replaces missing or damaged fasteners that cause rattling, vibration, or loose assemblies.
• Keeps electrical and mechanical components properly positioned for reliable operation.
• Intended as a direct replacement where the OEM screw specified for the application is required.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or bit and seat the screw squarely to avoid stripping the head or threads.
• Do not overtighten—stop when snug to prevent damage to panels or plastic components.
• Keep removed screws organized; replace only with the identical OEM screw for proper fit.

ST10-16 X 7/16"

Package of 12

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
