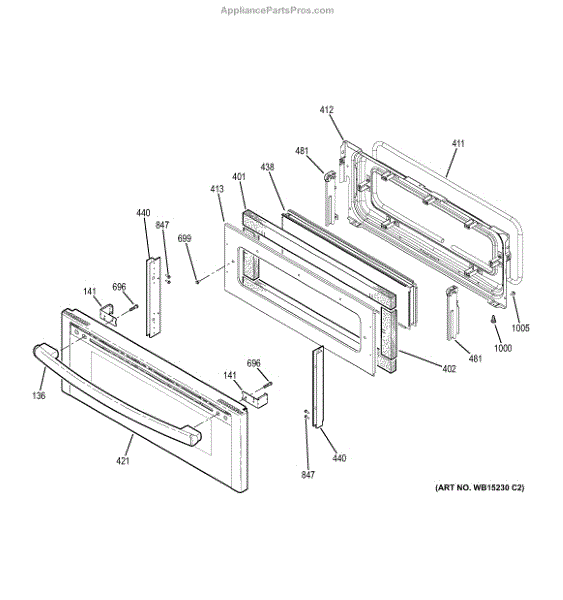

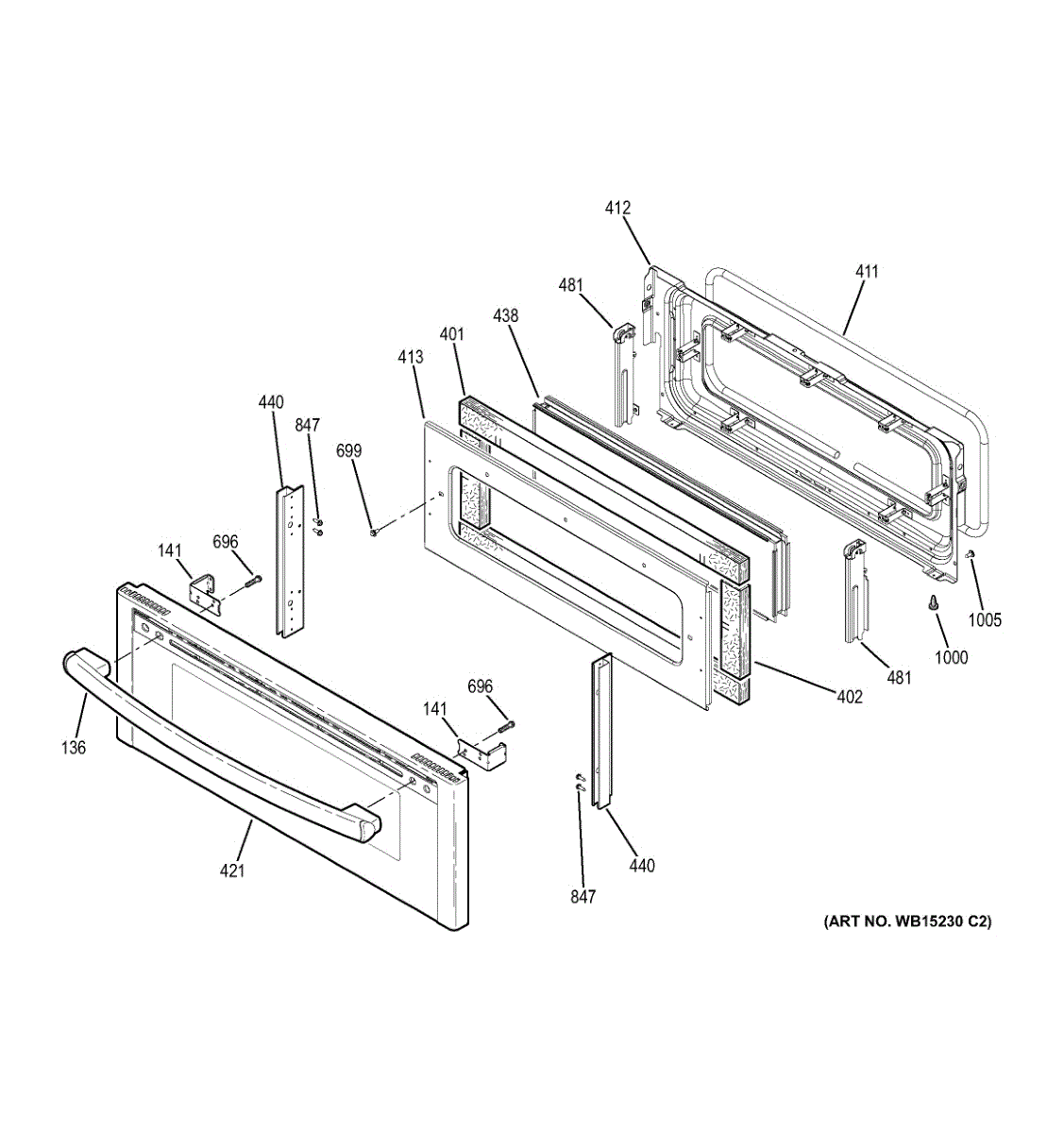

Parts for Ge JB870TF3WW: Upper Door Parts

White range door handle replaces cracked, broken, or discolored handles. Restores a secure grip and clean appearance to your oven door exterior.

Spacer bracket that mounts between the range door handle and the door panel. Replace if the original bracket is cracked, broken, or missing.

Replace worn or missing oven door top insulation. Installs at the upper edge of the door to provide thermal protection and sound dampening. Essential part.

This Oven Door Gasket forms a heat-resistant seal between the oven door and the front frame. Replacing a worn seal helps your oven preheat efficiently, hold temperature more consistently, and keep heat and spills contained.

• Creates a perimeter seal to retain heat and support even baking
• Helps reduce long preheat times and noticeable temperature swings
• Replace if the gasket is torn, frayed, hardened, flattened, or leaking heat around the door
• Restores proper door closure feel and uniform contact

• Disconnect power and allow the oven to cool completely before servicing.
• Open the door and remove the old gasket by releasing it from its existing mounting points.
• Install the new gasket into the same points without stretching; ensure an even seal around the full perimeter before use.

Upper window pack assembly that replaces a cracked or damaged refrigerator door window panel, restoring appearance and helping protect the components behind the outer window. What it does:

• Replaces the upper door window pack to restore a clear, finished exterior on the appliance door.
• Addresses visible damage symptoms such as cracked, scratched, cloudy or broken window panels.
• Protects internal door components from exposure to moisture and debris.
• Matches the OEM-style mounting points for a like-for-like replacement when used with the correct model parts.

• Disconnect power and remove food from the door area before starting any repair.
• Handle the window pack carefully; wear cut-resistant gloves and eye protection when removing broken or cracked pieces.
• Remove any trim or fasteners per the appliance's service instructions; retain mounting screws and gaskets as needed.
• Refer to the OEM service manual or diagram for model-specific removal and reassembly steps.

Upper hinge receiver for oven doors. Secures the door hinge assembly to the cabinet frame. Replace if cracked, broken, or missing for proper alignment.

Replacement mounting screw for securing panels, trim, and internal brackets. Needed when original fasteners are missing, stripped, or damaged.

ST10-16 X 7/16"

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

This replacement white screw secures trim, panels, and small components in compatible appliances, restoring proper fit and preventing loose parts or rattling. Ideal when the original screw is missing, stripped, or damaged. What it does:

• Secures trim pieces, panels, or small appliance components for a finished appearance
• Replaces missing, stripped, or damaged screws that cause loose parts or vibration
• Restores proper alignment of removable parts that rely on a single fastener

• Disconnect power to the appliance before servicing and work on a cool, stable surface
• Use the correct screwdriver bit and seat the screw straight to avoid stripping
• Hand-tighten until snug; do not overtighten to prevent cracking plastic or deforming threads
• Replace with the identical part number for proper fit and finish

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
