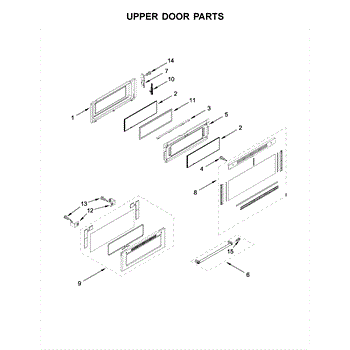

Parts for Kitchenaid KFED500EBL03: Upper Door Parts

This replacement door glass restores a clear viewing window and the structural integrity of your appliance door if the original glass is cracked, shattered, or damaged. It helps keep operation safe while returning the door to a like-new appearance. What it does:

• Forms the transparent viewing window in the appliance door
• Helps maintain proper door integrity and safe operation
• Restores visibility into the cavity during use
• Replaces cracked, chipped, loose, or shattered glass

• 1 door glass panel

• Disconnect power and allow the appliance to cool completely before servicing
• Wear cut-resistant gloves and eye protection when handling glass
• Support the door; some models require removing the door to access the glass
• Transfer any brackets/trim from the old glass and avoid overtightening fasteners

This is the upper door frame glass for the appliance door window. It restores a clear, secure viewing window in the upper section of the door so you can monitor cooking without opening the door. What it does:

• Replaces damaged, cracked, or fogged upper door window glass
• Restores a secure seal and clear visibility through the door window
• Helps prevent heat loss from the oven cavity when the door is intact
• Matches OEM form for proper fit and alignment

• Disconnect power to the appliance before beginning any repair.
• Handle glass with care and wear cut-resistant gloves and eye protection.
• You may need to remove the oven door and inner door panel to access and replace the glass; follow the manufacturer's door-disassembly instructions.
• If fasteners or retainers are corroded or damaged, replace them with OEM parts for safe reassembly.

The Screw is an OEM part for Whirlpool microwaves. It is a small yet vital component that joins together other parts of the microwave to create a cohesive machine. The screw is responsible for tightly securing internal components like the magnetron tube, control panel, and outer case during operation.

Symptoms of a bad screw include:

• Loose or detached internal microwave components
• External parts like the door or casing that will not stay aligned or attached
• Overheating or arcing due to poor grounding from loose screws
• Component malfunctions if mounting positions are compromised

Causes of a bad screw can include wear and tear that causes stripping or loosening over time, or damage from handling that results in breaking or bending.

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave models.

This retainer is a small mounting clip that secures internal components in your appliance, helping keep parts aligned and preventing rattles or movement. It restores proper fit and reduces noise from loose components. What it does:

• Secures panels, assemblies or hardware to prevent shifting during operation
• Keeps components aligned to reduce rattling or intermittent contact
• Helps maintain reliable operation when a worn or broken clip causes loose parts
• Common symptom: loose trim, rattling, or misaligned internal parts

• One retainer/mounting clip as shown

• Disconnect power (and water if applicable) before attempting service
• Inspect the mounting area and replace only the broken or missing clips
• Typical installation requires basic hand tools; handle plastic clips carefully to avoid breakage

This hinge receiver mounts to the appliance frame and accepts the door hinge arm/pin. It keeps the door aligned and secure so it opens and closes smoothly. Replacing a worn or cracked receiver restores proper door action.

• Anchors the hinge arm/pin at the cabinet/frame for smooth door movement
• Maintains door alignment and consistent closing action
• Wear or damage can cause a loose or sagging door, misalignment, or binding
• Common signs include clicking/grinding noises and visible cracks or deformation

• Disconnect power; allow the appliance to cool and shut off gas/water if applicable
• Support or remove the door to access the receiver
• Remove mounting fasteners, swap in the new receiver, and align per service instructions
• Reinstall the door and verify smooth movement and full closure

This inner oven door glass replaces damaged or cracked glass in the oven door to restore visibility and help the door close properly. It's a direct-fit glass designed to match the oven door assembly. What it does:

• Replaces cracked, chipped, or shattered inner oven door glass
• Restores a clear view of the oven cavity for safe monitoring of cooking
• Helps maintain proper door fit and reduces drafts from a damaged door
• Prevents loose glass from falling into the oven cavity

• One inner oven door glass panel

• Disconnect power to the appliance (unplug or switch off breaker) before starting
• Use gloves and eye protection—glass edges can be sharp
• Installation typically requires removing the oven door and separating door layers; keep screws and clips organized

This door glass is the replacement inner glass panel for an oven door, restoring the sealed viewing window and helping maintain proper oven temperatures. Fits as the single inner glass panel used behind the exterior door assembly. What it does:

• Replaces cracked, chipped or shattered inner oven door glass to restore a clear viewing window
• Helps keep heat contained in the oven cavity by restoring the door's sealed layers
• Reduces drafts or heat loss from a damaged door assembly
• Improves safety by replacing broken or compromised glass

• Disconnect power to the appliance and allow the oven to cool completely before starting.
• Handle glass carefully; wear cut-resistant gloves and eye protection.
• Door removal or partial disassembly is often required—follow the oven's service manual or manufacturer instructions.
• If other door components are damaged, inspect hinges, seals and brackets; replace as needed.

This oven door hinge restores smooth, controlled movement so the door opens easily and closes fully for a reliable seal. Replacing a worn hinge helps reduce heat loss and supports consistent cooking performance and safe operation.

• Provides the pivot and spring-assisted action for opening and closing the oven door
• Helps pull the door closed and hold it at intended stop positions
• Maintains even gasket contact to keep heat inside the cavity
• Common symptoms of a failing hinge: door won't close fully or sit flush, drops or slams open, binds or pops when moving, or shows an uneven gap

• Disconnect power and allow the oven to cool completely before servicing
• Support the door; open to the removal position and release hinge locks, then lift the door off
• Use caution—hinge springs are under tension; wear hand and eye protection
• Install in the same orientation and verify door alignment and smooth operation after reassembly

This oven door hinge restores smooth, controlled door movement and a proper seal. Worn hinges can cause a sagging door, poor closure, or binding—replacing the hinge helps maintain safe operation and consistent cooking performance.

• Supports the oven door with a spring mechanism for controlled opening and closing
• Helps pull the door tight against the gasket for an effective seal when closed
• Works with the opposite hinge to keep the door aligned and stable
• Common symptoms include door not closing fully, sagging or dropping, hard-to-open/close action, or heat escaping around the door

• Disconnect power and allow the oven to cool completely before servicing
• Remove the door following your model's instructions; engage hinge locks or use retaining pins if provided
• Replace the hinge in the same orientation; ensure hinge arms are fully seated in the receivers
• Reinstall the door and verify smooth motion and a complete seal

This upper door insulation restores the door's thermal barrier to help the refrigerator/freezer hold temperature and reduce condensation. It replaces deteriorated or missing insulation to improve cold-air retention and reduce frost build-up. What it does:

• Replaces worn or damaged insulation inside the upper door cavity
• Helps limit heat transfer to maintain interior temperature
• Reduces condensation and frost forming on the door liner
• Can address symptoms like uneven cooling, warm spots near the door, or excessive frost

• Disconnect power to the appliance before starting any service
• Access requires removing the inner door liner or trim—keep screws and clips organized for reassembly
• Position insulation without compressing; use the original retainer clips or adhesive as OEM specified
• Dispose of old insulation per local regulations and check door seal condition after reinstall

This factory fastener secures appliance components so panels, brackets, and handles stay tight and aligned. Replace a missing or stripped screw to stop rattles and keep assemblies firmly in place.

• Fastens appliance parts such as panels, brackets, trim, or hardware
• Replaces a missing, loose, or stripped fastener
• Helps eliminate vibration noise and wobbly components
• Restores proper alignment and secure mounting

• Disconnect power; for water- or gas-connected appliances, shut off supply lines before service
• Match length/thread to the original location; start threads by hand to avoid cross-threading
• Use the correct driver bit to prevent stripping the head
• Tighten snugly; do not overtighten into plastic or thin sheet metal

The Screw is an OEM part for Whirlpool ranges. This screw is used to secure various components within the range, ensuring that parts such as panels, control boards, or burners are firmly attached and remain stable during operation.

Causes of a bad range screw can include regular wear and tear, over-tightening, or exposure to high heat.

Symptoms of a bad range screw include:

• Loose or unstable components within the range
• Difficulty in securing parts during maintenance or repair
• Visible damage or wear on the screw
• Parts becoming misaligned or rattling during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This genuine replacement screw restores secure mounting of panels and components on Whirlpool appliances, helping stop loose or rattling parts and maintain proper fit. Small but essential fastener for routine repairs. What it does:

• Secures panels, trim, brackets or small components to appliance frames
• Replaces missing, damaged, or stripped screws that cause loose or misaligned parts
• Helps stop vibration noise and restore proper panel alignment
• Provides the correct thread and length for the original mounting location

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or part damage
• Turn off and unplug the appliance before accessing internal components
• Keep removed fasteners organized so you return them to the original locations
