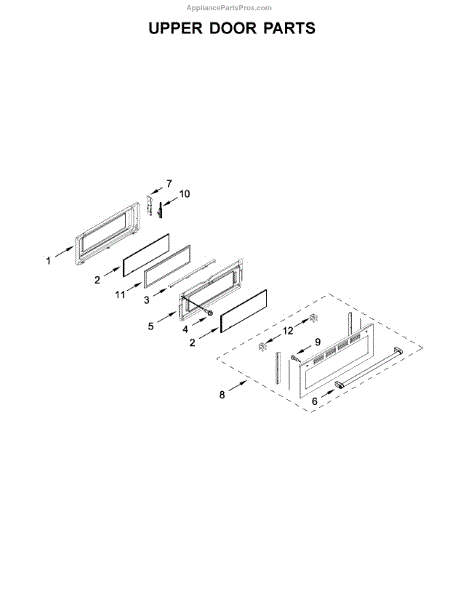

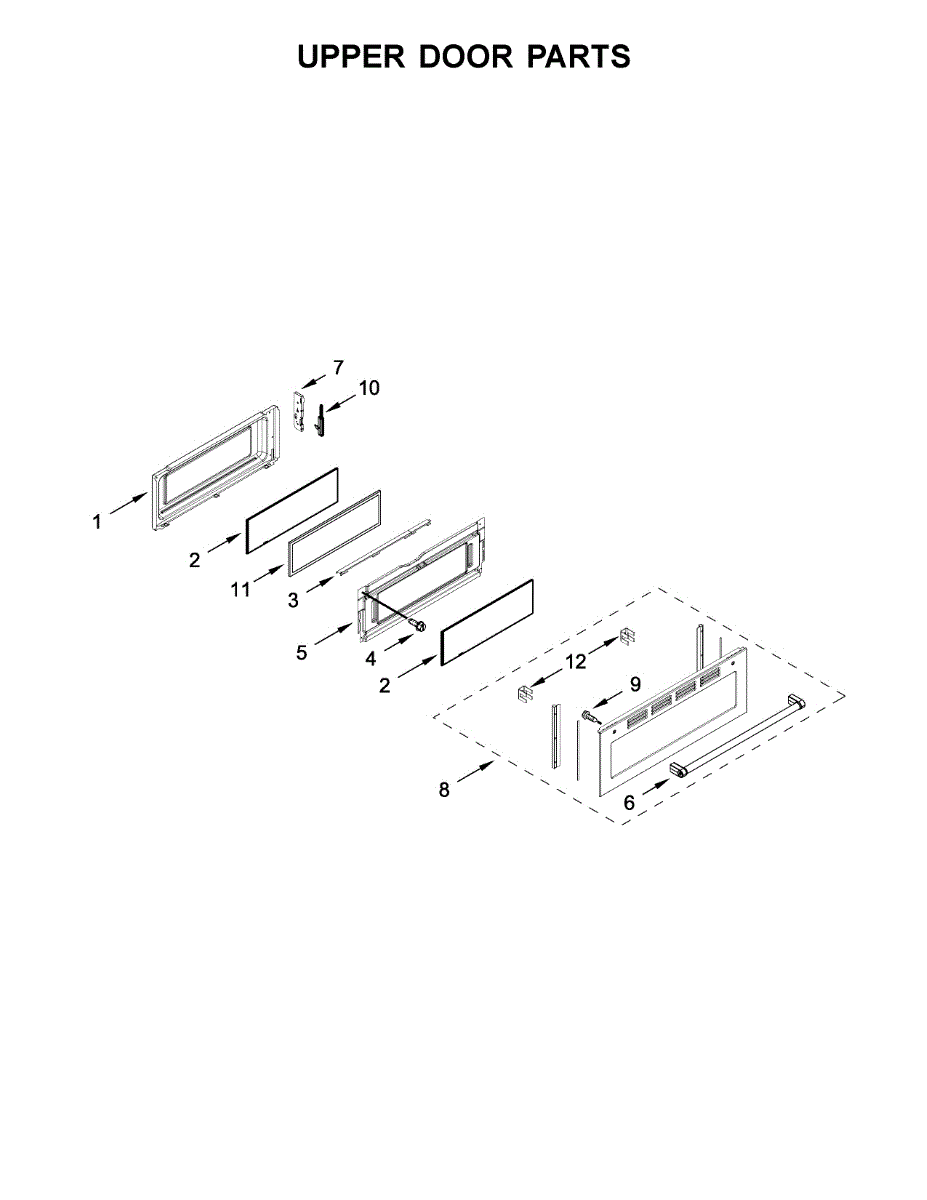

Parts for Kitchenaid YKFED500EBS0: Upper Door Parts

This is the inner door panel liner that sits on the inside of the oven door, helping to insulate and protect the door's internal components from heat. It works together with the outer door panel and insulation to maintain proper oven temperatures. Replace this liner if it is warped, cracked, or damaged, which can lead to heat escaping from the oven door or uneven cooking temperatures.

Replacement door glass for ovens and ranges. Restores clear viewing window when original is cracked, shattered, or damaged. Fits between door panels.

Upper door frame glass for oven door window. Replaces cracked, fogged, or broken upper glass section. Restores clear viewing of cooking progress.

This 8-32 x 3/8 screw secures panels, brackets, and internal components in your appliance so everything stays aligned and tight. Replace worn or missing hardware to restore a solid, rattle-free fit and safe operation.

• Fastens components to frames, brackets, or panels
• Helps reduce vibration, rattling, and misalignment
• Replaces missing, stripped, or corroded screws
• Correct 8-32 machine thread for tapped holes in compatible assemblies

• Disconnect power before servicing; shut off gas or water if applicable
• Start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping

Secures internal components in your range to prevent shifting and rattles. Replace this mounting clip if cracked, broken, or missing to restore fit.

Replace your worn, cracked, or broken range oven door handle. This exterior handle attaches to the front of your oven door for easy opening and closing.

Mounts to the range frame to anchor the door hinge arm. Replace if cracked, bent, or worn to restore proper door alignment and smooth operation.

Fastens panels, brackets, trim, and hardware in your oven or range. Replace missing, stripped, or damaged screws to eliminate rattles and secure components.

Replacement oven door hinge for ranges. Restores smooth door operation when the original is worn, broken, or damaged. Installs on left or right side.

Replacement oven door hinge for electric and gas ranges. Restores smooth door operation when original hinge is worn, broken, or causing sagging doors.

If your oven loses heat or runs longer than normal, this door insulation restores the thermal seal. Moderately easy repair for most DIYers.

Mounting spacer for electric and gas ranges. Positions and supports adjacent components to maintain proper alignment. Replace if cracked, broken, or missing.
