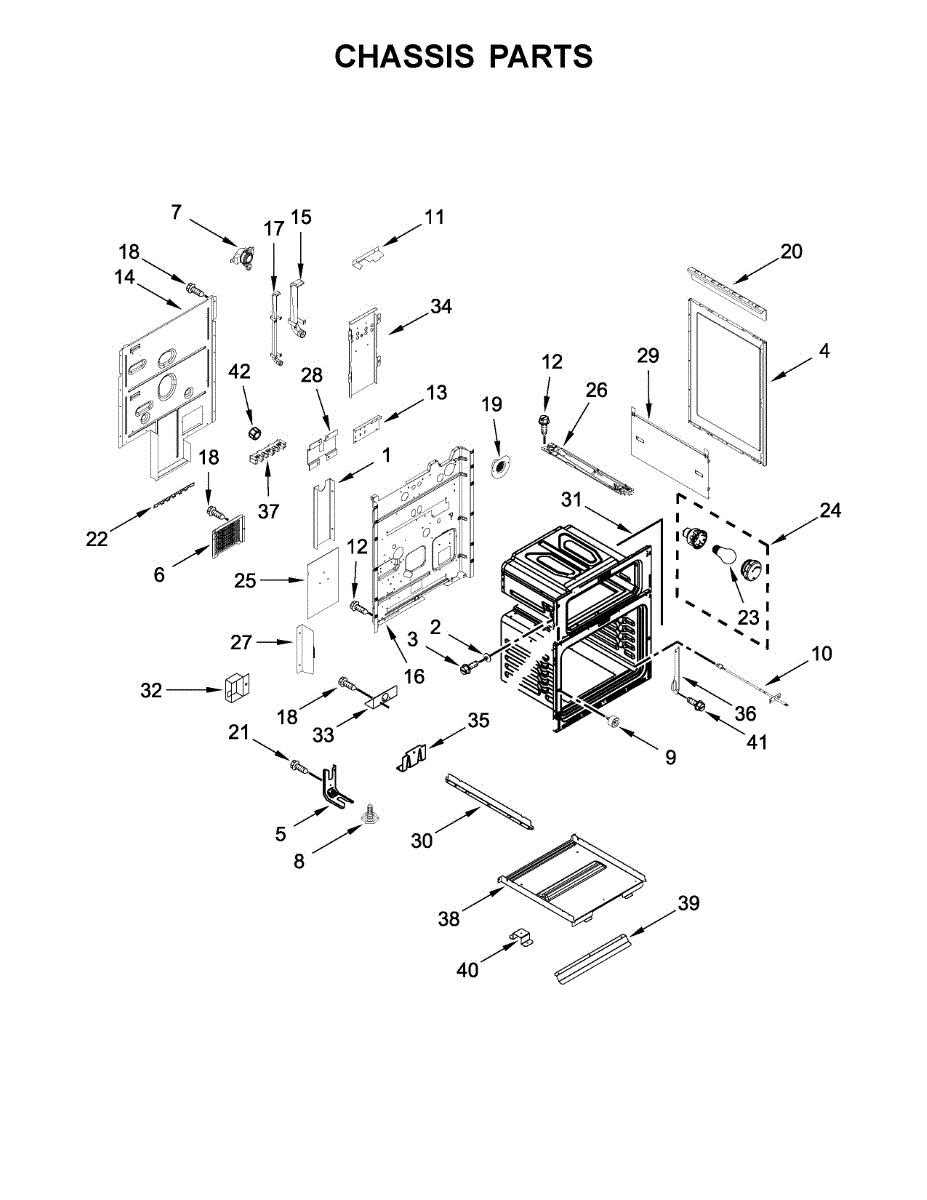

Parts for Kitchenaid YKFED500EBS0: Chassis Parts

A small replacement spacer that positions and supports a side panel, helping maintain proper panel alignment and gap for safe, quiet operation. Restores the correct spacing when the original spacer is damaged or missing. What it does:

• Keeps the side panel aligned and properly spaced from the cabinet
• Prevents rubbing, vibration noise, and panel misalignment
• Helps maintain consistent clearances for adjacent components
• Useful when a broken, cracked or missing spacer causes loose or uneven panels

• One replacement spacer for the side panel

• Disconnect power to the appliance before beginning any repairs
• Access typically requires removing the side panel or adjacent trim; keep track of fasteners
• Handle panels carefully to avoid scratching or denting during reassembly

For screws order: WP7101P485-60.

A hi-limit safety switch that stops heating when temperatures get too high, protecting the appliance from overheating and helping prevent damage. Designed to replace a failed thermal cutoff to restore safe temperature control. What it does:

• Opens the heating circuit when internal temperature exceeds the safe limit to prevent overheating
• Commonly replaces a failed or intermittently opening thermal limit control
• Helps stop burners or heating elements from running unchecked when a thermostat fails
• Addresses symptoms like no heat, intermittent heating, or safety trip shutdowns

• Disconnect power before accessing heating components and wiring
• Verify the part matches the appliance diagram and wiring orientation before installation
• If corrosion or other damage is present on connectors or terminals, replace or repair per OEM guidance

The Leveling Leg is an OEM replacement part for Whirlpool ranges. These adjustable legs help balance and stabilize the range.

Causes of a bad leveling leg commonly involve wear over time, thread or weld failures from supporting heavy loads, as well as damage due to impact or drops during installation.

Symptoms of a faulty leveling leg include:

• Instability such as rocking motions felt while cooking
• Uneven heating
• Doors that do not close properly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This small replacement bumper cushions contact points to reduce noise, prevent wear, and help doors or panels close more quietly and sit flush. Use it to restore proper cushioning where an original bumper is worn or missing. What it does:

• Absorbs shock and prevents metal-to-metal contact that can cause noise or chipping
• Helps doors, panels, or components close more softly and remain properly seated
• Reduces vibration transferred to surrounding parts for quieter operation
• Restores protective spacing to prevent rubbing and premature wear

• Disconnect power to the appliance before servicing and follow the manufacturer's safety instructions
• Typically installs at the contact point; remove the old bumper and press or place the replacement into position
• If the bumper uses adhesive or a fastener, use the same method indicated by the OEM for secure fitment

This oven temperature sensor monitors heat inside the oven and sends that signal to the control to regulate the heating elements. Replacing a faulty sensor restores accurate preheat and steadier baking performance. What it does:

• Continuously measures actual oven-cavity temperature and reports it to the control
• Lets the control board cycle bake and broil elements to maintain the set temperature
• Common symptoms of failure: won't reach set temperature, runs too hot or too cold, extended preheat, or sensor-related error codes on the display
• If the sensor reads open/shorted, many controls will disable heat as a safety

• 1 oven temperature sensor

• Disconnect power at the breaker; allow the oven to cool completely
• Sensor is typically mounted to the rear oven wall; remove mounting screws and gently pull the sensor forward to access the connector (some models require rear-panel access)
• Disconnect the 2-wire plug carefully to avoid losing the connector into the insulation
• Route wiring as original, seat the connector fully, secure the sensor, restore power, and test operation

This rear cover replaces the dryer's rear panel to protect internal components and restore the unit's enclosure. It helps keep wiring and components shielded while maintaining proper airflow and appliance appearance. What it does:

• Protects internal wiring, terminals and components from dust and damage
• Provides the enclosure for the dryer's rear area and vent connection points
• Reduces rattling and drafts caused by a cracked or missing rear panel
• Helps prevent excess lint accumulation around rear components

• Disconnect power (and gas supply if applicable) before servicing
• Remove the dryer from the wall and lay it on a protected surface to access the rear
• Typical installation requires removing screws and aligning the cover before fastening; use basic hand tools
• Watch for sharp edges and take care not to pinch wiring or hoses during reassembly

This lower vent tube routes exhaust/condensate away from the appliance to maintain proper airflow and drainage. Replacing a damaged vent tube restores correct venting and helps reduce leaks, noises, or performance issues tied to poor airflow. What it does:

• Channels air or condensate from the appliance's venting area to the lower exhaust/drain connection
• Prevents leaks and directs moisture away from internal components
• Helps restore proper airflow and reduces unusual sounds caused by damaged or collapsed tubing
• Used when visible cracks, holes, blockages, or detachment are found in the existing lower vent

• One lower vent tube (single piece as shown)

• Disconnect power and water (if applicable) before starting any repair
• Inspect mating seals and clamps; replace if worn to ensure a secure, leak-free fit
• Handle gently to avoid kinking; route the tube the same way as the original for correct airflow/drainage

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This support bracket secures and stabilizes internal appliance components, helping keep panels and assemblies aligned for reliable operation and reduced vibration. Use when a mount or internal bracket is broken, bent, or missing. What it does

• Provides a secure mounting point for internal panels and assemblies
• Keeps components aligned to prevent rubbing, noise, or misfeeds
• Restores proper fit where original bracket is damaged or corroded
• Helps maintain cabinet stability during normal operation

• One support bracket as shown

• Refer to your appliance's service manual or exploded diagram for correct location and fastener type
• Inspect surrounding hardware and replace any stripped screws or damaged anchors
• Disconnect power (or gas and power for gas appliances) before starting repairs

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Light Socket Assembly is an OEM part for Whirlpool ranges and wall ovens. This part houses the oven light bulb, providing the necessary electrical connections to illuminate the oven's interior. It ensures that you can monitor the cooking process without opening the oven door, thereby maintaining a consistent temperature and energy efficiency.

Causes of damage to the light socket assembly often include excessive heat, electrical surges, or physical damage during cleaning or maintenance.

A malfunctioning light socket assembly can lead to several issues, including:

• The inability to turn the oven light on
• Flickering or inconsistent lighting caused by loose connections or damage to the socket
• Complete failure of the light feature, due to wear and tear or electrical faults

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The door lock motor and switch assembly is an OEM replacement part for Whirlpool electric and gas ranges. It contains the motor that controls the locking of the oven door along with the switch mechanism that detects when the door is properly shut.

Causes of a bad assembly can include failure of electronic components over time, faulty wiring connections, or damage to moving parts that inhibit proper locking functions.

Symptoms include:

• The door not fully locking or unlocking during use
• Failure to detect that the door is closed
• Inability to operate oven controls or start cooking cycles
• Potential safety issues if the door does not lock securely

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore brand ranges.

This oven door gasket creates a tight seal around the oven door to help keep heat and moisture inside for more even baking and cooking. It replaces a worn or torn seal to reduce heat loss and improve oven performance. What it does:

• Seals the oven door to prevent heat and smoke from leaking during operation
• Helps maintain consistent oven temperatures for more even cooking and baking
• Reduces energy loss and prevents exterior surfaces from getting excessively hot
• Addresses symptoms like visible gaps, burned or brittle rubber, smoke escaping, or longer cook times

• Disconnect power to electric ovens or shut off gas supply and pilot for gas ovens before installing
• Allow the oven to cool completely before starting work to avoid burns
• Remove the oven door or open it per your model's service instructions to access the gasket channel; replace gasket by seating it evenly around the door frame
• Inspect the gasket channel for debris and clean before installing; do not use adhesives unless specified by the manufacturer

Oven door gasket forms the heat seal around the oven door opening to keep heat inside for even cooking and efficient operation. Replaces worn or torn seals to reduce heat loss and improve bake performance. What it does:

• Seals the oven cavity to maintain proper cooking temperature and improve efficiency.
• Helps prevent heat and smoke from escaping around the door.
• Commonly used to address long bake times, uneven cooking, or visible gaps/damage at the door edge.
• Flexible design fits into the door channel to restore a snug seal.

• Disconnect power (and gas supply, for gas ovens) and allow the appliance to fully cool before starting.
• Inspect the door channel and remove old gasket; some models require partial door removal.
• Press the new gasket into the channel evenly; ensure any retaining clips or tabs are fully seated.
• Wear gloves to protect hands from sharp edges and avoid using sharp tools that could damage the new gasket.

This wire cover is a protective sleeve that helps route and shield appliance wiring to reduce wear and prevent accidental contact. It restores a neater harness run and helps maintain safe electrical routing inside the appliance. What it does:

• Protects wires from abrasion and chafing against sharp edges or moving parts
• Helps prevent exposed conductors that can cause shorts, arcing, or burning smells
• Keeps wiring bundled and routed to reduce pinching and stress on connectors
• Reduces risk of intermittent electrical issues caused by damaged insulation

• Disconnect power before beginning any service to avoid shock or injury
• Inspect surrounding wiring and connectors for damage; replace any frayed or exposed wires
• Slide cover over the wiring harness or route harness through sleeve as needed; secure with existing clips or approved fasteners

This terminal block is the insulated connection point where the appliance's incoming power ties into the internal wiring. Replacing a heat-damaged or loose block restores a safe, reliable electrical path and helps prevent arcing and intermittent power loss.

• Connects the supply conductors to the unit's internal wiring
• Provides insulated posts to securely fasten and distribute power
• Helps maintain tight, low-resistance connections
• Common failure signs: melted/discolored plastic, burned or loose terminals, arcing, scorching, or intermittent/no power after confirming the cord and breaker

• Disconnect power at the breaker or unplug the appliance; verify no voltage before servicing
• Photograph or label wire positions to ensure correct reassembly
• Inspect and replace any heat-damaged wire ends or lugs; use appropriate terminals
• Tighten connections securely and ensure wires are fully seated and strain-relieved as originally installed

Size: 8-18 x 3/8 inch.

Size: 10-32
