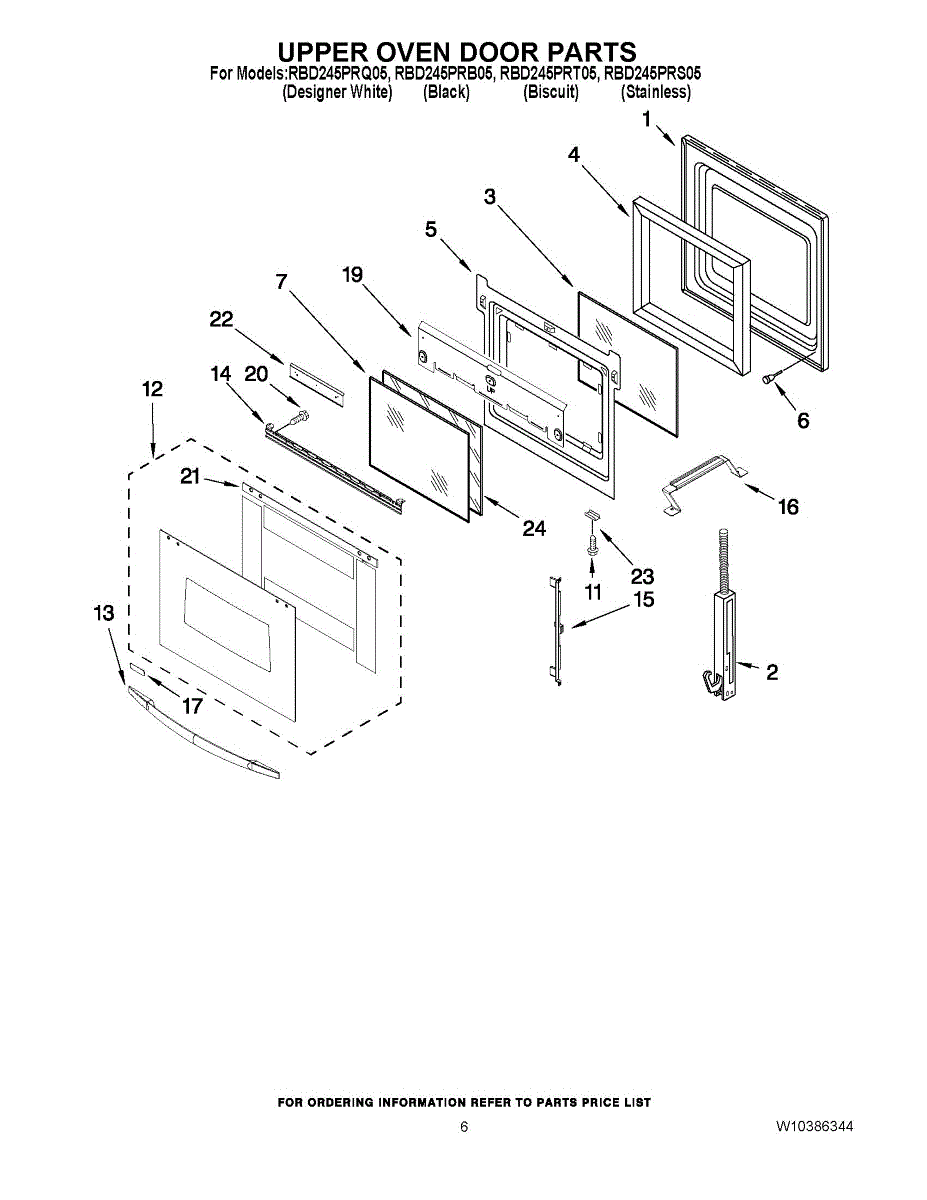

Parts for Whirlpool RBD245PRT05: 04 - Upper Oven Door Parts

This 24-inch door liner panel restores the interior surface of a single oven door, protecting internal insulation and providing a finished look. It replaces a cracked, dented or heat-damaged liner so the door seals and operates correctly. What it does

• Replaces the oven's interior door surface to protect insulation and inner components.
• Restores a smooth, secure surface that helps the door close evenly and maintain heat containment.
• Helps eliminate rattles, light leaks, or visible damage from a compromised liner.
• Matches factory fit and attachment points for a straightforward replacement.

• One 24-inch oven door liner panel

• Turn off power to the appliance before beginning any repair and allow the oven to cool fully.
• Remove the oven door per the manufacturer's instructions to access and replace the liner; retain all screws and mounting hardware.
• Handle edges carefully and support the liner to avoid bending or damage during installation.

This door hinge restores smooth pivoting and reliable alignment for a Whirlpool appliance door, helping the door close and seal properly. Replace a worn or damaged hinge to reduce sagging, rubbing, and uneven gaps. What it does:

• Provides a secure pivot point so the appliance door opens and closes smoothly.
• Restores proper door alignment to improve sealing and reduce cold loss or heat entry.
• Reduces rubbing, scraping noises, and binding caused by a bent or worn hinge.
• Commonly used when the door sags, sticks, or shows visible hinge damage.

• Disconnect power (and water, if applicable) and remove food from the appliance before starting.
• Support the door while removing/installing the hinge to prevent dropping or misalignment.
• Use the correct fasteners and tighten per OEM guidance; avoid over-tightening.

Right-side door hinge in white for refrigerator doors. Replaces a worn, cracked or damaged hinge to restore smooth opening and correct door alignment, helping reduce door sag and improve sealing. What it does:

• Provides the pivot and support for the refrigerator door on the right-hand side.
• Restores proper door alignment to help the gasket seal evenly and reduce cooling loss.
• Eliminates or reduces door sagging, binding, or noisy operation caused by a damaged hinge.
• Matches white exterior finish for a discreet repair.

• Unplug the appliance or disconnect power before beginning any repair.
• Support the door securely (use a helper or a prop) before removing the hinge to prevent injury or damage.
• Use the correct hand tools; align the door and tighten fasteners snugly but avoid overtightening.

The Inner Glass is an OEM replacement part for Whirlpool built-in and slide-in electric ranges. As an interior part, this tempered glass serves as the viewing window for the oven cavity below. It is precision cut by Whirlpool to fit seamlessly within the oven door frame assembly.

Causes of broken inner glass can include impact from heavy pots or pans dropped inside during loading/unloading. Thermal stresses from repeated heating cycles may develop fine hairline cracks as well.

Symptoms of a cracked inner glass involve:

• Visible lines or damaged areas that obstruct full viewing
• Potential safety hazards if glass fully separates from the doorframe
• Inability to efficiently view food inside without opening the door

Compatible with some KitchenAid and Jenn-Air built-in electric ranges too, replacing now prevents further door damage from glass shifting out of position over time.

This replacement oven insulation helps contain heat inside the oven cavity for more consistent cooking and protects surrounding panels from excessive heat. It restores the original thermal barrier when damaged or deteriorated. What it does:

• Replaces worn or torn oven cavity insulation that can allow heat to escape
• Helps maintain stable oven temperatures during baking and broiling
• Reduces heat transfer to exterior panels and nearby components
• Can address symptoms such as long preheat times, hot cabinet surfaces, or a noticeable draft of heat from the oven

• Disconnect power to the appliance and ensure the oven is completely cool before beginning.
• Wear gloves and eye protection; insulation fibers can irritate skin and lungs.
• Remove any retaining clips or fasteners and carefully position the new insulation without compressing it; reattach hardware as originally installed.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This rubber door bumper cushions and aligns the appliance door to prevent slamming and reduce vibration, helping doors close smoothly and protecting cabinet and door finishes from wear. What it does:

• Acts as a cushion between the door and cabinet, absorbing impact during closing
• Helps keep the door aligned and reduces rattling or vibration during use
• Prevents metal-to-metal contact that can cause chipping, scratching, or noise
• Commonly replaced when worn, flattened, cracked, or missing

• One rubber door bumper

• Remove power to the appliance before accessing the door area or hinges
• Usually presses into a hole or snaps into a mount on the door or cabinet; no special tools required for many models
• Inspect surrounding mounting boss for damage; replace if cracked or deformed

This is the inner oven door glass—the heat-resistant window pane on the inside of the door. Replacing a cracked or cloudy pane restores safe heat retention and a clear view of your food while it cooks.

• Forms the inner thermal barrier of the oven door to contain heat
• Provides the viewing window so you can monitor cooking
• Damage can lead to heat loss, longer preheat times, or a hotter-than-normal door exterior
• Visible cracks, shattering, or fogging/stains between panes are common signs this part may be needed

• Disconnect power and, if applicable, shut off gas; let the oven cool completely
• Removing the door from the hinges simplifies service; support it on a padded surface
• Wear cut-resistant gloves; handle glass by the edges and clean the frame before install
• Reassemble in original order and avoid overtightening retainers to prevent stress cracks

Screw for side trim.

Color: White

Color: Stainless

Color: Bisque

Color: Black

This inner door glass replaces the cracked, cloudy, or broken interior glass in the appliance door to restore visibility and help the door seal properly. It fits behind the outer door panel and provides the finished interior surface. What it does:

• Replaces damaged or shattered inner door glass so the door looks and functions correctly
• Restores clear viewing through the door when interior glass becomes fogged or scratched
• Helps maintain proper door fit by providing the correct inner surface for clips and seals
• Prevents loose glass fragments from falling into the appliance cavity

• One inner door glass

• Disconnect power (and gas, if applicable) before starting any repair
• Handle glass with care; wear cut-resistant gloves and eye protection
• Removal typically requires taking off the outer door panel and supporting the door—keep fasteners organized
• If clips, gaskets, or fasteners appear worn, replace them to ensure a secure fit
