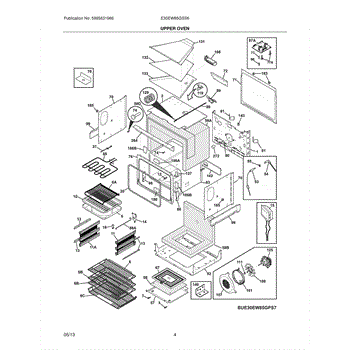

Parts for Frigidaire E30EW85GSS6: 05 - Upper Oven Parts

This broiler insert is the oven pan insert that sits under the broiler burner to catch drips and help direct heat for even browning. It restores a stable cooking surface and keeps the broiler area cleaner. What it does:

• Holds food and catches grease and drips during broiling to prevent mess and flare-ups
• Directs heat from the broiler for consistent browning and searing
• Replaces damaged, warped, or corroded inserts that cause uneven cooking
• Helps prevent food from falling into the burner area

• One broiler insert

• Disconnect power to the appliance and allow the oven to cool completely before servicing
• Remove oven racks and slide the old insert out; position the new insert so it seats securely in the broiler cavity
• Wear heat-resistant gloves when testing the broiler after installation and inspect for proper fit before use
• Do not modify the part; use only as designed for the oven broiler assembly

This replacement switch restores reliable control of a selected function by opening or closing an electrical circuit inside your appliance. When the original switch wears out, buttons may stop responding or features may not activate consistently.

• Opens/closes an electrical circuit when the button/actuator is engaged
• Routes power or sends a signal to the control or component
• Common symptoms: no response when pressed, intermittent operation, or function won't start
• May show signs of heat damage, loose terminals, or inconsistent "click" feel

• Disconnect power at the breaker before servicing
• Photograph or label wire positions to ensure correct transfer to the new switch
• Move wires one at a time; fully seat connectors on the correct terminals
• Reassemble, restore power, and test the function activated by the switch

The Temperature Sensor is an OEM part for Frigidaire ovens. It monitors and helps regulate the oven's internal temperature, ensuring consistent cooking results by accurately detecting temperature changes. This sensor is crucial for the oven's control system to maintain the desired cooking temperature.

Symptoms of a bad Temperature Sensor include:

• Inaccurate oven temperature readings,
• Oven not heating to the set temperature,
• Oven overheating,
• Frequent temperature fluctuations during use.

Causes of a sensor failure can include prolonged exposure to high temperatures, electrical surges, or a breakdown of the sensor's components due to normal wear and tear.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This control mounting hex nut secures the burner or oven control to the control panel, keeping the shaft stable so the knob turns smoothly and the switch stays properly aligned.

• Threads onto the control/infinite switch or thermostat bushing to fasten it to the panel
• Prevents the control from rotating or shifting when the knob is turned
• Replace if the original nut is missing, stripped, rounded, or corroded
• Common signs: loose or wobbly knob, switch spins in the panel, or misaligned knob indexing

• Disconnect power; for gas appliances, also shut off gas before servicing
• Pull off the knob and any trim; support the control body from behind the panel while removing/installing the nut
• Start the new nut by hand to avoid cross-threading; tighten snugly with the correct-size wrench—do not overtighten
• The control sits square in the panel and the knob operates smoothly before restoring power

This radiant surface element restores heat to a smooth-top cooking zone on glass-ceramic ranges. Replace a failed element to bring back consistent, controllable heat for everyday simmering, sautéing, and boiling.

• Provides radiant heat beneath the glass cooktop for one burner zone
• Typical symptoms: burner won't heat, heats only partially, or shows visible hot spots/burn marks
• Helps correct slow-to-heat or uneven cooking performance from a failed element
• Often tests open (no continuity) when the internal coil is burned out

• Disconnect power at the breaker before servicing; elements operate on high voltage
• Lift and support the glass cooktop carefully to avoid cracking the glass
• Note and transfer wires one at a time to the new element; match terminals precisely
• Ensure the element sits level in its brackets and that wires aren't pinched before reassembly

The Bake Element is an OEM component for Frigidaire wall ovens. It is an integrated heating coil that generates heat through electric resistance when powered. Located near the bottom of the oven cavity, the bake element facilitates heating for various cooking functions like baking, roasting, or warming. This element measures approximately 13 x 11 inches.

Symptoms of a bad bake element include:

• Oven failing to reach or maintain desired cooking temperatures
• Bake cycles taking excessively long periods of time
• Hot or cold spots developing inside oven cavities
• Error codes appearing related to upper heating issues

Causes can be cracks in ceramic sheathing allowing arcing, or mineral deposits coating coils over extended use impeding heat transfer.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This evaporator/fan motor circulates air inside the refrigerator/freezer compartment to maintain even cooling and proper frost control. Replacing a failed motor restores airflow for consistent temperatures and helps prevent compressor overwork. What it does:

• Spins the evaporator/fan blade to move cold air through the cabinet and freezer coils.
• Helps maintain uniform interior temperature and supports efficient cooling.
• Commonly linked to symptoms like weak or no airflow, unusual humming or grinding noises, and uneven cooling.
• Stops frost buildup on the evaporator by keeping air moving across the coils.

• Disconnect power before starting any repair to avoid electrical shock.
• Basic hand tools typically required; mounting hardware may be reused if undamaged.
• Handle the motor and wiring harness carefully to avoid damage to connectors or fan blade.

This electronic control board regulates the refrigerator's functions and user interface, restoring reliable operation when the original board fails. Replacing a faulty board can stop erratic behavior and restore normal temperature and display control. What it does:

• Manages compressor, fan, defrost and other timed cycles to maintain proper cooling
• Processes user inputs and controls the display/LEDs
• Can stop erratic cycling, unresponsive controls, or incorrect temperature behavior
• Helps resume normal operation when the original board is damaged by power surges or component failure

• Disconnect power to the appliance before starting any work
• Handle the board by the edges and avoid static discharge; use an anti-static wrist strap if available
• Confirm connectors match and seat fully; do not force plugs

This access panel cover secures and protects internal components behind an appliance opening, keeping parts safe from dust and preventing accidental contact. It restores the appliance's finished appearance and helps maintain proper airflow around covered areas. What it does:

• Shields wiring and components from dirt, dust and accidental contact
• Helps prevent small items from entering service areas
• Restores a clean, finished look to the appliance exterior or interior
• Supports safe airflow patterns when installed as intended

• One replacement cover

• Disconnect power before servicing; follow all safety guidelines for your appliance
• Typically secures with screws or clips—retain original fasteners or use OEM replacements
• Align cover to mounting points and fasten evenly to avoid gaps or stress

This replacement fan blade mounts to the appliance's fan motor to move air as designed. Installing a new blade restores proper airflow and helps reduce vibration or noise caused by bent, cracked, or worn fins. What it does

• Attaches to the fan motor shaft to move air through the cavity or across internal components
• Supports even air circulation or cooling performance, depending on model
• Helps resolve issues such as loud scraping/whirring, vibration/wobble, weak airflow, or visible blade damage

• One fan blade

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Access the fan assembly from the rear panel or inside the oven behind the fan cover (varies by model); wear gloves—edges can be sharp
• Note blade orientation/rotation and securely reinstall using the original fastener(s)
• Hand-spin the blade to ensure clearance and free movement before reassembly and testing

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

This thermal switch is a temperature-sensitive safety device used in many ranges and wall ovens. It opens or closes an electrical circuit at a set temperature to protect internal components and help maintain safe operation. What it does:

• Monitors temperature and opens/closes a circuit at a specified threshold
• Protects the appliance from overheat conditions
• Cuts power to heating circuits or controls a cooling/vent fan, depending on model
• Common symptoms of failure include: oven or certain functions won't run, unit shuts off mid-cycle, or operation returns only after cooling

• 1 thermal switch

• Disconnect power at the breaker before servicing
• Access location varies by model
• Move wires over one at a time to the new switch and secure it firmly to its mounting surface
• After replacement, verify proper airflow and cooling to prevent repeat overheating

This convection fan motor powers the fan that circulates heated air during convection cooking, helping your appliance maintain even temperatures and consistent results. Replacing a weak or noisy motor restores proper airflow and quieter operation.

• Drives the convection fan to move hot air throughout the cooking cavity
• Promotes even heat distribution for baking and roasting in Convection modes
• Activates when the control calls for convection airflow
• Common symptoms: fan not spinning, intermittent or slow operation, rattling or squealing noises, uneven cooking

• Disconnect power and allow the appliance to cool completely. Microwaves can retain dangerous high voltage even when unplugged.
• Access the motor behind the rear or interior fan cover per your model's design.
• Note wire positions; transfer the existing fan blade and any mounting hardware to the new motor if required.
• Ensure the fan spins freely before reassembly; restore power and test a Convection cycle.

This spacer positions and supports components to maintain proper alignment and clearance in the appliance. It prevents rubbing and ensures panels or parts sit correctly for reliable operation. What it does:

• Keeps panels, brackets or assemblies spaced correctly to prevent contact and wear
• Restores proper alignment to reduce vibration, noise or rubbing symptoms
• Maintains clearance for airflow or moving parts where specified
• Provides a stable mounting point for adjacent components

• One spacer

• Install in the location shown in the service diagram and secure with the original fasteners
• Disconnect power to the appliance before beginning service to avoid shock or injury
• If the original spacer shows damage or distortion, replace it to restore correct fit

This replacement mounting bracket secures internal components or panels to the appliance frame for proper alignment and stable operation. It restores a solid attachment point to reduce movement and prevent noise or part misalignment. What it does:

• Provides a secure mount for internal assemblies or trim panels.
• Keeps components aligned to prevent rubbing, rattling or vibration.
• Restores proper fit where a bent, broken or missing bracket caused loose parts.
• Helps maintain safe operation by keeping wiring and piping routed away from moving parts.

• One mounting bracket.

• Disconnect power to the appliance before beginning any repair.
• Basic hand tools commonly required; handle edges carefully to avoid cuts.
• Inspect surrounding fasteners and replaced parts; reuse original screws only if in good condition.

Specs: 8 x 0.750

This oven rack lubricant helps reduce binding and friction so oven racks slide smoothly for easier loading and repositioning. It's formulated for use on oven rack glides and rollers to restore consistent movement and reduce noise. What it does:

• Lubricates rack slides and rollers to improve rack movement and prevent sticking
• Helps quiet squeaks or grinding when moving oven racks
• Protects metal contact points from wear caused by friction
• Restores smooth operation after heavy use or buildup interferes with sliding

• Allow the oven to cool completely before applying lubricant
• Use a small amount on the glide surfaces or rollers only; avoid contact with oven racks' cooking surfaces or cookware
• Follow OEM instructions if available and test movement before heating the oven
• Wear disposable gloves and clean any excess from visible surfaces

This adhesive seal tape is a replacement sealing strip used to restore a tight seal on appliance doors and panels, helping reduce air leaks and improve temperature control. It's a simple repair for worn or damaged seal edges. What it does:

• Provides a flexible, adhesive sealing surface to close gaps between door/panel and cabinet
• Helps reduce air or moisture leakage that can cause temperature loss or inefficient operation
• Restores worn or deteriorated sealing surfaces without replacing the entire gasket
• Compatible with applications where a narrow adhesive sealing strip is required

• Clean and dry the mounting surface thoroughly before applying for best adhesion
• Measure and trim the tape to fit; press firmly along the full length to ensure contact
• Allow adhesive to set per ambient conditions before closing the door or returning to service

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This appliance screw fastens panels, brackets, and other components inside the unit. Replace a missing, rusty, or stripped fastener to restore a secure fit and help prevent rattles, misalignment, or premature wear.

• Secures appliance components such as panels, brackets, and covers
• Restores proper fit when an original screw is missing or stripped
• Helps reduce vibration and noise from loose parts
• Common signs: loose or misaligned parts, rattling, or a missing screw

• Disconnect power before servicing
• Match the new screw to the original for size and thread before installing
• Hand-start threads to avoid cross-threading; do not overtighten
• Reuse any original washers or clips if they were used with the old screw

This oven light bulb illuminates the interior of your range or wall oven. Replace a burned-out bulb to restore clear visibility while cooking, checking doneness through the window, and cleaning.

• Provides interior illumination when the oven light is activated
• Common fix for no oven light, dim or flickering light, or a failed bulb
• Helps you monitor food without opening the door

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the oven to cool completely to avoid burns
• Remove the lens/cover if present; replace the bulb per your model's socket; do not overtighten
• Restore power and test; if the light still doesn't work, inspect the socket and switch
